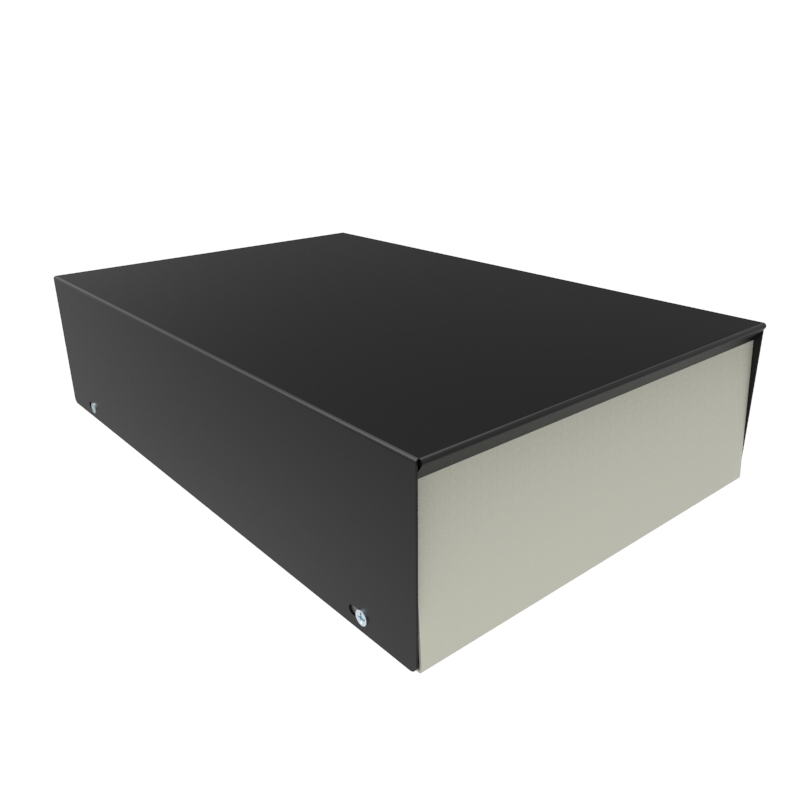

Hammond 1454W 12x8x3 in Wide Steel Instrument Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 12.00 in W x 8.00 in D x 3.00 in H (305 x 203 x 76 mm), largest 1454 footprint
- Drawing cover footprint 311.15 x 203.20 mm [12.250 x 8.000 in]
- Strong, economical 20 gauge steel
- Beige powder-coated panels with textured black covers
- Reversible case for a sloping or vertical front panel
- 6-32 nickel plated screws and self-adhesive rubber feet included
- RoHS and REACH compliant; factory modification available
The 1454W is the largest footprint in the 1454 Series ordering table: a 20 gauge steel instrument enclosure measuring 12.00 in wide by 8.00 in deep by 3.00 in high (305 x 203 x 76 mm). It gives integrators and OEM designers a broad, low case for larger circuit boards and busy front panels.
The enclosure is strong, economical 20 gauge steel with a rugged powder coat finish: beige panels and textured black covers, listed colour black. Reversing the case lets you set the front panel either sloping or vertical.
The drawing shows an overall cover footprint of 311.15 mm [12.250 in] by 203.20 mm [8.000 in] and a height of 76.20 mm [3.000 in]. The listed shipping weight is 0.5 lbs (0.23 kg), and it ships in a box.
6-32 Philips nickel plated screws and self-adhesive rubber feet come with the 1454W; replacements are 1421J6 (pack of 6 screws) and 1421T2 (pack of 24 feet). It can be factory modified with milling, drilling or printing, solid models are available in STEP or IGES, and it is RoHS and REACH compliant.
Ideal For
- Large low-profile instrument housings
- Enclosures for larger circuit boards
- Front-panel control consoles
- Factory-modified steel cases
Overview
| Type | Instrument Enclosure |
| Series | 1454 Series Instrument Enclosure |
| Part Number | 1454W |
| Long Description | enclosure - 20 gauge steel instrument case |
| Short Description | UTILITY CASE 12.0 X 8.0 X 3.0 |
Dimensions
| Depth | 8.00 in (203 mm) |
| Width | 12.00 in (305 mm) |
| Height | 3.00 in (76 mm) |
| Size (L X W X H) | 12 in x 8 in x 3 in (305 mm x 203 mm x 76 mm) |
Identifiers
| UPC | 623980000442 |
| UNSPSC | 39121301 |
Customization
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
Packaging & Shipping
| Packaging Type | box |
| Shipping Weight | 0.5 lbs (0.23 kg) |
Construction & Finish
| Color | Black |
| Finish | Rugged powder coat: beige panels with textured black covers |
| Material | Steel |
| Steel Gauge | 20 gauge |
| Front Panel Orientation | Sloping or vertical front panel by reversing the case |
Hardware & Accessories
| Included Hardware | 6-32 Philips nickel plated screws and self-adhesive rubber feet |
| Replacement Screws | 1421J6 (pack of 6x #6-32 Philips head screws) |
| Replacement Rubber Feet | 1421T2 (pack of 24x black rubber feet) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the 1454W?▾
12.00 in wide x 8.00 in deep x 3.00 in high (305 mm x 203 mm x 76 mm); the drawing shows a cover footprint of 311.15 mm [12.250 in] x 203.20 mm [8.000 in].
Is this the largest case in the 1454 series?▾
Yes. At 12.00 in x 8.00 in it has the largest width and depth in the series ordering table.
Can the front panel be vertical or sloping?▾
Yes. The 1454 series offers a choice of sloping or vertical front panels by reversing the case.
What hardware comes with it?▾
6-32 Philips nickel plated screws and self-adhesive rubber feet are included. Replacement screws are part 1421J6 (pack of 6) and replacement rubber feet are part 1421T2 (pack of 24).
Can the 1454W be drilled or printed at the factory?▾
Yes, enclosures can be factory modified (milling, drilling, printing etc.).
What is the shipping weight?▾
The listed shipping weight is 0.5 lbs (0.23 kg).
