Hammond 1454R 5x5x7.5 in Tall Steel Instrument Enclosure
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Tall 5.00 in W x 5.00 in D x 7.50 in H (127 x 127 x 191 mm)
- 20 ga. steel case (gray per drawing) with textured black 20 ga. steel cover
- Sloping or vertical front panel by reversing the case
- 4 supplied #6-32 x 1/4" self-tap screws and self-adhesive rubber feet
- Replacement screws 1421J6 and rubber feet 1421T2
- Factory milling, drilling and printing available
- RoHS and REACH compliant

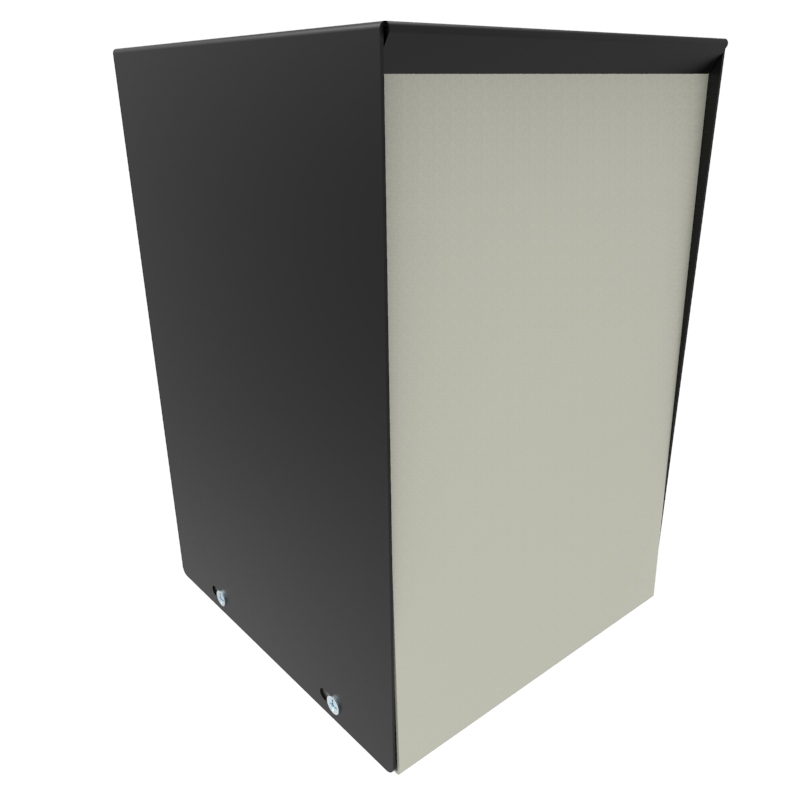

The 1454R is the tallest enclosure in the 1454 Series listing, a 20 gauge steel instrument case measuring 5.00 in wide by 5.00 in deep by 7.50 in high (127 x 127 x 191 mm). The square footprint and extra height suit upright instruments and compact control units.
According to the part drawing, the case is 20 ga. steel in gray and the cover is 20 ga. steel with a textured black finish; the listed colour is black and the series specifies a rugged powder coat. As with the rest of the series, reversing the case gives a choice of a sloping or vertical front panel.
The drawing shows an overall cover footprint of 127.00 mm [5.000 in] by 133.35 mm [5.250 in] and a height of 190.50 mm [7.500 in]. Shipping weight is 2.31 lbs (1.05 kg).
The drawing lists 4 supplied #6-32 x 1/4 in self-tap screws and self-adhesive rubber feet. Replacement screws are 1421J6 and replacement feet are 1421T2. The 1454R can be factory modified by milling, drilling or printing, solid models are available in STEP or IGES, and it is RoHS and REACH compliant. It ships in a box.
Ideal For
- Tall upright instrument housings
- Upright control enclosures
- Compact control units
- Custom factory-modified steel cases
Overview
| Type | Instrument Enclosure |
| Series | 1454 Series Instrument Enclosure |
| Part Number | 1454R |
| Long Description | enclosure - 20 gauge steel instrument case |
| Short Description | UTILITY CASE 5.0X5.00X7.5 |
Dimensions
| Depth | 5.00 in (127 mm) |
| Width | 5.00 in (127 mm) |
| Height | 7.50 in (191 mm) |
| Size (L X W X H) | 5 in x 5 in x 7.5 in (127 mm x 127 mm x 191 mm) |
Identifiers
| UPC | 623980505008 |
| UNSPSC | 39121301 |
Customization
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
Packaging & Shipping
| Packaging Type | box |
| Shipping Weight | 2.31 lbs (1.05 kg) |
Construction & Finish
| Color | Black |
| Finish | Rugged powder coat: beige panels with textured black covers |
| Material | Steel |
| Steel Gauge | 20 gauge |
| Cover (Drawing) | 20 ga. Steel, Textured black finish |
| Case Material (Drawing) | 20 ga. Steel, Gray color |
| Front Panel Orientation | Sloping or vertical front panel by reversing the case |
Hardware & Accessories
| Feet (Drawing) | Self-Adhesive rubber |
| Screws (Drawing) | 4 Supplied (#6-32 X 1/4" self tap) |
| Included Hardware | 6-32 Philips nickel plated screws and self-adhesive rubber feet |
| Replacement Screws | 1421J6 (pack of 6x #6-32 Philips head screws) |
| Replacement Rubber Feet | 1421T2 (pack of 24x black rubber feet) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How tall is the 1454R?▾
It is 7.50 in (191 mm) high, with a 5.00 in x 5.00 in (127 x 127 mm) footprint. The drawing shows 190.50 mm [7.500 in] height and a cover footprint of 127.00 mm x 133.35 mm [5.250 in].
What is the 1454R made of?▾
The drawing specifies a 20 ga. steel case in gray and a 20 ga. steel cover with a textured black finish.
What hardware is supplied?▾
4 screws (#6-32 X 1/4" self tap) and self-adhesive rubber feet, per the drawing.
Can the front panel be vertical or sloping?▾
Yes. The 1454 series offers a choice of sloping or vertical front panels by reversing the case.
Can it be modified at the factory?▾
Yes, enclosures can be factory modified with milling, drilling, printing etc.
What is its shipping weight?▾
2.31 lbs (1.05 kg).
