Hammond 1454P 10x5x3.5 in Steel Instrument Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 10.00 in W x 5.00 in D x 3.50 in H (254 x 127 x 89 mm)
- 20 gauge steel case, strong and economical
- Beige powder-coated panels with textured black covers
- Reversible case gives a sloping or vertical front panel
- Screws and self-adhesive rubber feet included
- Factory milling, drilling and printing; STEP/IGES models
- RoHS and REACH compliant

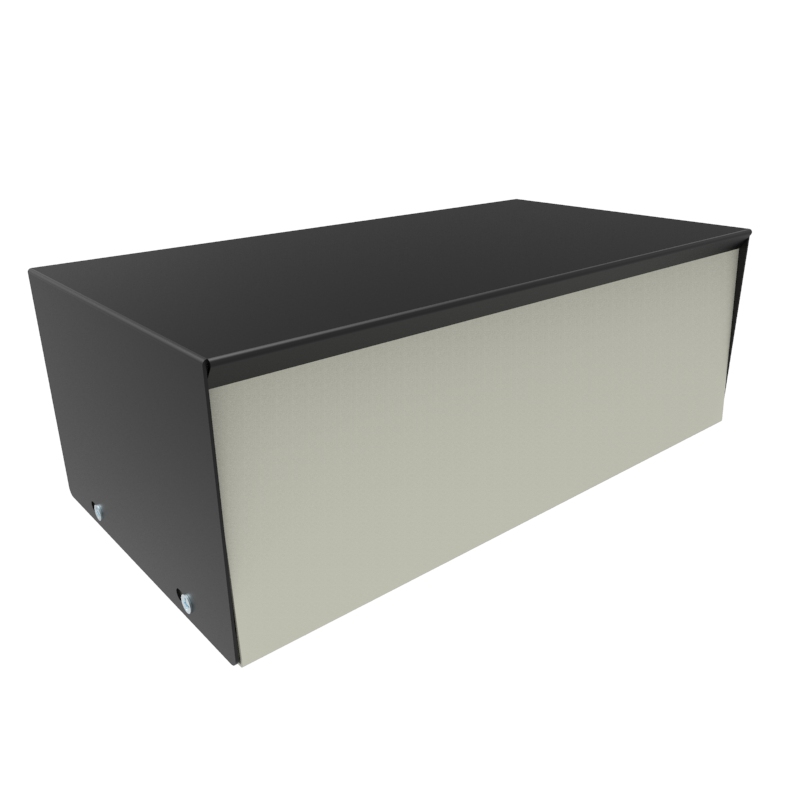

The 1454P is a 10.00 in wide, 5.00 in deep and 3.50 in high (254 x 127 x 89 mm) steel instrument enclosure in the 1454 Series. The long, relatively shallow format suits front-panel-heavy designs such as instrument and control enclosures for OEMs and system integrators.
It is made of strong, economical 20 gauge steel with a rugged powder coat finish of beige panels and textured black covers; the listed colour is black. Reversing the case turns the front panel from sloping to vertical, letting you pick the viewing angle that suits the installation.
The drawing gives an overall cover footprint of 254.00 mm [10.000 in] by 133.35 mm [5.250 in] and a height of 88.90 mm [3.500 in]; the cover extends slightly beyond the 5 in nominal depth. Shipping weight is 1.76 lbs (0.80 kg).
Included are 6-32 Philips nickel plated screws and self-adhesive rubber feet; replacements are 1421J6 (pack of 6 screws) and 1421T2 (pack of 24 feet). The 1454P can be factory modified with milling, drilling or printing, STEP and IGES solid models are available, and it is RoHS and REACH compliant. Packaging is a box.
Ideal For
- Wide front-panel instrument housings
- Front-panel control boxes
- OEM electronics enclosures
- Factory-modified steel cases
Overview
| Type | Instrument Enclosure |
| Series | 1454 Series Instrument Enclosure |
| Part Number | 1454P |
| Long Description | enclosure - 20 gauge steel instrument case |
| Short Description | UTILITY CASE 10.0X5.0X3.5 |
Dimensions
| Depth | 5.00 in (127 mm) |
| Width | 10.00 in (254 mm) |
| Height | 3.50 in (89 mm) |
| Size (L X W X H) | 10 in x 5 in x 3.5 in (254 mm x 127 mm x 89 mm) |
Identifiers
| UPC | 623980504902 |
| UNSPSC | 39121301 |
Customization
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
Packaging & Shipping
| Packaging Type | box |
| Shipping Weight | 1.76 lbs (0.80 kg) |
Construction & Finish
| Color | Black |
| Finish | Rugged powder coat: beige panels with textured black covers |
| Material | Steel |
| Steel Gauge | 20 gauge |
| Front Panel Orientation | Sloping or vertical front panel by reversing the case |
Hardware & Accessories
| Included Hardware | 6-32 Philips nickel plated screws and self-adhesive rubber feet |
| Replacement Screws | 1421J6 (pack of 6x #6-32 Philips head screws) |
| Replacement Rubber Feet | 1421T2 (pack of 24x black rubber feet) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the 1454P dimensions?▾
10.00 in wide x 5.00 in deep x 3.50 in high (254 mm x 127 mm x 89 mm). The drawing shows an overall cover footprint of 254.00 mm [10.000 in] x 133.35 mm [5.250 in].
What material and finish does it use?▾
20 gauge steel with a rugged powder coat finish: beige panels with textured black covers.
Can the front panel be vertical or sloping?▾
Yes. The 1454 series offers a choice of sloping or vertical front panels by reversing the case.
What hardware comes with it?▾
6-32 Philips nickel plated screws and self-adhesive rubber feet are included. Replacement screws are part 1421J6 (pack of 6) and replacement rubber feet are part 1421T2 (pack of 24).
Are CAD models available?▾
Yes. Solid models of this enclosure are available in STEP or IGES.
How much does the 1454P weigh?▾
The shipping weight is 1.76 lbs (0.80 kg).
