Hammond 1444-18 13.5x5x2 Inch Natural Aluminum Chassis
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 13.5 in x 5 in x 2 in (343 mm x 127 mm x 51 mm) natural aluminum chassis
- Spot welded, heavy duty construction in 0.040 in aluminum
- Drawing inner box 340.87 mm [13.42 in] long, 124.97 mm [4.92 in] wide, 48.77 mm [1.92 in] high
- Matching bottom plate 1434-18, punched with 4 holes of 3/16 in diameter, sold separately
- Cover screws 1421J6: package of six 6-32 x 1/4 in self-tapping screws, sold separately
- Factory modification (milling, drilling, printing) available; STEP or IGES models
- RoHS and REACH compliant; ships in shrink wrap
The 1444-18 is a long, slim 13.5 in x 5 in x 2 in (343 mm x 127 mm x 51 mm) aluminum chassis. The 13.5 in length gives a wide front panel for rows of controls or connectors while keeping the depth to 5 in, useful for audio, tube and instrument builds.
It is a spot welded, heavy duty chassis in 0.040 in aluminum (0.04 in / 1 mm in the ordering table) with a natural aluminum finish. Per the series photo notes, the protective covering on the aluminum makes a convenient layout surface.
The drawing specifies inner box dimensions of 340.87 mm [13.42 in] long, 124.97 mm [4.92 in] wide and 48.77 mm [1.92 in] high. Shipping weight is 0.57 lbs (0.26 kg).
The underside is open; add natural-finish bottom plate 1434-18 (0.040 in aluminum, punched with 4 holes of 3/16 in diameter) and plated cover screws 1421J6 (package of six 6-32 x 1/4 in self-tapping screws), both sold separately. The 1451 series steel chassis covers are not compatible with the 1444-18.
This part is REACH and RoHS compliant and packaged in shrink wrap. Enclosures can be factory modified by milling, drilling or printing, and solid models are available in STEP or IGES.
Ideal For
- Tube amplifier and audio equipment builds
- Vintage and classic-style electronics projects
- Chassis-mounted electronics prototypes
- Custom enclosures with factory milling, drilling or printing
Overview
| Type | Chassis (Aluminum) |
| Series | 1444 Series Aluminum Chassis |
| Description | chassis - aluminum |
| Short Description | ALUMINUM CHASSIS 13.5X5X2 |
Dimensions
| Depth | 5.00 in (127 mm) |
| Width | 13.50 in (343 mm) |
| Height | 2.00 in (51 mm) |
| Inner Box Width | 124.97 mm [4.92 in] |
| Inner Box Height | 48.77 mm [1.92 in] |
| Inner Box Length | 340.87 mm [13.42 in] |
| Size (L X W X H) | 13.5 in x 5 in x 2 in (343 mm x 127 mm x 51 mm) |
Identifiers
| UPC | 623980498409 |
| UNSPSC | 39121301 |
| Part Number | 1444-18 |
Customization
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. (contact factory for quotes) |
Included Items
| Components | All components sold separately |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.57 lbs (0.26 kg) |
Construction & Finish
| Color | Natural Aluminum |
| Material | Aluminum |
| Construction | Spot welded - heavy duty construction |
| Aluminum Thickness | 0.04 in (1 mm) |
| Chassis Material (Drawing) | Made of 0.040" Aluminum |
Accessories & Compatibility
| Not Compatible With | 1451 series steel chassis covers |
| Bottom Plate (Sold Separately) | 1434-18 (Natural Finish; made of 0.040" Aluminum; punched with 4 holes, 3/16 in diameter) |
| Cover Screws (Sold Separately) | 1421J6 Plated Cover Screws (Pkg 6) [6-32 x 1/4" Self-Tapping Screws] |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the 1444-18?▾
The 1444-18 measures 13.5 in x 5 in x 2 in (343 mm x 127 mm x 51 mm). The drawing gives inner box 340.87 mm [13.42 in] long, 124.97 mm [4.92 in] wide, 48.77 mm [1.92 in] high.
Does the 1444-18 include a bottom plate?▾
No. The bottom plate is 1434-18 and is sold separately, along with 1421J6 cover screws (package of six 6-32 x 1/4 in self-tapping screws).
What aluminum thickness is used?▾
The ordering table lists 0.04 in (1 mm), and the drawing states the chassis is made of 0.040" Aluminum; the bottom plate is also made of 0.040" Aluminum.
Can I fit a 1451 series steel cover to the 1444-18?▾
No. The series notes state that the 1451 series steel chassis covers are not compatible with the 1444 Series.
Can the chassis be modified at the factory?▾
Yes. The drawing notes that enclosures can be factory modified (milling, drilling, printing etc.), and solid models are available in STEP or IGES.
Related Products
Save 52%1444-1783 — chassis - aluminum
Hammond Manufacturing · 1444-1783
Save 52%1444-20 — chassis - aluminum
Hammond Manufacturing · 1444-20
Save 52%1444-1773 — chassis - aluminum
Hammond Manufacturing · 1444-1773
Save 52%1444-22 — chassis - aluminum
Hammond Manufacturing · 1444-22

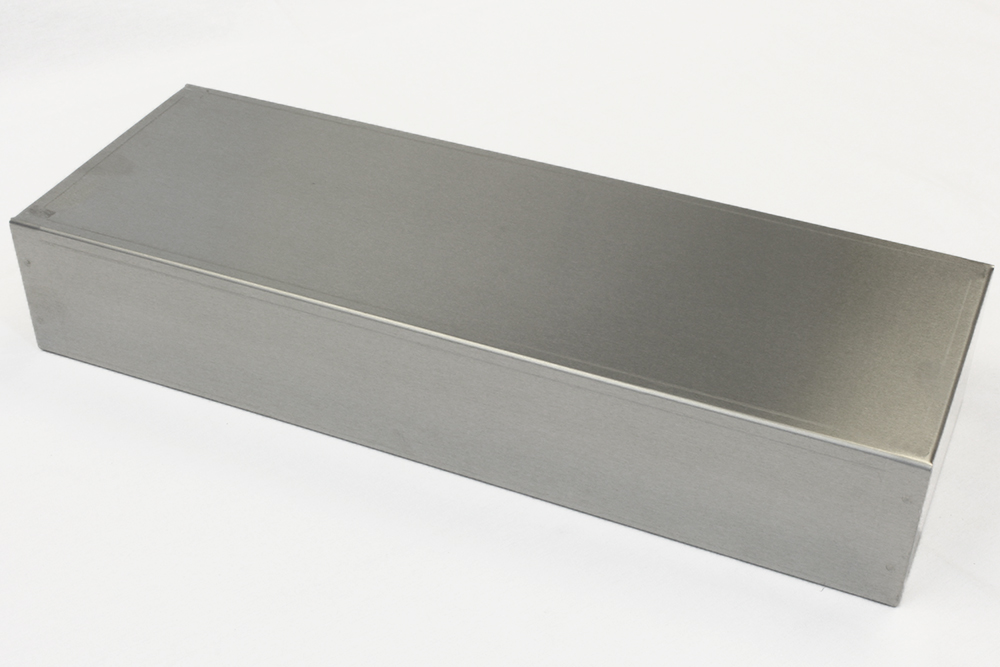

Save 52%1444-1763 — chassis - aluminum
