Hammond 1427D7 7 Inch Centers Chrome Steel Tilt Bail with Feet
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 7.00 in (178 mm) mounting centers
- 2.50 in (64 mm) height
- Chrome plated steel bail
- Four black plastic feet supplied
- Mounting hardware included
- Overall size 7.83 x 0.2 x 2.5 in (199 x 5 x 64 mm)
- RoHS and REACH compliant
The 1427D7 is the mid-size model in the 1427 general purpose small tilt bail series, with 7.00 in (178 mm) mounting centers. Mounted to a case, the bail serves as a tilt stand and carrying handle, which suits builders of benchtop instruments, test fixtures and small electronic equipment.

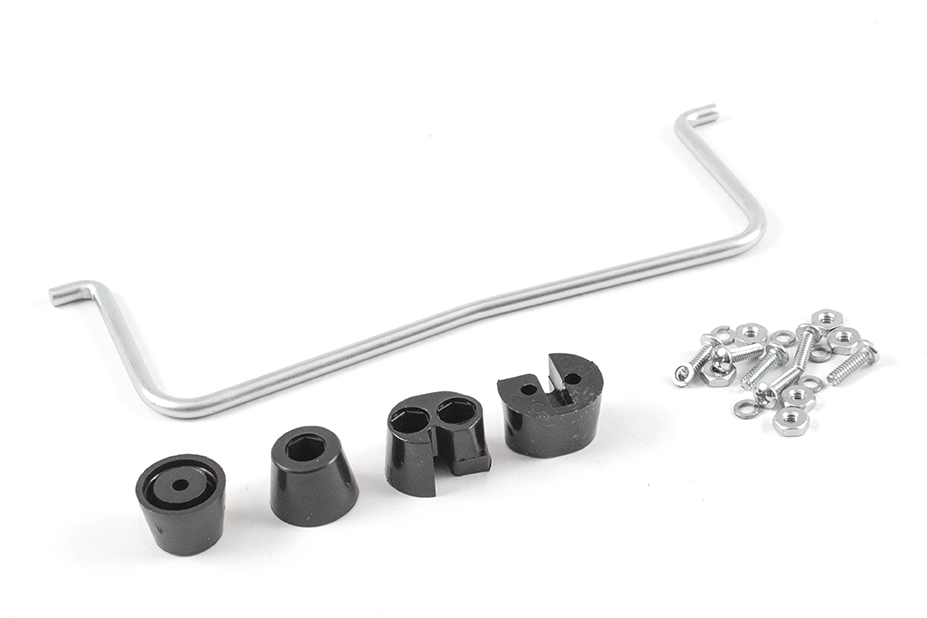

Construction is a chrome plated steel bail supplied with four black plastic feet and mounting hardware. The part drawing shows a right front foot, a left front foot and back feet, with the bail fitted to the front feet; the box shown in the drawing is not included.
- Mounting centers: 7.00 in (178 mm)
- Height: 2.50 in (64 mm)
- Size (L x W x H): 7.83 in x 0.2 in x 2.5 in (199 mm x 5 mm x 64 mm)
- Drawing overall length: 198.80 mm [7.827 in]
The 1427D7 is RoHS and REACH compliant and is packed in a bag, with a shipping weight of 0.24 lbs (0.11 kg). If your case needs a narrower or wider span, the series also includes 5.50 in and 10.00 in mounting center versions at the same 2.50 in height.
Ideal For
- Tilt stand for benchtop instrument cases
- Carry handle for small electronic equipment
- Adding feet and a bail to test fixtures
- General purpose small bail applications
Overview
| Series | 1427 Tilt Bail (General Purpose Small Bails) |
| Description | Bail - chrome plated steel w/ plastic feet and hardware, 7" mounting centers |
| Product Type | Tilt Bail (Handle) |
| Short Description | BAIL 7.0" |
Dimensions
| Height | 2.50 in (64 mm) |
| Height (Drawing) | 63.57 mm [2.503 in] |
| Mounting Centers | 7.00 in (178 mm) |
| Size (L X W X H) | 7.83 in x 0.2 in x 2.5 in (199 mm x 5 mm x 64 mm) |
| Bail Width (Drawing) | 5.00 mm [0.197 in] |
| Overall Length (Drawing) | 198.80 mm [7.827 in] |
| Mounting Centers (Drawing) | 177.80 mm [7.000 in] |
| Foot Hole Diameter (Drawing) | 4.00 mm [0.157 in] |
Identifiers
| UPC | 623980492209 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | Bag |
| Shipping Weight | 0.24 lbs (0.11 kg) |
Construction & Finish
| Feet | Four black plastic feet |
| Finish | Chrome plated |
| Included | Plastic feet and mounting hardware (enclosure not included) |
| Material | Steel |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What mounting center spacing does the 1427D7 have?▾
7.00 in (178 mm).
How long is the bail overall?▾
The listed size is 7.83 in x 0.2 in x 2.5 in (199 mm x 5 mm x 64 mm); the drawing shows an overall length of 198.80 mm [7.827 in].
Are feet and hardware included?▾
Yes, four black plastic feet and mounting hardware are included. The enclosure is not.
What is it made from?▾
Chrome plated steel.
What does it weigh?▾
Shipping weight is 0.24 lbs (0.11 kg).
