Hammond 1427D5 5.5 Inch Centers Chrome Steel Tilt Bail with Feet
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 5.50 in (140 mm) mounting centers
- 2.50 in (64 mm) height
- Chrome plated steel bail
- Four black plastic feet included
- Mounting hardware included
- Overall size 6.33 x 0.2 x 2.5 in (161 x 5 x 64 mm)
- RoHS and REACH compliant
The 1427D5 is a general purpose small tilt bail with 5.50 in (140 mm) mounting centers. Fitted to a small case, it acts as a carrying handle and tilt stand, making it useful to electronics hobbyists, test-equipment builders and OEM designers who want an instrument to sit angled on a bench.

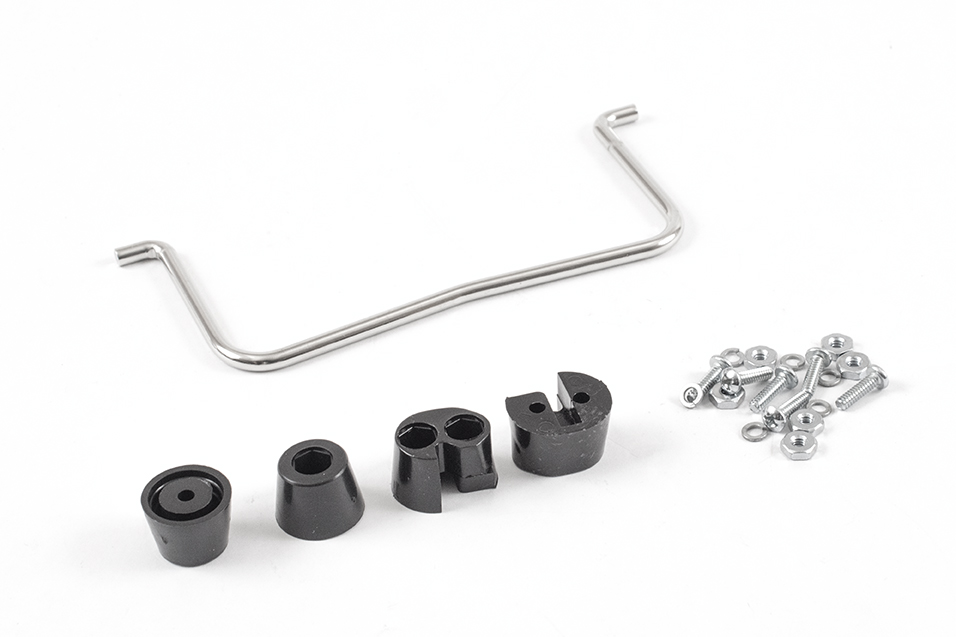

The bail is chrome plated steel and comes with four black plastic feet and the mounting hardware. The drawing shows the feet as a right front foot, a left front foot and back feet, with the bail assembled onto the front feet. The enclosure itself is not included.
- Mounting centers: 5.50 in (140 mm)
- Height: 2.50 in (64 mm)
- Size (L x W x H): 6.33 in x 0.2 in x 2.5 in (161 mm x 5 mm x 64 mm)
- Drawing overall length: 160.70 mm [6.327 in]
The 1427D5 is RoHS and REACH compliant and ships in a bag with a shipping weight of 0.24 lbs (0.11 kg). It is the smallest of three bail sizes in the series, alongside 7.00 in and 10.00 in mounting centers.
Because the four black plastic feet come in the kit, the bail and feet install together as one assembly, so there is no need to source separate feet for the case. With a bail width of 5.00 mm [0.197 in] per the drawing, the 1427D5 keeps a slim profile.
Ideal For
- Tilt stand and carry handle for small instrument cases
- Angling benchtop electronics enclosures
- Adding feet and a bail to small project boxes
- General purpose small bail applications
Overview
| Series | 1427 Tilt Bail (General Purpose Small Bails) |
| Description | Bail - chrome plated steel w/ plastic feet and hardware, 5.5" mounting centers |
| Product Type | Tilt Bail (Handle) |
| Short Description | BAIL 5.5" |
Dimensions
| Height | 2.50 in (64 mm) |
| Height (Drawing) | 63.47 mm [2.499 in] |
| Mounting Centers | 5.50 in (140 mm) |
| Size (L X W X H) | 6.33 in x 0.2 in x 2.5 in (161 mm x 5 mm x 64 mm) |
| Bail Width (Drawing) | 5.00 mm [0.197 in] |
| Overall Length (Drawing) | 160.70 mm [6.327 in] |
| Mounting Centers (Drawing) | 139.70 mm [5.500 in] |
| Foot Hole Diameter (Drawing) | 4.00 mm [0.157 in] |
Identifiers
| UPC | 623980492100 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | Bag |
| Shipping Weight | 0.24 lbs (0.11 kg) |
Construction & Finish
| Feet | Four black plastic feet |
| Finish | Chrome plated |
| Included | Plastic feet and mounting hardware (enclosure not included) |
| Material | Steel |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the mounting centers of the 1427D5?▾
5.50 in (140 mm).
How tall is the bail?▾
The height is 2.50 in (64 mm).
What comes with it?▾
The chrome plated steel bail, four black plastic feet and mounting hardware. The enclosure is not included.
What other sizes are in the series?▾
The 1427 tilt bail series also offers 7.00 in and 10.00 in mounting centers, all at 2.50 in height.
Is it RoHS compliant?▾
Yes, it is RoHS and REACH compliant.
