Hammond 1427BAILKIT2 16.6 in Chassis Tilt Bail Kit with Aluminum Handle
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Complete tilt bail kit for full-width RM_U19* enclosures
- Fits 16.60 in (422 mm) chassis width
- Black polycarbonate sides with black anodized aluminum handle, pre-cut
- Rotates and locks in 30° increments; 12 detent positions
- Use as a tilt bail or carrying handle
- Includes mounting hardware, instructions and drilling template
- Requires drilling four mounting holes; not for RMC series
The 1427BAILKIT2 is a complete chassis tilt bail kit designed for full-width RM_U series enclosures. It is listed for use with a chassis width of 16.60 in (422 mm) and chassis part numbers RM_U19*, and serves as either a tilt bail or a carrying handle on those enclosures.

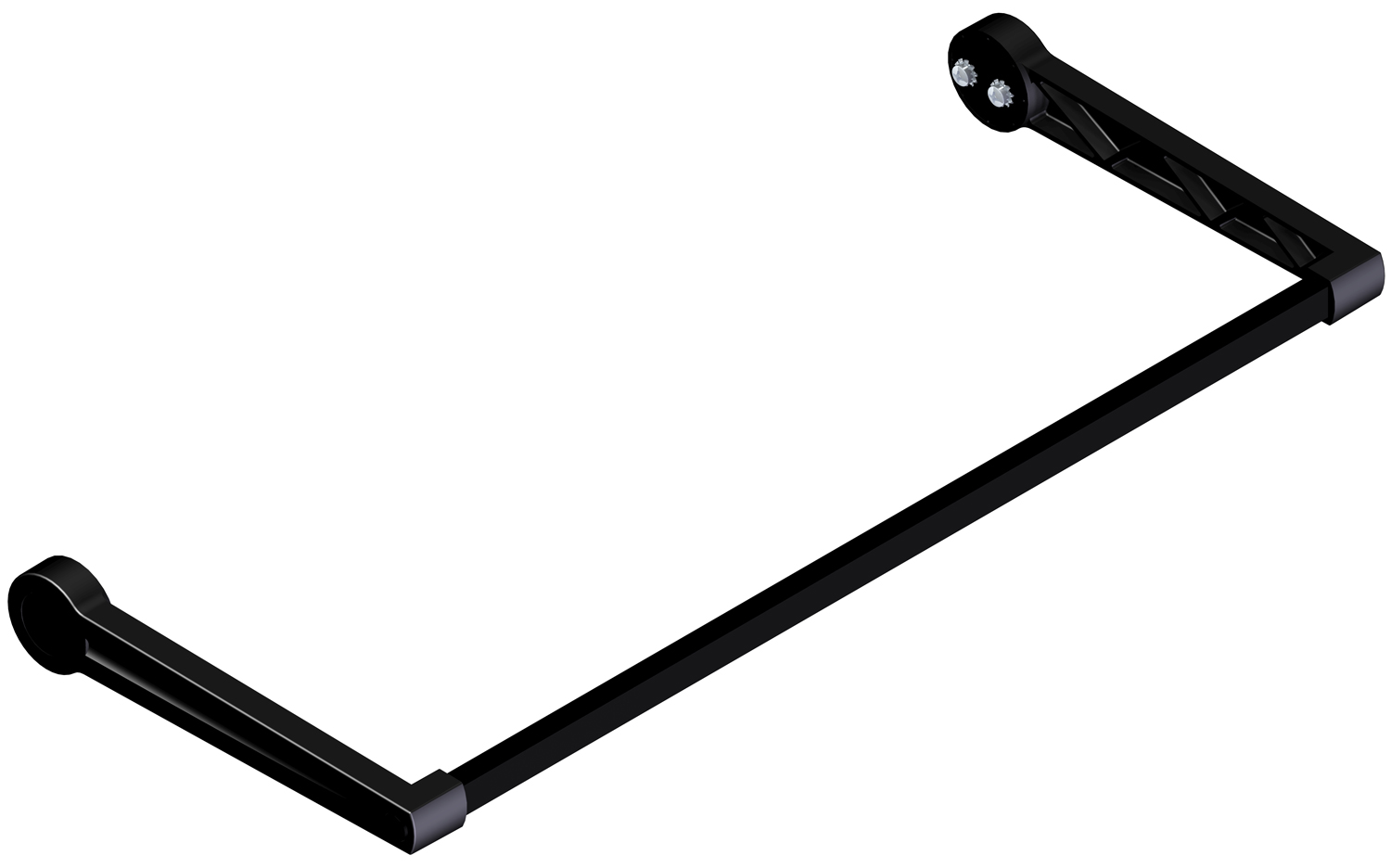

The kit combines two black polycarbonate bail sides with a straight handle of extruded aluminum that is black anodized and pre-cut to fit. The drawing shows the bail rotating and locking in 30° increments, and the series lists 12 detent positions. Drawing dimensions include 424.18 mm [16.700 in] and 452.12 mm [17.800 in] across the assembly, a 162.77 mm [6.408 in] bail side, and a 23.62 mm [0.930 in] diameter.
Kit contents shown on the drawing (enclosure not included):
- Bails - Black Polycarbonate (2x)
- Handle - Black Anodized Aluminum Extrusion
- 2 - #8 x 3/4" AB Type Screws and 2 - Black Cap Covers
- 4 - M3 X 10 Screws and 4 - #4 Locktooth Washer
The series states that kits include all mounting hardware, instructions and a drilling template, and that installation requires drilling four mounting holes into the sides of the enclosure. The bail is not designed to be compatible with the RMC series. The 1427BAILKIT2 is RoHS compliant and REACH compliant, ships in a bag, and weighs 0.62 lbs (0.28 kg) to ship.
Ideal For
- Tilt bail for full-width RM_U19* rackmount enclosures
- Carrying handle for RM_U19* enclosures
- Adding a tilt bail to 16.60 in wide RM chassis
Mounting
| Included | All mounting hardware, instructions, and drilling template |
| Rotation | Rotates & locks in 30° increments |
| Installation | Requires drilling four mounting holes into the sides of the enclosure |
| Detent Positions | 12 |
| Kit Contents (Drawing) | Bails - Black Polycarbonate (2x); Handle - Black Anodized Aluminum Extrusion; 2 - #8 x 3/4" AB Type Screws; 2 - Black Cap Covers; 4 - M3 X 10 Screws; 4 - #4 Locktooth Washer |
Overview
| Series | 1427BAILKIT Series (Chassis Tilt Bail) |
| Kit Type | Complete kit |
| Description | Tilt bail designed for full-width RM_U series enclosures |
| Product Type | Tilt bail, stand |
| Short Description | TILT BAILS W/ EXT FOR RM ENCL |
| Compatibility Note | Not designed to be compatible with the RMC series of rackmount enclosures |
| Use With Chassis Width | 16.60 in (422 mm) |
| Use With Chassis Part No. | RM_U19* |
Dimensions
| Radius (Drawing) | R18.73 mm [0.738 in] |
| Diameter (Drawing) | 23.62 mm [0.930 in] |
| Bail Side Length (Drawing) | 162.77 mm [6.408 in] |
| Assembly Dimensions (Drawing) | 424.18 mm [16.700 in]; 452.12 mm [17.800 in] |
Identifiers
| UPC | 623980612041 |
| UNSPSC | 43201602 |
| Part Number | 1427BAILKIT2 |
Packaging & Shipping
| Packaging Type | Bag |
| Shipping Weight | 0.62 lbs (0.28 kg) |
Construction & Finish
| Color | Black |
| Handle | Extruded aluminum, black anodized, pre-cut |
| Material | Polycarbonate & Aluminum |
| Side Sections | Molded from tough black polycarbonate |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures does the 1427BAILKIT2 fit?▾
It is designed for full-width RM_U series enclosures, part numbers RM_U19*, with a chassis width of 16.60 in (422 mm). It is not designed for the RMC series.
Is the handle included?▾
Yes. The kit includes two black polycarbonate bail sides and a black anodized aluminum extrusion handle, pre-cut to fit.
What does installation involve?▾
Drilling four mounting holes into the sides of the enclosure. Mounting hardware, instructions and a drilling template are included.
How many tilt positions does it have?▾
It rotates and locks in 30° increments, with 12 detent positions.
Is the enclosure included?▾
No, the drawing notes that the enclosure is not included.
