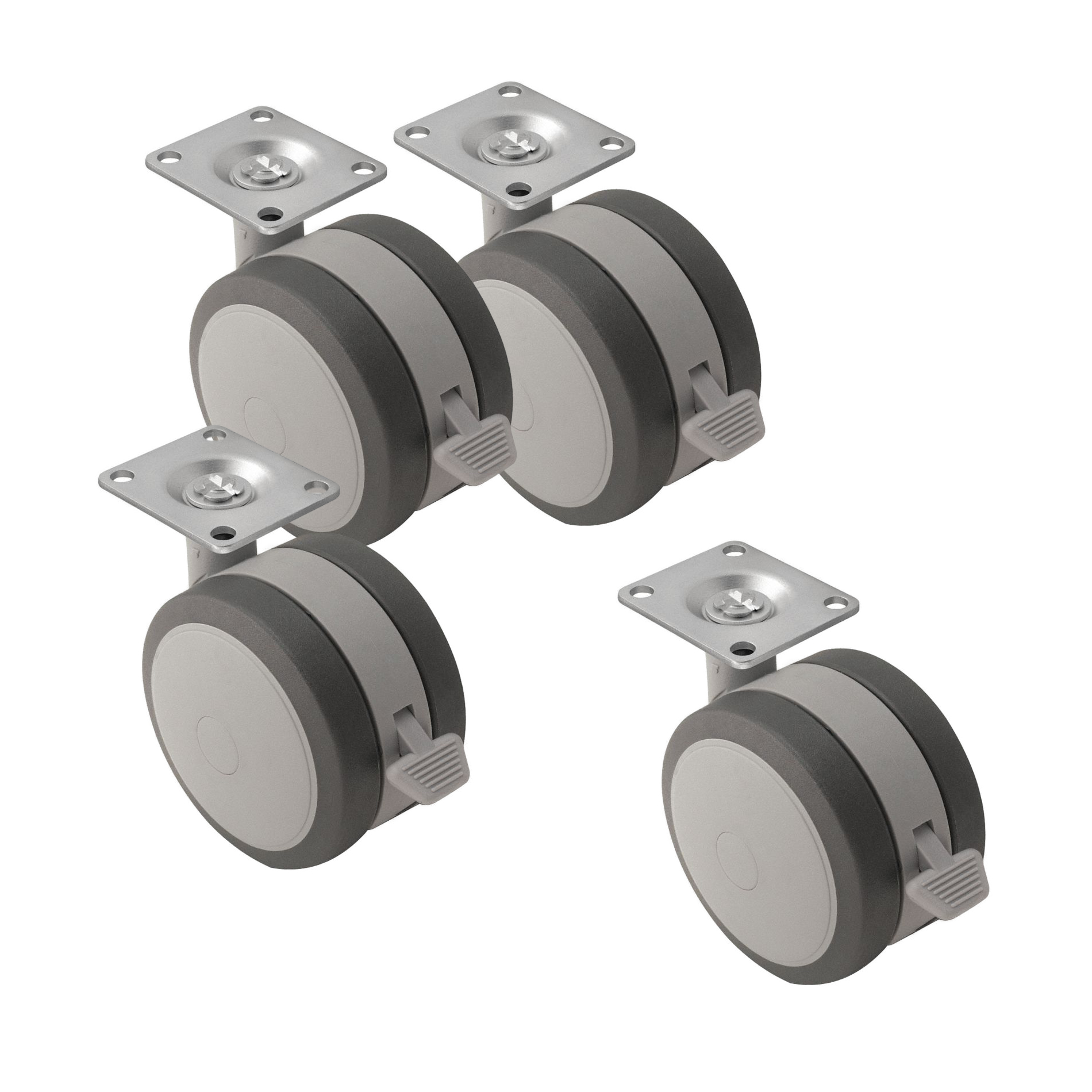

Hammond 1425BLSOFT 660 lb Soft Grip Twin-Wheel Cabinet Caster Set

The 1425BLSOFT is a set of four light-duty soft grip casters designed to mobilize equipment cabinets, server cabinets and open frame racks. It is intended for IT, AV, facilities and OEM users who need to roll enclosures into position on finished floors without marking them, making it well suited to medical, office and institutional environments.

Each caster uses a twin-wheel design that reduces the effort needed to swivel, improving maneuverability in tight aisles and doorways. The thermoplastic elastomer wheel treads are quiet and non-marking, providing floor protection during moves. All four casters in the 1425BLSOFT set include a pedal lock so the cabinet can be held in place once positioned.

Wheel diameter is 2.95 in (75 mm), and the casters add 3.50 in (89 mm) to the overall height of the cabinet — a dimension worth checking against door heights and rack unit planning. The top plate hole mounting pattern measures 1.75 in (44 mm) wide by 3.00 in (76 mm) deep, with 0.34 in (9 mm) mounting holes, and the swivel radius is 3.19 in (81 mm). The finish is grey with a plated zinc top plate and stem, and mounting hardware is included.

Rated capacity is 660 lbs (299 kg) for the set, or 165 lbs each. The set is compatible with C2/C2RR equipment cabinets, C4/C4RR server cabinets, DNRRLDK 2-post open frame racks, SDC low-profile server cabinets, RCK knockdown equipment cabinets and RCSC knockdown server cabinets. The product is RoHS and REACH compliant, USMCA compliant and TAA compliant, with a shipping weight of 5.15 lbs (2.34 kg).
