Hammond 1425BH Heavy-Duty 3 in. Swivel Caster Set, 1,050 lb
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Set of four heavy-duty swivel casters with 1,050 lbs (476 kg) total weight capacity (270 lbs each)
- 3.00 in (76 mm) hard composition wheels on ball bearing swivels, 2.75 in (70 mm) swivel radius
- Non-locking design; no brakes included in this set
- Adds 3.81 in (97 mm) to overall cabinet height
- Mounting hardware included; 1.75 in (44 mm) x 3.00 in (76 mm) hole pattern
- Plated zinc finish
- Compatible with C2/C2RR, C4/C4RR, DNRRLDK, SDC, RCK, RCSC and REFK enclosures
- TAA compliant for GSA Schedule purchases; RoHS, REACH and USMCA compliant; made in North America

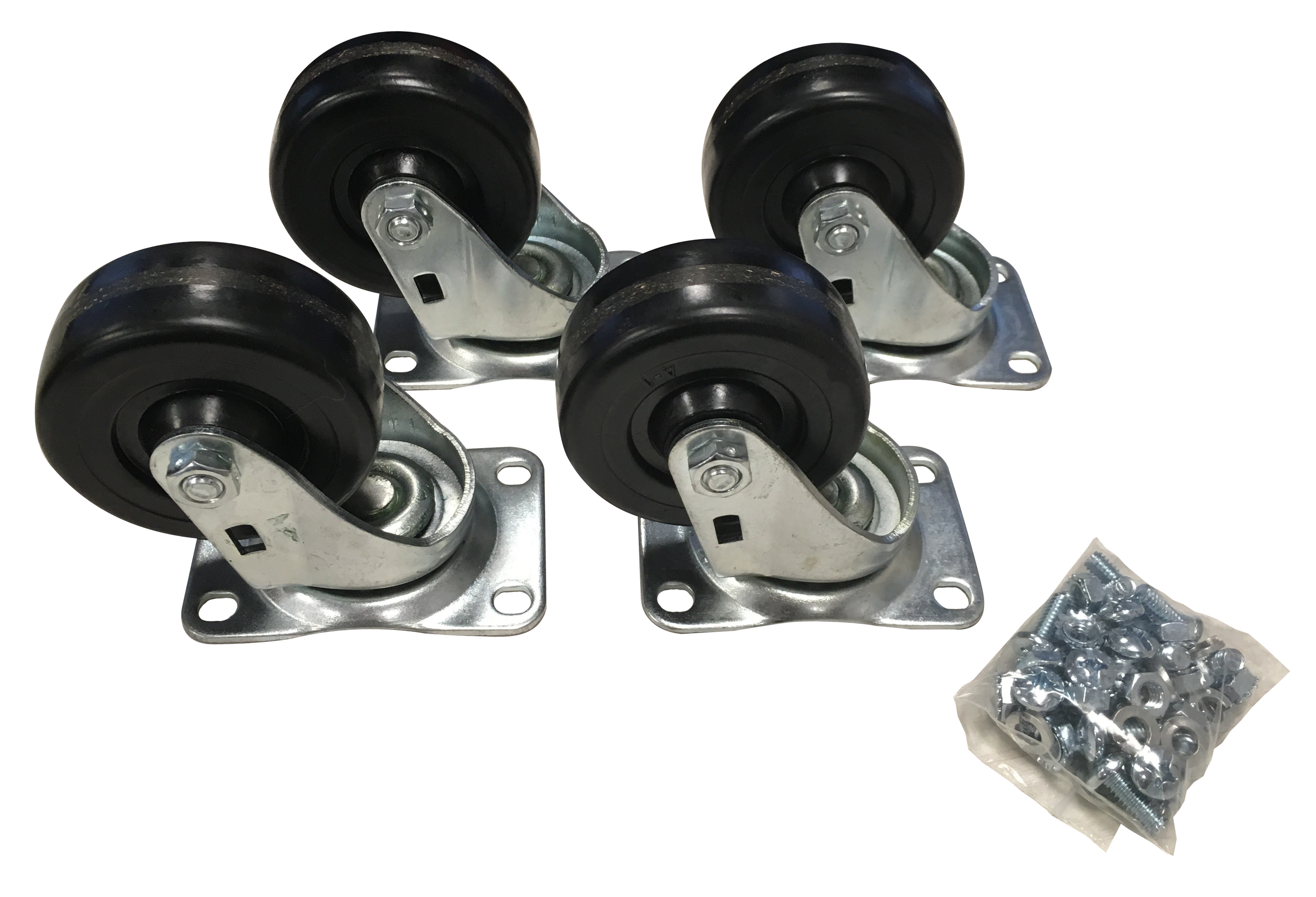

The 1425BH is a heavy-duty caster set for Hammond racks and cabinets, sold as a set of four swivel casters with mounting hardware included. It is intended for IT, AV and facilities teams who need to roll a loaded enclosure into position, and for OEM and integration shops that build up cabinets on the bench and move them to their final location.
Each caster uses a 3.00 in (76 mm) hard composition wheel on a ball bearing swivel, with a plated zinc finish on the mounting plate and hardware. The swivel radius is 2.75 in (70 mm), and the set adds 3.81 in (97 mm) of overall height to the cabinet, which should be accounted for when checking door swing, ramp clearance and overall rack height in the room.
Load rating is 270 lbs each, giving a 1,050 lbs (476 kg) weight capacity for the complete 1425BH set. All four casters are non-locking; no brakes are included in this set. The mounting hole pattern is 1.75 in (44 mm) wide by 3.00 in (76 mm) deep, with 0.39 in (10 mm) diameter holes.
Per the series compatibility data, 1425BH can be fitted to C2/C2RR, C4/C4RR, DNRRLDK, SDC, RCK, RCSC and REFK enclosures. The set is RoHS and REACH compliant, TAA compliant for GSA Schedule purchases, USMCA compliant, and manufactured in North America.
- Set of 4 heavy-duty swivel casters, hardware included
- 1,050 lbs (476 kg) total capacity, 270 lbs per caster
- Adds 3.81 in (97 mm) height to the cabinet
Ideal For
- Adding mobility to server and network cabinets
- Rolling loaded AV and equipment racks into position
- Cabinet build-up and staging in integration shops
- Retrofitting C2, C4, SDC, RCK, RCSC or REFK enclosures
- Heavy equipment enclosures up to 1,050 lbs total
Mounting
| Mounting Hole Diameter | 0.39 in (10 mm) |
| Hole Mounting Pattern Depth | 3.00 in (76 mm) |
| Hole Mounting Pattern Width | 1.75 in (44 mm) |
Overview
| Series | 1425B Series Rack and Cabinet Caster Set |
| Strength | Heavy Duty |
| Part Number | 1425BH |
| Swivel Type | Ball bearing, swivel wheels |
| Included Items | Mounting hardware included; sold as set of 4 |
| Long Description | 4 Casters, 1050 lb max. |
| Short Description | 4PK HEAVY DUTY CASTERS |
| Wheel Style / Material | Hard Composition |
| Quantity Included In Set | 4 |
| Quantity With Brakes Included | 0 (non-locking) |
Dimensions
| Swivel Radius | 2.75 in (70 mm) |
| Wheel Diameter | 3.00 in (76 mm) |
| Wheel Width (Drawing) | 1.25 in (32 mm) |
| Overall Height (Drawing) | 3.62 in (92 mm) |
| Mounting Plate Length (Drawing) | 2.94 in (75 mm) |
| Overall Height Added To Cabinet | 3.81 in (97 mm) |
Identifiers
| UPC | 623980783758 |
| UNSPSC | 31162701 |
| GTIN-14 | 00623980783758 |
| UPC W/o Check Digit | 62398078375 |
Load Rating
| Load Capacity Per Caster | 270 lbs each |
| Caster Set Weight Capacity | 1,050 lbs (476 kg) |
Compatibility
| Compatible Enclosure Series | C2/C2RR, C4/C4RR, DNRRLDK, SDC, RCK, RCSC, REFK |
Packaging & Shipping
| Tariff Code | 8302.20.0000 |
| Shipping Weight | 5 lbs (2.27 kg) |
| Country Of Origin | CA (Manufactured in North America) |
Construction & Finish
| Finish | Plated zinc |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA compliant (for GSA Schedule purchases) |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How many casters come with 1425BH?▾
1425BH is sold as a set of 4 casters, and mounting hardware is included.
What is the weight capacity?▾
The set is rated at 1,050 lbs (476 kg) total, with a load capacity of 270 lbs per caster.
Do these casters have brakes?▾
No. 1425BH is non-locking; the quantity with brakes included is 0. Within the same series, 1425BHLOCK is the heavy-duty option listed with 4 brakes included.
How much height do the casters add to my cabinet?▾
The 1425BH set adds 3.81 in (97 mm) to the overall height of the cabinet.
What is the mounting hole pattern?▾
The hole mounting pattern is 1.75 in (44 mm) wide by 3.00 in (76 mm) deep, with 0.39 in (10 mm) diameter holes.
Which enclosures is 1425BH compatible with?▾
The series compatibility data lists C2/C2RR, C4/C4RR, DNRRLDK, SDC, RCK, RCSC and REFK.
Is 1425BH suitable for GSA Schedule purchases?▾
Yes, the 1425B series is TAA compliant for GSA Schedule purchases, and is RoHS, REACH and USMCA compliant.
