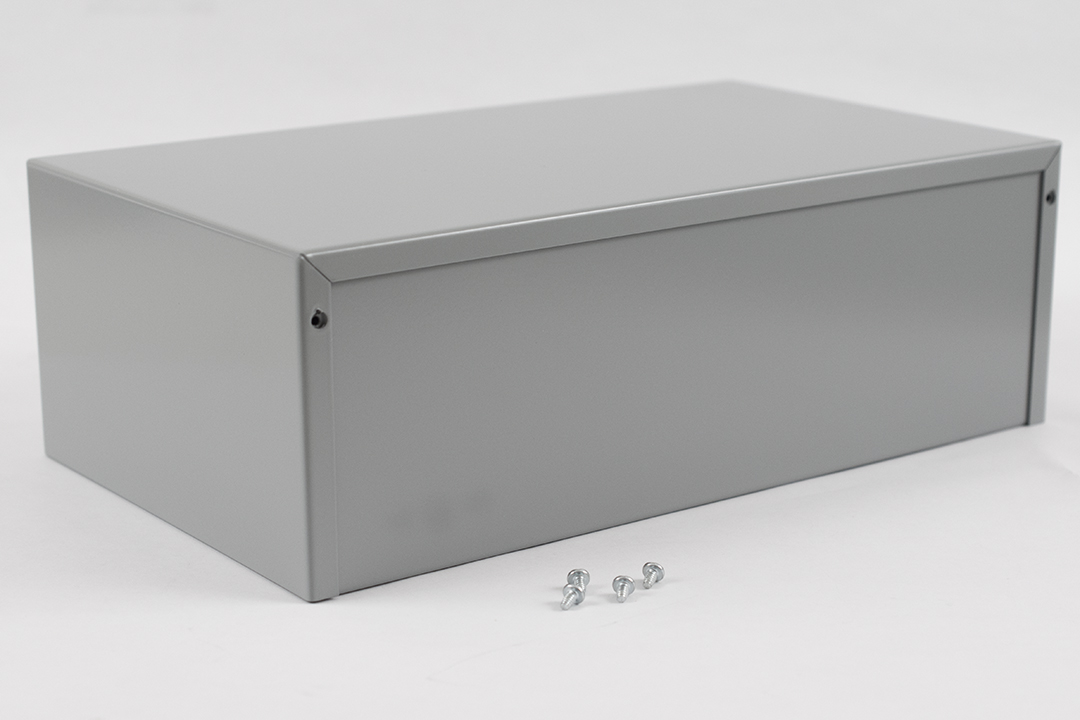

Hammond 1412X 12x7x4 Inch 20 Gauge Grey Steel Utility Case
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 12 in x 7 in x 4 in (305 mm x 178 mm x 102 mm) steel utility case
- 20 gauge steel; bottom and cover formed from 0.036 in (0.91 mm) steel
- ASA 61 grey baked powder paint inside and out to prevent rust
- Inner box 302.97 mm [11.93 in] x 173.36 mm [6.83 in] x 99.77 mm [3.93 in]
- Includes bottom, cover and 4 cover screws
- Replacement 6-32 x 1/4 in self-tapping screws: 1421J6 (pack of 6)
- RoHS and REACH compliant; STEP/IGES models available
The 1412X is a 12 in x 7 in x 4 in (305 mm x 178 mm x 102 mm) steel utility case in ASA 61 grey. At 4 in tall it is the deepest steel size in the 1412 range, leaving room for taller components or stacked boards.
Construction is 20 gauge steel: the bottom and cover are formed from 0.036 in (0.91 mm) steel, and the part is listed as steel with aluminum end panels. The steel is finished in ASA 61 grey baked powder paint applied inside and out to prevent rust. Each purchased assembly includes the bottom, the cover and four cover screws, and replacement 6-32 x 1/4 in plated self-tapping screws are available as 1421J6 in packs of six.
Per the drawing, the case measures 304.80 mm [12.00 in] x 177.80 mm [7.00 in] x 101.60 mm [4.00 in] outside, with an inner box of 302.97 mm [11.93 in] x 173.36 mm [6.83 in] x 99.77 mm [3.93 in].
The 1412X ships shrink wrapped at 0.5 lbs (0.23 kg). It is RoHS and REACH compliant, and the factory offers milling, drilling and printing on quotation, with STEP or IGES solid models available for layout work. Need aluminum instead? The same footprint is offered as 1411X (grey aluminum), 1411XU (unfinished aluminum), 1411FBXBK (black aluminum with wall-mounting flanges) and 1411FBXU (unfinished aluminum with wall-mounting flanges).
Ideal For
- Housings for taller components
- Stacked-board electronics enclosures
- Control and instrument cases
- General utility enclosures
Overview
| Type | Utility Case |
| Series | 1411-1412 Series Utility Enclosures |
| Part Number | 1412X |
| Manufacturer Description | UTILITY CASE 12.0 X 7.0 X 4.0 |
Dimensions
| Width | 7.00 in (178 mm) |
| Height | 4.00 in (102 mm) |
| Length | 12.00 in (305 mm) |
| Inner Box Width | 173.36 mm [6.83 in] |
| Inner Box Height | 99.77 mm [3.93 in] |
| Inner Box Length | 302.97 mm [11.93 in] |
| Size (L X W X H) | 12 in x 7 in x 4 in (305 mm x 178 mm x 102 mm) |
| Overall Width (Drawing) | 177.80 mm [7.00 in] |
| Overall Height (Drawing) | 101.60 mm [4.00 in] |
| Overall Length (Drawing) | 304.80 mm [12.00 in] |
Identifiers
| UPC | 623980000299 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.5 lbs (0.23 kg) |
Construction & Finish
| Color | Gray |
| Finish | ASA 61 grey baked powder paint, inside and out to prevent rust |
| Included | Bottom, cover and 4 cover screws |
| Material | Steel w/ Aluminum End Panels |
| CAD Models | STEP or IGES solid models available |
| Steel Gauge | 20 gauge |
| Construction | Two-piece assembly: bottom and cover |
| Panel Material | Bottom and cover made from 0.036" steel |
| Wall Thickness | 0.91 mm [0.036 in] |
| Factory Modification | Milling, drilling, printing available from the factory on quotation |
| Replacement Cover Screws | 1421J6 (Pkg. of 6, 6-32 x 1/4" plated self-tapping Phillips head screws) |
| Aluminum Versions Of Same Size | 1411X (grey aluminum), 1411XU (unfinished aluminum), 1411FBXBK (black aluminum with wall-mounting flanges) and 1411FBXU (unfinished aluminum with wall-mounting flanges) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What size is the 1412X?▾
The 1412X is 12 in x 7 in x 4 in (305 mm x 178 mm x 102 mm). The drawing shows an inner box of 302.97 mm [11.93 in] x 173.36 mm [6.83 in] x 99.77 mm [3.93 in].
What is the 1412X made of?▾
It is 20 gauge steel (the bottom and cover are 0.036 in steel), listed as steel with aluminum end panels, finished in ASA 61 grey baked powder paint inside and out to prevent rust.
What is included in the box?▾
The purchased assembly includes the bottom, the cover and 4 cover screws.
What replacement screws does it use?▾
Part 1421J6, a package of six 6-32 x 1/4 in plated self-tapping Phillips head screws.
Is the 1412X available in aluminum?▾
The same size is offered in aluminum as 1411X (grey aluminum), 1411XU (unfinished aluminum), 1411FBXBK (black aluminum with wall-mounting flanges) and 1411FBXU (unfinished aluminum with wall-mounting flanges).
Can the enclosure be modified at the factory?▾
Yes. Milling, drilling and printing are available on quotation, and STEP or IGES solid models of the enclosure are available.
