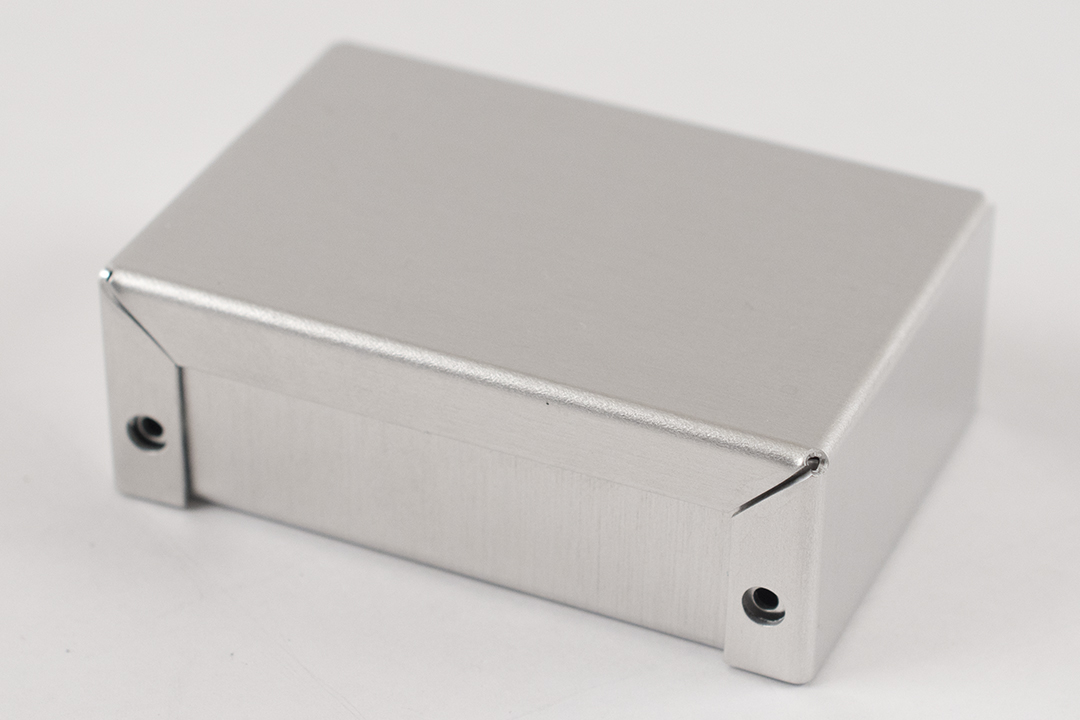

Hammond 1411CU 3.2x2.2x1.1 in Unfinished Aluminum Utility Case
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 3.20 in (81 mm) L x 2.20 in (56 mm) W x 1.10 in (28 mm) H aluminum utility case
- Two-piece bottom and cover, no mounting flanges
- 0.04 in thick aluminum bottom and cover
- Unfinished aluminum with protective film that doubles as a drilling template
- Four self-tapping cover screws included; replacement screws 1421J6
- Factory modification available; STEP or IGES solid models
- RoHS and REACH compliant
The 1411CU is a unfinished aluminum utility case from the 1411-1412 Series, measuring 3.20 in (81 mm) long, 2.20 in (56 mm) wide and 1.10 in (28 mm) high. It is a simple two-piece metal box for OEM engineers, electricians and hobbyists who need to house a small circuit board, controls or wiring.
At only 1.10 in (28 mm) high, the 3.20 x 2.20 in (81 x 56 mm) C size is the lowest-profile case in the 1411 ordering table, a fit for slim circuit boards and thin assemblies.
Both the bottom and the cover are formed from 0.04 in thick aluminum. This version is left as unfinished aluminum. It is protected through manufacturing and shipping by a plastic film cover that keeps the surface in good condition and also doubles as a removable drilling template.
The purchased assembly includes the bottom, cover and 4 cover screws; the cover fastens with self-tapping screws. Replacement screws are available as 1421J6, a package of six 6-32 Philips head screws. The 1411CU can also be factory modified (milling, drilling, printing), and solid models are available in STEP or IGES format for enclosure layout work.
The same 3.20 x 2.20 x 1.10 in size is also offered as 1411C, 1411FBCBK and 1411FBCU in the other finish and flange combinations. The 1411CU is RoHS and REACH compliant, ships in a box and has a listed shipping weight of 0.11 lbs (0.05 kg).
Ideal For
- Housing small circuit boards and electronic projects
- Enclosing controls, switches and wiring
- OEM and prototype electronics packaging
- Projects that will be drilled for connectors using the film template
Mounting
| Mounting Flanges | No |
Overview
| Type | Utility Case |
| Series | 1411-1412 Series Utility Enclosures |
| Part Number | 1411CU |
| Long Description | enclosure - unpainted aluminum; utility |
| Short Description | UTILITY CASE 3.2 X 2.2 X 1.1 |
| Ordering Table Version | Aluminum · Unfinished |
Dimensions
| Width | 2.20 in (56 mm) |
| Height | 1.10 in (28 mm) |
| Length | 3.20 in (81 mm) |
| Nominal Size (L X W X H) | 3.2 in x 2.2 in x 1.1 in (81 mm x 56 mm x 28 mm) |
Identifiers
| UPC | 623980485720 |
| UNSPSC | 39121301 |
Related Versions
| Aluminum, Gray | 1411C |
| Aluminum, Unfinished | 1411CU |
| Aluminum, Black W/ Flanges | 1411FBCBK |
| Aluminum, Unfinished W/ Flanges | 1411FBCU |
Hardware & Contents
| Replacement Screws | 1421J6 (Pkg. of six 6-32 Philips head screws) |
| Cover Screws Included | 4 self-tapping screws |
| Purchased Assembly Includes | Bottom, cover and 4 cover screws |
| Accessory: Plated Cover Screws | Pkg 6, 6-32 x 1/4" self-tapping screws |
Packaging & Shipping
| Packaging Type | Box |
| Shipping Weight | 0.11 lbs (0.05 kg) |
Construction & Finish
| Color | Natural Aluminum |
| Finish | Unfinished aluminum, protected by a plastic film cover that doubles as a removable drilling template |
| Material | Aluminum |
| Material Thickness | 0.04 in (bottom and cover) |
| Surface Protection | Plastic film cover through manufacturing and shipping; doubles as a removable drilling template |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Customization & Documentation
| Solid Models | Available in STEP or IGES |
| Factory Modification | Available (milling, drilling, printing etc.) |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the 1411CU?▾
The 1411CU is 3.20 in (81 mm) long, 2.20 in (56 mm) wide and 1.10 in (28 mm) high.
Does the 1411CU have mounting flanges?▾
No. The 1411CU has no mounting flanges. Flanged versions of this size are 1411FBCBK (black) and 1411FBCU (unfinished).
What is it made of and how is it finished?▾
The bottom and cover are 0.04 in thick aluminum. Unfinished aluminum, protected by a plastic film cover that doubles as a removable drilling template. The protective film can be used as a drilling template and then removed.
What is included?▾
The purchased assembly includes the bottom, cover and 4 cover screws. Replacement screws are part number 1421J6, a package of six 6-32 Philips head screws.
Is the 1411CU available in other finishes?▾
Yes. This size is also listed as 1411C (aluminum, gray), 1411CU (aluminum, unfinished), 1411FBCBK (aluminum, black with flanges) and 1411FBCU (aluminum, unfinished with flanges); the 1411CU is the aluminum · unfinished version.
Can the case be customized?▾
Yes. It can be factory modified with milling, drilling, printing and similar work, and solid models are available in STEP or IGES.
