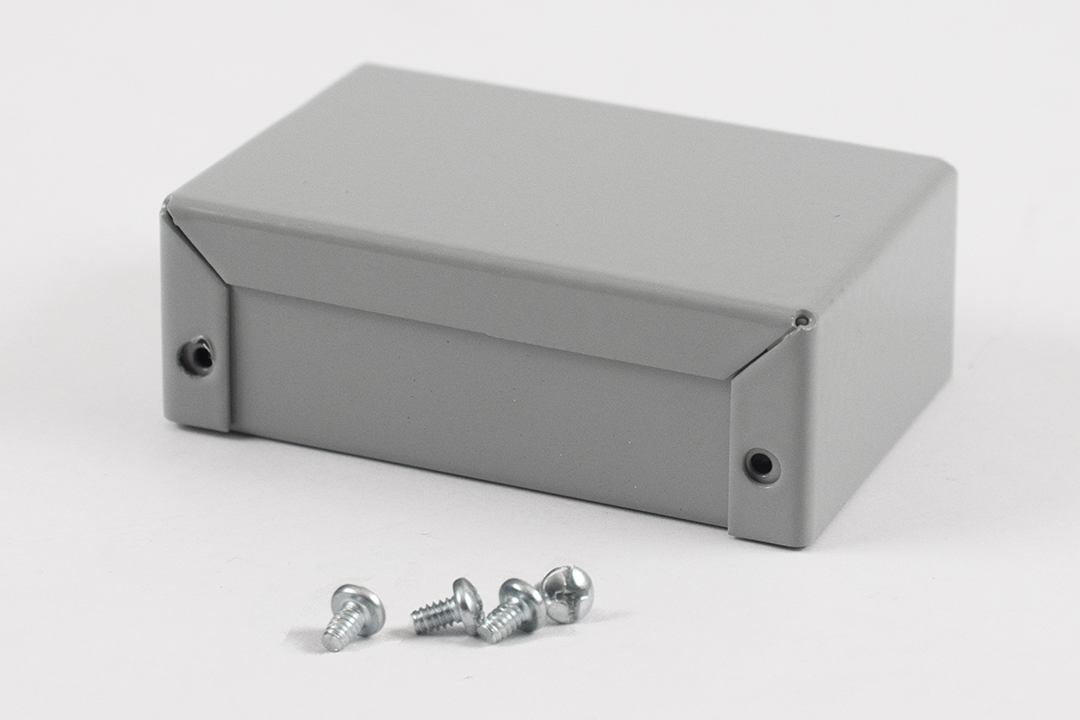

Hammond 1411C 3.2x2.2x1.1 in ASA 61 Gray Aluminum Utility Case
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 3.20 in (81 mm) L x 2.20 in (56 mm) W x 1.10 in (28 mm) H aluminum utility case
- Two-piece bottom and cover, no mounting flanges
- 0.04 in thick aluminum bottom and cover
- Smooth ASA 61 grey powder coat finish (Hammond color GY2)
- Four self-tapping cover screws included; replacement screws 1421J6
- Factory modification available; STEP or IGES solid models
- RoHS and REACH compliant
The 1411C is a ASA 61 grey aluminum utility case from the 1411-1412 Series, measuring 3.20 in (81 mm) long, 2.20 in (56 mm) wide and 1.10 in (28 mm) high. It is a simple two-piece metal box for OEM engineers, electricians and hobbyists who need to house a small circuit board, controls or wiring.
At only 1.10 in (28 mm) high, the 3.20 x 2.20 in (81 x 56 mm) C size is the lowest-profile case in the 1411 ordering table, a fit for slim circuit boards and thin assemblies.
Both the bottom and the cover are formed from 0.04 in thick aluminum. This version is finished in smooth ASA 61 grey powder coat (Hammond color GY2).
The purchased assembly includes the bottom, cover and 4 cover screws; the cover fastens with self-tapping screws. Replacement screws are available as 1421J6, a package of six 6-32 Philips head screws. The 1411C can also be factory modified (milling, drilling, printing), and solid models are available in STEP or IGES format for enclosure layout work.
The same 3.20 x 2.20 x 1.10 in size is also offered as 1411CU, 1411FBCBK and 1411FBCU in the other finish and flange combinations. The 1411C is RoHS and REACH compliant, ships in a box and has a listed shipping weight of 0.12 lbs (0.05 kg).
Ideal For
- Housing small circuit boards and electronic projects
- Enclosing controls, switches and wiring
- OEM and prototype electronics packaging
Mounting
| Mounting Flanges | No |
Overview
| Type | Utility Case |
| Series | 1411-1412 Series Utility Enclosures |
| Part Number | 1411C |
| Long Description | enclosure - ASA 61 grey aluminum; utility |
| Short Description | UTILITY CASE 3.2 X 2.2 X 1.1 |
| Ordering Table Version | Aluminum · Gray |
Dimensions
| Width | 2.20 in (56 mm) |
| Height | 1.10 in (28 mm) |
| Length | 3.20 in (81 mm) |
| Nominal Size (L X W X H) | 3.2 in x 2.2 in x 1.1 in (81 mm x 56 mm x 28 mm) |
Identifiers
| UPC | 623980485805 |
| UNSPSC | 39121301 |
Related Versions
| Aluminum, Gray | 1411C |
| Aluminum, Unfinished | 1411CU |
| Aluminum, Black W/ Flanges | 1411FBCBK |
| Aluminum, Unfinished W/ Flanges | 1411FBCU |
Hardware & Contents
| Replacement Screws | 1421J6 (Pkg. of six 6-32 Philips head screws) |
| Cover Screws Included | 4 self-tapping screws |
| Purchased Assembly Includes | Bottom, cover and 4 cover screws |
| Accessory: Plated Cover Screws | Pkg 6, 6-32 x 1/4" self-tapping screws |
Packaging & Shipping
| Packaging Type | Box |
| Shipping Weight | 0.12 lbs (0.05 kg) |
Construction & Finish
| Color | Gray |
| Finish | Smooth ASA 61 grey powder coat (Hammond color GY2) |
| Material | Aluminum |
| Material Thickness | 0.04 in (bottom and cover) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Customization & Documentation
| Solid Models | Available in STEP or IGES |
| Factory Modification | Available (milling, drilling, printing etc.) |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the 1411C?▾
The 1411C is 3.20 in (81 mm) long, 2.20 in (56 mm) wide and 1.10 in (28 mm) high.
Does the 1411C have mounting flanges?▾
No. The 1411C has no mounting flanges. Flanged versions of this size are 1411FBCBK (black) and 1411FBCU (unfinished).
What is it made of and how is it finished?▾
The bottom and cover are 0.04 in thick aluminum. Smooth ASA 61 grey powder coat (Hammond color GY2).
What is included?▾
The purchased assembly includes the bottom, cover and 4 cover screws. Replacement screws are part number 1421J6, a package of six 6-32 Philips head screws.
Is the 1411C available in other finishes?▾
Yes. This size is also listed as 1411C (aluminum, gray), 1411CU (aluminum, unfinished), 1411FBCBK (aluminum, black with flanges) and 1411FBCU (aluminum, unfinished with flanges); the 1411C is the aluminum · gray version.
Can the case be customized?▾
Yes. It can be factory modified with milling, drilling, printing and similar work, and solid models are available in STEP or IGES.
