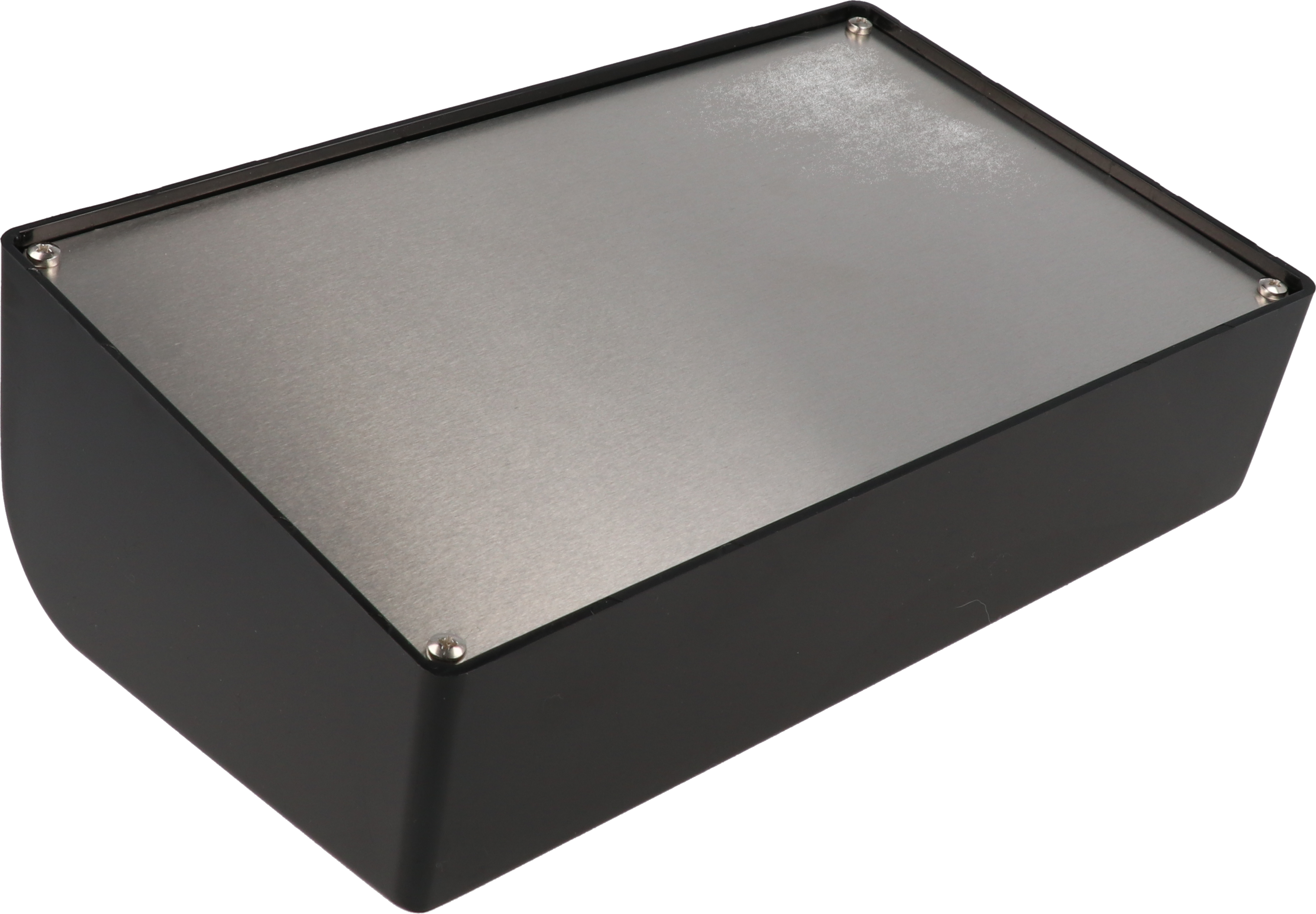

Plastic Console 6.3X3.8X2.3C90
- Color Black
- Color Black
$10.53In stock
Buy now
Plastic Console Enclosures · 1595 Series
Brand: Hammond Manufacturing · 4 part numbers
ABS Plastic Body w/ Aluminum Cover Plate
- ■Desktop electronic instrument enclosure ideally suited for mounting printed circuit boards.
- ■Molded from flame retardant ABS plastic which carries a UL flammability rating of 94V-0.

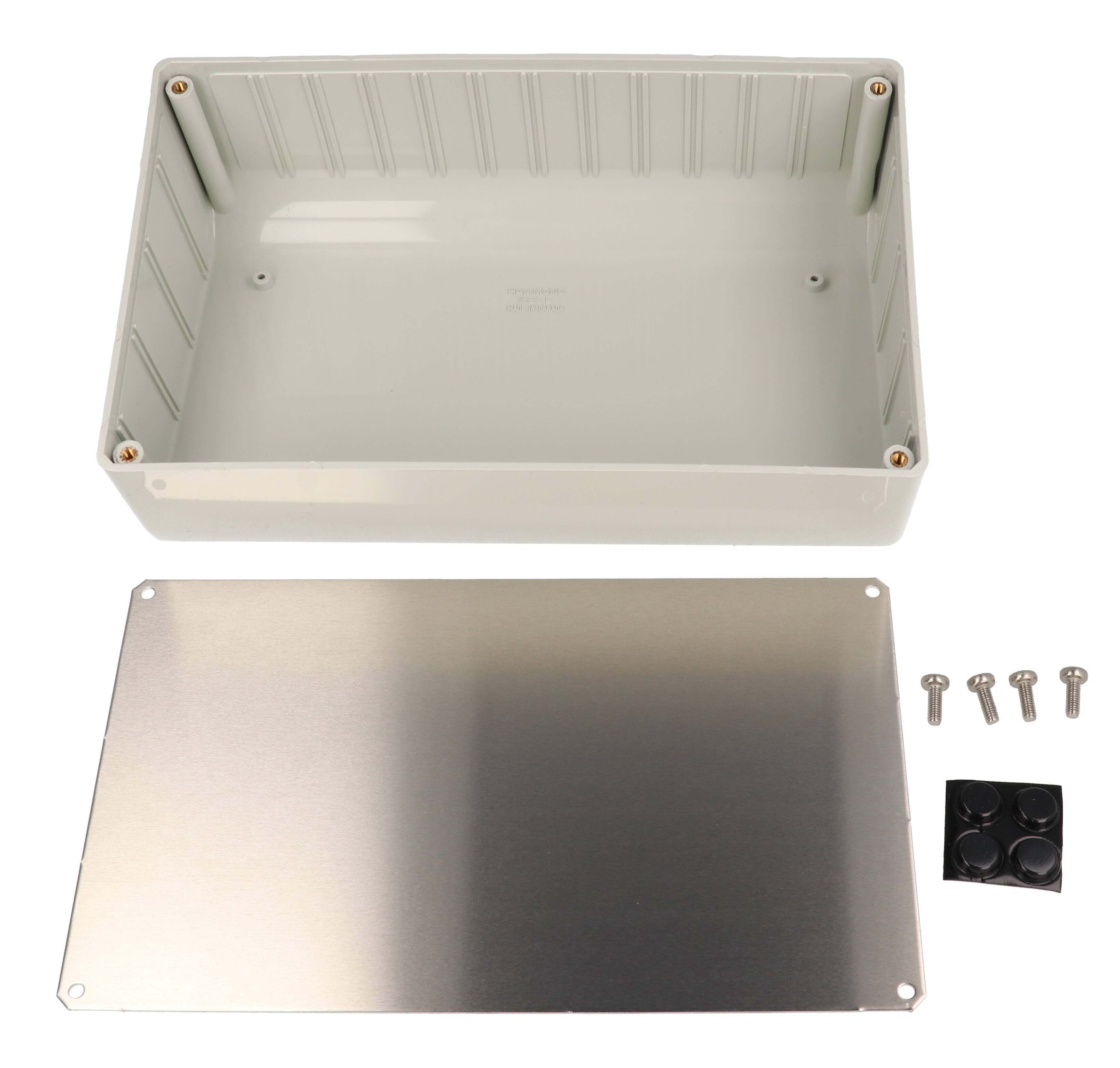

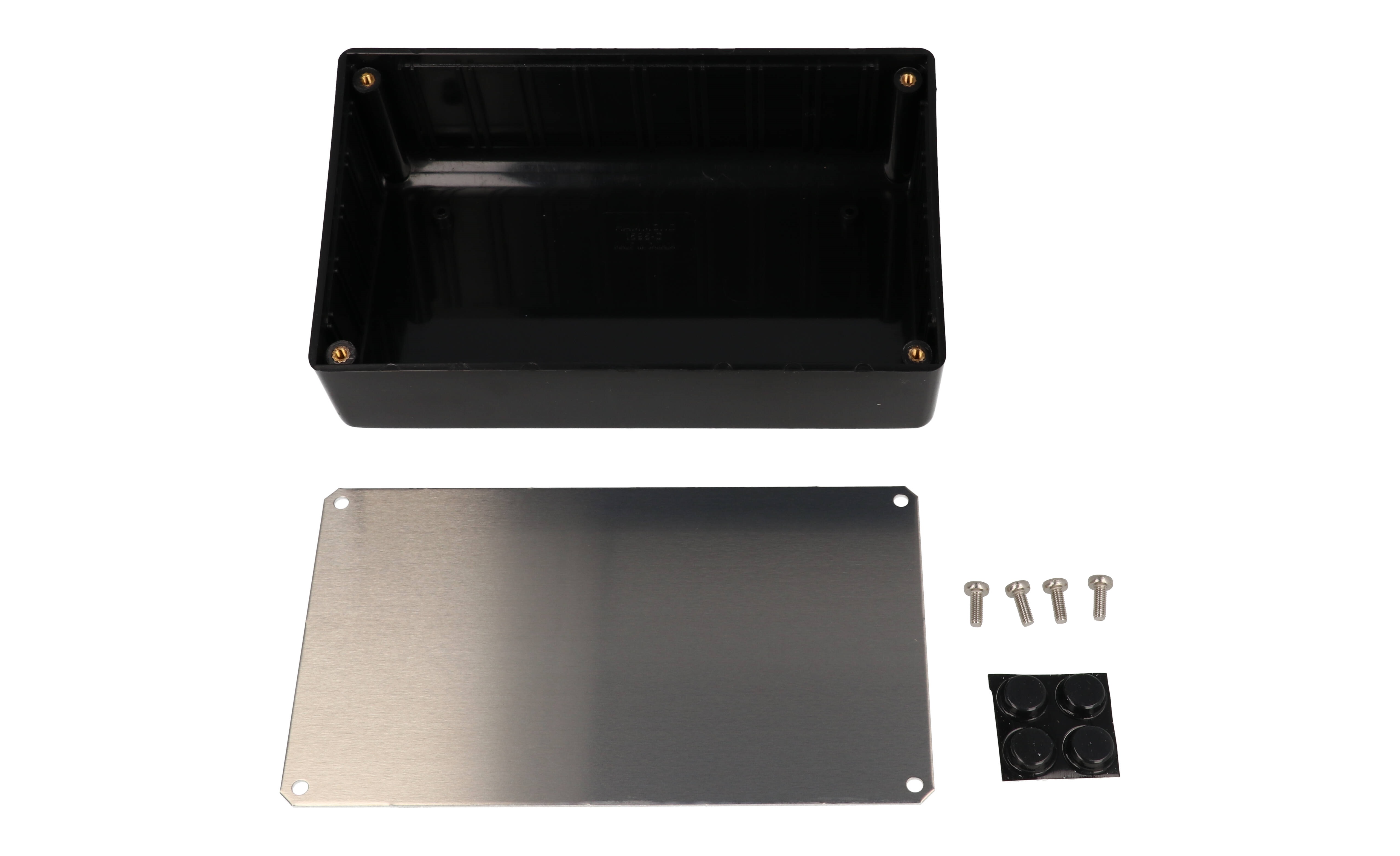

- ■Two piece construction. Integral card guides accept 1.5 mm (0.062”) P.C. cards.
- ■0.20” diameter stand off bosses in the base for supporting various subassemblies.
- ■Integral brass bushings with four M3 x 0.5” x 8 mm (0.31”) Phillips pan head screws hold recessed panel into sloping front of case.

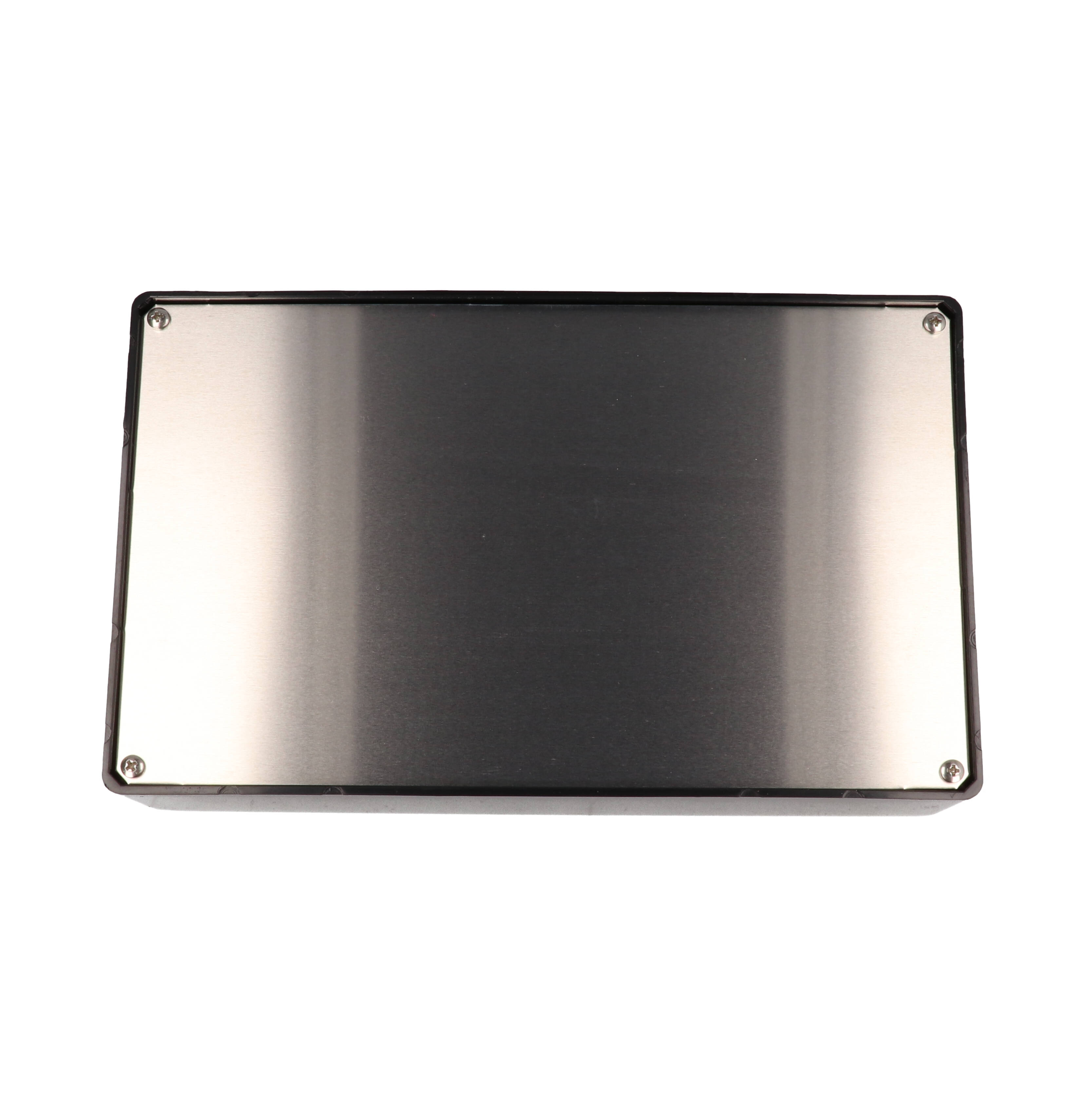

- ■0.04” (1.01mm) thick aluminum panel with paper on one side.
from $10.53
4 of 4 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 1595 Series part number
Filter 4 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
4 of 4 part numbers · 4 priced online
Dimension tables (inches / mm)
Features:
Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)
- ■Desktop electronic instrument enclosure ideally suited for mounting printed circuit boards.
- ■Molded from flame retardant ABS plastic which carries a UL flammability rating of 94V-0.
- ■Two piece construction. Integral card guides accept 1.5 mm (0.062”) P.C. cards.
- ■0.20” diameter stand off bosses in the base for supporting various subassemblies.
- ■Integral brass bushings with four M3 x 0.5” x 8 mm (0.31”) Phillips pan head screws hold recessed panel into sloping front of case.
- ■0.04” (1.01mm) thick aluminum panel with paper on one side.
- ■Four self-adhesive feet included.
- ■Stocked in black and grey.
- ■For replacement screws, order part number 1591MM100 .
- ■Some chemicals can damage or weaken plastic. Please read our Chemical Resistance Statement under Downloads for more information.
Documents
Additional information
Part Numbers
| Part Number | Color | Width (mm) | Length | Depth (Back of Console) |
|---|---|---|---|---|
| 1595CBK | Black | 161.00 | 96.00 | 58.00 |
| 1595CGY | Gray | 161.00 | 96.00 | 58.00 |
| 1595EBK | Black | 215.00 | 130.00 | 75.50 |
| 1595EGY | Gray | 215.00 | 130.00 | 75.50 |
