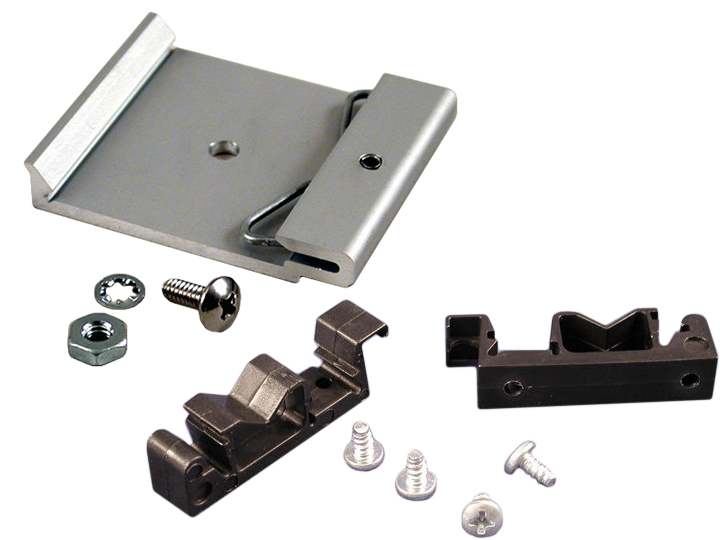

DIN Clips · 1427DINCLIP Series

Brand: Hammond Manufacturing · 4 part numbers

Nylon & Extruded Aluminum

■Designed for mounting enclosures to 35 mm wide DIN rails
■Includes hardware (quantity 4 of a #6 X 1/4” self tapping, phillips head screw) & drilling template
■Center to center hole spacing is 1.18” (30mm)
■Material is a rugged black nylon
■Recommended maximum weight load is 35 lbs. each (70 lbs. per pair)
■Units are 1.8” (45.7mm) long, 0.4” (10.1mm) wide - overall

from $4.13

4 of 4 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy now Request a quote

Specification sheet (PDF) (224) 955-1644

Part details Features Documents

Configure & price

Find your 1427DINCLIP Series part number

Filter 4 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

4 of 4 part numbers · 4 priced online

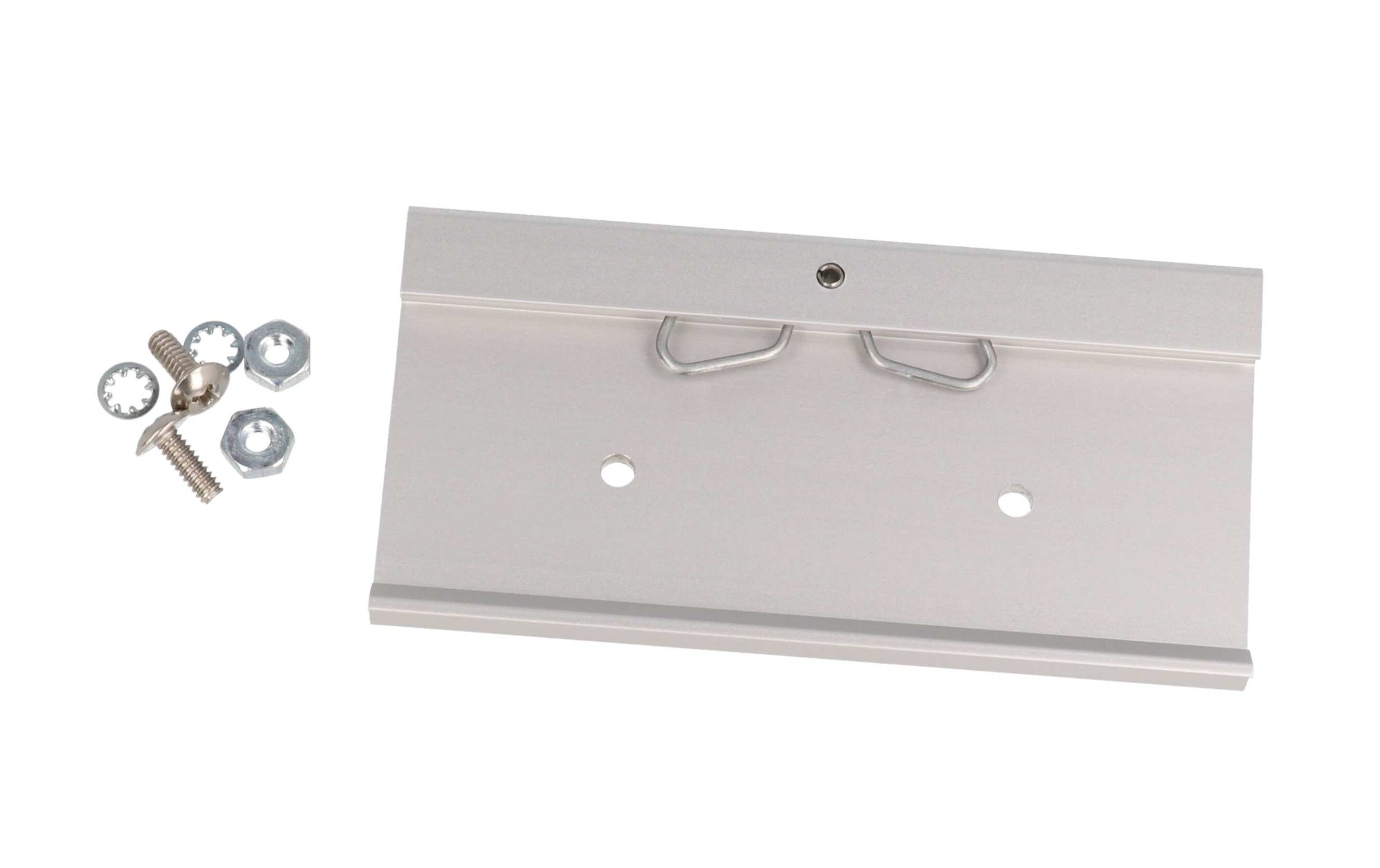

1427DIN100M

Metal Dinrail Clip Kit - 100mm

Material Aluminum (Extruded)
Material Aluminum

$8.23In stock

Buy now

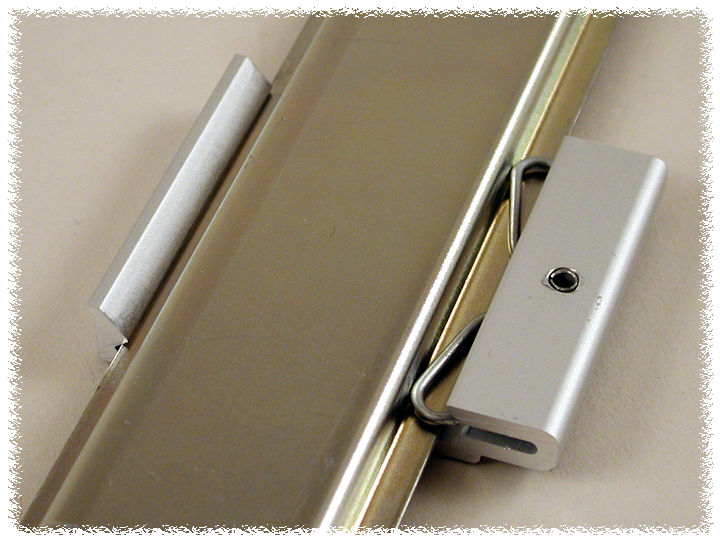

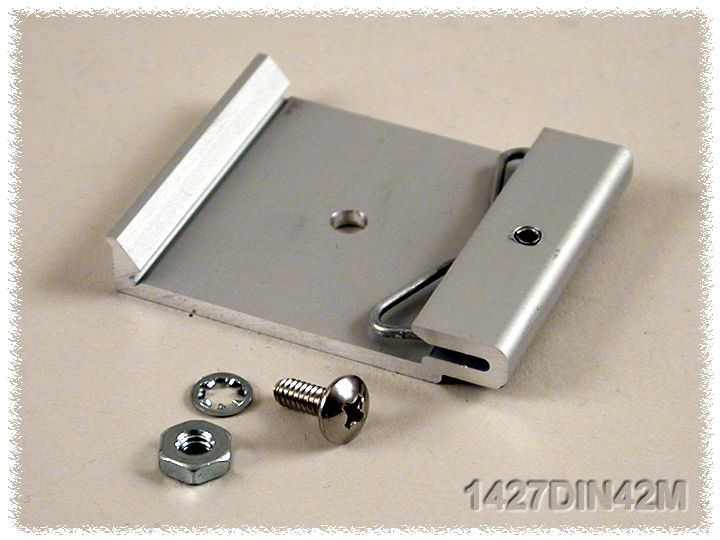

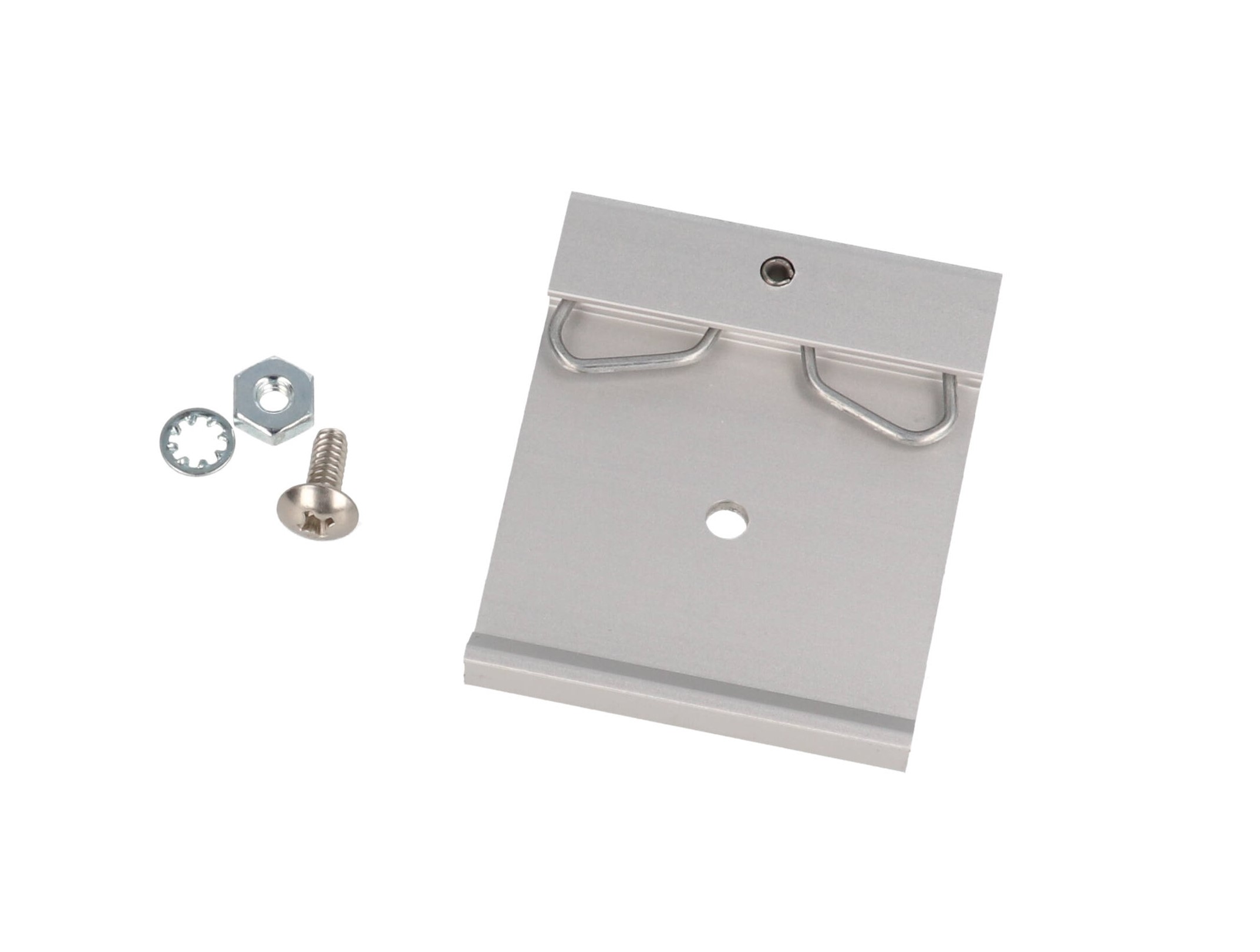

1427DIN42M

Metal Dinrail Clip Kit - 42mm

Material Aluminum (Extruded)
Material Aluminum

$6.84Backorder

Buy now

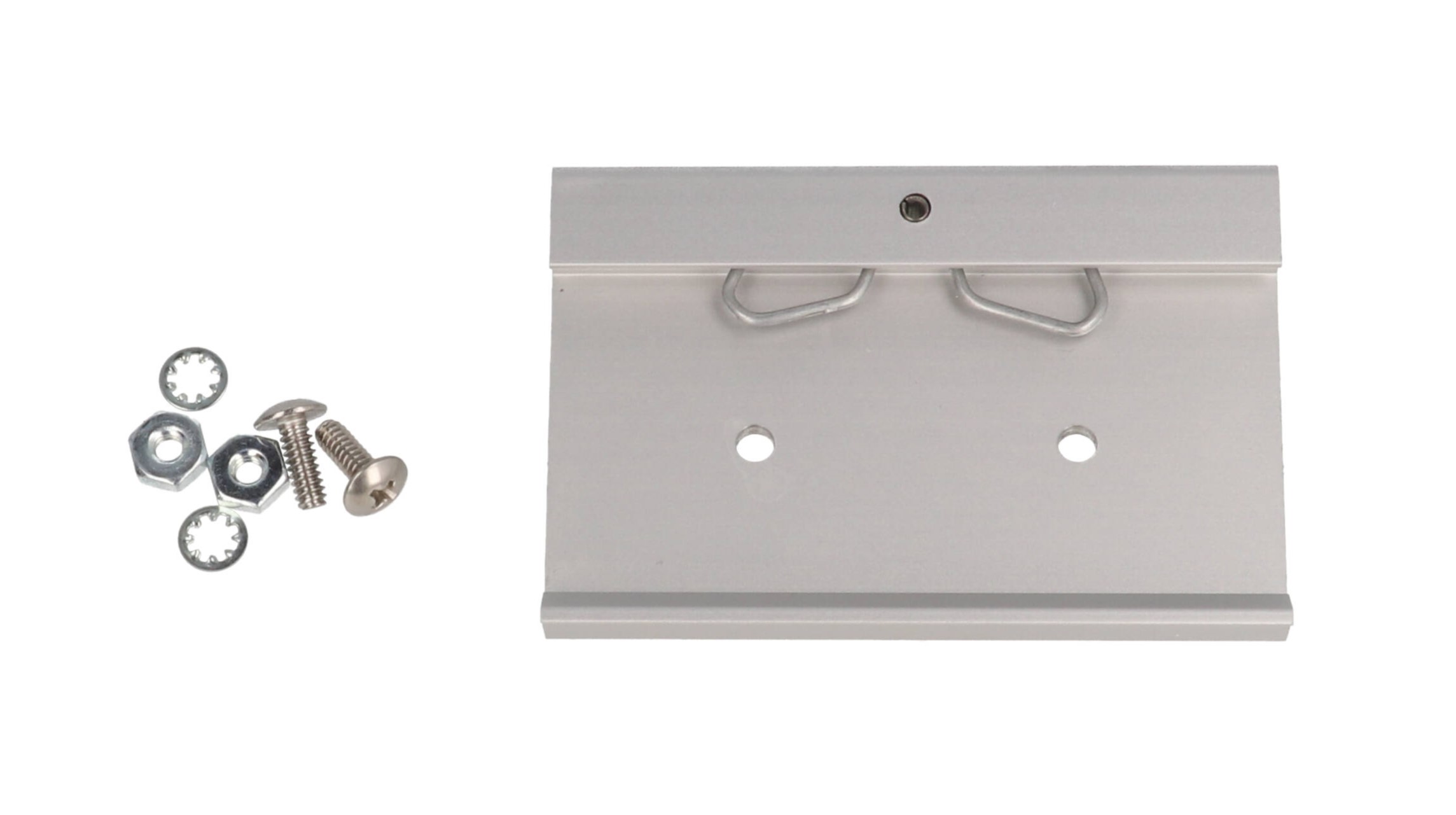

1427DIN75M

Metal Dinrail Clip Kit - 75mm

Material Aluminum (Extruded)
Material Aluminum

$7.94Backorder

Buy now

1427DINCLIP

Plastic DIN Rail Clip Kit

Material Nylon
Material Nylon

$4.13In stock

Buy now

Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

Part Number	Material	Weight Rating	Length	Width	Qty Per Package	Price	Order
1427DINCLIP	Nylon	35 lbs / 15.8 kg per clip	1.70	0.40	2	$4.13In stock	Buy now
1427DIN42M	Aluminum	125 lbs / 56 kg	2.02	1.65	1	$6.84Backorder	Buy now
1427DIN75M	Aluminum	125 lbs / 56 kg	2.02	2.95	1	$7.94Backorder	Buy now
1427DIN100M	Aluminum	125 lbs / 56 kg	2.02	3.94	1	$8.23In stock	Buy now

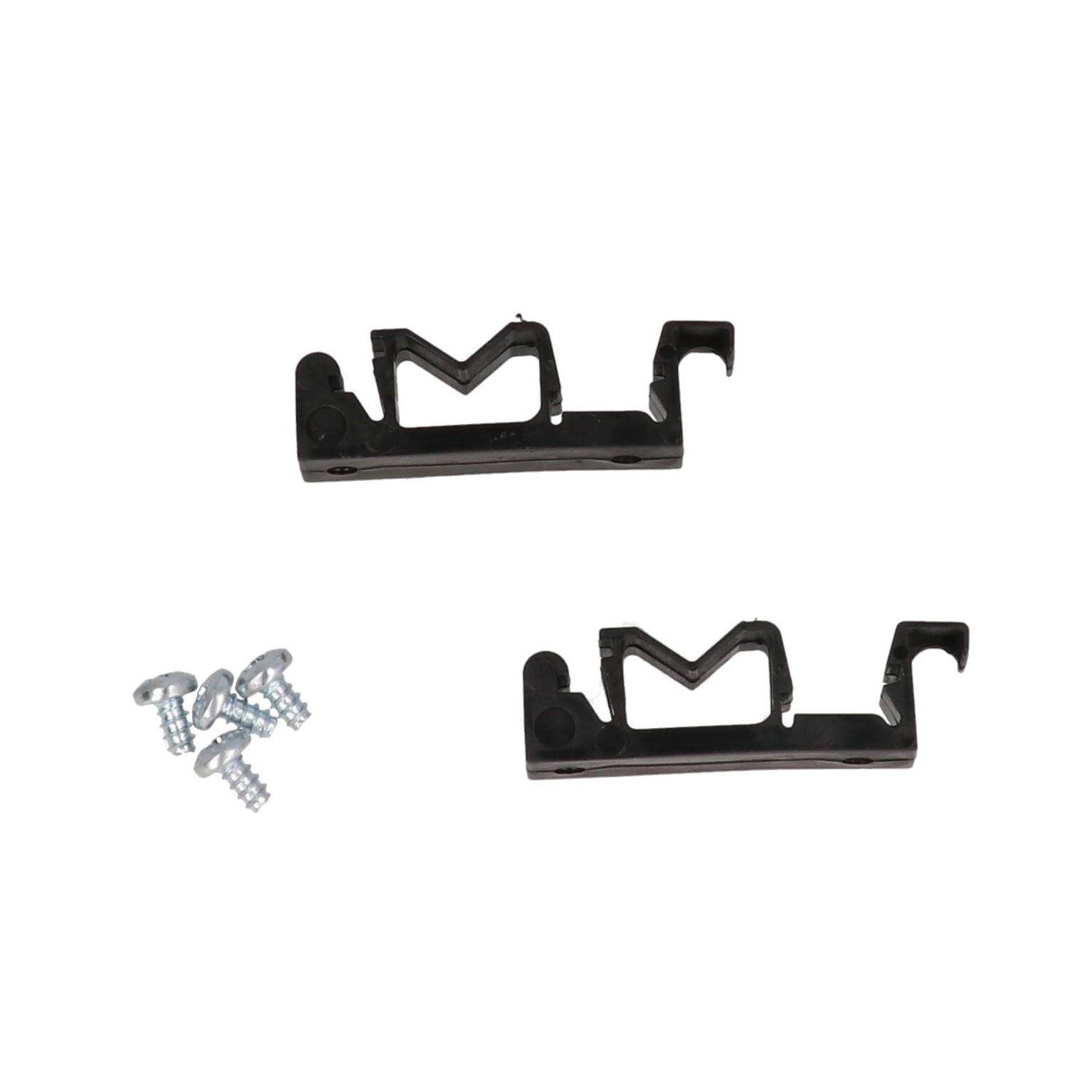

Nylon DIN Clip ( 1427DINCLIP )

■Designed for mounting enclosures to 35 mm wide DIN rails
■Includes hardware (quantity 4 of a #6 X 1/4” self tapping, phillips head screw) & drilling template
■Center to center hole spacing is 1.18” (30mm)
■Material is a rugged black nylon
■Recommended maximum weight load is 35 lbs. each (70 lbs. per pair)
■Units are 1.8” (45.7mm) long, 0.4” (10.1mm) wide - overall
■Sold in packages of 2

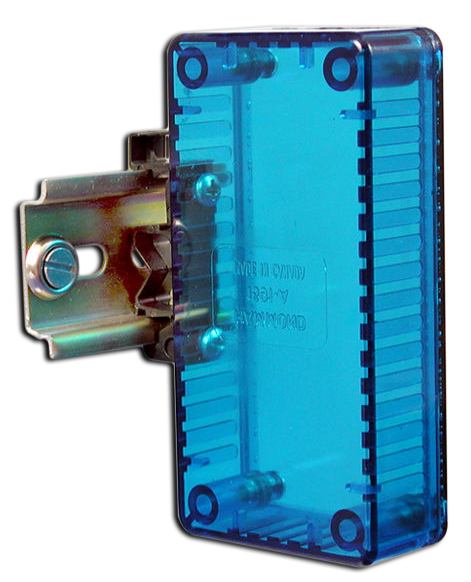

■Example: DIN Clip shown mounted to our 1591ATBU and clipped to a panel mounted DIN rail.
■Two screws per clip.
■35 mm wide DIN rail not included but - is available here.
