Swing Frame Fits 1600X600
- Rack Units 32U
$836.47Backorder
Buy now

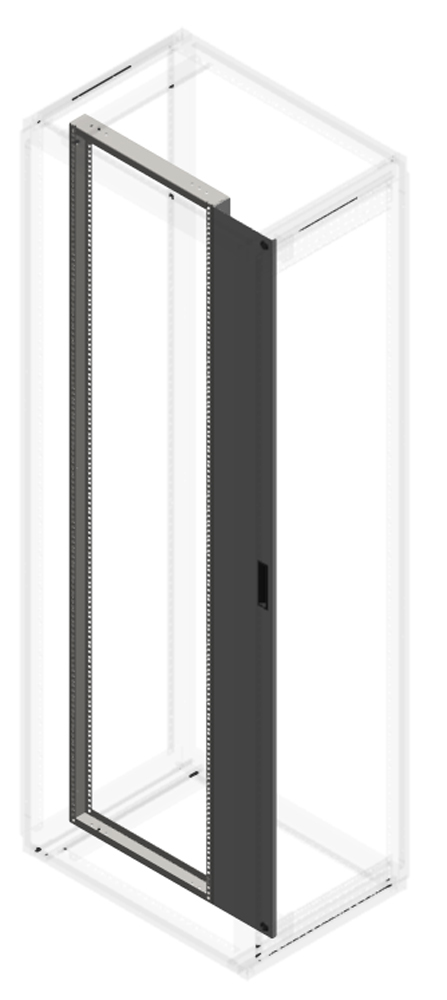

19-Inch Rack Mount Swing Frame for HME Enclosures · HMESWF Series
Brand: Hammond Manufacturing · 8 part numbers
Add industry-standard 19-inch rack mounting to HME modular enclosures with convenient front and rear equipment access.
- ■Heavy-duty formed 12-gauge steel construction creates a rigid 19-inch rack mounting platform for industrial networking, automation, communications, and control equipment.
- ■Converts compatible HME modular enclosures into industry-standard 19-inch rack systems, allowing servers, switches, PLCs, industrial PCs, patch panels, and other rack-mounted equipment to be installed inside a protected enclosure.
- ■EIA-310 square-hole rack rails support standard cage nuts and rack hardware for maximum equipment compatibility.
- ■Designed for use with the HMESWK Swing Kit, allowing the entire rack assembly to swing open up to 120° for fast access to rear wiring and equipment.
- ■Adjustable swing kit positions allow the rack frame to be located front-to-rear to optimize equipment clearance and cable routing.
- ■Available in 32U, 37U, 41U, and 45U configurations for both 600 mm and 800 mm HME enclosure widths.
from $836.47
8 of 8 part numbers priced · available on backorder · ships by ground · volume pricing on request
Configure & price
Find your HMESWF Series part number
Filter 8 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
8 of 8 part numbers · 8 priced online
Swing Frame Fits 1600X800
- Rack Units 32U
$896.90Backorder
Buy nowSwing Frame Fits 1800X600
- Rack Units 37U
$906.98Backorder
Buy nowSwing Frame Fits 1800X800
- Rack Units 37U
$997.50Backorder
Buy nowSwing Frame Fits 2000X600
- Rack Units 41U
$947.27Backorder
Buy nowSwing Frame Fits 2000X800
- Rack Units 41U
$1,017.64Backorder
Buy nowSwing Frame Fits 2200X600
- Rack Units 45U
$896.90Backorder
Buy nowSwing Frame Fits 2200X800
- Rack Units 45U
$1,127.58Backorder
Buy nowDimension tables (inches / mm)
Units shown: mm . Switch units to: inch
| Part No. | Overall Dimensions · Height | Overall Dimensions · Width | Overall Dimensions · Depth | Rack · Units | For use with Cabinet · Height | For use with Cabinet · Width | Price | Order |
|---|---|---|---|---|---|---|---|---|
| HMESWF166 | 58.82 | 19.69 | 2.24 | 32U | 62.99 | 23.62 | $836.47Backorder | Buy now |
| HMESWF168 | 58.82 | 27.72 | 2.24 | 32U | 62.99 | 31.50 | $896.90Backorder | Buy now |
| HMESWF186 | 66.69 | 19.69 | 2.24 | 37U | 70.87 | 23.62 | $906.98Backorder | Buy now |
| HMESWF188 | 66.69 | 27.72 | 2.24 | 37U | 70.87 | 31.50 | $997.50Backorder | Buy now |
| HMESWF206 | 74.57 | 19.69 | 2.24 | 41U | 78.74 | 23.62 | $947.27Backorder | Buy now |
| HMESWF208 | 74.57 | 27.72 | 2.24 | 41U | 78.74 | 31.50 | $1,017.64Backorder | Buy now |
| HMESWF226 | 82.44 | 19.69 | 2.24 | 45U | 86.61 | 23.62 | $896.90Backorder | Buy now |
| HMESWF228 | 82.44 | 27.72 | 2.24 | 45U | 86.61 | 31.50 | $1,127.58Backorder | Buy now |
Key Features and Benefits
The HMESWF Series transforms Hammond HME modular enclosures into serviceable 19-inch rack systems for industrial automation, networking, telecommunications, and control applications. Featuring heavy-duty 12-gauge steel construction and industry-standard square-hole rack rails, it provides a secure platform for mounting a wide variety of rack equipment inside protected industrial enclosures.
When combined with the optional HMESWK Swing Kit, the entire rack assembly swings open up to 120°, giving technicians convenient access to rear cabling and equipment during installation, maintenance, and upgrades. Adjustable mounting depth further improves flexibility, making the HMESWF Series an ideal solution wherever protected rack mounting and easy service access are equally important.
- ■Heavy-duty formed 12-gauge steel construction creates a rigid 19-inch rack mounting platform for industrial networking, automation, communications, and control equipment.
- ■Converts compatible HME modular enclosures into industry-standard 19-inch rack systems, allowing servers, switches, PLCs, industrial PCs, patch panels, and other rack-mounted equipment to be installed inside a protected enclosure.
- ■EIA-310 square-hole rack rails support standard cage nuts and rack hardware for maximum equipment compatibility.
- ■Designed for use with the HMESWK Swing Kit, allowing the entire rack assembly to swing open up to 120° for fast access to rear wiring and equipment.
- ■Adjustable swing kit positions allow the rack frame to be located front-to-rear to optimize equipment clearance and cable routing.
- ■Available in 32U, 37U, 41U, and 45U configurations for both 600 mm and 800 mm HME enclosure widths.
- ■Open-frame design simplifies cable routing, improves airflow, and makes future equipment additions easier.
- ■Finished in textured RAL 7035 light gray to match HME enclosure interiors.
- ■Manufactured in North America within an ISO 9001 certified facility.
- ■TAA-compliant and RoHS compliant.
Documents
Additional information
Where the HMESWF Series Works Best
- ■Industrial Ethernet and network infrastructure.
- ■PLC and automation control systems.
- ■SCADA and process control applications.
- ■Industrial edge computing deployments.
- ■Utilities, energy, and water treatment facilities.
- ■Manufacturing and factory automation.
- ■Applications requiring frequent rear equipment access.
- ■Converting HME enclosures into 19-inch rack systems.
- ■Mounting industrial Ethernet switches and routers.
- ■Installing industrial PCs, servers, and edge computing devices.
- ■Supporting patch panels and communications equipment.
- ■Creating serviceable rack installations inside industrial enclosures.
- ■Protecting rack-mounted equipment in harsh industrial environments.
