100W Heater Fan
- Watts 100 W
- Temperature Maximu 250°F/120°C
$240.49Backorder
Buy now

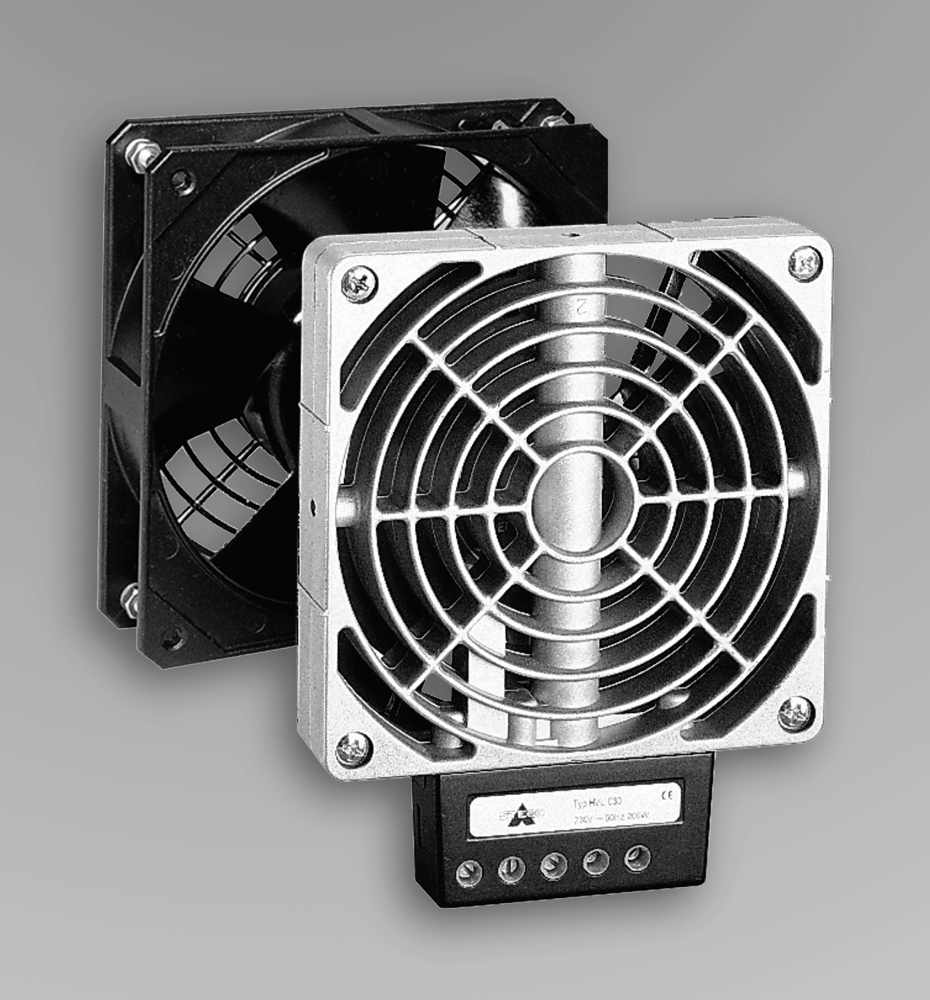

100-400 W Control Panel Heater · SHV Series
Brand: Hammond Manufacturing · 5 part numbers
- ■When larger heating capacities or internal forced air circulation is required and space is limited.
- ■Compact design to prevent condensation or maintain minimum temperature in enclosures.
- ■Fan is included and is required for safe operation. Built-in temperature limiter for overheat Protection.
- ■Built-in temperature limiter for overheat Protection.
- ■Operating Temperature Range: -49 to 158 ºF (-45 to 70 ºC).
- ■Includes a clip for 35mm DIN rail (EN 60 715).
from $240.49
4 of 5 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your SHV Series part number
Filter 5 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
5 of 5 part numbers · 4 priced online
150W Heater Fan
- Watts 150 W
- Temperature Maximu 320°F/160°C
$248.97In stock
Buy now200W Heater Fan
- Watts 200 W
- Temperature Maximu 250°F/120°C
$272.15In stock
Buy now300W Heater Fan
- Watts 300 W
- Temperature Maximu 320°F/160°C
$284.75In stock
Buy now400W Heater Fan
- Watts 400 W
- Temperature Maximu 360°F/180°C
QuoteRequest a quote
Dimension tables (inches / mm)
Units shown: mm . Switch units to: inch
| Part No. | Watts | Operating Current (Amps) | Volts | Temperature Maximum with Fan | Fan Size | Fan Depth | Price | Order |
|---|---|---|---|---|---|---|---|---|
| SHV031029 | 100 W | 0.89 | AC 120 | 250°F/120°C | 3.15 | 0.98 | $240.49Backorder | Buy now |
| SHV031039 | 150 W | 1.3 | AC 120 | 320°F/160°C | 3.15 | 0.98 | $248.97In stock | Buy now |
| SHV031139 | 200 W | 1.79 | AC 120 | 250°F/120°C | 4.72 | 0.98 | $272.15In stock | Buy now |
| SHV031149 | 300 W | 2.62 | AC 120 | 320°F/160°C | 4.72 | 0.98 | $284.75In stock | Buy now |
| SHV031159 | 400 W | 3.45 | AC 120 | 360°F/180°C | 4.72 | 0.98 | Quote | Quote |
| col1 | col2 | Price | Order |
|---|---|---|---|
| Operating Voltage: | AC 110 -120 V 50/60 Hz | Quote | Quote |
| Air Flow: | 20 CFM (100W, 150W heaters), 63 CFM (200W, 300W, 400W heaters) | Quote | Quote |
| Axial Fan: | Ball bearing | Quote | Quote |
| Durability: | 30,000 hrs. at 68°F ambient temperature | Quote | Quote |
| Heating Element: | Cartridge heater | Quote | Quote |
| Heating Body: | Die cast aluminum | Quote | Quote |
| Connection: | 5 pole terminal for 14 AWG (maximum) | Quote | Quote |
| G/L1/N1: | Heater | Quote | Quote |
| L2/N2: | Fan | Quote | Quote |

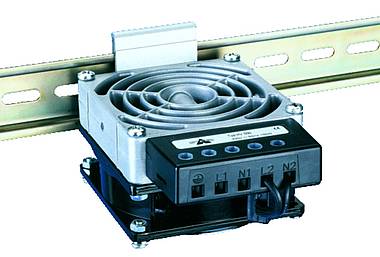

| Mounting: | Easily installed by clip mounting on 35 mm DIN rails (included) | Quote | Quote |
| Protection class: | 1 (tested for grounding at 1250 V) | Quote | Quote |
| Protection: | IP44 | Quote | Quote |
| Approval: | UL Recognized Component, cUL Recognized Component,CE | Quote | Quote |
These part numbers are quoted per order — send us the quantities and we'll price them within one business day.
Features
- ■When larger heating capacities or internal forced air circulation is required and space is limited.
- ■Compact design to prevent condensation or maintain minimum temperature in enclosures.
- ■Fan is included and is required for safe operation. Built-in temperature limiter for overheat Protection.
- ■Built-in temperature limiter for overheat Protection.
- ■Operating Temperature Range: -49 to 158 ºF (-45 to 70 ºC).
- ■Includes a clip for 35mm DIN rail (EN 60 715).
- ■Heat sink is constructed of die-cast aluminum.
- ■UL Approved components.
