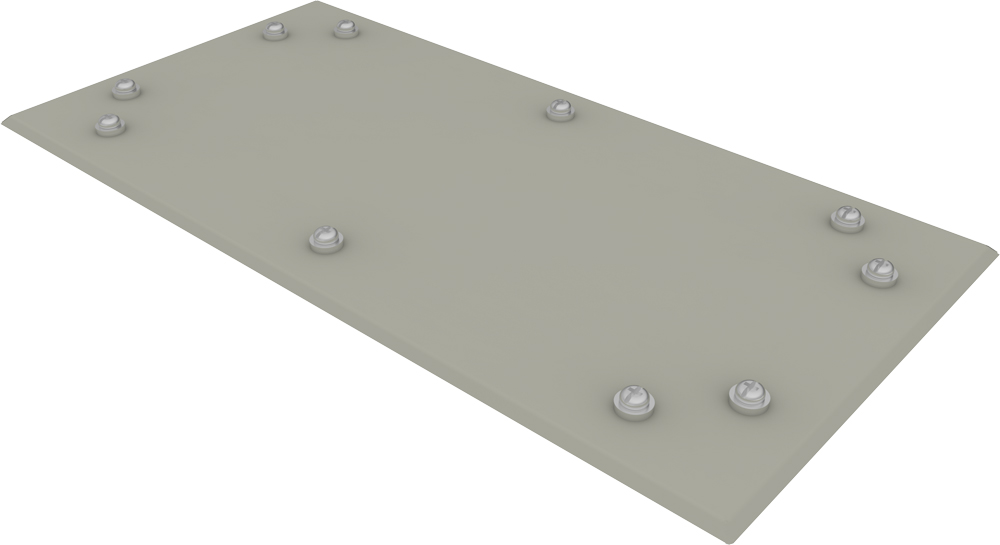

Gland Plate Grey 15x7.5
- Finish ANSI 61 Gray
$79.71In stock
Buy now
Gland Plates · GPM Series
Brand: Hammond Manufacturing · 6 part numbers
- ■14 gauge steel gland plate allows for easy cable entry into enclosure
- ■Maintains NEMA 12, 4 rating, Stainless plates hold type 4X rating
- ■Hardware and cutout template included
- ■Note: Modified sizes are available to maximum sizes of: 16 gauge mild or stainless 76" x 18" 14 gauge mild or stainless 76" x 25" 12 and 10 gauge mild or stainless 76" x 40" 0.081 aluminum 76" x 18" 0.100 aluminum 76" x 25"
- ■16 gauge mild or stainless 76" x 18"
- ■14 gauge mild or stainless 76" x 25"
from $79.71
6 of 6 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your GPM Series part number
Filter 6 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
6 of 6 part numbers · 6 priced online
Gland Platelgray 15X7.5

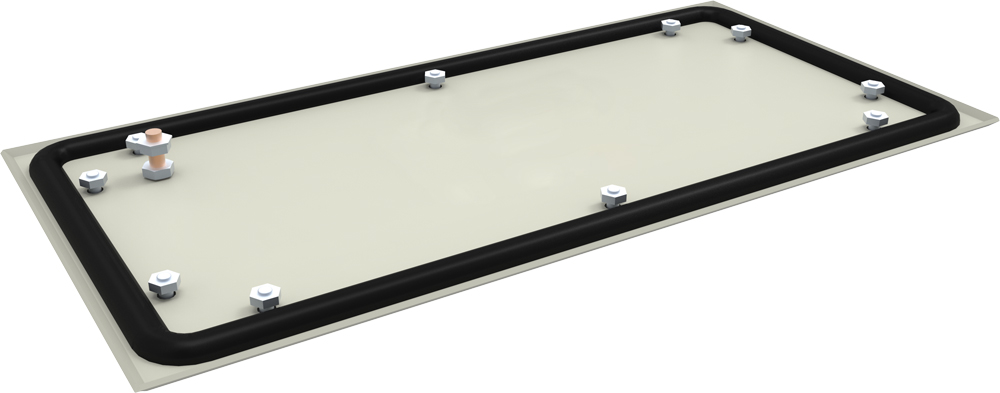

- Finish RAL 7035 Light Gray
$79.71Backorder
Buy nowGland Plate 15 X 7.5 SS316
- Finish 316 STAINLESS
$114.15In stock
Buy nowGland Plate Grey 22X7.5
- Finish ANSI 61 Gray
$79.71In stock
Buy nowGland Plate Lgray 22 X7.5
- Finish RAL 7035 Light Gray
$89.74In stock
Buy nowGland Plate 22X7.5 SS316
- Finish 316 STAINLESS
$137.75In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Finish | Overall Dimensions · H | Overall Dimensions · W | Fits Opening · H | Fits Opening · W | Price | Order |
|---|---|---|---|---|---|---|---|
| GP1507LG | RAL 7035 Light Gray | 15.00 | 7.50 | 12.00 | 4.50 | $79.71Backorder | Buy now |
| GP2207LG | RAL 7035 Light Gray | 22.00 | 7.50 | 19.00 | 4.50 | $89.74In stock | Buy now |
| GP1507GY | ANSI 61 Gray | 15.00 | 7.50 | 12.00 | 4.50 | $79.71In stock | Buy now |
| GP2207GY | ANSI 61 Gray | 22.00 | 7.50 | 19.00 | 4.50 | $79.71In stock | Buy now |
| GP1507S16 | 316 STAINLESS | 15.00 | 7.50 | 12.00 | 4.50 | $114.15In stock | Buy now |
| GP2207S16 | 316 STAINLESS | 22.00 | 7.50 | 19.00 | 4.50 | $137.75In stock | Buy now |
Features
- ■14 gauge steel gland plate allows for easy cable entry into enclosure
- ■Maintains NEMA 12, 4 rating, Stainless plates hold type 4X rating
- ■Hardware and cutout template included
- ■Note: Modified sizes are available to maximum sizes of: 16 gauge mild or stainless 76" x 18" 14 gauge mild or stainless 76" x 25" 12 and 10 gauge mild or stainless 76" x 40" 0.081 aluminum 76" x 18" 0.100 aluminum 76" x 25"
- ■16 gauge mild or stainless 76" x 18"
- ■14 gauge mild or stainless 76" x 25"
- ■12 and 10 gauge mild or stainless 76" x 40"
- ■0.081 aluminum 76" x 18"
- ■0.100 aluminum 76" x 25"
Finish
- ■Available in ANSI 61 Gray and RAL 7035 Light Gray

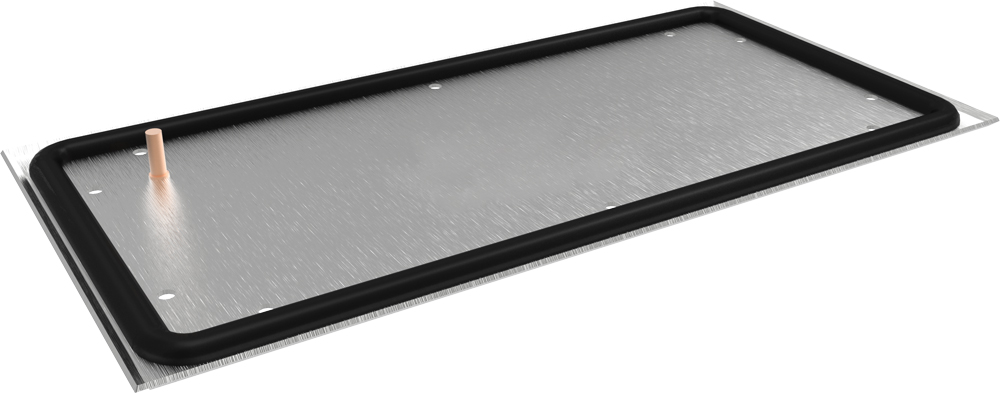

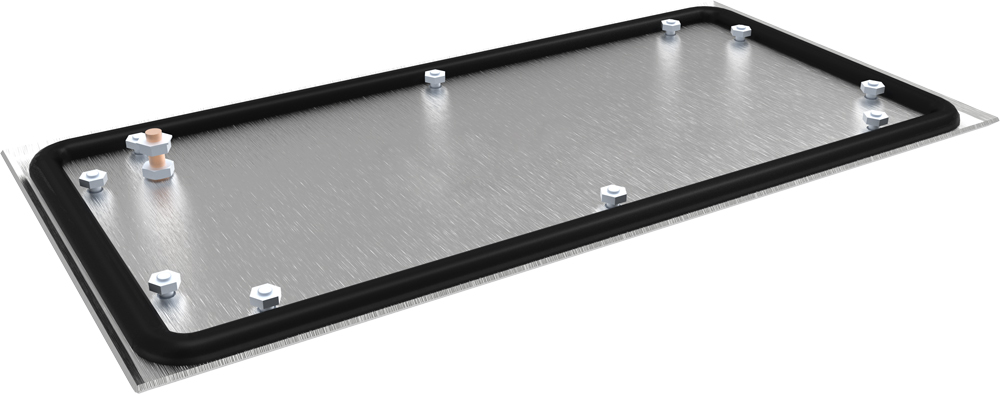

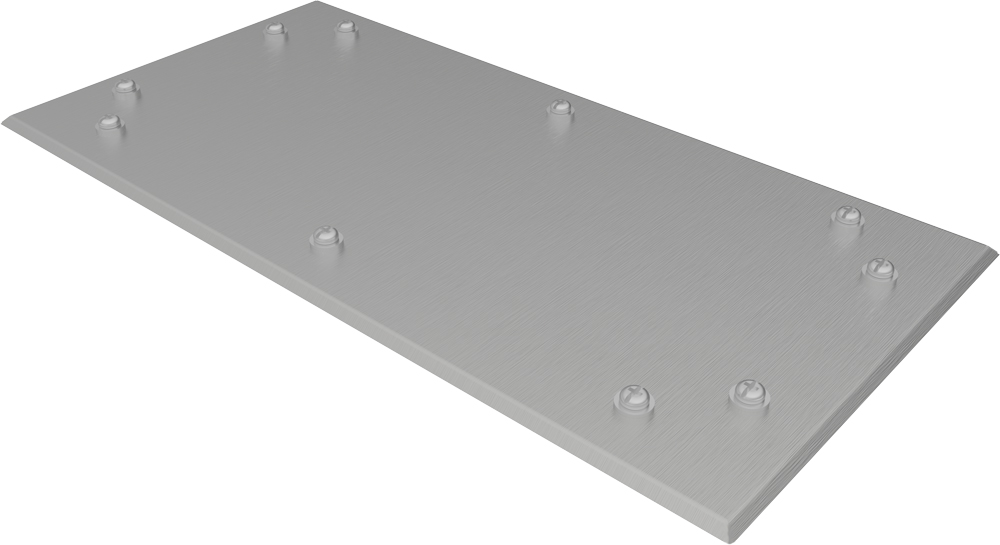

- ■Stainless Plates are 316 with a number 4 brush finish
Documents
Additional information
Part Details
| Part No. | Finish | Overall Dimensions · H | Overall Dimensions · W | Fits Opening · H | Fits Opening · W |
|---|---|---|---|---|---|
| GP1507LG | RAL 7035 Light Gray | 15.00 | 7.50 | 12.00 | 4.50 |
| GP2207LG | RAL 7035 Light Gray | 22.00 | 7.50 | 19.00 | 4.50 |
| GP1507GY | ANSI 61 Gray | 15.00 | 7.50 | 12.00 | 4.50 |
| GP2207GY | ANSI 61 Gray | 22.00 | 7.50 | 19.00 | 4.50 |
| GP1507S16 | 316 STAINLESS | 15.00 | 7.50 | 12.00 | 4.50 |
| GP2207S16 | 316 STAINLESS | 22.00 | 7.50 | 19.00 | 4.50 |
