Cable Ladder Rack Cable Radius Waterfall Bend Radius Guide · CLCR Series

Key Features and Benefits

The CLCR Series cable radius waterfalls provide a controlled solution for protecting cables as they exit ladder rack systems. Designed to maintain proper bend radius, they help prevent cable damage and ensure reliable performance in high-density environments.

With a tool-free snap-on design and durable steel construction, the CLCR Series integrates seamlessly into ladder rack systems, improving cable routing and long-term reliability.

Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)

Units shown: inch . Switch units to: mm

• ■16-gauge steel construction provides durable cable protection and bend radius control at ladder rack exit points.
• ■Formed steel waterfall design provides a smooth bend radius transition, protecting fiber and high-performance cabling.

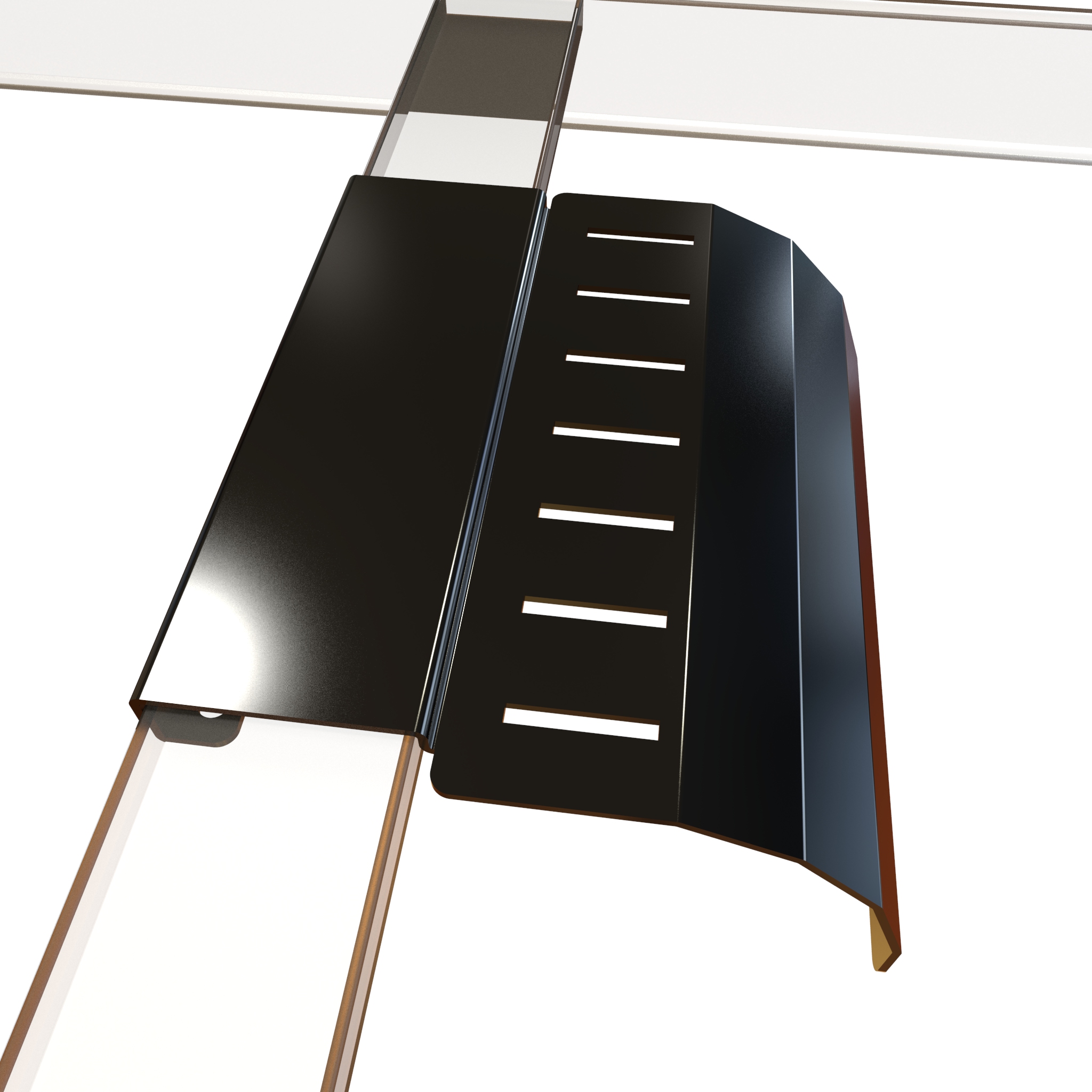

• ■Tool-free design snaps onto ladder rungs for fast installation without additional hardware.
• ■Prevents cable abrasion and damage at ladder rack edges and drop points.

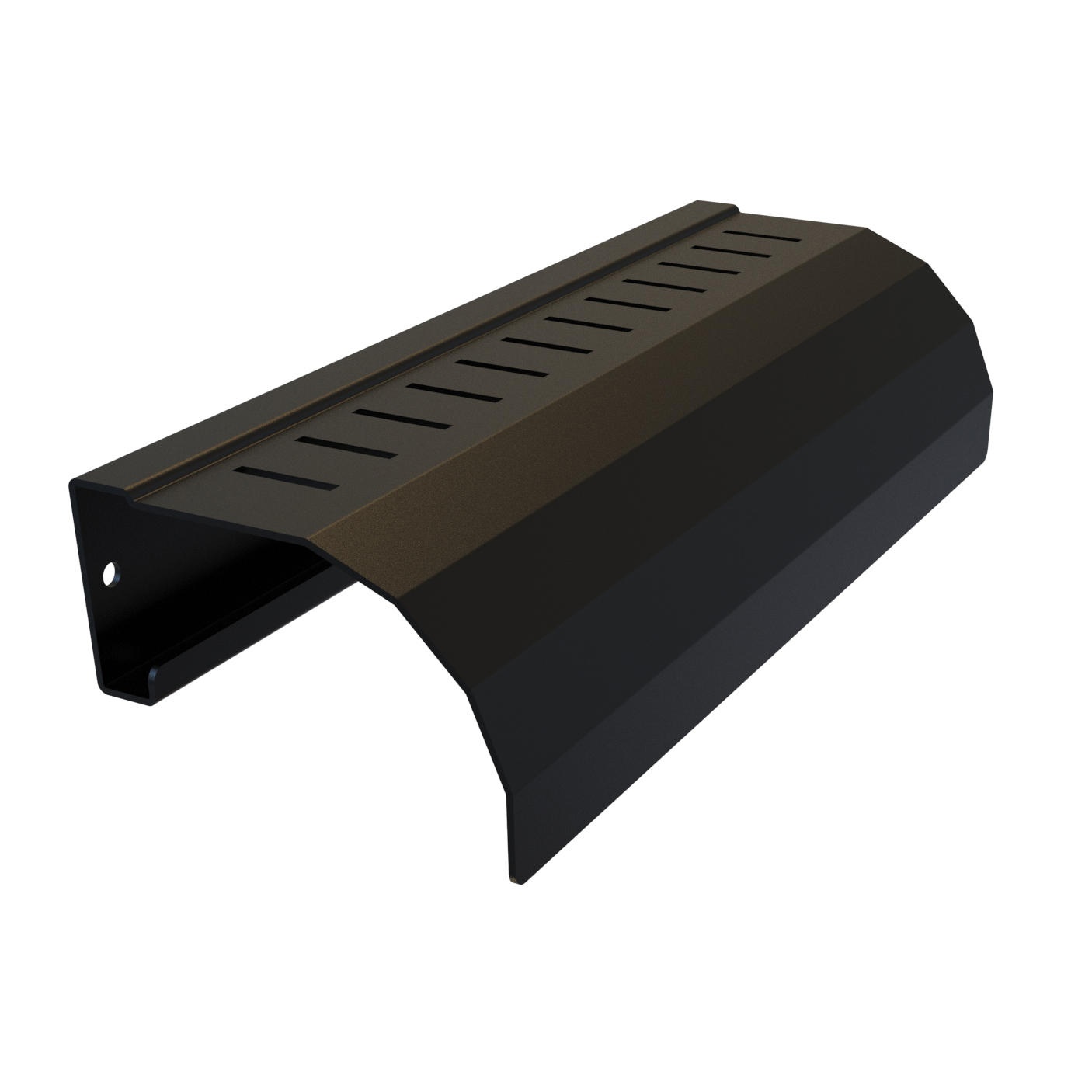

• ■Available in edge-of-ladder and inside-rung configurations for flexible installation.

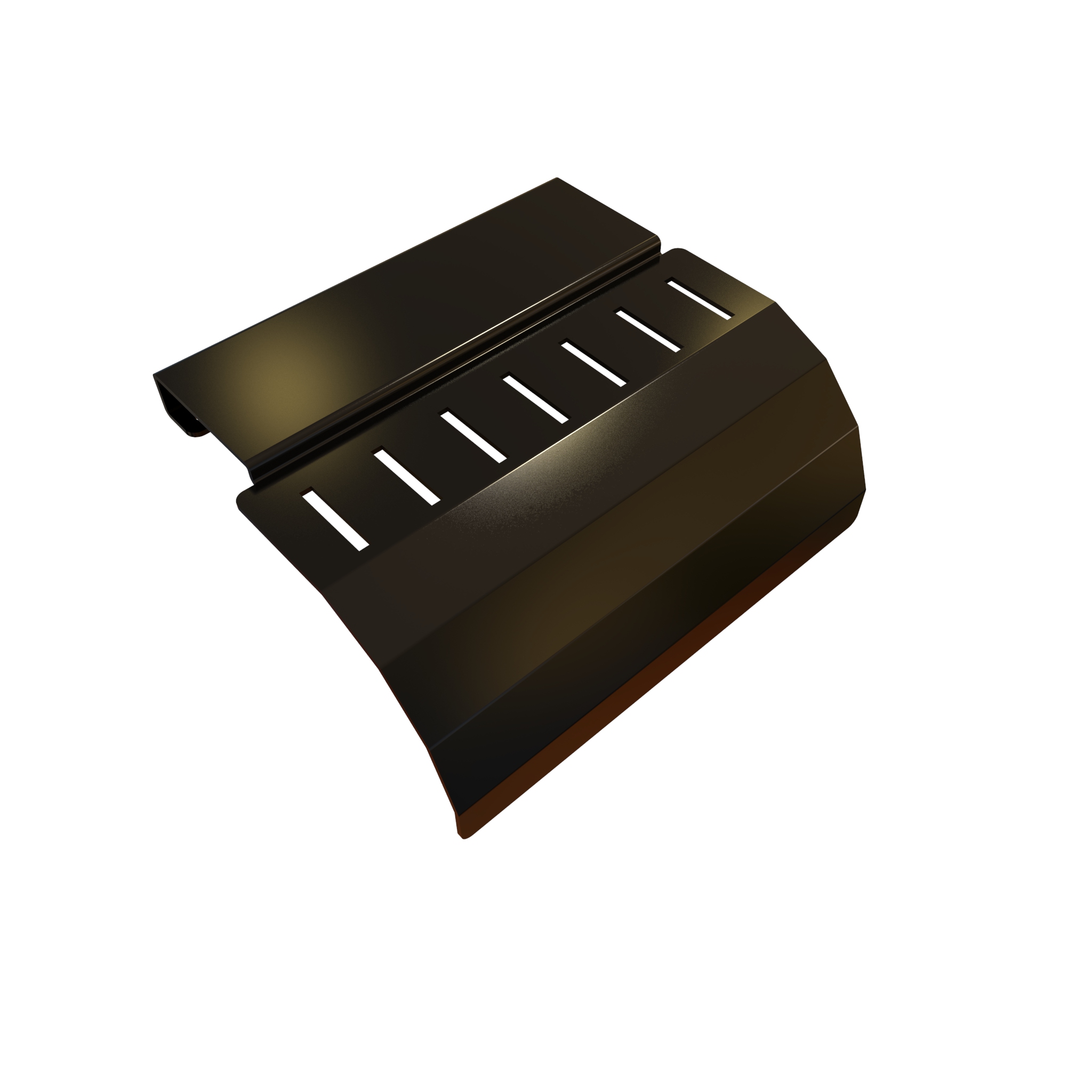

• ■Compatible with multiple ladder widths (6", 12", 18") for broad application. The CLE6CR fits within the following combinations: 1x 6in ladder width 2x 12in ladder width 3x 18in ladder width
• ■The CLE6CR fits within the following combinations: 1x 6in ladder width 2x 12in ladder width 3x 18in ladder width
• ■1x 6in ladder width
• ■2x 12in ladder width
• ■3x 18in ladder width
• ■Improves cable routing when transitioning from overhead ladder rack to vertical pathways or equipment.
• ■Ideal for fiber, Cat6/6A, and other sensitive cable types requiring controlled bend radius.
• ■TAA-compliant, manufactured in North America supports government procurement requirements and ensures consistent quality.
• ■Black powder coat finish (GREENGUARD, TSCA, RoHS compliant) supports environmental and durability requirements.
