Hammond CLE6CR Inside-Rung Cable Waterfall, 2 in Bend Radius
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Inside-rung cable radius waterfall sized for 6 in ladder widths; use 2x for 12 in or 3x for 18 in runways
- 2.00 in (51 mm) bend radius maintains safe cable geometry for fiber and Cat6/6A cabling
- 16-gauge mild steel construction with formed waterfall profile for durable edge protection
- Tool-free design snaps onto ladder rungs — no extra mounting hardware needed
- Black powder coat finish stated as GREENGUARD, TSCA and RoHS compliant
- Compact 2.25 x 5.55 x 4.63 in footprint; 0.55 lbs shipping weight, sold as a single item
- TAA compliant and made in Canada to support government procurement requirements

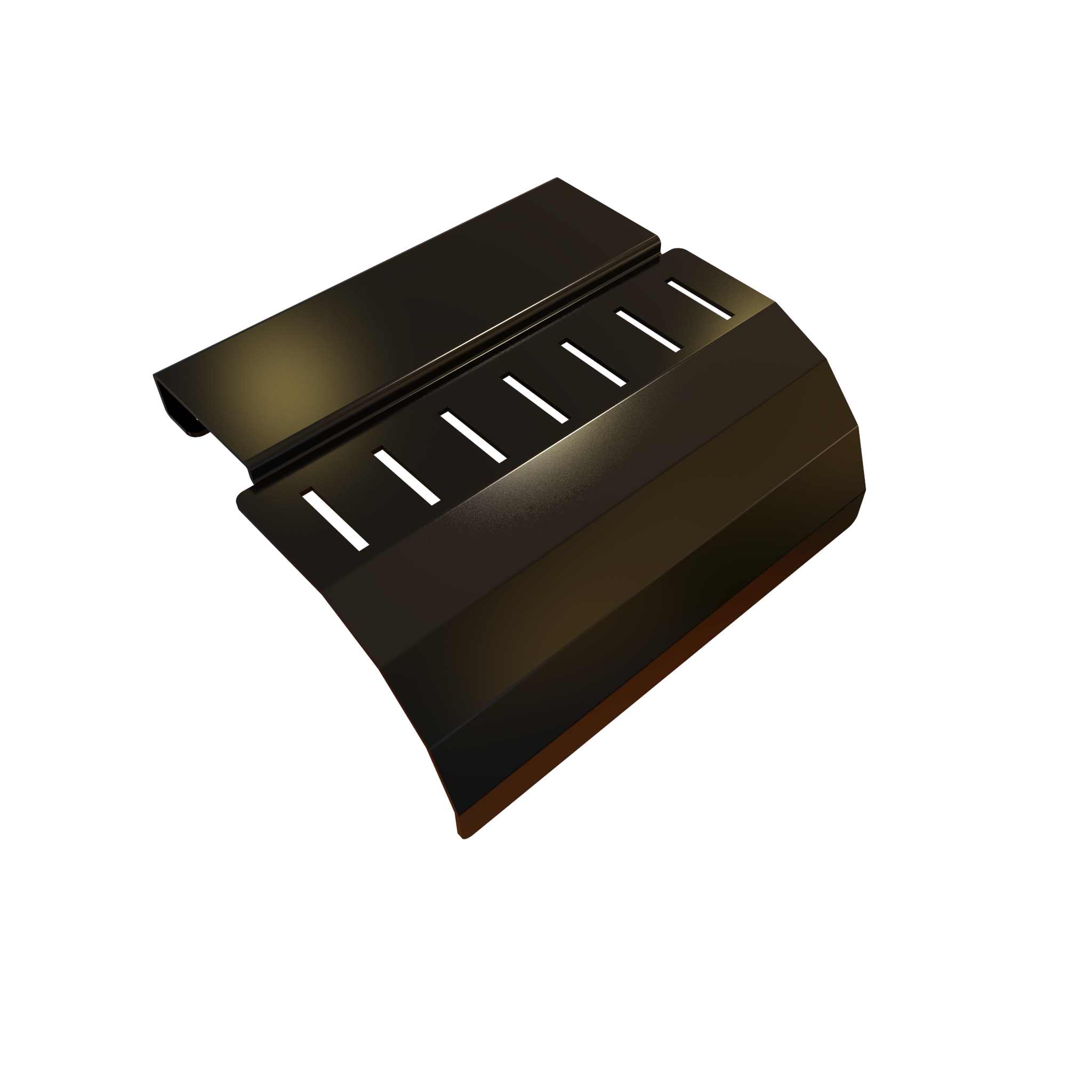

The CLE6CR is an inside-rung cable radius waterfall from the CLCR Series, designed to protect cables and maintain proper bend radius where they exit a ladder rack system. It is intended for data center, telecom and structured cabling installers who need controlled cable transitions at drop points, particularly for fiber, Cat6/6A and other sensitive cable types.
Construction is 16-gauge mild steel with a formed waterfall profile that creates a smooth transition surface instead of a sharp ladder edge, helping prevent abrasion and damage as cables leave the runway. The part is finished in black powder coat, and the finish is stated as GREENGUARD, TSCA and RoHS compliant.
This inside-rung version measures 2.25 in (57 mm) high, 5.55 in (141 mm) wide and 4.63 in (118 mm) deep, with a 2.00 in (51 mm) bend radius. Shipping weight is 0.55 lbs (0.25 kg) and the CLE6CR is sold as a single item. Because it is sized for 6 in ladder sections, it can be combined to cover wider runways: 1x across a 6 in ladder width, 2x across a 12 in ladder width, or 3x across an 18 in ladder width.
Installation is tool-free. The waterfall snaps onto ladder rungs, so no additional hardware is required and the unit can be positioned where cables drop to vertical managers, cabinets or equipment below. A 0.19 in (5 mm) diameter hole is shown on the drawing.
The CLE6CR is manufactured in Canada, is TAA compliant and USMCA compliant, and is listed as RoHS and REACH compliant with ECCN EAR99 for procurement and export documentation.
Ideal For
- Data centers and server rooms
- Telecom and network installations
- Structured cabling ladder rack drop points
- Transitioning cables from ladder rack to vertical cable managers
- Bend radius control for fiber and Cat6/6A cabling
Overview
| Series | CLCR Series |
| Sold As | Sold as single item |
| Description | Inside rung cable radius |
| Part Number | CLE6CR |
| Short Description | 6IN LADDER CABLE RADIUS |
Dimensions
| Depth | 4.63 in (118 mm) |
| Width | 5.55 in (141 mm) |
| Height | 2.25 in (57 mm) |
| Bend Radius | 2.00 in (51 mm) |
| Hole Diameter | 0.19 in (5 mm) |
Identifiers
| UPC | 623980004532 |
| UNSPSC | 39121301 |
| GTIN-14 | 00623980004532 |
| UPC W/o Check Digit | 62398000453 |
Installation
| Configuration | Inside rung (edge-of-stringer version also available in series) |
| Mounting Method | Tool-free snap-on to ladder rungs; no additional hardware required |
| Ladder Width Compatibility | 1x for 6 in ladder width, 2x for 12 in ladder width, 3x for 18 in ladder width |
Packaging & Shipping
| Tariff Code | 7326.90.8688 |
| Shipping Weight | 0.55 lbs (0.25 kg) |
Construction & Finish
| Gauge | 16-gauge steel |
| Material | Mild Steel |
| Finish / Colour | Black powder coat (painted black) |
| Finish Compliance | GREENGUARD, TSCA, RoHS compliant |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA compliant |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What ladder rack widths does the CLE6CR fit?▾
It is sized for a 6 in ladder width. Use one unit on a 6 in ladder, two units on a 12 in ladder, or three units on an 18 in ladder.
Does installation require tools or hardware?▾
No. The CLE6CR uses a tool-free snap-on design that attaches to ladder rungs without additional hardware.
What bend radius does it provide?▾
The formed waterfall provides a 2.00 in (51 mm) bend radius, suitable for fiber, Cat6/6A and other cables requiring controlled bend radius.
What is the difference between CLE6CR and CLECR?▾
CLE6CR is the inside-rung cable radius version (2.25 x 5.55 x 4.63 in), while CLECR is the edge-of-stringer version (2.45 x 10.00 x 3.63 in). Both provide a 2.00 in bend radius.
Is the CLE6CR suitable for government projects?▾
The data states it is TAA compliant and manufactured in North America (country of origin Canada), which supports government procurement requirements.
What is it made of and how is it finished?▾
It is formed from 16-gauge mild steel and finished in black powder coat, described as GREENGUARD, TSCA and RoHS compliant.
