Hammond WMD18LG Light Gray 18 in Deep Wall Desk, 100 lb Rated
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 16-gauge mild steel construction with a 100 lb load capacity for laptops, tools and test devices
- Overall size 10.09 in x 22.98 in x 18.00 in (256 x 584 x 457 mm); 22.64 in (575 mm) inside width
- Wall-mount desk design creates a stable work surface for configuration, servicing and temporary equipment placement
- Can also be rack-mounted as a shelf/desk accessory for flexible installation in rack environments
- Rear and side cable pass-through cutouts support organized cable routing and clean installations
- Flat-pack (knock-down) design lowers shipping cost and simplifies handling and storage
- RAL7035 light gray textured powder coat finish; GREENGUARD, TSCA and RoHS compliant
- Made in Canada, USMCA, REACH and TAA compliant, ECCN EAR99; 12 lbs (5.44 kg) shipping weight

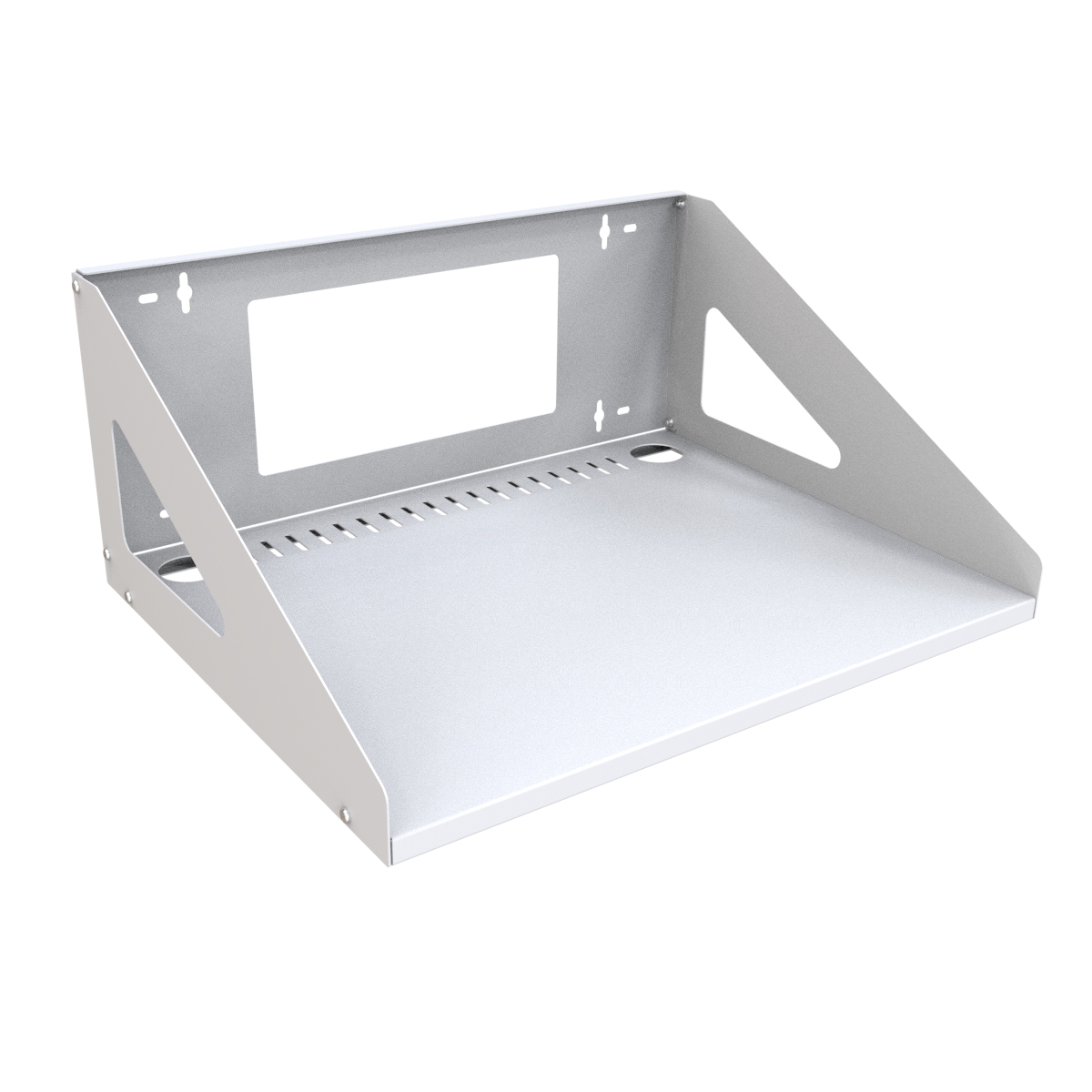

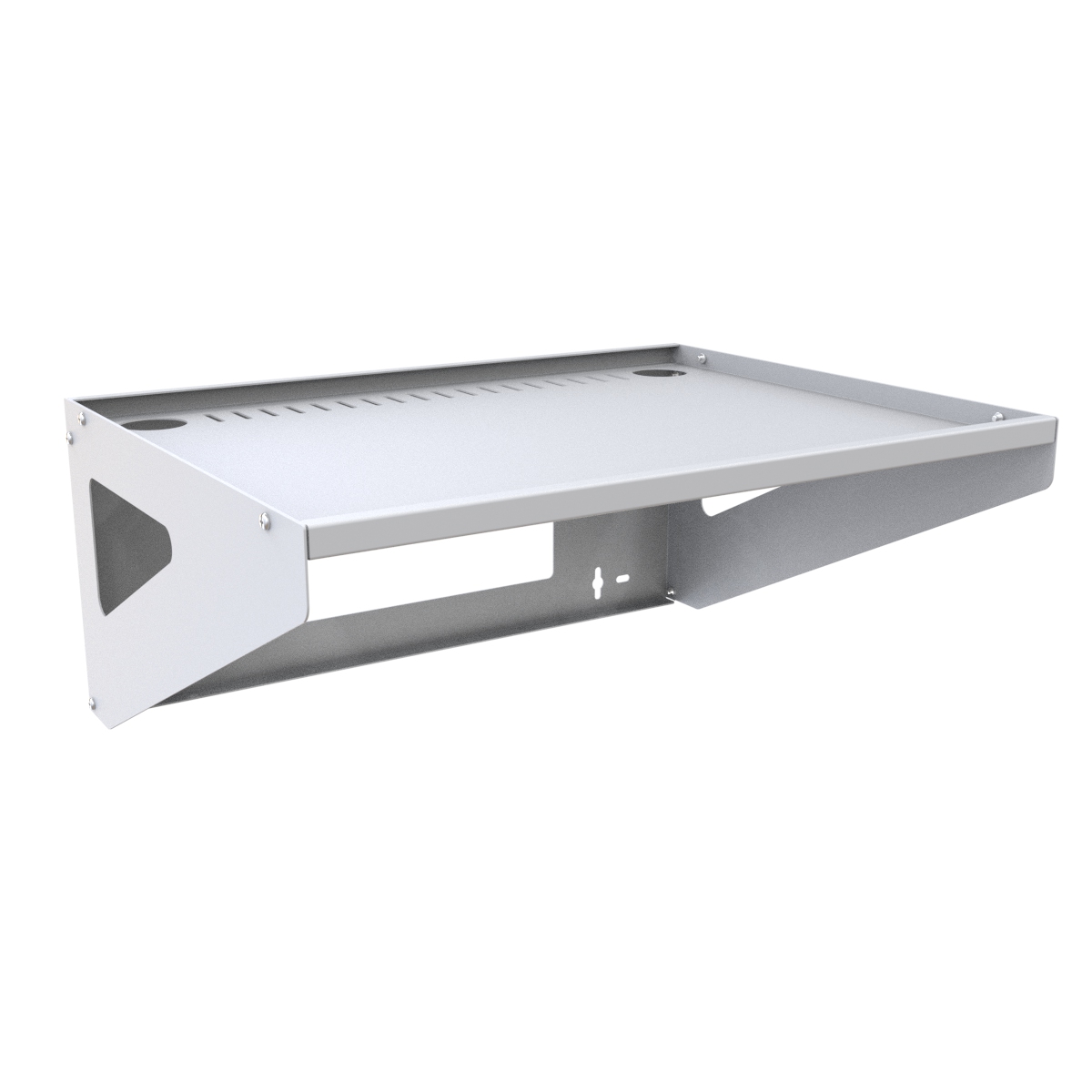

The WMD18LG is a wall-mounted desk from the Hammond WMD Series, built to support non-rack equipment in telecom rooms, network closets and IT installations. It gives technicians a stable, dedicated work surface for configuring, testing and servicing equipment right at the installation site, and it can also be rack-mounted as a shelf/desk accessory when rack space is available.
Construction is 16-gauge mild steel with a 100 lb load capacity, so it reliably holds laptops, hand tools, diagnostic devices and temporary staging equipment. The WMD18LG ships in a painted RAL7035 light gray textured powder coat finish; the same desk is offered in RAL9005 black as WMD18BK. The finish is GREENGUARD, TSCA and RoHS compliant, supporting indoor air quality goals in occupied spaces.
Overall dimensions are 10.09 in (256 mm) high x 22.98 in (584 mm) wide x 18.00 in (457 mm) deep, with an inside width of 22.64 in (575 mm). The nominal catalog size is listed as 10 in x 22.75 in x 18 in (254 mm x 578 mm x 457 mm). Shipping weight is 12 lbs (5.44 kg).
- Rear and side cable pass-through cutouts, including a 2.00 in (51 mm) diameter opening, for organized cable routing.
- Flat-pack (knock-down) design that reduces shipping cost and simplifies handling and storage.
- 0.235 x 1.500 in mounting slots for wall attachment.
The WMD18LG assembly consists of a rear panel, two side brackets, a shelf and eight 10-32 x 3/8 in binding head screws. Mounting hardware for the wall is not included, so select fasteners suited to your wall type. The part is made in Canada, is USMCA, REACH and TAA compliant, and is classified EAR99.
Ideal For
- Telecom rooms and network closets needing a temporary workspace
- Field service laptop configuration and diagnostics
- Wall-mounted installations without available rack shelf space
- Retrofit installations where adding a cabinet is not practical
- Temporary staging or testing of non-rack equipment
Overview
| Series | WMD Series - Wall-Mount Desk for IT Equipment (100 lb) |
| Assembly | Flat-pack (knock-down) design |
| Part Number | WMD18LG |
| Product Type | Wall-mounted desk for supporting non-rack equipment in telecom and IT installations |
| Load Capacity | 100 lb |
| Short Description | WALL MOUNT DESK 18D |
| Companion Part (Black) | WMD18BK (RAL9005 Black) |
Dimensions
| Inside Width | 22.64 in (575 mm) |
| Overall Depth | 18.00 in (457 mm) |
| Overall Width | 22.98 in (584 mm) |
| Overall Height | 10.09 in (256 mm) |
| Mounting Slot Size | 0.235 x 1.500 in slot |
| Nominal Size (H X W X D) | 10 in x 22.75 in x 18 in (254 mm x 578 mm x 457 mm) |
| Right Side View Dimension | 4.19 in (106 mm) |
| Front View Reference Width | 18.31 in (465 mm) |
| Front View Reference Dimension | 12.00 in (305 mm) |
| Cable Pass-Through Hole Diameter | 2.00 in (51 mm) |
| Right Side View Height Reference | 7.38 in (188 mm) |
Accessories
| Suggested Accessory | Hook and Loop Cable Straps, Pre-Cut 96 Inch |
Identifiers
| UPC | 623980005331 |
| UNSPSC | 39121301 |
| GTIN-14 | 00623980005331 |
| UPC W/o Check Digit | 62398000533 |
Rack Mounting
| Rack Use | Can also be rack-mounted as a shelf/desk accessory |
Packaging & Shipping
| Tariff Code | 7326.90.8688 |
| Shipping Weight | 12 lbs (5.44 kg) |
| Country Of Origin | CA |
Construction & Finish
| Gauge | 16-gauge steel |
| Finish | Painted light grey textured powder coat, RAL7035 |
| Material | Mild Steel |
| Cable Management | Rear and side cable pass-through cutouts |
| Mounting Hardware | Wall mounting hardware not included |
| Included Components | WMD Rear Panel (1), WMD Side Bracket (2), WMD Shelf (1), Screw 10-32 x 3/8 BDHD SLZP (8) |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA compliant |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
| Finish Compliance | GREENGUARD, TSCA and RoHS compliant powder coat |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How much weight can the WMD18LG hold?▾
It is rated for a 100 lb load capacity, supported by its 16-gauge steel construction, which suits laptops, tools and test devices.
Does the WMD18LG include wall mounting hardware?▾
No. The drawing notes state that mounting hardware is not included, so you supply fasteners appropriate for your wall. The desk itself ships with eight 10-32 x 3/8 in binding head screws for assembly of the rear panel, two side brackets and shelf.
What are the exact dimensions?▾
Overall dimensions are 10.09 in (256 mm) high x 22.98 in (584 mm) wide x 18.00 in (457 mm) deep, with an inside width of 22.64 in (575 mm). The catalog nominal size is listed as 10 in x 22.75 in x 18 in (254 x 578 x 457 mm).
What colour is WMD18LG, and is a black version available?▾
WMD18LG is painted light grey textured, RAL7035. The same desk in RAL9005 black is part number WMD18BK.
Can this desk be mounted in a rack instead of on a wall?▾
Yes. In addition to wall mounting, it can be rack-mounted as a shelf/desk accessory for flexible installation within rack environments.
How does it handle cabling?▾
Rear and side cable pass-through cutouts, including a 2.00 in (51 mm) diameter opening, allow cables to be routed through the desk for a cleaner installation. Hook and loop cable straps are listed as an accessory.
