Hammond WMD18BK 18-Inch Deep Wall Mount Desk, 100 lb Capacity
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 16-gauge steel construction with 100 lb load capacity for laptops, tools and test devices
- Overall size 10.09 in H x 22.98 in W x 18.00 in D (256 x 584 x 457 mm); 22.64 in (575 mm) inside width
- Wall-mount desk design provides a stable work surface for configuration, servicing and temporary equipment placement
- Can also be rack-mounted as a shelf/desk accessory for flexible installation in rack environments
- Rear and side cable pass-through cutouts support organized cable routing
- Flat-pack (knock-down) design reduces shipping cost and simplifies handling and storage
- RAL9005 black textured powder coat finish; GREENGUARD, TSCA and RoHS compliant
- Made in Canada; USMCA, REACH and TAA compliant, ECCN EAR99

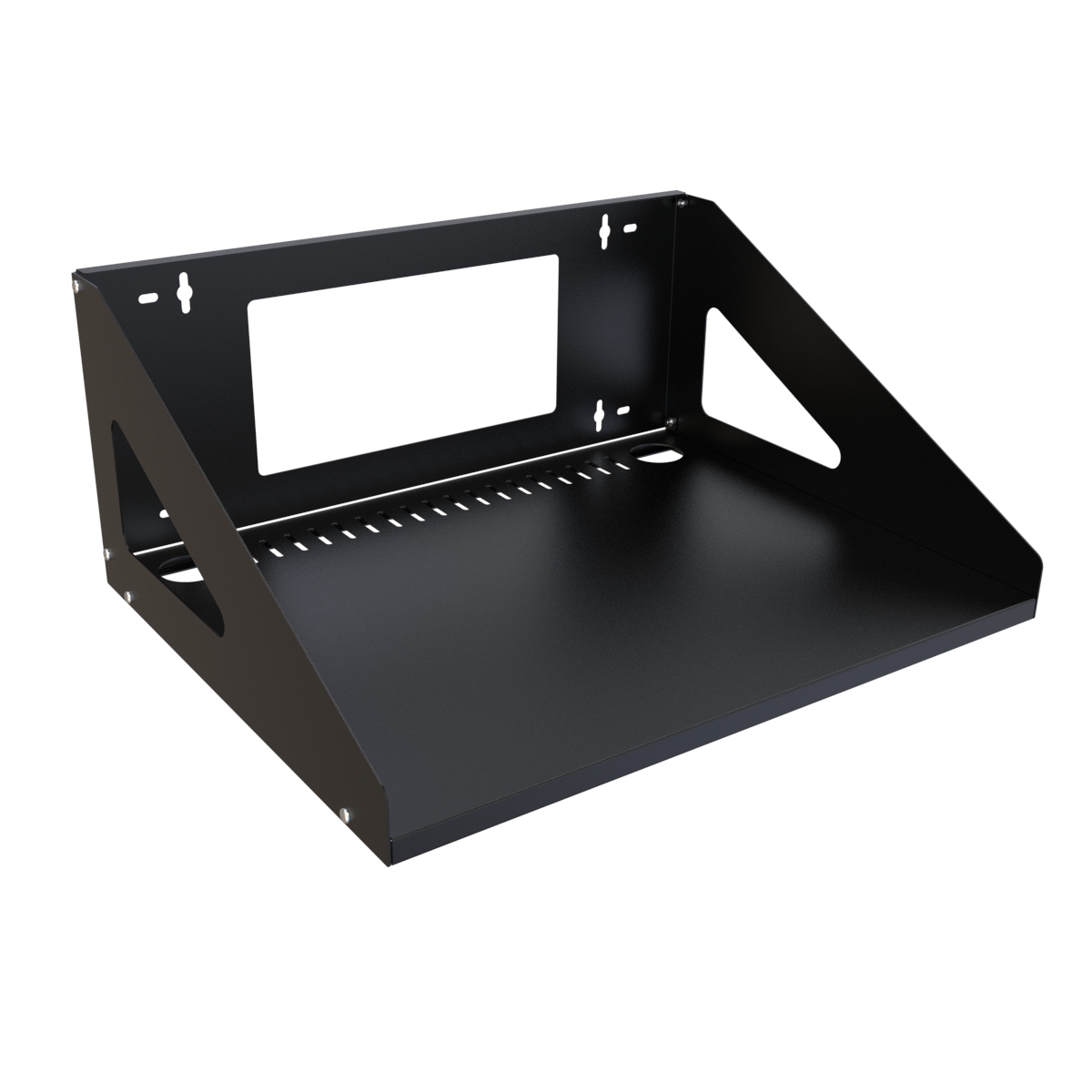

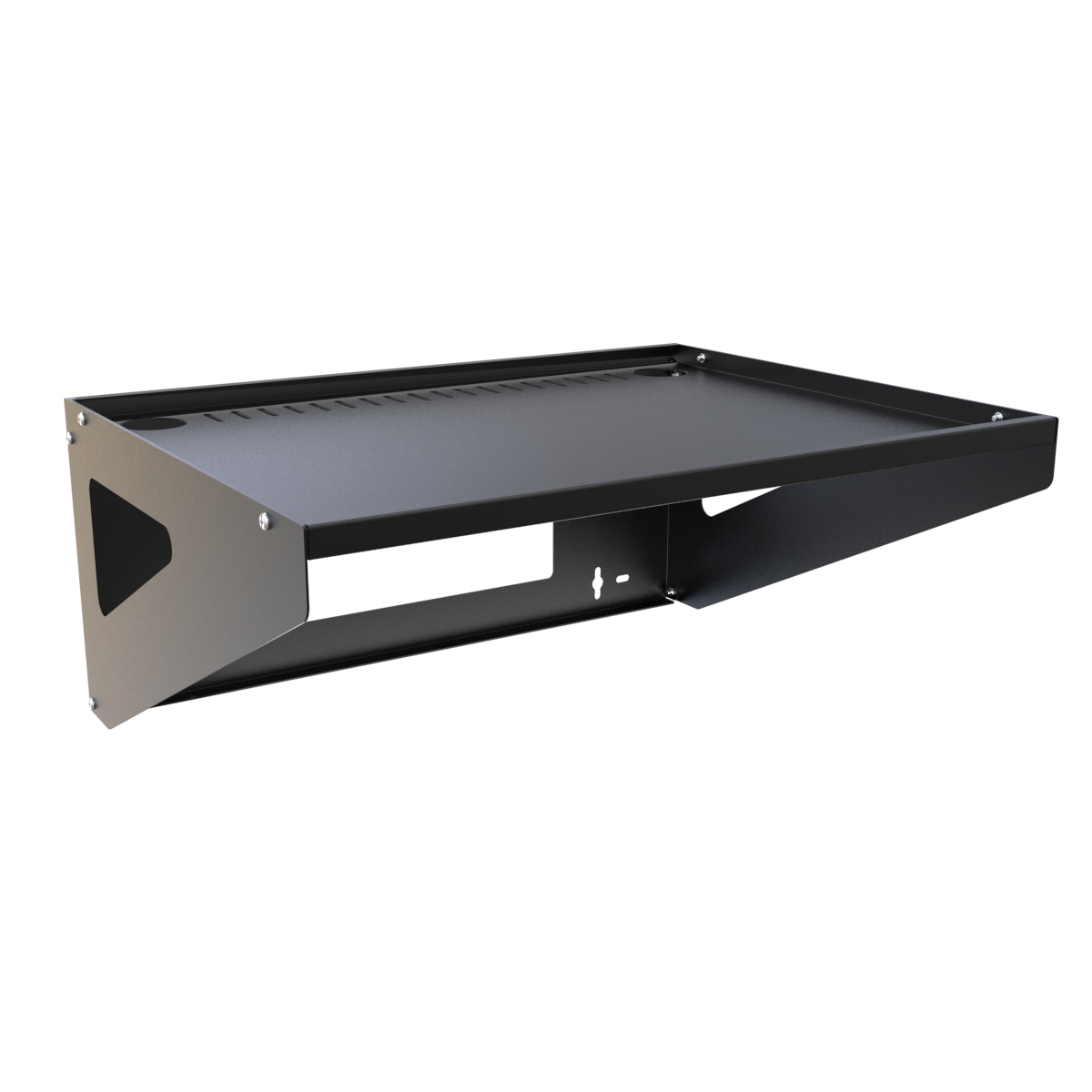

The WMD18BK is a wall-mounted desk designed to support non-rack equipment in telecom and IT installations. It gives technicians a stable, dedicated work surface at the installation site for configuring, testing and servicing equipment, and it can also be rack-mounted as a shelf/desk accessory where that suits the layout better.
Construction is 16-gauge mild steel with a 100 lb load capacity, so it can carry laptops, hand tools, diagnostic devices and temporary staging equipment. This version is finished in RAL9005 black textured powder coat; the finish is GREENGUARD, TSCA and RoHS compliant, which supports use in occupied indoor spaces. Rear and side cable pass-through cutouts allow cables to be routed away from the work surface for a cleaner installation.
Overall assembled dimensions are 10.09 in (256 mm) high x 22.98 in (584 mm) wide x 18.00 in (457 mm) deep, with an inside width of 22.64 in (575 mm) across the desk. The product-list nominal size is listed as 1 in x 22.75 in x 18 in (25 mm x 578 mm x 457 mm), and shipping weight is 16 lbs (7.26 kg).
WMD18BK ships flat-pack (knock-down) to reduce shipping cost and simplify handling and storage. The assembly comprises a WMD rear panel, two WMD side brackets, a WMD shelf and eight 10-32 x 3/8 in binding-head screws. Mounting hardware for attaching the unit to the wall is not included, so fasteners should be selected for the wall construction.
The part is made in Canada, is USMCA, RoHS, REACH and TAA compliant, and carries ECCN EAR99. If you need a wall rack with an integrated shelf instead of a standalone desk, the APBS Series is the alternative within the manufacturer's range.
Ideal For
- Telecom rooms and network closets needing a temporary workspace
- Field service laptop configuration and diagnostics
- Wall-mounted installations without available rack shelf space
- Retrofit sites where adding a cabinet is not practical
- Staging and testing of non-rack equipment where space is limited
Overview
| Series | WMD Series — Wall-Mount Desk for IT Equipment (100 lb) |
| Assembly | Flat-pack (knock-down) |
| Description | Wall Mount Desk 18D |
| Part Number | WMD18BK |
| Load Capacity | 100 lb |
Dimensions
| Inside Width | 22.64 in (575 mm) |
| Overall Depth | 18.00 in (457 mm) |
| Overall Width | 22.98 in (584 mm) |
| Overall Height | 10.09 in (256 mm) |
| Nominal Size (H X W X D) | 1 in x 22.75 in x 18 in (25 mm x 578 mm x 457 mm) |
Identifiers
| UPC | 623980005324 |
| UNSPSC | 39121301 |
| GTIN-14 | 00623980005324 |
| UPC W/o Check Digit | 62398000532 |
Packaging & Shipping
| Tariff Code | 7326.90.8688 |
| Shipping Weight | 16 lbs (7.26 kg) |
Construction & Finish
| Material | Mild steel, 16 gauge |
| Finish / Colour | RAL9005 Black, painted black textured powder coat |
| Cable Management | Rear and side cable pass-through cutouts |
| Mounting Hardware | Not included |
| Components Supplied | WMD rear panel (1), WMD side bracket (2), WMD shelf (1), screw 10-32 x 3/8 BDHD SLZP (8) |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA compliant |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
| Finish Compliance | GREENGUARD, TSCA, RoHS compliant powder coat |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How much weight can the WMD18BK hold?▾
It is rated for a 100 lb load capacity, supported by its 16-gauge steel construction, for items such as laptops, tools and test devices.
What are the assembled dimensions?▾
Overall dimensions are 10.09 in (256 mm) high x 22.98 in (584 mm) wide x 18.00 in (457 mm) deep, with an inside width of 22.64 in (575 mm). The product list also gives a nominal size of 1 in x 22.75 in x 18 in (25 mm x 578 mm x 457 mm).
Does WMD18BK include wall-mounting hardware?▾
No. The drawing notes that mounting hardware is not included. The unit ships with its rear panel, two side brackets, shelf and eight 10-32 x 3/8 in binding-head screws for assembly.
Can it be installed in a rack instead of on a wall?▾
Yes. In addition to wall mounting, the WMD can be rack-mounted as a shelf/desk accessory for flexible installation within rack environments.
What colour is WMD18BK, and is another colour available?▾
WMD18BK is RAL9005 black textured powder coat. The same desk is offered in RAL7035 light gray as WMD18LG.
How does it handle cabling?▾
Rear and side cable pass-through cutouts are built in to route cables away from the work surface for cleaner installations.
