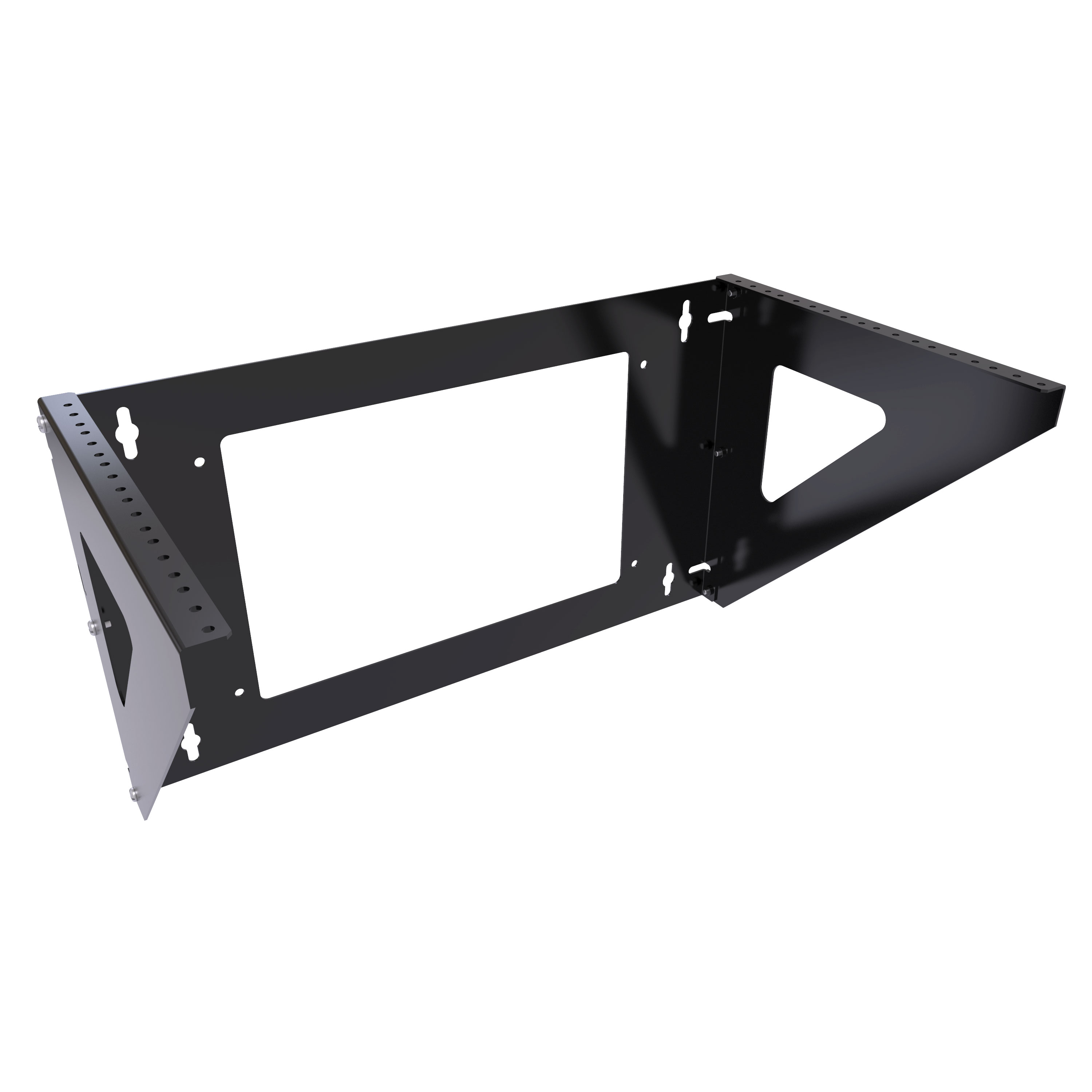

Hammond VPB196UBK 6U Vertical Wall-Mount Rack, 135 lb Capacity
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 6U vertical wall-mount rack with 10.50 in (267 mm) x 19.00 in (483 mm) mounting dimensions for 19-inch equipment
- 14-gauge steel construction with 135 lb equipment capacity for switches, patch panels and network gear
- Vertical mounting design supports deep equipment in shallow spaces where free-standing cabinets will not fit
- Overall size 11.19 in x 19.19 in x 11.19 in (284 mm x 487 mm x 284 mm); 6 lbs (2.72 kg) shipping weight
- Tapped 10-32 rails with ten 10-32 x 0.75 in rack mounting screws included (SCREW1032-10)
- RAL9005 black powder coat finish: GREENGUARD Gold, TSCA and RoHS compliant, corrosion-resistant for indoor use
- Open access with rear cable routing for simplified cable management and airflow
- TAA compliant, RoHS and REACH compliant, USMCA compliant, made in Canada; 6U ships unassembled in a flat-pack
The VPB196UBK is a 6U vertical wall-mount open rack built for IT, telecom and AV installers who need to support 19-inch rack equipment where a free-standing or enclosed cabinet will not fit. By orienting the rack rails vertically, the bracket carries deeper devices in shallow wall spaces while keeping equipment accessible from the front and cables routed at the rear.
Construction is 14-gauge mild steel with a 135 lb equipment capacity, giving reliable support for switches, patch panels and other network hardware. The finish is a RAL9005 black powder coat that is GREENGUARD Gold, TSCA and RoHS compliant, providing a low-emitting, corrosion-resistant surface suited to indoor environments. The rack is TAA compliant, RoHS and REACH compliant, USMCA compliant and manufactured in North America.
Overall dimensions are 11.19 in x 19.19 in x 11.19 in (284 mm x 487 mm x 284 mm) with mounting dimensions of 10.50 in (267 mm) high by 19.00 in (483 mm) wide across 6 rack units. Rails are tapped 10-32. Shipping weight is 6 lbs (2.72 kg).
The VPB196UBK ships unassembled in a flat-pack and consists of a back assembly, left-hand and right-hand side panels and six 10-32 x 3/8 in assembly screws. Ten 10-32 x 0.75 in rack mounting screws are included (replacement part SCREW1032-10); wall mounting hardware is not included and must be selected for the substrate.
- Open access design for faster installation and improved airflow
- Compact, cost-effective alternative to a wall-mount cabinet
Ideal For
- Tight network closets with limited depth
- Telecom backboards and communication rooms
- Retail and branch locations
- Office IT spaces without floor space
- Retrofit and space-constrained installations
Overview
| Series | VPB Series - Low-Profile Vertical Wall-Mount Rack (135 lb) |
| Rack Type | Open Wall Rack |
| Part Number | VPB196UBK |
| Long Description | Heavy Duty Vertical Wall Bracket - 6U x 11.19" dp |
| Short Description | 6U VERTICAL WALL RACK |
| Equipment Capacity | 135 lb |
Dimensions
| Inside Depth | 11.12 in (282 mm) |
| Inside Width | 17.81 in (452 mm) |
| Overall Depth | 11.19 in (284 mm) |
| Overall Width | 19.19 in (487 mm) |
| Overall Height | 11.19 in (284 mm) |
| Size H X W X D | 11.19 in x 19.19 in x 11.19 in (284 mm x 487 mm x 284 mm) |
Identifiers
| UPC | 623980895598 |
| UNSPSC | 43223308 |
| GTIN-14 | 00623980895598 |
| Drawing Reference | VPB196U |
| UPC W/o Check Digit | 62398089559 |
Rack Mounting
| Rail Type | Tapped 10-32 |
| Rack Units | 6 (6U) |
| Mounting Width | 19.00 in (483 mm) |
| Mounting Height | 10.50 in (267 mm) |
| Rack Compatibility | 19" rack equipment |
| 19" Mounting Dimension (Drawing) | 18.35 in (466 mm) |
Included Items
| Wall Bracket | 1 |
| Component Parts | Vert. Pnl Brkt Back Ass'y (1), Vert. Pnl Brkt Side LH (1), Vert. Pnl Brkt Side RH (1) |
| Assembly Hardware | 6 x Screw 10-32 x 3/8 BDHD SLZP |
| Rack Mounting Screws | 10 x 10-32 x 0.75 in (replacement part no. SCREW1032-10) |
| Wall Mounting Hardware | Not included |
Packaging & Shipping
| Tariff Code | 9403.10.0040 |
| Shipping Weight | 6 lbs (2.72 kg) |
Construction & Finish
| Finish | Painted smooth black powder coat |
| Assembly | 6U ships unassembled in a flat-pack |
| Material | Mild Steel |
| Paint Color | RAL9005 Black |
| Steel Gauge | 14 ga. |
| Finish Compliance | GREENGUARD Gold, TSCA and RoHS compliant |
Environmental & Protection
| Intended Environment | Indoor environments |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA compliant |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How much equipment weight can the VPB196UBK support?▾
The VPB Series is 14-gauge steel construction with a 135 lb capacity, suitable for switches, patch panels and network equipment.
What are the mounting dimensions and rack capacity?▾
The VPB196UBK provides 6 rack units, with mounting dimensions of 10.50 in (267 mm) high by 19.00 in (483 mm) wide for 19-inch rack equipment.
Does it come assembled?▾
No. The 6U version ships unassembled in a flat-pack and is built from a back assembly plus left- and right-hand side panels using the six included 10-32 x 3/8 in screws.
What mounting hardware is included?▾
Ten 10-32 x 0.75 in rack mounting screws are included (replacement part no. SCREW1032-10), along with the #10-32 assembly hardware. Wall mounting hardware is not included.
What type of rails does it use?▾
The rails are tapped 10-32, so equipment mounts directly with 10-32 screws without clip nuts.
Is the VPB196UBK TAA compliant?▾
Yes. It is TAA compliant, RoHS and REACH compliant, USMCA compliant, and its country of origin is Canada.
