Hammond VFMFP12WH 12 in Solid Inner Filler Panel, White Steel
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Solid inner panel for 12 in wide VFM Series double-sided vertical cable managers
- White painted textured finish; black equivalent available as VFMFP12BK
- Mild steel construction for durable in-channel cable separation
- Published size 20.63 in x 11.82 in x 0.06 in (524 mm x 300 mm x 2 mm)
- Supplied as one VFM manager accessory cover with 4 fastener clips for clip-in mounting
- TAA-compliant and USMCA compliant, country of origin Canada
- RoHS and REACH compliant; ECCN EAR99

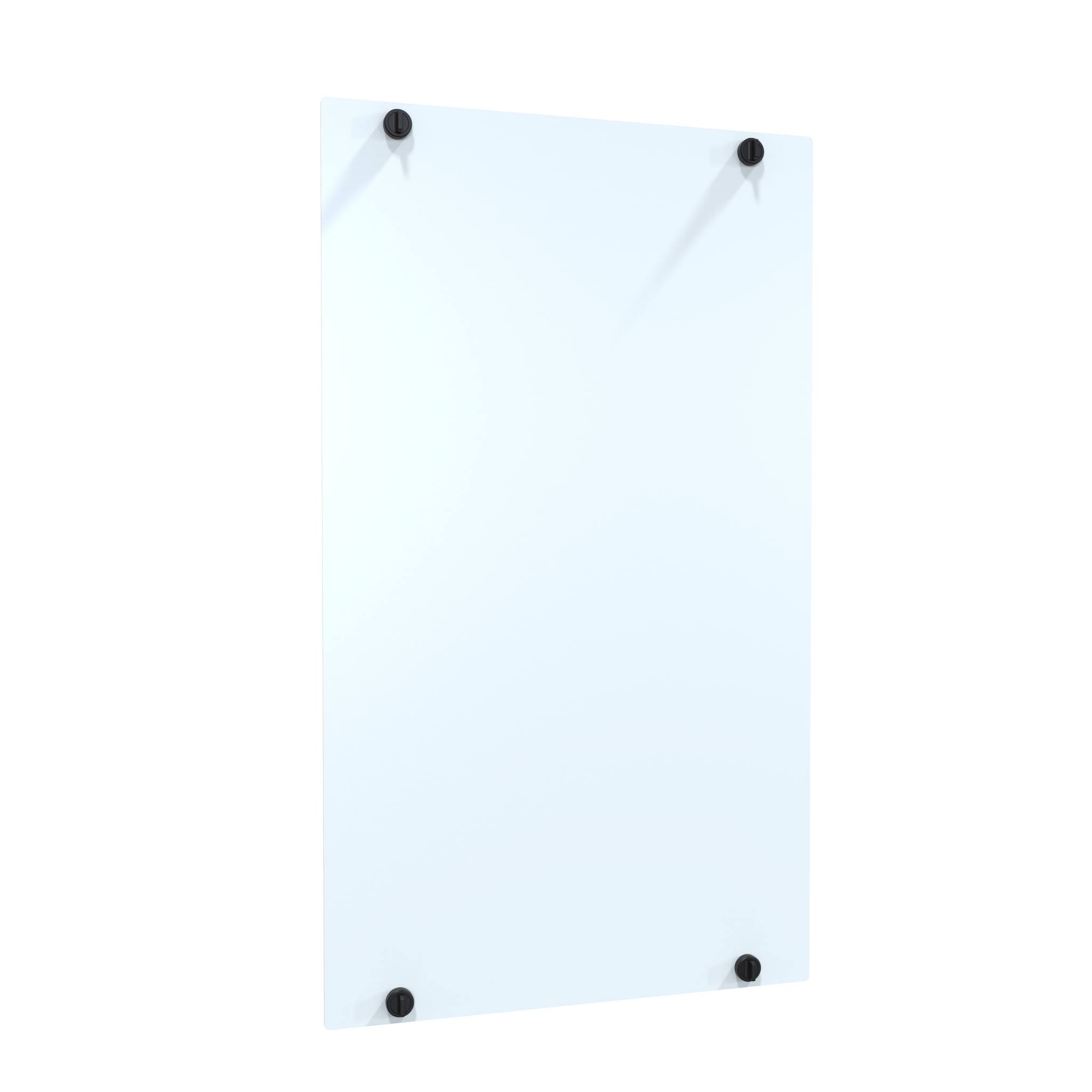

The VFMFP12WH is a solid inner panel (filler panel) for the 12 in wide models of the Hammond VFM Series double-sided vertical cable manager. It installs inside the manager channel to close off the pass-through area between the front and rear cable channels, giving data center, network and telecom installers a clean separation between front and rear cable routing paths.
This part is the white version of the 12 in solid inner panel; the matching black version is VFMFP12BK, and the same panel is offered for 6 in, 8 in and 10 in wide managers. Where cable spools or channel dividers are required instead of a solid barrier, the VFM range also offers the spool/divider inner panel in the same widths.
VFMFP12WH is fabricated from mild steel and finished in painted white textured, matching the finish of the VFM managers and accessories. Published size is 20.63 in x 11.82 in x 0.06 in (524 mm x 300 mm x 2 mm); the part drawing gives overall panel dimensions of 20.62 in (524 mm) by 11.86 in (301 mm). The assembly consists of one VFM manager accessory cover plus four fastener clips, so the panel clips into place without additional hardware.
Note that the VFM Series cable fill figures for the rear pass-through opening are stated without accessory inner panels installed, so plan cable fill accordingly when a solid panel such as VFMFP12WH is fitted.
- Made in Canada, USMCA compliant and TAA-compliant for government and public-sector procurement.
- RoHS and REACH compliant; ECCN EAR99; tariff code 8538.10.0000.
Ideal For
- Separating front and rear cable channels in 12 in wide VFM vertical managers
- Data centers and high-density IT environments
- Network and telecom installations
- Cross-connect and high-density patching environments
- Multi-rack deployments with centralized cable routing
Overview
| Colour | White |
| Series | VFM Series - Double-Sided Vertical Cable Manager High Density Finger Duct |
| Description | 12IN FILLER PANEL FOR VFM |
| Part Number | VFMFP12WH |
| Accessory Type | Solid Inner Panel |
| Black Equivalent Part | VFMFP12BK |
| Manager Width Compatibility | 12 in width VFM managers |
Dimensions
| Depth | 0.06 in |
| Width | 11.82 in |
| Height | 20.63 in |
| Size H X W X D | 20.63 in x 11.82 in x 0.06 in (524 mm x 300 mm x 2 mm) |
| Drawing Overall Width | 11.86 in (301 mm) |
| Drawing Overall Height | 20.62 in (524 mm) |
Identifiers
| UPC | 623980565361 |
| UNSPSC | 43223305 |
| GTIN-14 | 00623980565361 |
| UPC W/o Check Digit | 62398056536 |
Packaging & Shipping
| Tariff Code | 8538.10.0000 |
| Country Of Origin | CA |
Construction & Finish
| Finish | Painted white textured |
| Material | Mild Steel |
| Assembly Contents | 1 x VFM MNGR ACC. COVER, 4 x FASTENER CLIP |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA-compliant |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which cable managers does VFMFP12WH fit?▾
It is listed in the VFM Specific Accessories table under the 12 in width column, so it is intended for the 12 in wide VFM Series double-sided vertical cable managers.
What is the difference between VFMFP12WH and VFMAP12WH?▾
VFMFP12WH is the solid inner panel, while VFMAP12WH is the spool/divider inner panel for the same 12 in width. Choose the solid panel when you want a closed barrier between the front and rear channels.
What colour and material is this panel?▾
It is mild steel, painted white textured according to the part drawing. The black version of the same panel is VFMFP12BK.
Does it include mounting hardware?▾
Yes. The drawing lists the assembly as one VFM manager accessory cover plus four fastener clips.
Does installing this panel affect cable fill capacity?▾
The VFM Series cable fill table notes that the rear pass-through opening quantities are given without accessory inner panels installed, so rear pass-through capacity should be reassessed when a solid inner panel is fitted.
Is VFMFP12WH suitable for government projects?▾
The data lists it as TAA-compliant and USMCA compliant with country of origin CA, along with RoHS and REACH compliance and ECCN EAR99.
