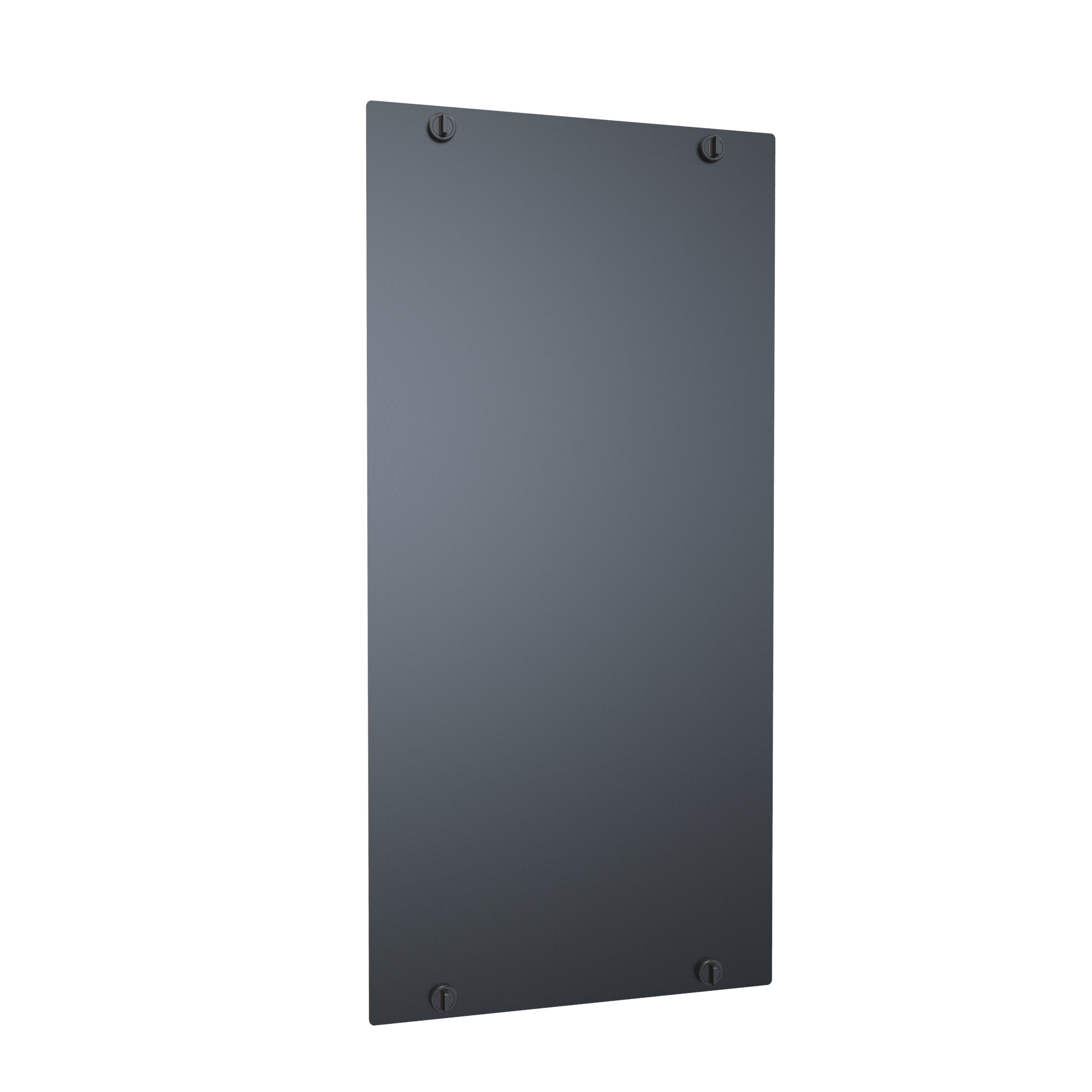

Hammond VFMFP10BK 10 in Solid Inner Filler Panel, Black Steel

The VFMFP10BK is a solid inner panel for the VFM Series double-sided vertical cable managers in the 10 in width. It mounts inside the manager channel to create a closed, continuous inner surface, so cable bundles routed in the front and rear channels stay separated instead of crossing through the centre of the duct. It is intended for IT and telecom integrators, data centre technicians and facilities teams building structured cable pathways in open frame rack systems.

The panel is made from mild steel with a black textured painted finish, matching the black VFM managers (VFMMD6BK, VFMMD8BK, VFMMD10BK and VFMMD12BK are the black manager sizes; VFMFP10BK is the 10 in version of the solid inner panel, with VFMFP10WH offered in white). Nominal size is 20.63 in x 9.82 in x 0.06 in (524 mm x 249 mm x 2 mm), and the drawing gives overall dimensions of 20.62 in (524 mm) by 9.86 in (250 mm). Shipping weight is 5 lbs (2.27 kg).

Each VFMFP10BK assembly consists of one VFM manager accessory cover and four fastener clips, so the panel clips into the manager without additional hardware being specified. Where a spool and divider arrangement is preferred instead of a solid surface, the VFMAP10BK spool/divider inner panel covers the same 10 in width.

For procurement, the part is TAA-compliant and made in Canada (country of origin CA), USMCA compliant, RoHS compliant and REACH compliant, with ECCN EAR99 and tariff code 8538.10.0000. Note that in the VFM cable fill data, the published rear pass-through capacities are stated without accessory inner panels installed, so adding VFMFP10BK changes how the rear opening is used.
