Hammond VFMB3BK VFM Plinth Riser Pair for DRZ4 and RB-2PA Racks

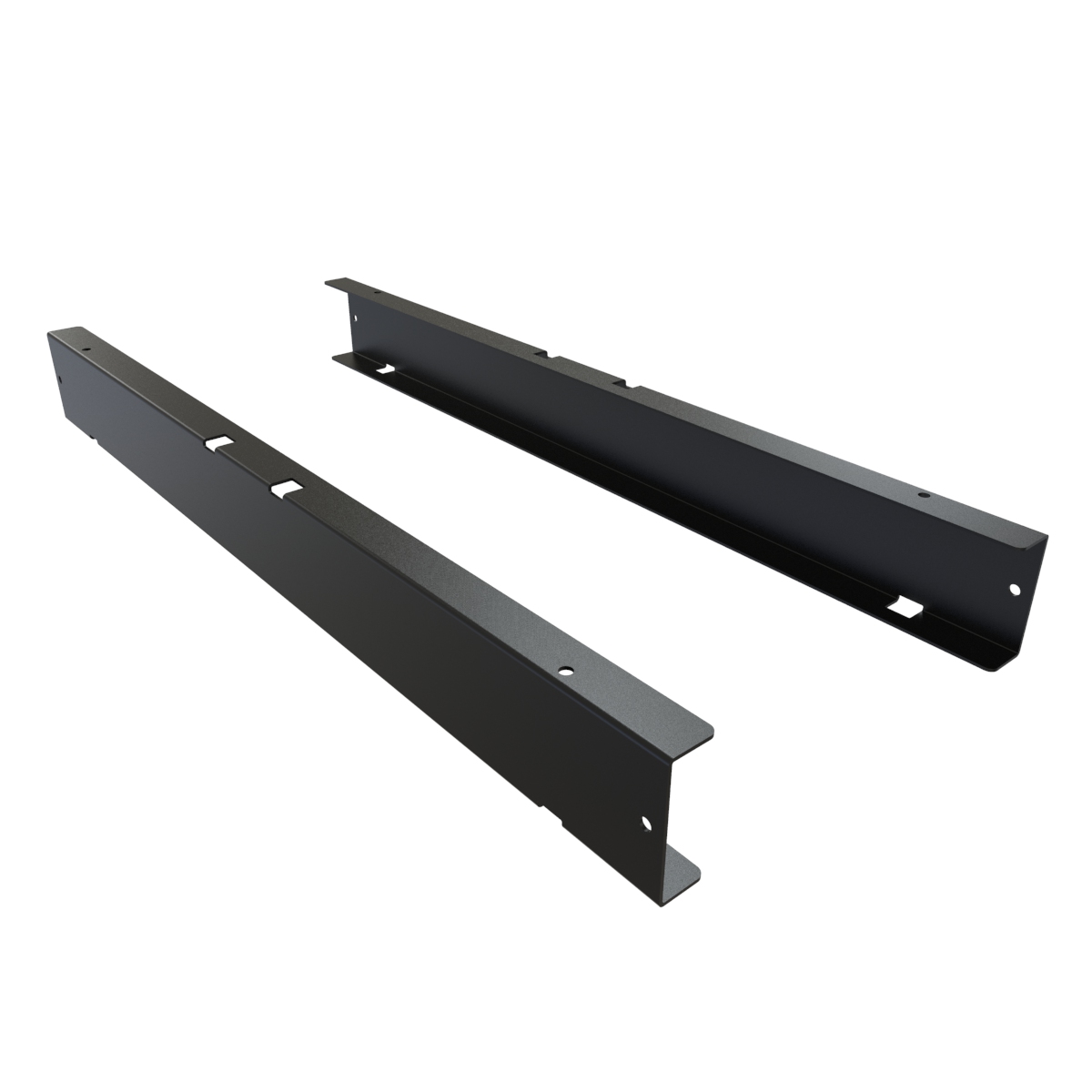

VFMB3BK is a plinth riser kit for VFM Series double-sided vertical cable managers, sold in pairs with mounting hardware included. VFM managers are designed to mount to racks rather than sit directly on the floor, so this riser gives integrators, data center technicians and telecom installers a supported way to set a manager at the end of a row or alongside a rack that uses a plinth base.

The riser is formed from 14 gauge mild steel and finished in a black textured paint, matching the black VFM manager range. Each piece measures 2.88 in x 1 in x 26 in (73 mm x 25 mm x 660 mm), with the drawing showing an overall length of 26.03 in (661 mm) and a 21.00 in (533 mm) mounting span, so the pair runs nearly the full 24.5 in depth of the VFM manager body.

Per the VFM plinth rack compatibility table, VFMB3BK is the riser specified for 44U/45U racks including RB-2PA, RB-2PS and DRZ4; the companion VFMB2BK covers the other listed frames. The part's short description, VFM RISER DRZ4/RB-2PA, reflects that pairing.

• Sold in pairs, mounting hardware included
• 14 gauge steel construction, black textured paint
• Listed for DRZ4, RB-2PA and RB-2PS 44U/45U racks

VFMB3BK is manufactured in Canada, is TAA compliant and USMCA compliant, and is RoHS and REACH compliant, which supports government and enterprise procurement requirements. Use it when building a centralized cable management spine in multi-rack deployments or when terminating a row with a VFM double-sided manager.
