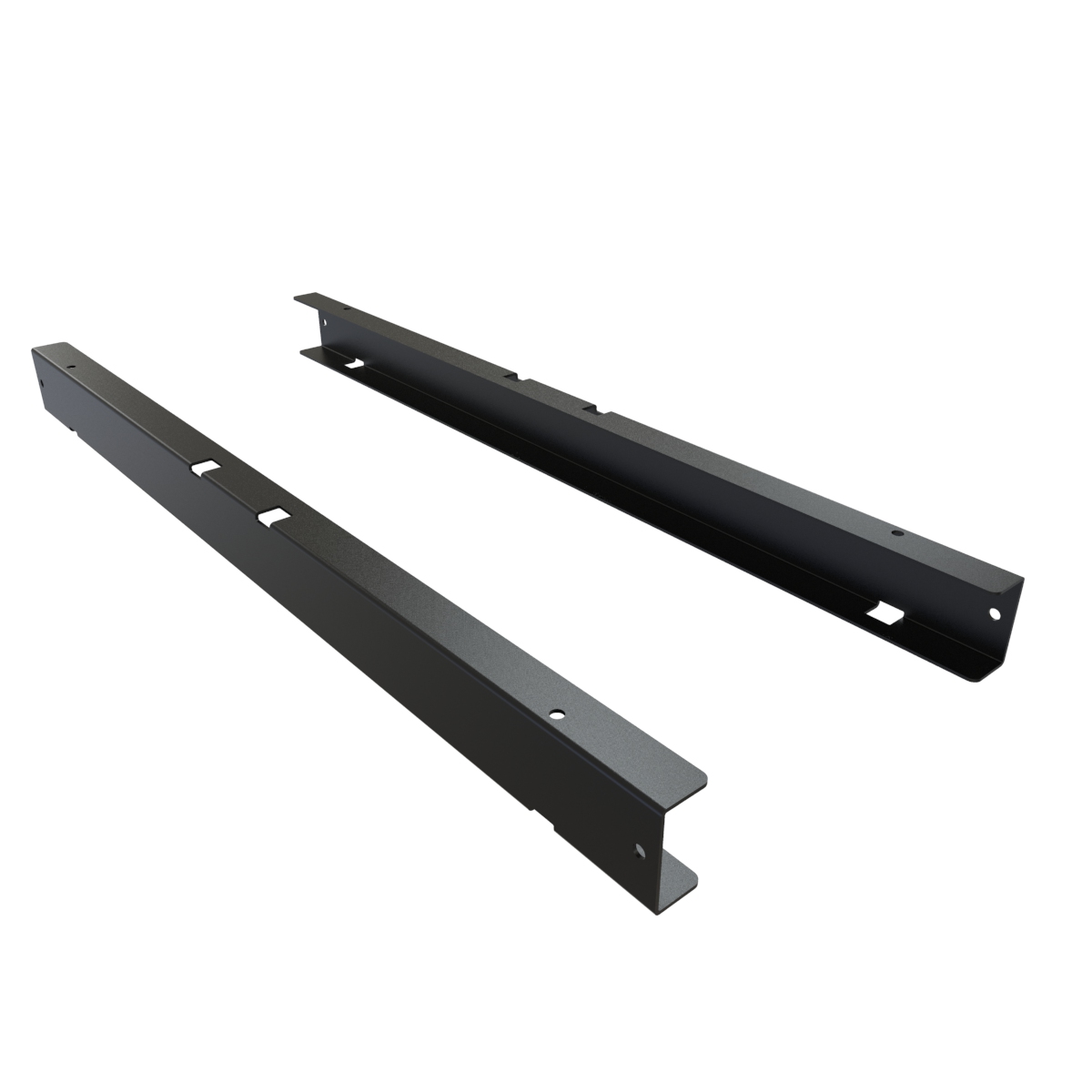

Hammond VFMB2BK Plinth Riser Base Pair for Vertical Cable Managers

The VFMB2BK is a plinth riser base used with Hammond VFM Series double-sided vertical cable managers. VFM managers are designed to mount to racks rather than sit directly on the floor, so the plinth base option supports end-of-row installations where the manager needs a floor-level support. It is intended for data center, network and telecom technicians building or extending open frame rack rows.

Each riser is made from 14 gauge steel and finished in black textured paint, matching the black powder coat appearance of the VFM Series managers. VFMB2BK is sold in pairs and mounting hardware is included, so a single order provides the parts needed for one manager position.

The nominal size of the part is 2 in x 1 in x 26 in (51 mm x 25 mm x 660 mm), with the drawing showing an overall depth of 26.03 in (661 mm), a height of 2.00 in (51 mm) and a width of 1.03 in (26 mm). Mounting holes are 0.25 in (6 mm) diameter. Shipping weight is 4.2 lbs (1.91 kg).

VFMB2BK is specified for use with VFM managers on RB-2P, DNRR and DC4R racks, and the series plinth compatibility table lists it as compatible with DNRRHDW, DC4R and RB-2P 44U/45U racks. It is not listed as compatible with RB-2PA, RB-2PS or DRZ4 racks — the companion VFMB3BK riser covers those.

• Mild steel construction, painted black textured
• Sold in pairs with mounting hardware included
• TAA-compliant, RoHS, REACH and USMCA compliant; country of origin Canada

For procurement teams, VFMB2BK carries UPC 623980469027, GTIN-14 00623980469027, UNSPSC 43223305, tariff code 7318.15.8085 and ECCN EAR99.
