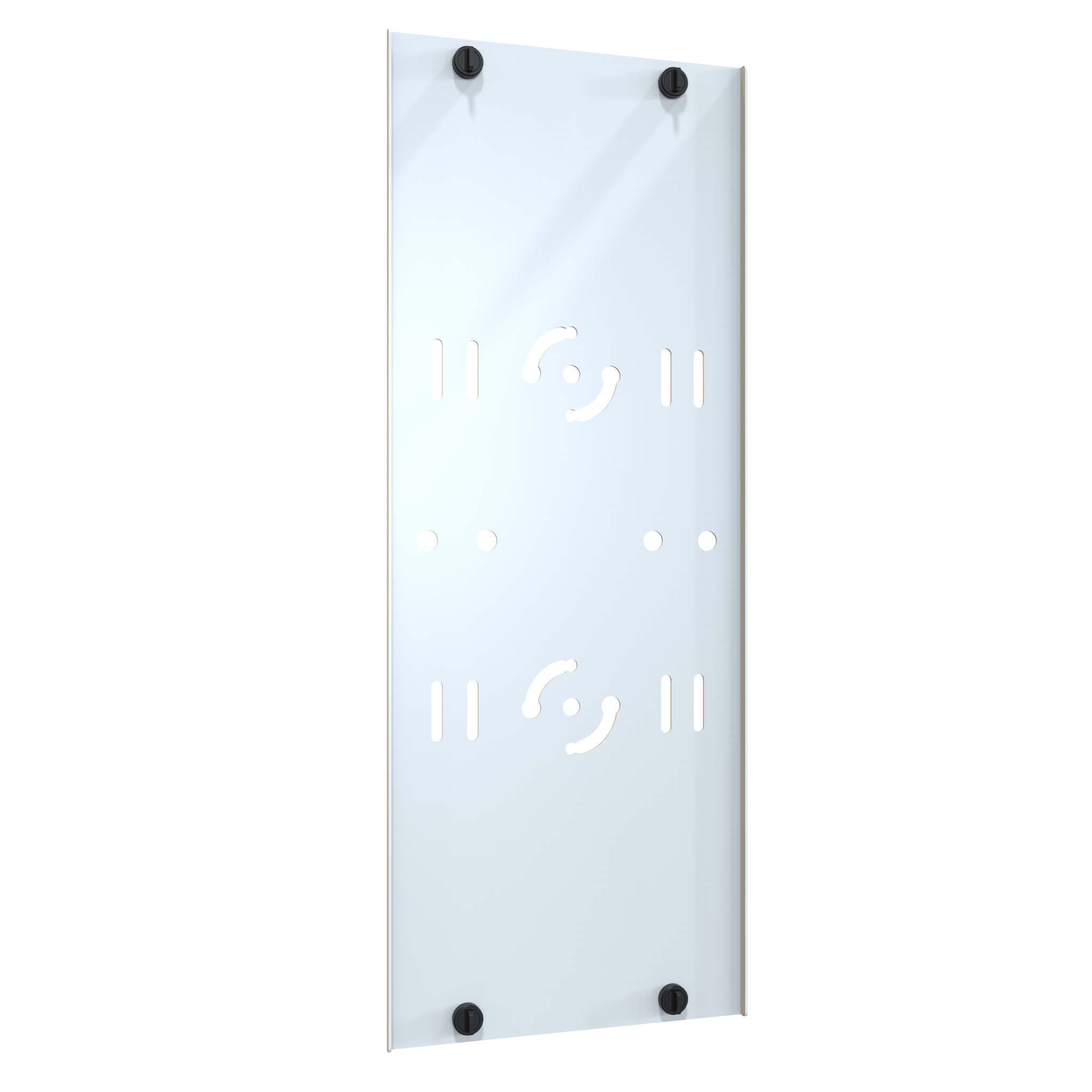

Hammond VFMAP8WH 8 in White Spool and Divider Inner Panel

VFMAP8WH is a spool/divider inner panel accessory for the Hammond VFM Series double-sided vertical cable manager in the 8 in width. It is intended for data center, network and telecom installers who need to subdivide the vertical channel of an open frame rack manager and add mounting points for cable spools and dividers.

The panel is made from mild steel and is finished in painted white textured to match the white VFM managers (VFMMD8WH). It measures 20.63 in x 7.82 in x 0.3 in (524 mm x 199 mm x 8 mm), with the drawing showing an overall height of 20.62 in (524 mm) and a panel thickness of .30 in (8 mm). Each VFMAP8WH ships as a kit containing one VFM manager accessory cover and four fastener clips, so the panel clips into the manager without loose hardware to source separately.

In the VFM Series, the inner panel sits between the front and rear cable channels. The series is designed to accept accessory systems such as cable spools, dividers and tie-down points, and the spool/divider inner panel version of the accessory provides that interface. Note that the published rear pass-through cable fill quantities for VFM managers are stated without accessory inner panels installed, so plan channel fill accordingly when panels are added.

VFMAP8WH is manufactured in Canada and is TAA compliant, USMCA compliant, RoHS compliant and REACH compliant, with ECCN EAR99 and tariff code 8538.10.0000. Multiple panels can be used along the height of a manager to build out structured, high-density routing on both sides of the rack.
