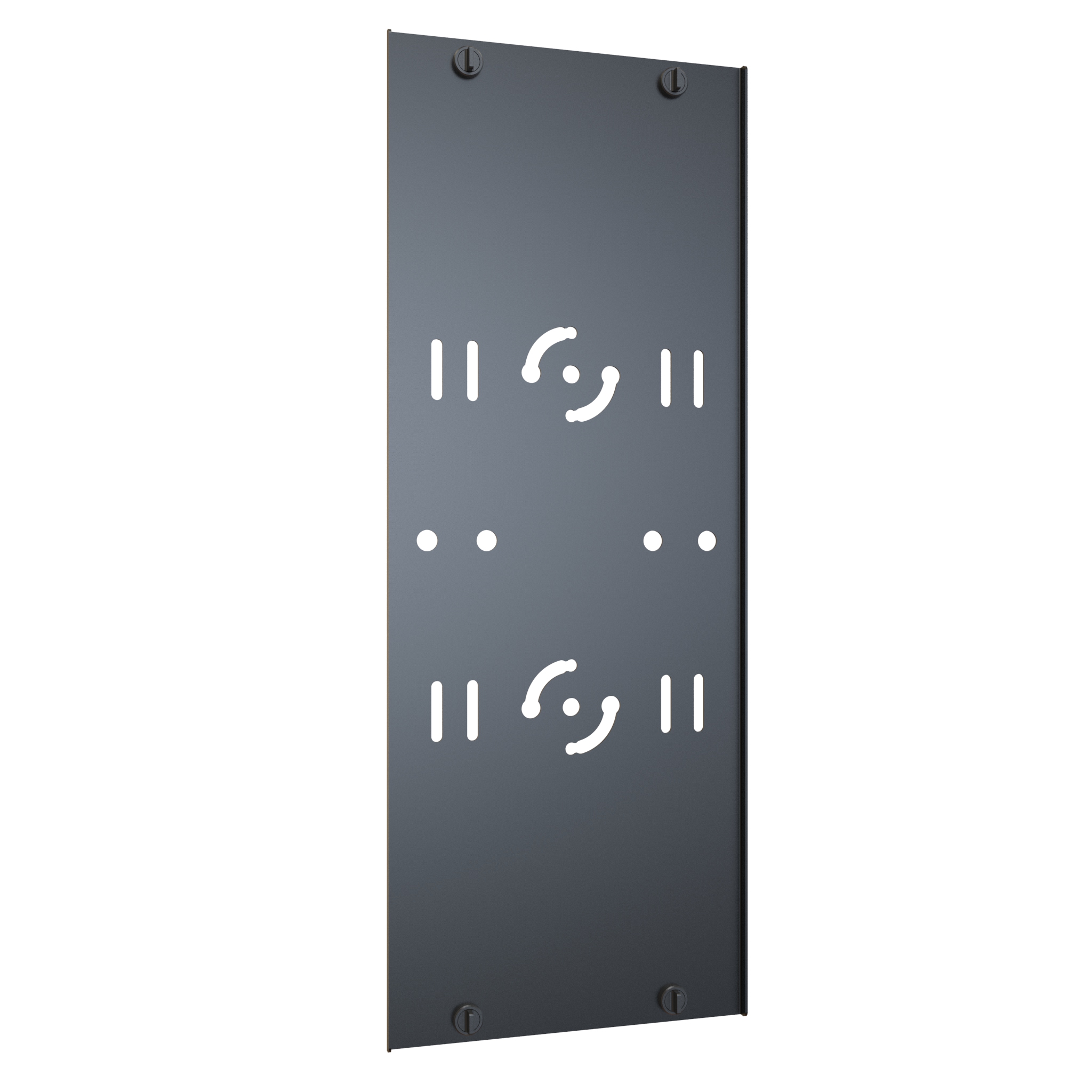

Hammond VFMAP8BK 8 in Spool/Divider Inner Panel, Black Steel

VFMAP8BK is a spool/divider inner panel accessory for Hammond VFM Series double-sided vertical cable managers built for the 8 in wide manager width. It is intended for IT and network integrators, data center technicians and telecom installers who want to split a vertical manager channel and add cable spools, dividers and tie-down points for more structured, higher-density routing.

The panel is fabricated from mild steel and finished painted black textured, matching the black VFM manager family. Its overall size is 20.63 in x 7.82 in x 0.3 in (524 mm x 199 mm x 8 mm), with a 7.00 in (178 mm) mounting feature dimension shown on the drawing. The panel ships as a two-item assembly: one VFM manager accessory cover and four fastener clips, so the panel clips into the manager channel without loose hardware to source separately.

Within the VFM Series, the inner panel is one of the accessory systems the managers are designed to work with, alongside cable spools, dividers and tie-down points for advanced cable management. Note that in the series cable-fill data, the rear pass-through quantities are stated without accessory inner panels installed, so adding VFMAP8BK changes how the channel is subdivided. For a solid version in the same 8 in width, the series lists VFMFP8BK (black) and VFMFP8WH (white); VFMAP8WH is the white equivalent of this panel.

VFMAP8BK is manufactured in Canada, is TAA compliant and USMCA compliant, and is listed as RoHS and REACH compliant, with ECCN EAR99 and tariff code 8538.10.0000 for procurement and export documentation.
