Hammond VFMAP6WH 6 in Spool/Divider Inner Panel, White Steel
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Spool/divider inner panel for 6 in wide VFM Series double-sided vertical cable managers
- Painted white textured finish to match white VFM managers; black equivalent is VFMAP6BK
- Mild steel construction for durable in-channel mounting of spools and dividers
- Supplied as a VFM manager accessory cover with four fastener clips
- Overall size 20.63 in x 5.82 in x 0.3 in (524 mm x 148 mm x 8 mm)
- Supports VFM accessory systems including cable spools, dividers and tie-down points
- TAA-compliant and USMCA compliant, country of origin Canada
- RoHS and REACH compliant; ECCN EAR99

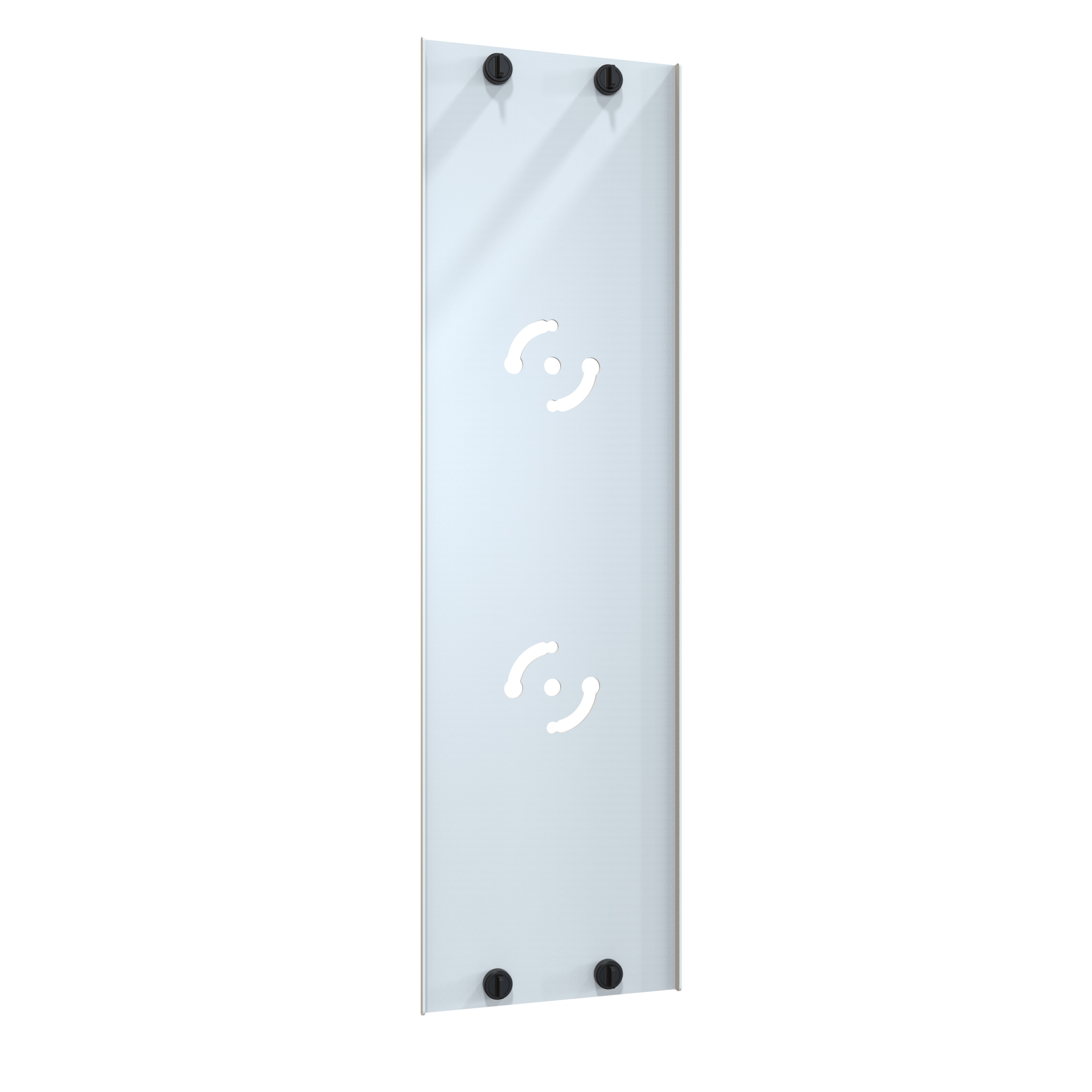

VFMAP6WH is a spool/divider inner panel accessory for 6 in wide VFM Series double-sided vertical cable managers. It is intended for IT, network and telecom installers who are building out high-density vertical pathways on open frame racks and want a mounting surface inside the manager channel for cable spools and channel dividers.
The panel is made from mild steel and finished in painted white textured to match the white VFM managers. Per the drawing, VFMAP6WH ships as a VFM manager accessory cover with four fastener clips, so it clips into place inside the manager without separate hardware kits.
Overall size is 20.63 in x 5.82 in x 0.3 in (524 mm x 148 mm x 8 mm), sized to the 6 in width VFM managers (VFMMD6WH / VFMMD6BK). Equivalent panels are offered for 8 in, 10 in and 12 in manager widths, and a black version of this panel is listed as VFMAP6BK. Within the VFM accessory range, the spool/divider inner panel is the counterpart to the solid inner panel (VFMFP6WH / VFMFP6BK) and the manager end/side panel (VFMSPWH / VFMSPBK).
Inner panels occupy part of the manager's rear pass-through; the manufacturer's published rear pass-through cable fill quantities for VFM managers are stated without accessory inner panels installed, which should be factored into fill calculations. The VFM Series is compatible with accessory systems such as cable spools, dividers and tie-down points for advanced cable management.
VFMAP6WH is RoHS and REACH compliant, TAA-compliant, USMCA compliant, made in Canada, and classified under ECCN EAR99 with tariff code 8538.10.0000.
Ideal For
- Data centers and high-density IT environments
- Network and telecom installations
- Cross-connect and patching environments
- Multi-rack deployments requiring centralized cable routing
- Mounting cable spools and channel dividers inside 6 in vertical managers
Overview
| Series | VFM Series — Double-Sided Vertical Cable Manager High Density Finger Duct |
| Description | 6IN ACCESSORY PANEL FOR VFM |
| Part Number | VFMAP6WH |
| Product Type | Rack Accessories — Cable Management |
| Accessory Type | Spool/Divider Inner Panel |
| Manager Width Compatibility | 6 in width VFM managers |
Dimensions
| Width | 5.82 in (148 mm) |
| Size H X W X D | 20.63 in x 5.82 in x 0.3 in (524 mm x 148 mm x 8 mm) |
| Depth / Thickness | 0.30 in (8 mm) |
| Drawing Reference Dimensions | 6.81 in (173 mm) and 7.00 in (178 mm) |
Identifiers
| UNSPSC | 43223305 |
| GTIN-14 | 00623980557885 |
| UPC (With Check Digit) | 623980557885 |
| UPC (Without Check Digit) | 62398055788 |
Packaging & Shipping
| Tariff Code | 8538.10.0000 |
Construction & Finish
| Material | Mild Steel |
| Included Items | 1 x VFM MNGR ACC. COVER, 4 x FASTENER CLIP |
| Finish / Colour | Painted White Textured |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA-compliant |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What does VFMAP6WH do?▾
It is the spool/divider inner panel for 6 in wide VFM Series double-sided vertical cable managers, providing an inner mounting panel used with the VFM accessory system of cable spools and channel dividers.
Which VFM managers does VFMAP6WH fit?▾
It is listed under the 6 in width column of the VFM Specific Accessories table, so it corresponds to the 6 in wide VFM managers such as VFMMD6WH and VFMMD6BK. Separate panels are offered for 8 in, 10 in and 12 in widths.
Is there a black version of this panel?▾
Yes. The black equivalent of this 6 in spool/divider inner panel is VFMAP6BK; VFMAP6WH is the white version, finished painted white textured.
What is included with VFMAP6WH?▾
The drawing lists one VFM manager accessory cover and four fastener clips.
How does an inner panel affect cable fill?▾
The manufacturer's published rear pass-through cable fill quantities for VFM managers are stated without accessory inner panels installed, so allow for reduced rear pass-through capacity when inner panels are fitted.
Is VFMAP6WH TAA compliant and where is it made?▾
Yes, it is listed as TAA-compliant and USMCA compliant, with country of origin Canada.
What is the difference between VFMAP6WH and VFMFP6WH?▾
VFMAP6WH is the spool/divider inner panel, while VFMFP6WH is the solid inner panel for the same 6 in manager width.
