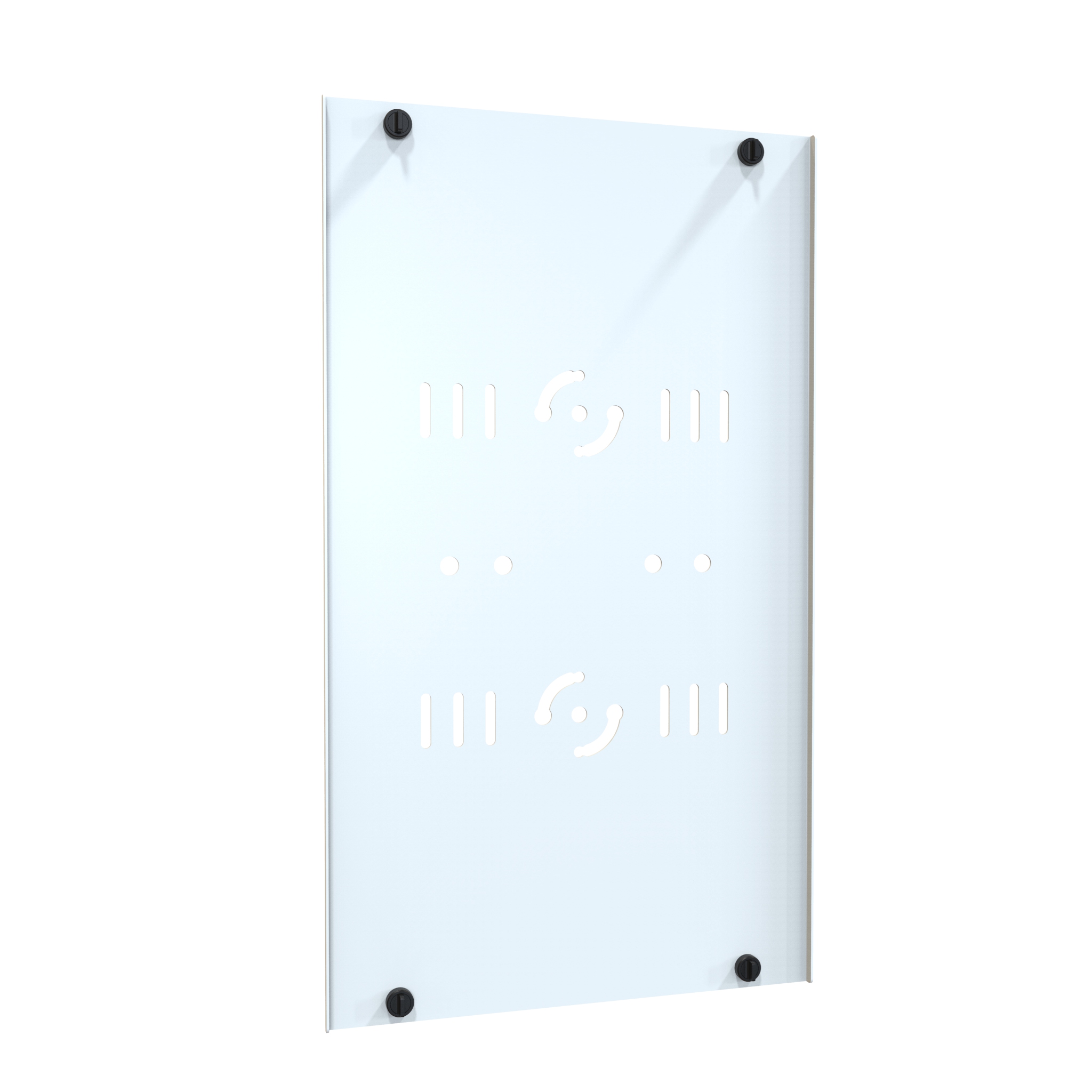

Hammond VFMAP12WH 12 in White Spool/Divider Inner Panel

VFMAP12WH is the 12 in wide spool/divider inner panel accessory for the VFM Series double-sided vertical cable managers, finished in painted white textured. It is intended for IT and telecom installers, data center technicians and AV integrators who are building out a centralized cable management spine between open frame racks and need a mounting surface inside the manager channel for spools, dividers and tie-down points.

The panel is formed from mild steel and measures 20.63 in x 11.82 in x 0.3 in (524 mm x 300 mm x 8 mm), sized for the 12 in wide VFM managers (VFMMD12BK and VFMMD12WH). Each VFMAP12WH ships as a VFM manager accessory cover with four fastener clips, so the panel clips into place inside the manager without additional hardware being specified.

Within the VFM Series, the inner panel divides and supports the front and rear cable channels. The series notes that the published rear pass-through cable fill quantities are calculated without accessory inner panels installed, so plan channel fill accordingly when adding VFMAP12WH. The series is also described as compatible with accessory systems such as cable spools, dividers and tie-down points for advanced cable management.

VFMAP12WH is manufactured in Canada and listed as TAA compliant, USMCA compliant, RoHS compliant and REACH compliant, with ECCN EAR99 and tariff code 8538.10.0000 for procurement and export documentation. Multiple panels can be used along the height of a manager to build up the internal layout needed for high-density fiber and copper patching.
