Hammond VFMAP10WH 10in Spool/Divider Inner Panel, White Steel

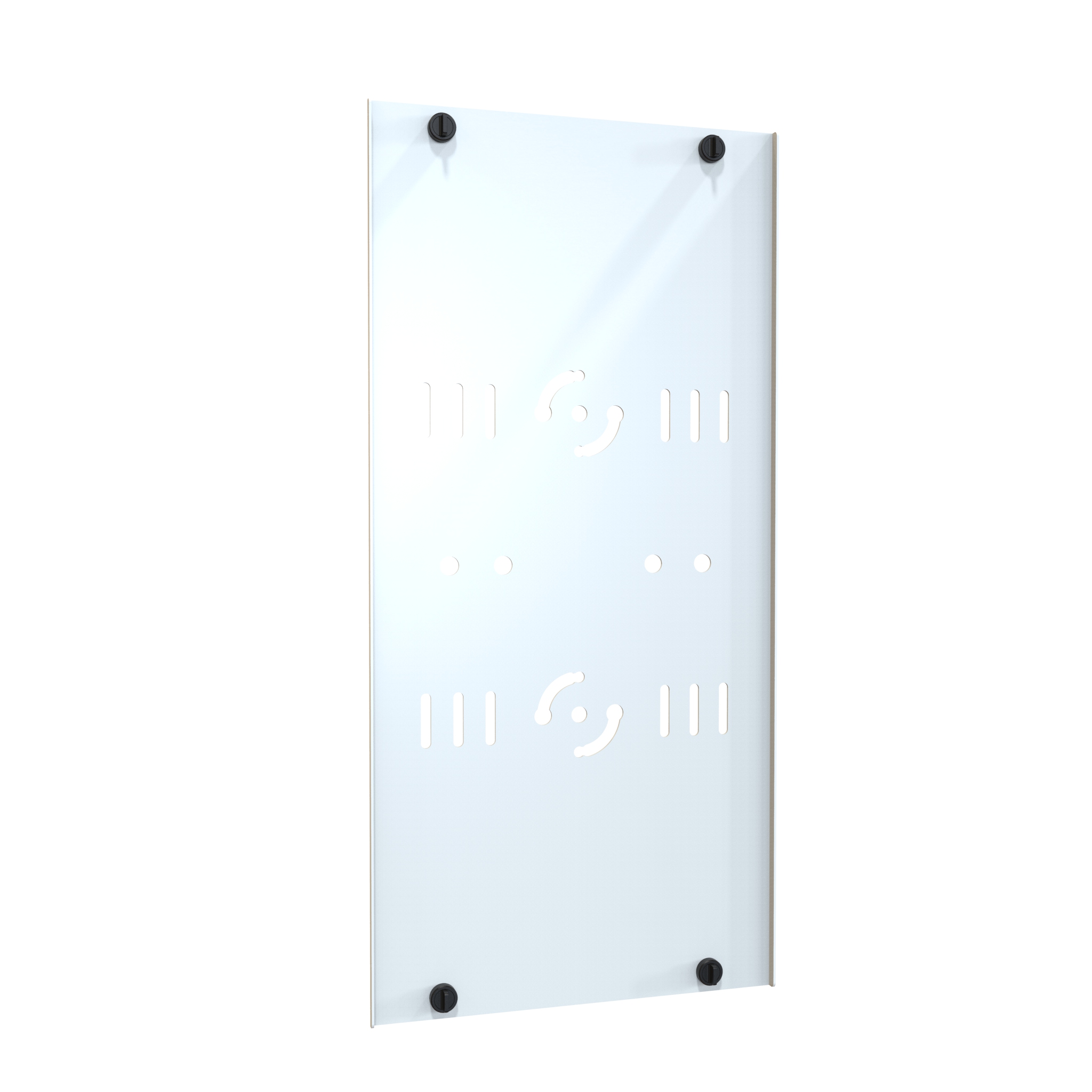

VFMAP10WH is a spool/divider inner panel accessory for the VFM Series double-sided vertical cable managers in the 10 in width. It gives network and data centre installers a mounting surface inside the manager channel for cable management spools, channel dividers and tie-down points, so large bundles of fibre and copper patch cords can be separated and routed in an orderly way instead of being bundled loosely.

The panel is formed from mild steel and finished in painted white textured to match white VFM managers. It measures 20.63 in x 9.82 in x 0.3 in (524 mm x 249 mm x 8 mm), sized for the 10 in wide VFMMD10WH / VFMMD10BK manager channel. Each VFMAP10WH ships as one VFM manager accessory cover with four fastener clips, so no separate hardware is needed to secure the panel inside the manager.

Inside a VFM manager, the inner panel sits between the front and rear cable channels. Because the rear pass-through openings in the published fill tables are quoted without accessory inner panels installed, adding a VFMAP10WH lets you deliberately divide the channel and dedicate space to specific circuits, media types or racks. It works with the VFM accessory system, which includes cable management spools for vertical rack managers and cable channel dividers.

The part is manufactured in Canada, is USMCA compliant, TAA-compliant, RoHS compliant and REACH compliant, with ECCN EAR99 — useful for government and regulated procurement where country of origin and compliance documentation are required. A solid inner panel version (VFMFP10WH) and manager end/side panels (VFMSPWH) are offered separately for the same manager widths.
