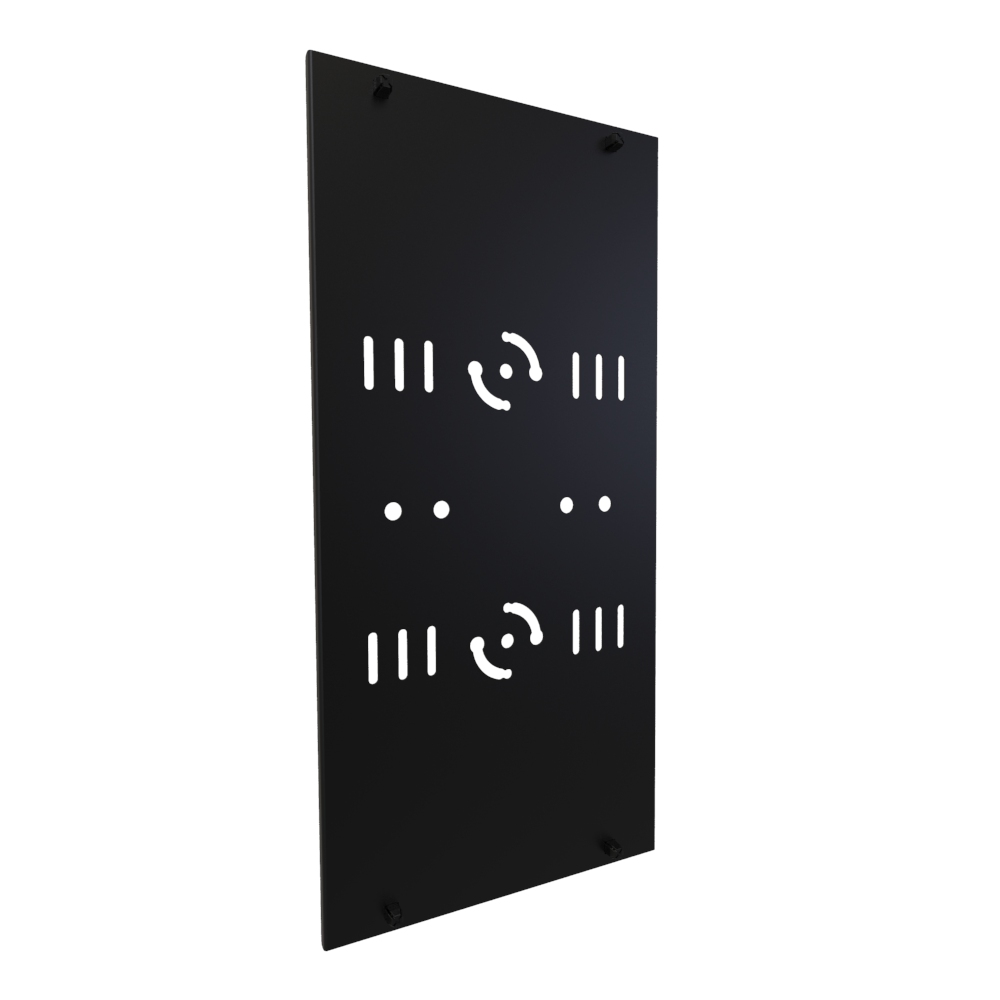

Hammond VFMAP10BK 10 in Spool/Divider Inner Panel, Black Steel

VFMAP10BK is the black spool/divider inner panel accessory for 10 in wide VFM Series double-sided vertical cable managers. It is intended for data center, network and telecom technicians who are building out high-density vertical cable pathways between open frame racks and need a defined mounting surface inside the manager channel for cable spools and channel dividers.

The panel is fabricated from mild steel with a painted black textured finish, matching the black VFM manager family. It measures 20.63 in x 9.82 in x 0.30 in (524 mm x 249 mm x 8 mm) and ships at 3.5 lbs (1.59 kg). The drawing lists the assembly as one VFM manager accessory cover plus four fastener clips, so the panel clips into place within the manager channel rather than requiring loose hardware to be sourced separately.

Within the VFM Series, the inner panel divides the front and rear cable channels and provides the surface that accessory systems such as cable management spools and cable channel dividers attach to. Note that the estimated cable fill figures published for VFM managers list the rear pass-through opening quantity without accessory inner panels installed, so plan channel capacity accordingly when adding VFMAP10BK to a manager.

• Choose VFMAP10BK for 10 in wide VFM managers; 6 in, 8 in and 12 in widths and a white finish are separate part numbers.
• The solid inner panel (VFMFP10BK) is the alternative when spool and divider mounting is not required.

VFMAP10BK is made in Canada, is USMCA and TAA compliant, and is listed as RoHS and REACH compliant, which supports government and enterprise procurement requirements.
