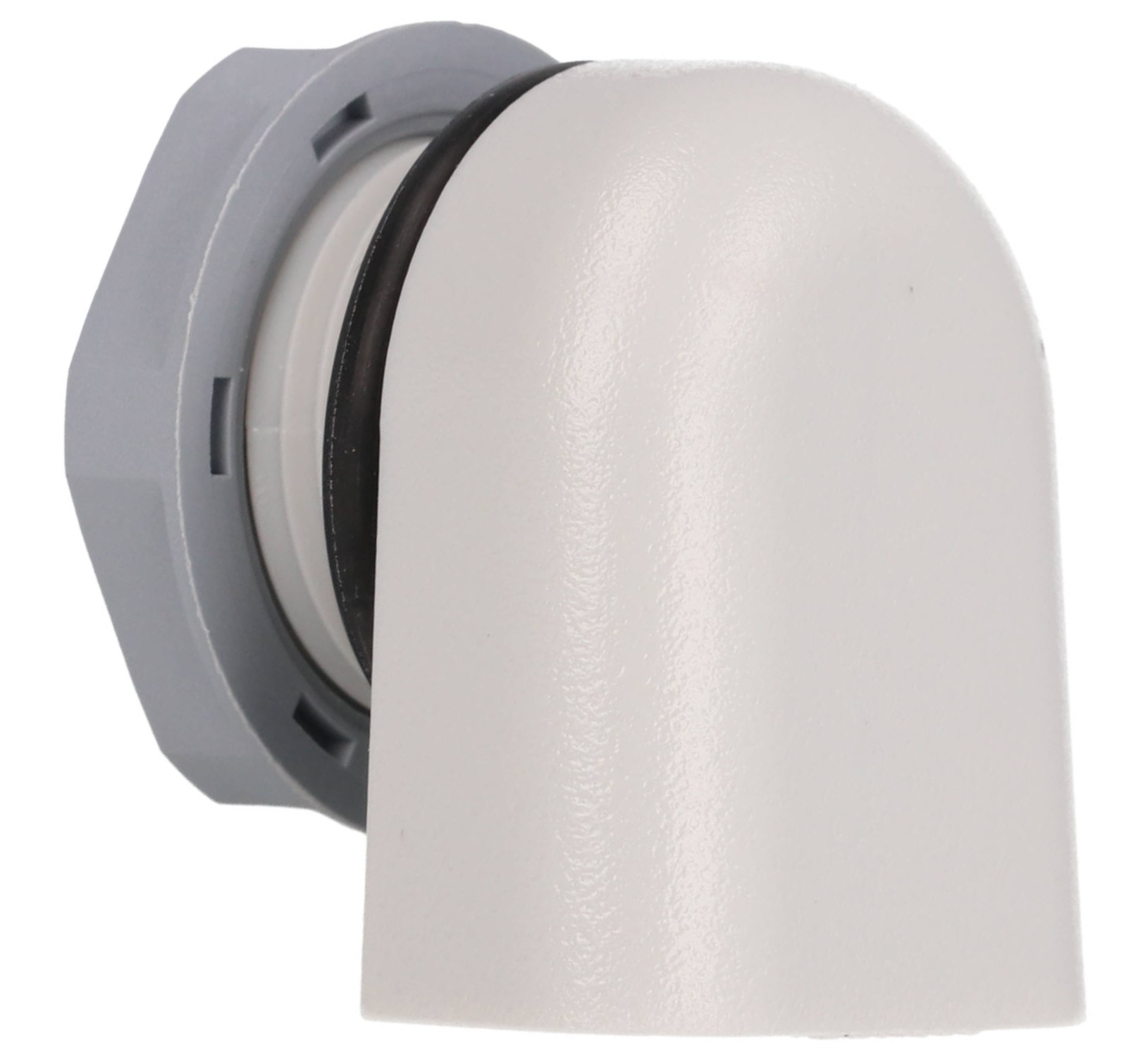

Hammond SDV180-1 Small Rainproof Enclosure Vent, 3/4 in Hole
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Equalizes internal / external pressure and temperature, assisting condensation prevention
- Compact: approx. 1.18 in (30 mm) high x 0.98 in (25 mm) wide
- Installs in a single 3/4 in hole with O-ring and plastic nut
- Complies with NEMA Type 3R and IEC 60529 IP24
- UV stabilized, corrosion resistant polycarbonate in RAL7035 Light Gray
- Internal vent channel & grille reduces insect intrusion
- For enclosure walls up to 0.16 in (4 mm); package of 1

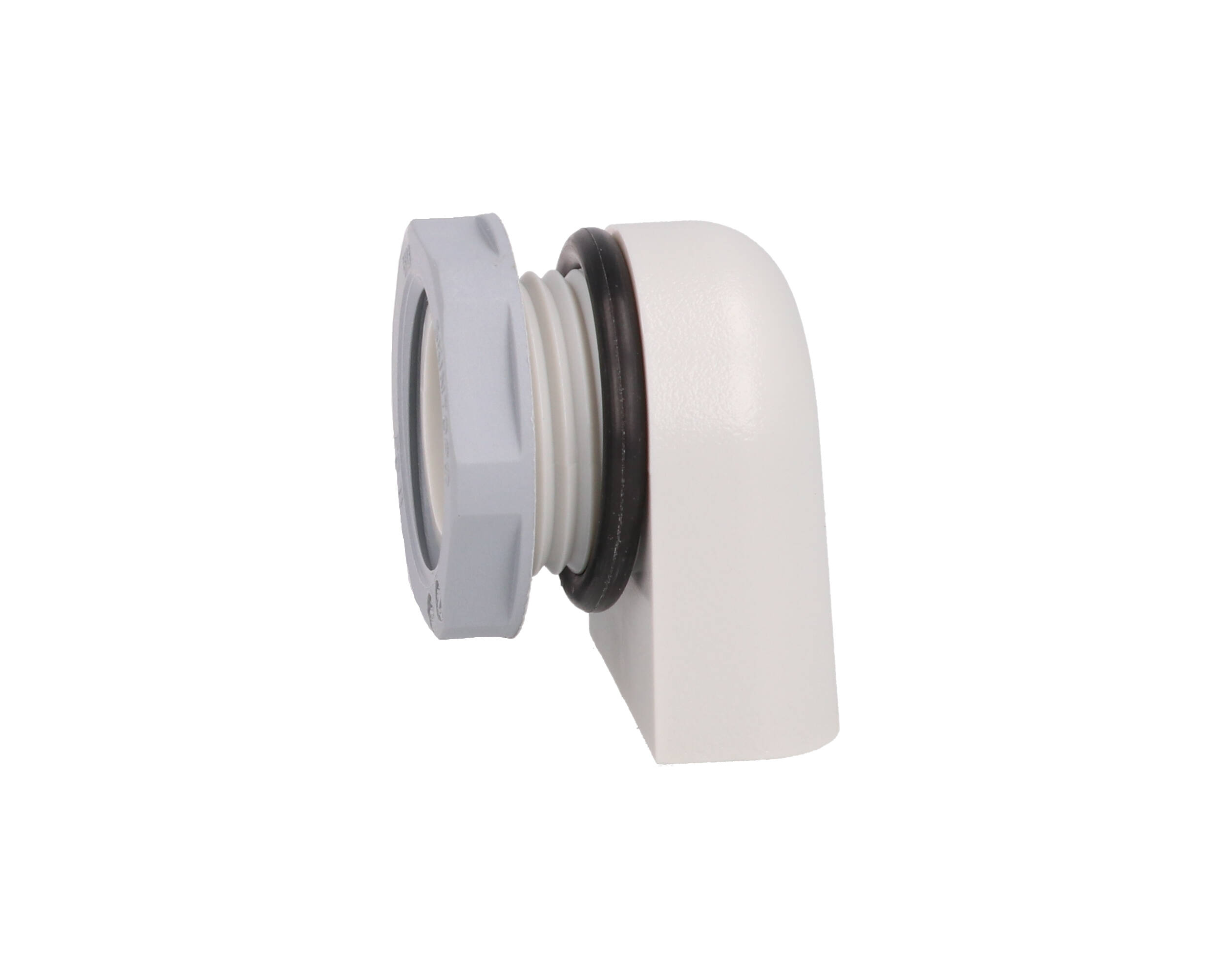

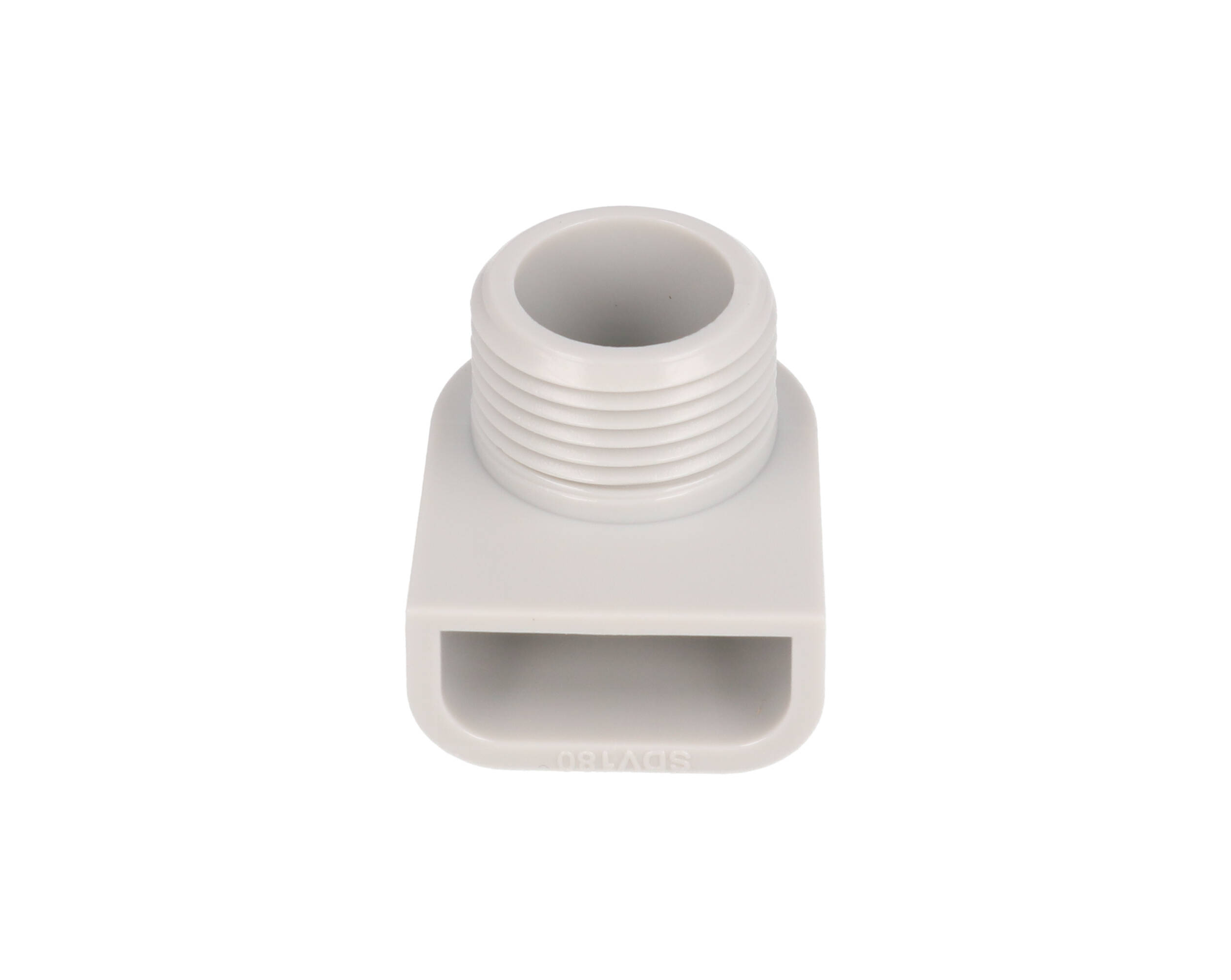

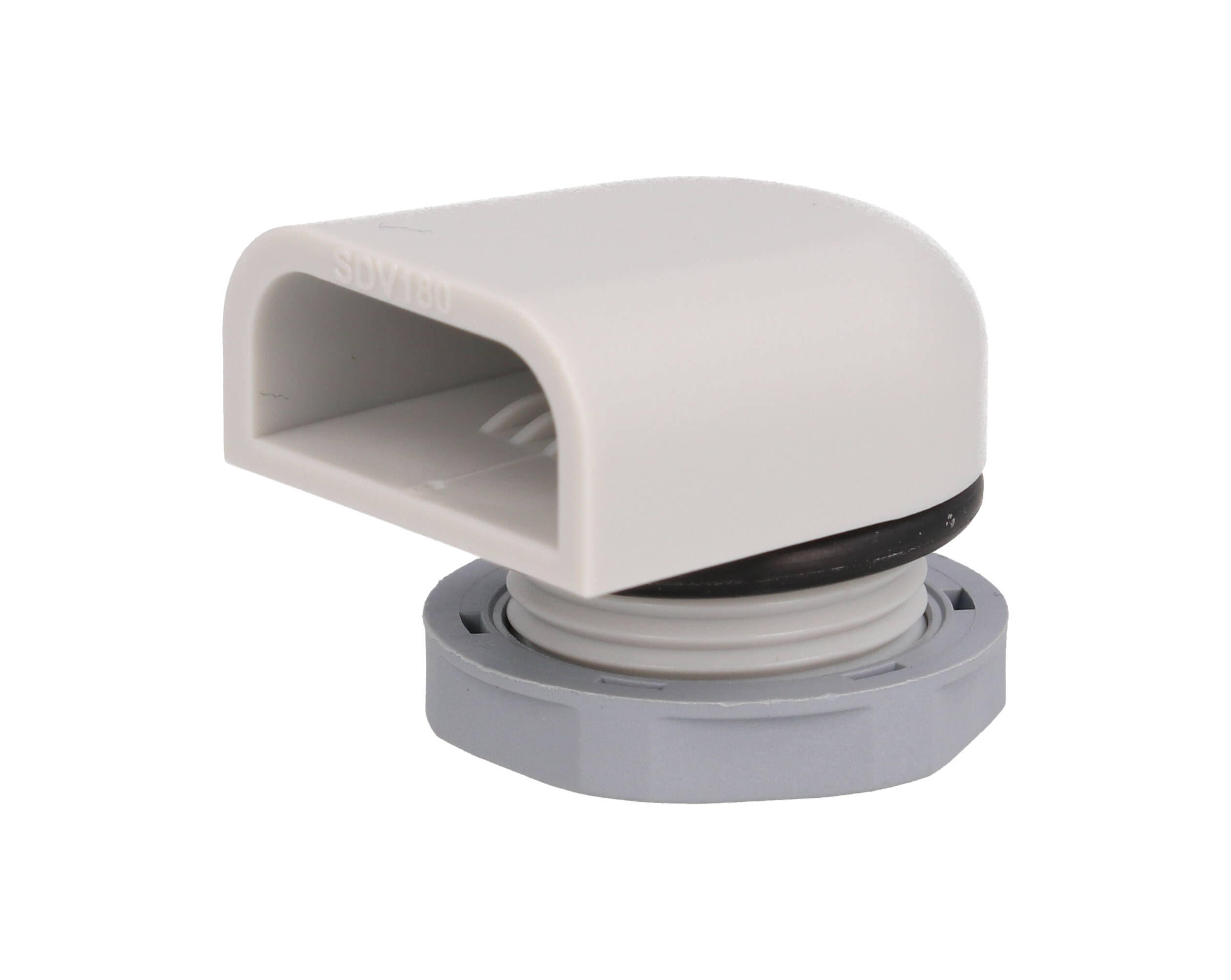

The SDV180-1 is a small rainproof ventilator, sold as a package of one, that lets an electrical enclosure breathe. It is designed to equalize internal and external pressure and temperature and assists in condensation prevention, for technicians working with most types of metallic and non-metallic enclosures.

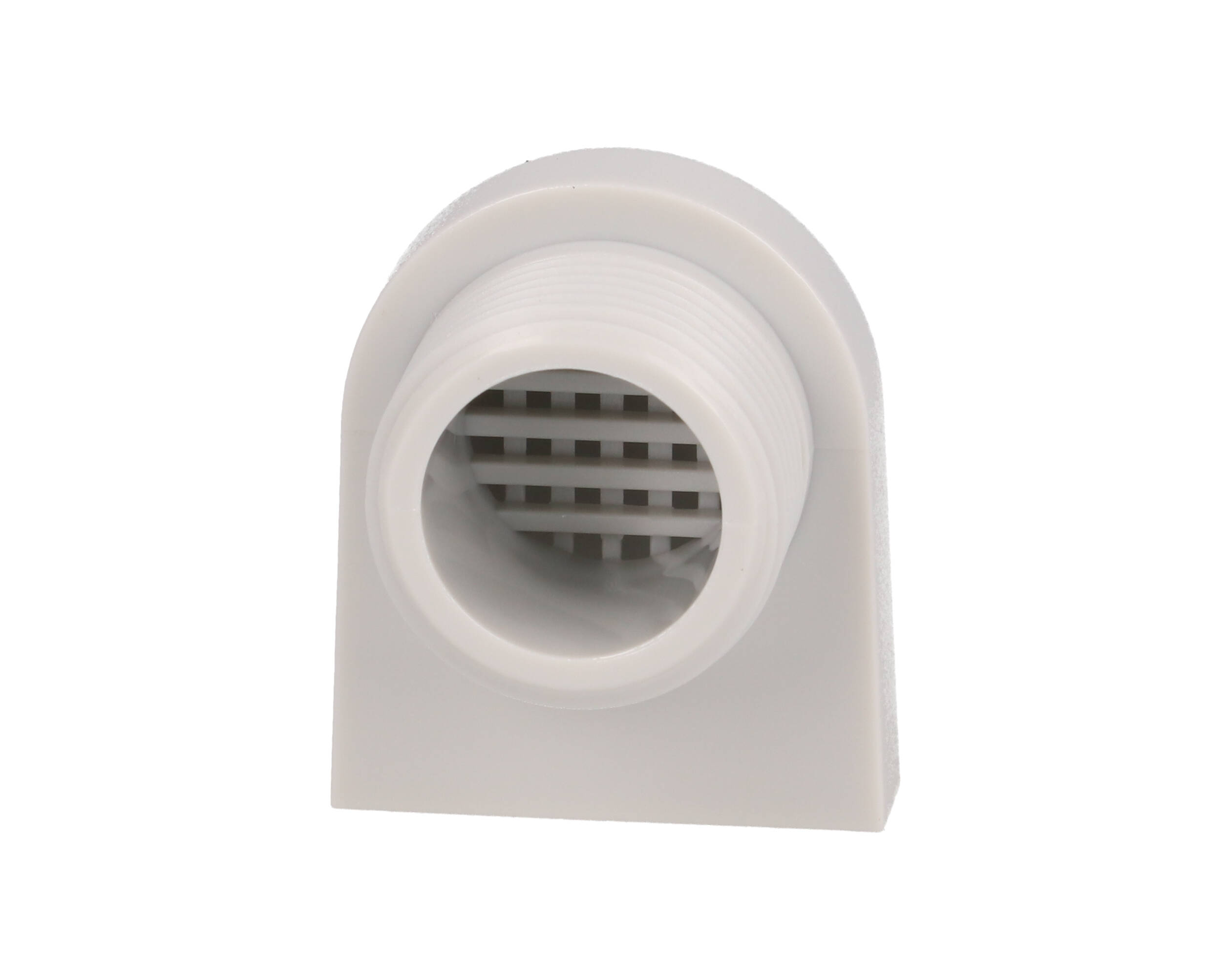

It is molded in corrosion resistant, UV stabilized polycarbonate with a RAL7035 Light Gray finish, with gasket protection to the enclosure wall. An internal vent channel and grille reduce insect intrusion, and the vent complies with NEMA Type 3R and IEC 60529 IP24.
At approximately 1.18 in (30 mm) high by 0.98 in (25 mm) wide, it is the compact option compared with the large SDV280 ventilator. It fits enclosure walls up to 0.16 in (4 mm) thick. Shipping weight is 0.1 lbs (0.05 kg).

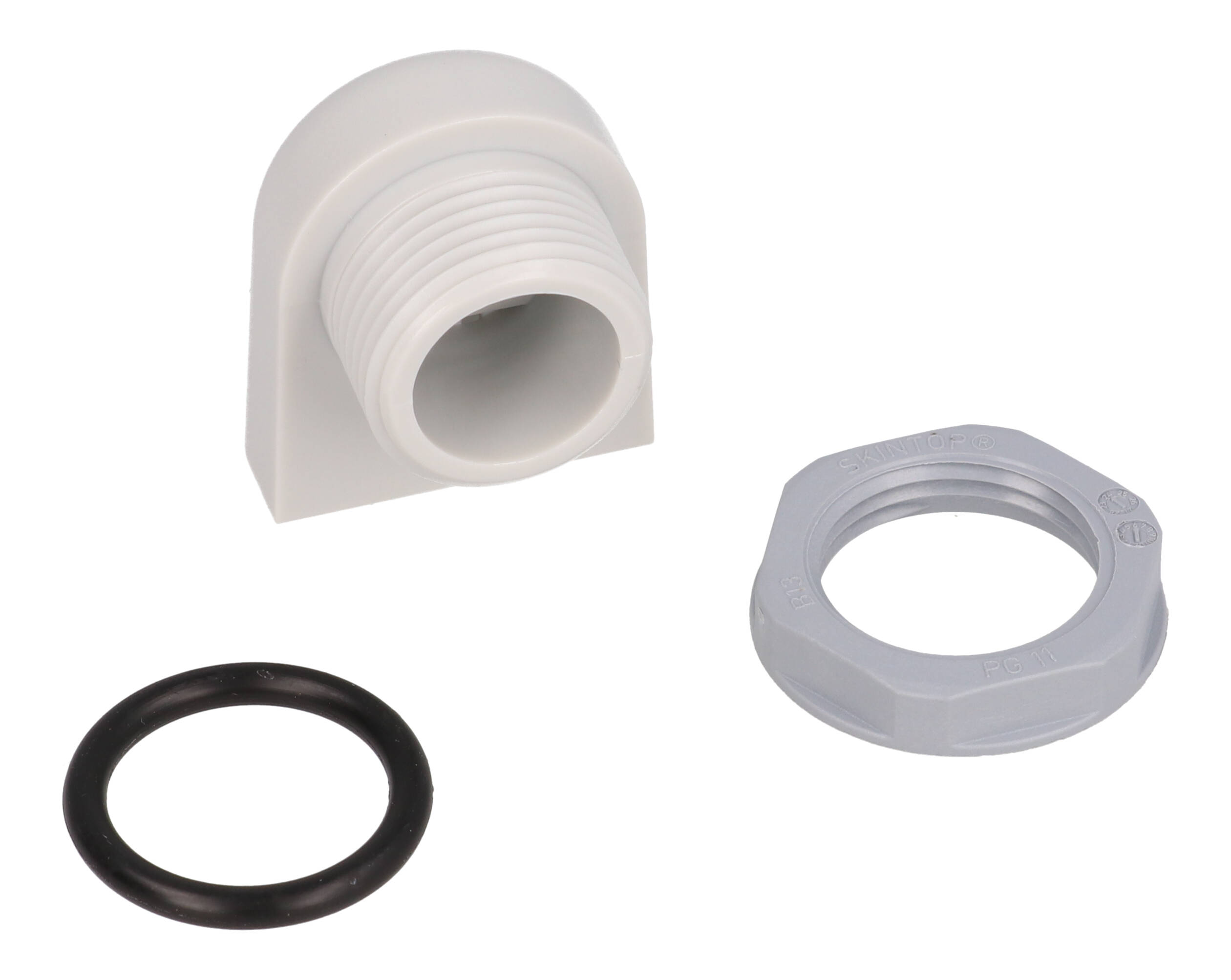

Installation of the SDV180-1 takes a single 3/4 in hole: install the vent and O-ring, then tighten the plastic nut with a 15/16 in wrench without overtightening. No screws or extra drilling are needed beyond the one hole, which keeps the installation quick on existing enclosures. The part is REACH and RoHS compliant.
Ideal For
- Breathing small outdoor Type 3R enclosures
- Condensation prevention in electrical enclosures
- Venting metallic or non-metallic enclosures
Overview
| Series | SDV SM - Small Rainproof Ventilator |
| Function | Equalizes internal / external pressure and temperature; assists condensation prevention |
| Description | Ventilator - Small Package of 1 |
| Product Type | Rainproof Ventilator |
| Short Description | SMALL NON-METALLIC VENT |
| Enclosure Compatibility | Most types of metallic and non-metallic enclosures |
Dimensions
| Width (Approx.) | 0.98" (25 mm) |
| Height (Approx.) | 1.18" (30 mm) |
Identifiers
| UPC | 623980027180 |
| UNSPSC | 40101503 |
| Part Number | SDV180-1 |
Installation
| Fastening | Plastic nut, tightened with 15/16 in wrench (do not overtighten) |
| Mounting Hole | Ø 3/4 in |
| Assembly Components | Vent, O-ring, plastic nut |
| Maximum Wall Thickness | 0.16" (4 mm) |
Packaging & Shipping
| Shipping Weight | 0.1 lbs (0.05 kg) |
| Package Quantity | 1 |
Construction & Finish
| Finish | RAL7035 Light Gray |
| Gasket | Gasket protection to enclosure wall |
| Material | Corrosion resistant UV stabilized polycarbonate |
| Insect Protection | Internal vent channel & grille reduces insect intrusion |
Environmental & Protection
| Enclosure Rating | NEMA Type 3R |
| Ingress Protection | IEC 60529 IP24 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What size hole does the SDV180-1 need?▾
A 3/4 in diameter hole.
What tool is needed to install it?▾
Tighten the plastic nut with a 15/16 in wrench; do not overtighten.
What wall thickness can it mount to?▾
Up to 0.16 in (4 mm).
What ratings does it meet?▾
NEMA Type 3R and IEC 60529 IP24.
How many are in the package?▾
One.
