Hammond SDC6UCFP 6U Conduit and Fan Cover Panel for SDC Cabinets
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 6U conduit/fan cover panel for the SDC cabinet series; mounts directly to either end of the cabinet
- Constructed in 16-gauge mild steel for rigid, field-ready installation
- Conduit knockouts at Ø0.875/Ø1.125 in, Ø1.375/Ø1.750 in and Ø2.00/Ø2.50 in (2X each pair)
- Fan cut out accepts optional fans DNMF100AC115 or DNMF100AC23
- Cable lances for routing and dressing cable into the cabinet
- Textured RAL9005 black powder paint coat; complies with Greenguard indoor air quality guidelines
- Ships with mounting hardware and four rubber bumper feet
- TAA-compliant for GSA Schedule purchases; RoHS, REACH and USMCA compliant

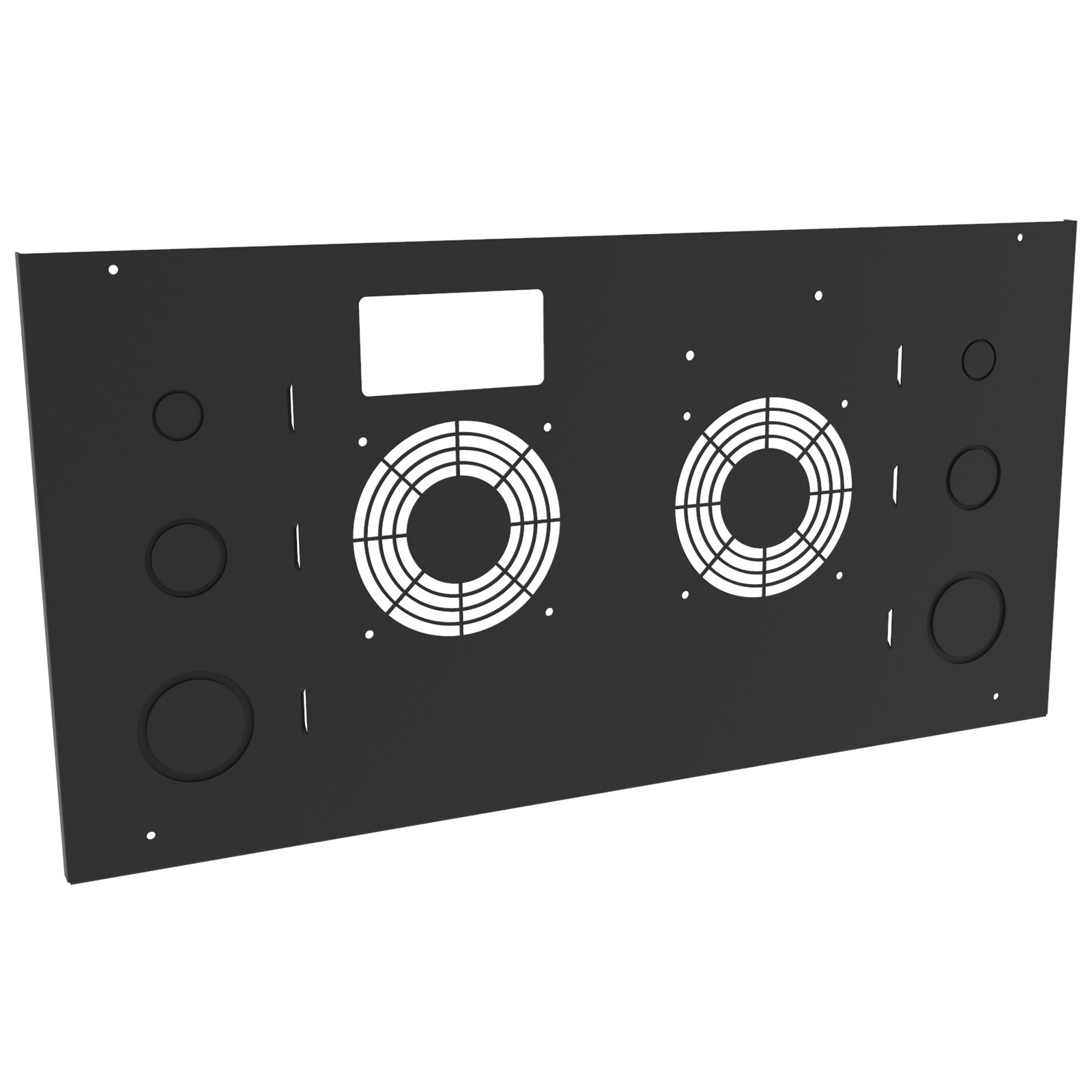

The SDC6UCFP is a 6U conduit/fan cover panel designed exclusively for use with the Hammond SDC wall mount cabinet series. Instead of a hinged door, this non-door option mounts directly to either end of the cabinet, giving electricians, IT and AV integrators and facilities teams a clean, factory-made way to bring conduit and cooling into a wall mount enclosure.
The panel is constructed in 16-gauge mild steel and finished in a textured RAL9005 black powder paint coat that complies with the Greenguard guidelines for indoor air quality. Overall size is 12.65 in x 24.59 in x 0.5 in (321 mm x 625 mm x 13 mm) and shipping weight is 6.5 lbs (2.95 kg).
Pre-punched conduit knockouts are provided in pairs at Ø0.875 and Ø1.125 in, Ø1.375 and Ø1.750 in, and Ø2.00 and Ø2.50 in, so a range of trade conduit sizes can be terminated without field drilling. Cable lances and a fan cut out are also included, with optional fans DNMF100AC115 and DNMF100AC23 listed on the drawing for forced-air cooling.
Each SDC6UCFP ships as one conduit/fan panel with four rubber bumper feet and the mounting hardware required to install it into the SDC series. The part is RoHS and REACH compliant, USMCA compliant, TAA-compliant for GSA Schedule purchases, and manufactured in North America (country of origin CA).
Ideal For
- Conduit entry into 6U SDC wall mount cabinets
- Adding forced-air fan cooling to an SDC cabinet end panel
- Cable entry and dressing for wall mount network enclosures
- TAA-compliant GSA Schedule cabinet build-outs
Overview
| Type | Conduit/Fan Cover Panel (non-door option) |
| Series | SDCD Series (SDC Doors) |
| Description | 6U SDC Conduit/Fan Panel |
| Part Number | SDC6UCFP |
| Compatibility | Exclusively for use with the SDC Cabinet Series |
| Cabinet Rack Units | 6U |
Dimensions
| Depth | 0.5 in (13 mm) |
| Width | 24.59 in (625 mm) |
| Height | 12.65 in (321 mm) |
| Size H X W X D | 12.65 in x 24.59 in x 0.5 in (321 mm x 625 mm x 13 mm) |
Identifiers
| UPC | 623980955629 |
| UNSPSC | 43201618 |
| GTIN-14 | 00623980955629 |
| UPC W/o Check Digit | 62398095562 |
Installation
| Marking | Stick-on part numbers, painted black text |
| Mounting | Mounts directly to either end of the SDC cabinet; mounting hardware included |
| Included Items | 1x Conduit/Fan Panel; 4x Rubber Bumper Feet |
Packaging & Shipping
| Tariff Code | 9403.10.0040 |
| Shipping Weight | 6.5 lbs (2.95 kg) |
| Country Of Origin | CA (Manufactured in North America) |
Construction & Finish
| Gauge | 16-gauge steel |
| Finish | Textured RAL9005 black powder paint coat |
| Material | Mild Steel |
| Fan Provision | Fan cut out; optional fans DNMF100AC115, DNMF100AC23 |
| Cable Management | Cable lances |
| Conduit Knockouts | 2X Ø0.875 in & Ø1.125 in; 2X Ø1.375 in & Ø1.750 in; 2X Ø2.00 in & Ø2.50 in |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA-compliant (for GSA Schedule purchases) |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
| Indoor Air Quality | Finish complies with Greenguard guidelines |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What cabinets does the SDC6UCFP fit?▾
It is made exclusively for use with the Hammond SDC cabinet series, sized for 6U cabinets, and mounts directly to either end of the cabinet.
Is this a door?▾
No. The SDC6UCFP is the non-door conduit/fan cover panel option in the SDCD series. If you need a door for a 6U SDC cabinet, the series also lists SDC6UD (solid locking), SDC6UVD (vented locking) and SDC6USD (cable entry/fan locking).
What conduit sizes can I terminate on this panel?▾
The drawing shows conduit knockouts in pairs: 2X Ø0.875 in and Ø1.125 in, 2X Ø1.375 in and Ø1.750 in, and 2X Ø2.00 in and Ø2.50 in.
Can I add a fan to this panel?▾
Yes. The panel includes a fan cut out, and the drawing lists optional fans DNMF100AC115 and DNMF100AC23.
Is mounting hardware supplied?▾
Yes. Mounting hardware is included, and the panel ships with four rubber bumper feet.
Is the SDC6UCFP suitable for government purchases?▾
It is TAA-compliant for GSA Schedule purchases and is also RoHS, REACH and USMCA compliant, with country of origin CA.
