Hammond SDA412-2 Enclosure Breather Plug Pair, PG 29, IP55
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Controlled pressure compensation for temperature variations (night/day)
- Package quantity 2, matching the two-per-cabinet recommendation
- PG 29 (1.14 in) thread with union nut; minimum cutout diameter 1.46 in
- IP55 mounted vertically, IP54 otherwise
- Includes sealing gasket
- Operating temperature -45 °C to +70 °C
- 2.6 in diameter x 1.2 in depth

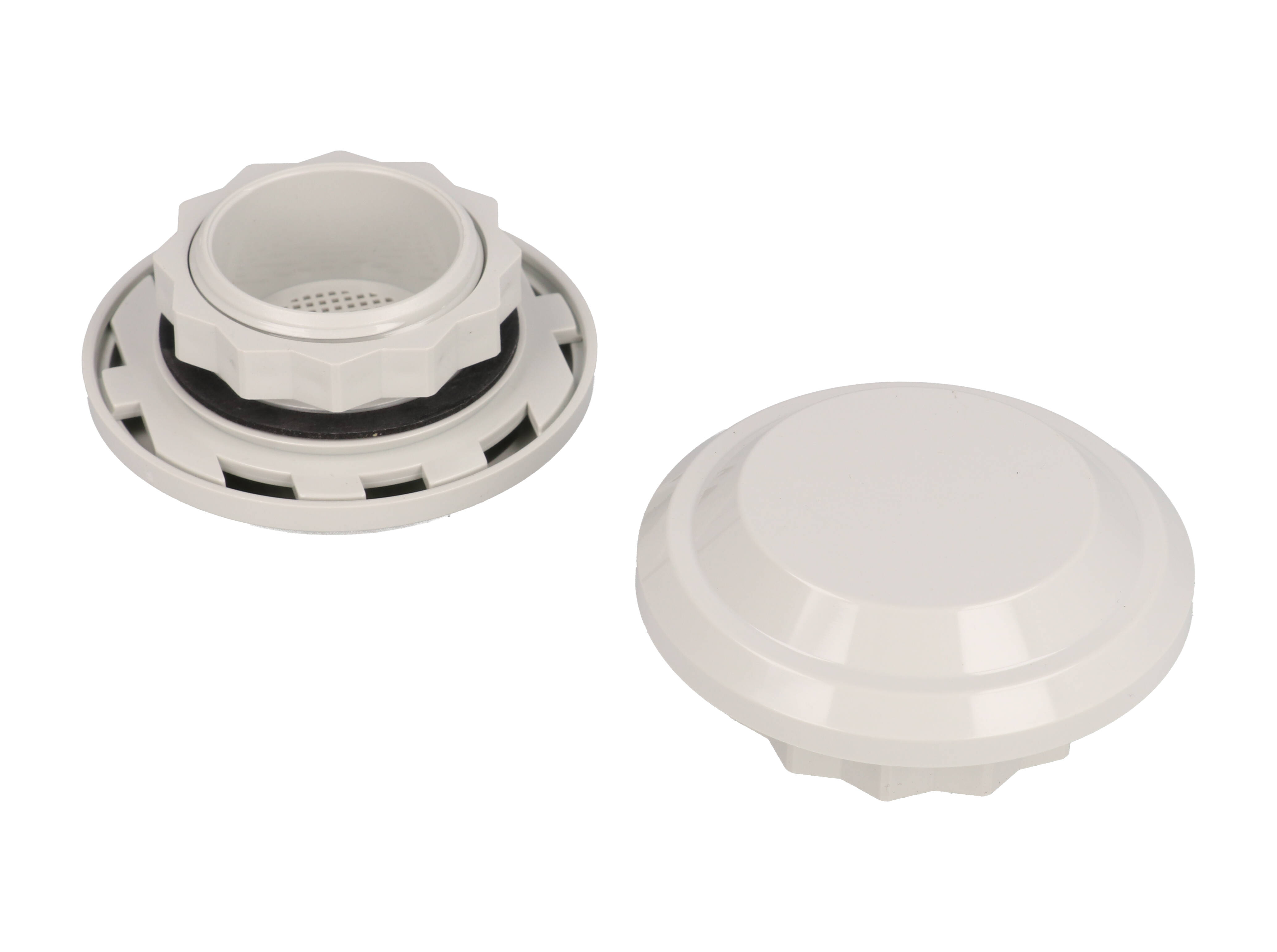

The SDA412-2 is a breather kit supplied as a package of two pressure compensation plugs. It provides controlled pressure compensation in an enclosure as temperatures swing, for example between night and day operation. Because two plugs per cabinet in opposite locations are recommended, this pack gives panel builders and maintenance crews what one cabinet needs.

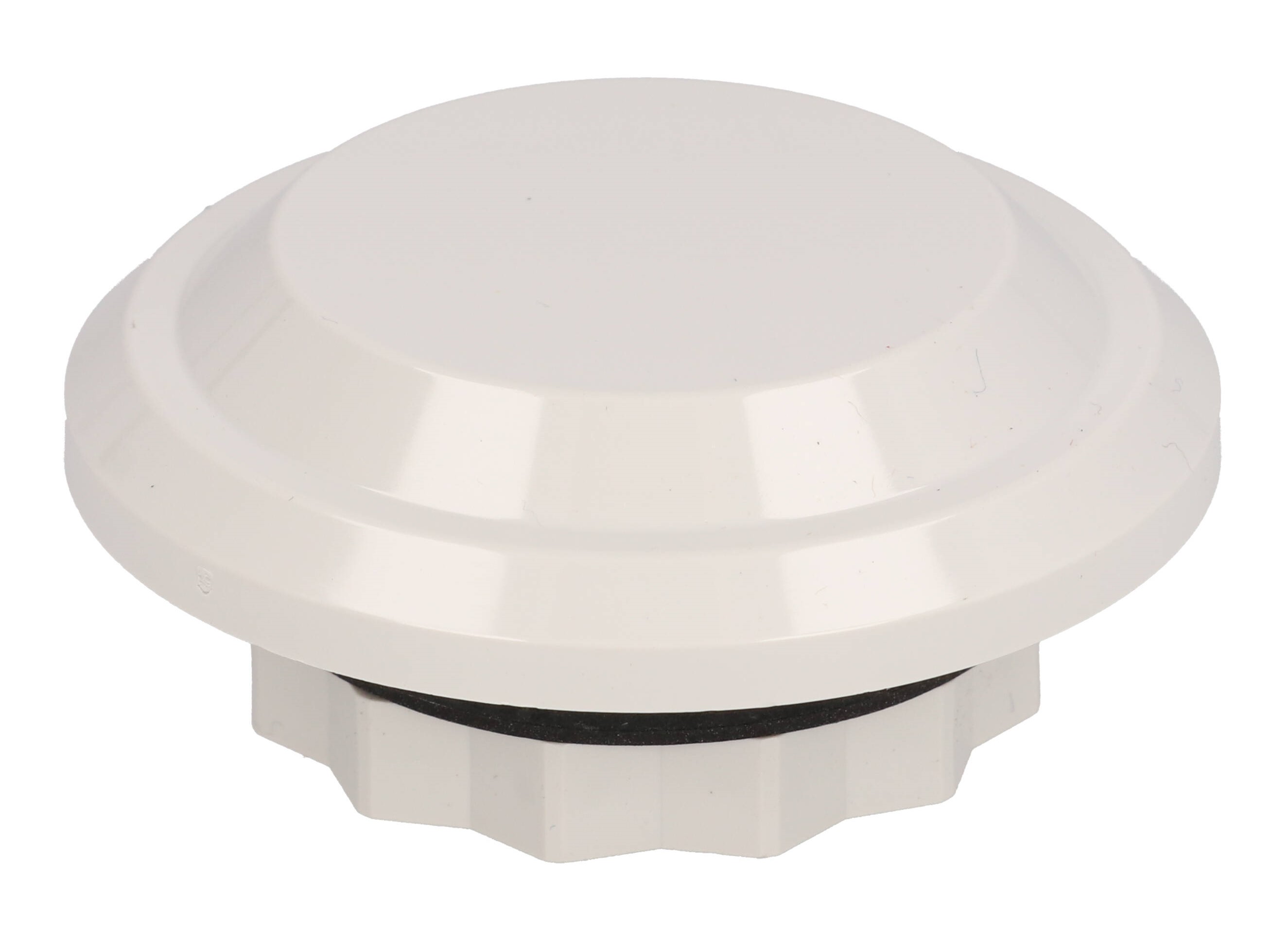

The plug is polycarbonate rated UL94V0 in RAL 7035 Light Gray, with a UV rating per UL746C (F1). It includes a sealing gasket and offers IP55 protection when mounted vertically, or IP54 in other orientations. The operating temperature range is -45 °C to +70 °C.

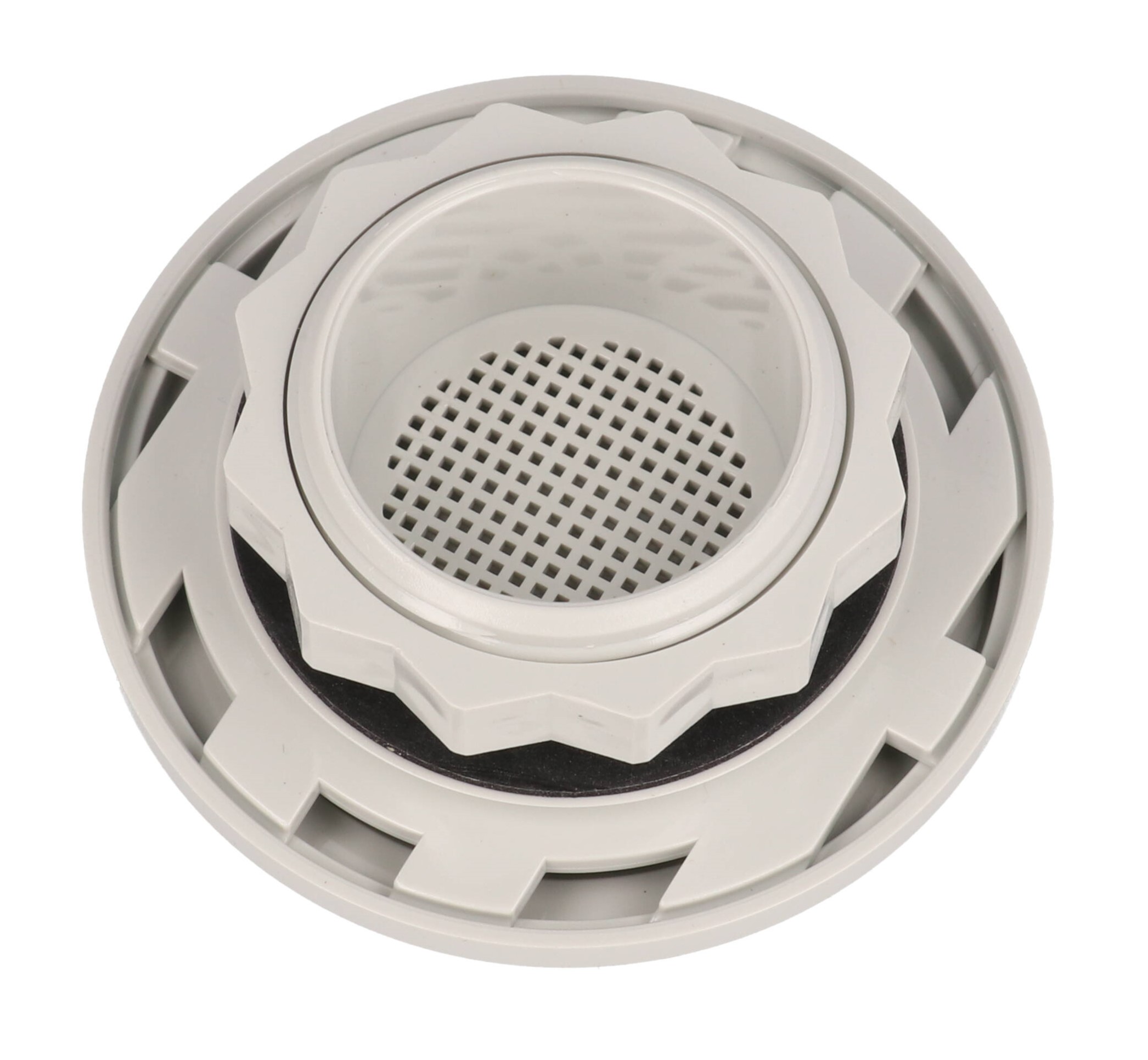

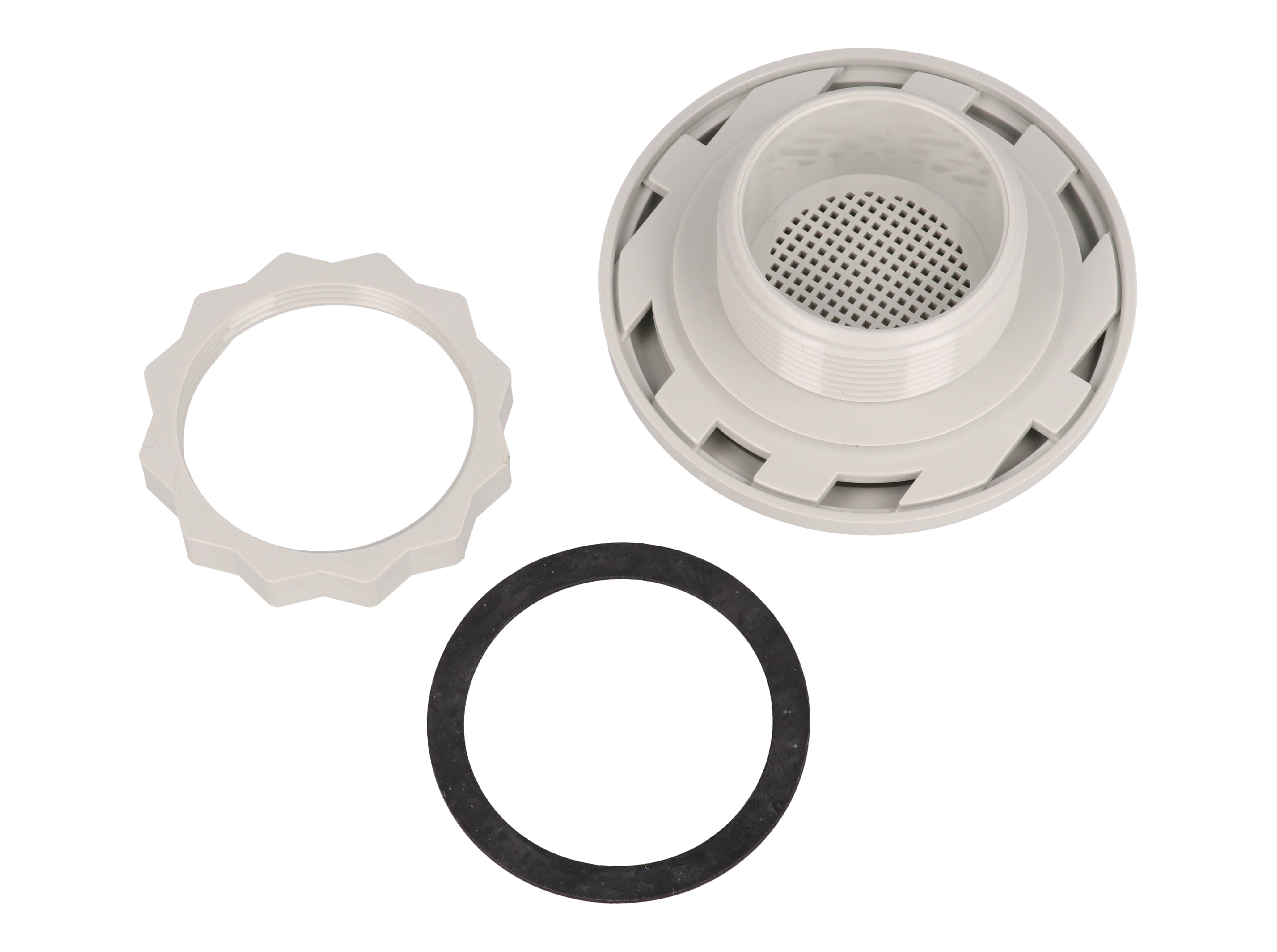

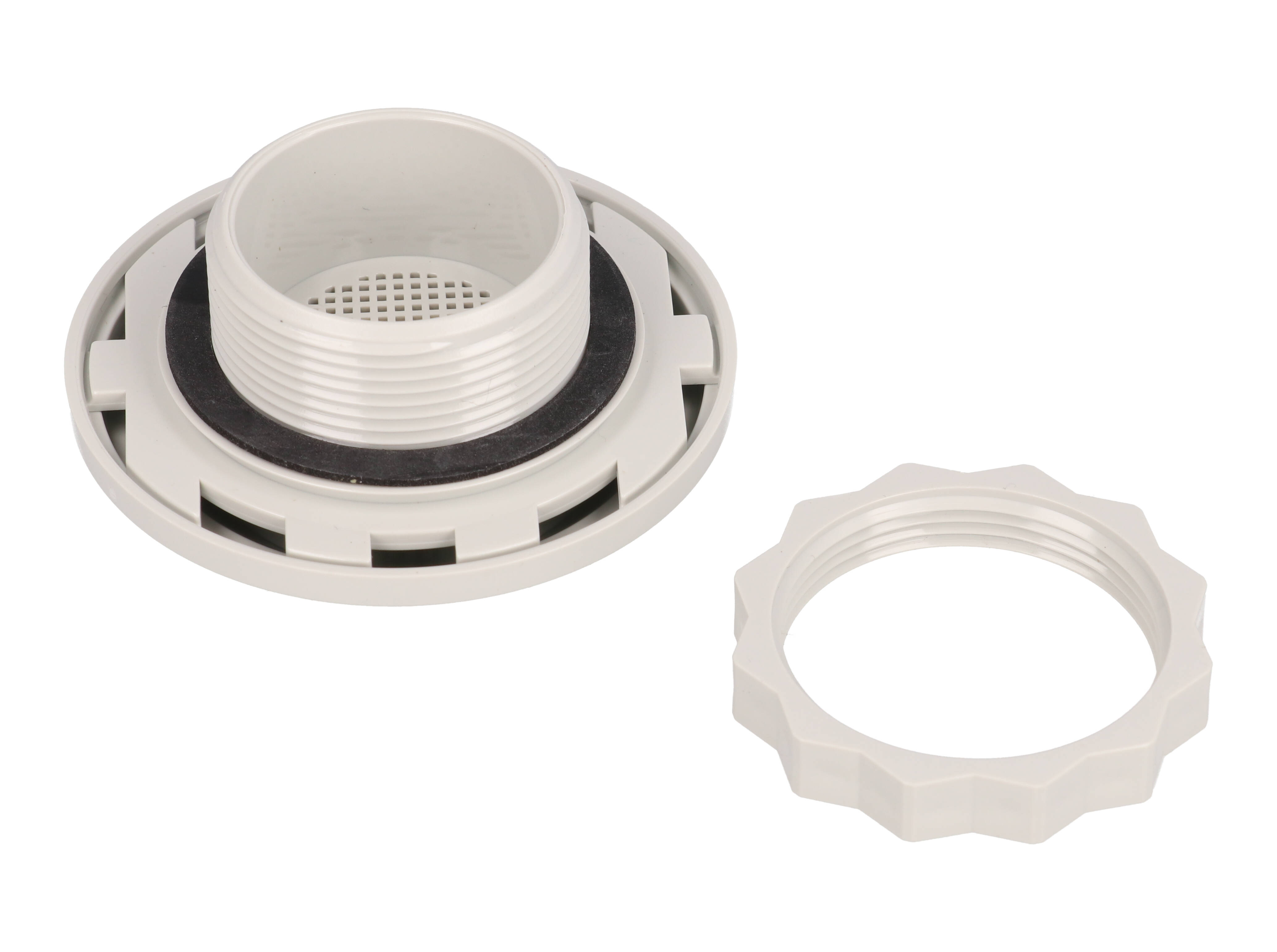

Dimensions are 2.6 in diameter by 1.2 in depth (listed as 2.6 x 1.19 in). The SDA412-2 mounts through a PG 29 (1.14 in) thread with a union nut and requires a minimum cutout diameter of 1.46 in, so installation is a matter of cutting one round hole, fitting the plug with its sealing gasket and tightening the union nut from inside the enclosure wall. The second recommended plug goes in the opposite location on the cabinet. Shipping weight is 0.1 lbs (0.05 kg), and the part is REACH and RoHS compliant.
Ideal For
- Pressure compensation in sealed electrical enclosures
- Enclosures exposed to day/night temperature swings
- Cabinet breathing with two plugs in opposite locations
Overview
| Series | SDA Series - Breather Kit |
| Function | Controlled pressure compensation due to temperature variations (i.e. night/day operation) |
| Description | Breather Kit- QTY 2 |
| Product Type | Breather Kit |
| Short Description | PRESSURE PLUG 2.6X1.19"D QTY 2 |
| Recommended Quantity | Two plugs per cabinet in opposite locations |
Dimensions
| Size (Short Description) | 2.6 x 1.19" dia |
| Dimensions (Diameter X Depth) | 2.6" x 1.2" |
Identifiers
| UPC | 623980565910 |
| UNSPSC | 40101503 |
| Part Number | SDA412-2 |
Installation
| Mounting | PG 29 (1.14") thread with union nut |
| Minimum Cutout Diameter | 1.46" |
Packaging & Shipping
| Shipping Weight | 0.1 lbs (0.05 kg) |
| Package Quantity | 2 |
Construction & Finish
| Color | RAL 7035 Light Gray |
| Included | Sealing gasket |
| Material | Polycarbonate UL94VO |
Environmental & Protection
| UV Rating | per UL746C (F1) |
| Protection | IP55 mounted vertically, else IP54 |
| Operating Temperature | -45 °C to +70 °C |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What does a breather plug do?▾
It provides controlled pressure compensation inside the enclosure due to temperature variations, such as night/day operation.
What size hole do I need?▾
The plug mounts with a PG 29 (1.14 in) thread and union nut and needs a minimum cutout diameter of 1.46 in.
How many should I install?▾
Two plugs per cabinet in opposite locations are recommended. This package contains 2.
What IP rating does it have?▾
IP55 when mounted vertically, otherwise IP54.
Is a gasket included?▾
Yes, the kit includes a sealing gasket.
