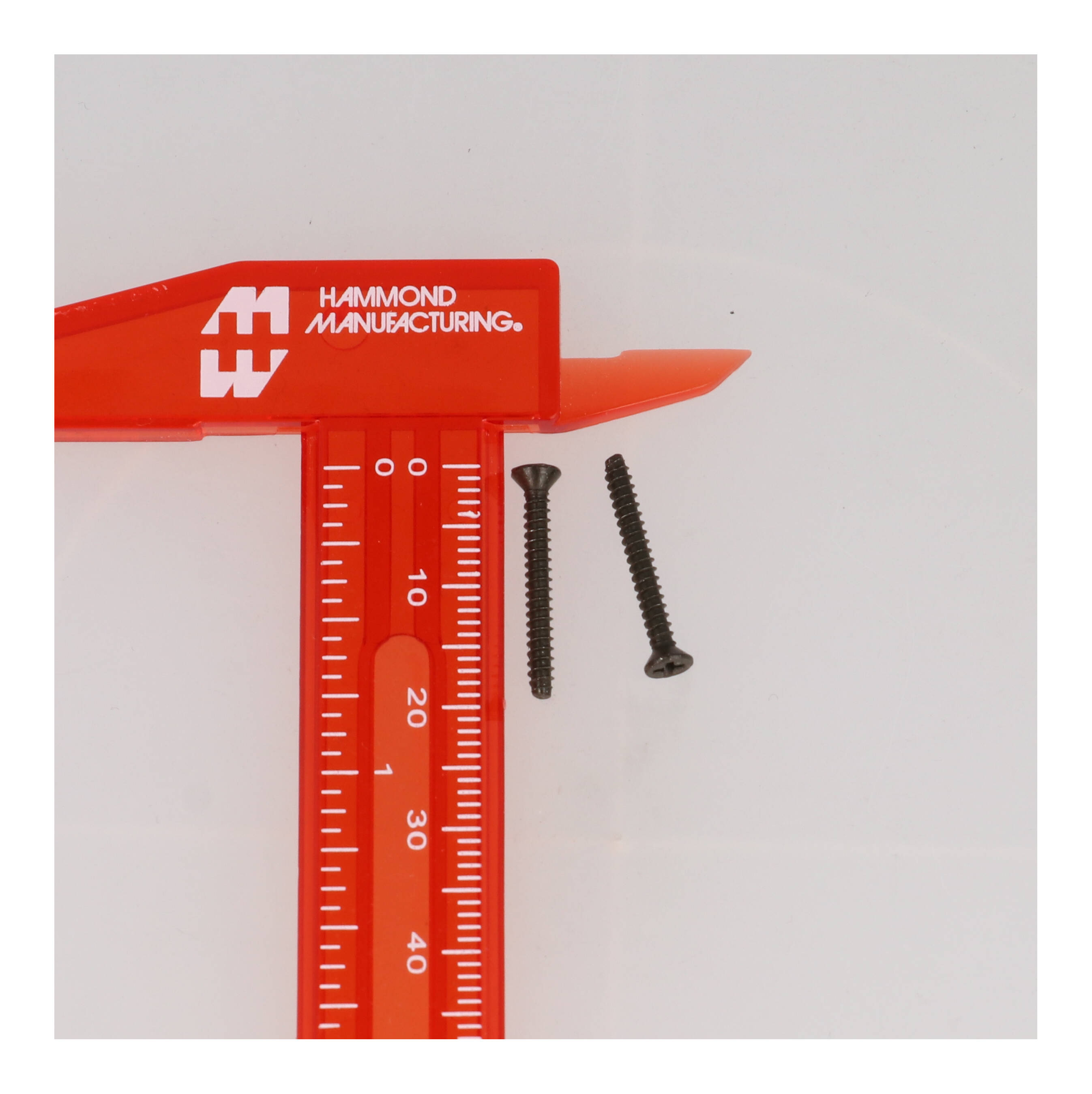

Hammond SC551BK-50 #2 x 3/4" Self-Tapping Cover Screws, Black, 50-Pack
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 50 #2 x 3/4" self-tapping cover screws per pack
- Cover screw for 1552 "D" size enclosures (1552D1, 1552D3, 1552D5)
- Color: Black
- REACH and RoHS compliant
- Pairs with the natural version SC551-50
The SC551BK-50 is a pack of 50 black #2 x 3/4" self-tapping cover screws for the "D" sizes of the 1552 hand-held ABS enclosure series: the 1552D1, 1552D3 and 1552D5. These are the screws that hold the two enclosure halves together, so the pack is useful for production builds, field service and for replacing screws lost during prototyping or rework.
On the 1552D enclosure drawings, SC551BK-50 is listed as the 1552D cover screw (Black). For reference, the series notes that black 1552 enclosures come with black screws and gray enclosures come with nickel plated screws. The natural-color version of this pack is SC551-50.
The part page lists the screw as "#2 X 3/4" FH SELFTAP BK-50 PCS" in its short description and "#2 X 3/4" PN SELFTAP BK" in its long description. The 1552D drawings give a recommended cover screw torque of 21-28 ozf-in (15-20 cN-m). Hammond's chemical resistance guidance advises against using Red Loctite or any thread locking compound on screws in its plastic enclosures.
The package measures 2.5 in x 1.5 in x 0.75 in (64 mm x 38 mm x 19 mm) and has a shipping weight of 0.07 lbs (0.03 kg). REACH and RoHS compliance are both listed as Yes.
Ideal For
- Closing 1552 D-size hand-held enclosures
- Replacement cover screws for service
- Production assembly of 1552D devices
Overview
| Series | 1552 Hand-Held ABS Plastic Enclosures |
| Quantity | 50 per pack |
| Use With | "D" sizes (1552D1, 1552D3, 1552D5) |
| Screw Type | Cover Screw |
| Long Description | #2 X 3/4" PN SELFTAP BK |
| Screw Description | #2 x 3/4" Self-Tapping |
| Short Description | #2 X 3/4" FH SELFTAP BK-50 PCS |
Dimensions
| Package Size L X W X H | 2.5 in x 1.5 in x 0.75 in (64 mm x 38 mm x 19 mm) |
Identifiers
| UPC | 623980487663 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Shipping Weight | 0.07 lbs (0.03 kg) |
Construction & Finish
| Color | Black |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures use the SC551BK-50?▾
It is the cover screw for 1552 "D" size enclosures: 1552D1, 1552D3 and 1552D5.
How many screws are in the pack?▾
50 pieces.
What size is the screw?▾
#2 x 3/4" self-tapping.
Can I use thread locker on these screws?▾
Hammond advises against Red Loctite or any thread locking compound for screws used with its plastic enclosures.
Which screw is used on the 1552 "C" sizes?▾
The C sizes use SC550-50 (natural) or SC550BK-50 (black), #2 x 1/2" self-tapping.
