Hammond RSSB2UBK 2U Sliding Rack Shelf Retention Bracket Pair
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features

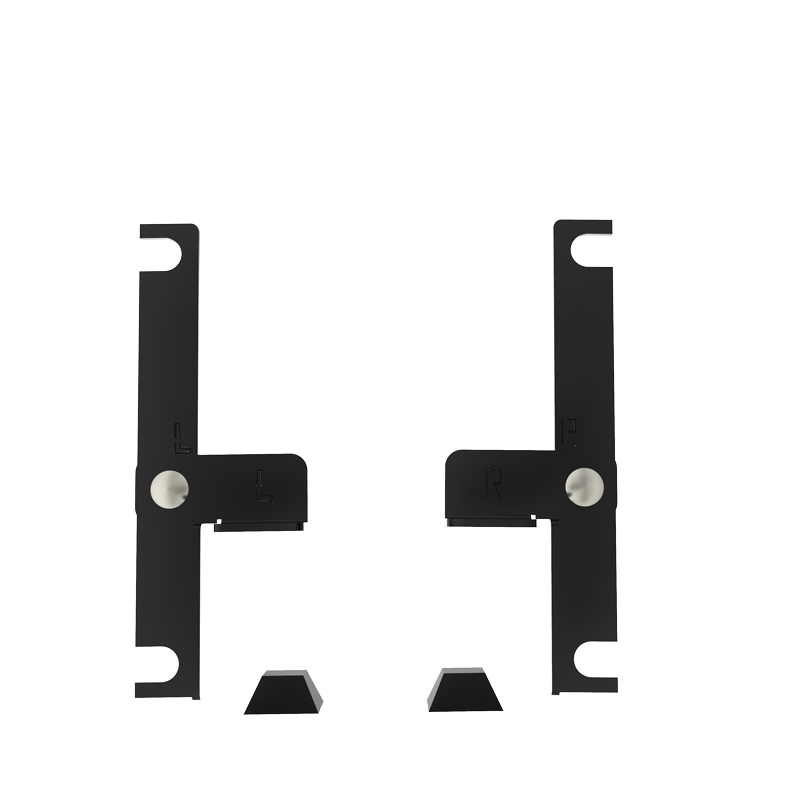

- Sold as one pair: 2U left-hand and right-hand shelf stop brackets, plus two stick-on rubber bumper feet
- 16-gauge mild steel construction forms a durable stop against unintended sliding shelf extension
- Release tabs raise to allow full shelf travel, then re-engage to retain the shelf
- Open mounting slot design installs over existing rack-mounted equipment without removing the shelf
- 2U size: 3.00 in (76 mm) overall height, 0.75 in (19 mm) depth, 3.50 in (89 mm) usable mounting height
- Fits most standard 19-inch EIA-compliant racks and cabinets with sliding shelves
- Black powder coat finish is GREENGUARD, TSCA and RoHS compliant
- TAA and USMCA compliant; made in North America in an ISO 9001 certified facility
The RSSB2UBK is a 2U rack shelf slide block, supplied as a matched left-hand and right-hand pair, that keeps sliding rack shelves from extending unintentionally during transport, servicing and everyday operation. It suits IT and data centre teams, AV and broadcast integrators, telecom installers and OEM engineers who need a simple retention device for shelves already mounted in a rack.
Unlike a permanent locking device, the RSSB allows the shelf to operate normally when the release tabs are raised, then securely retains the shelf again when engaged. The open mounting slot design lets the brackets install over existing rack-mounted equipment without removing the shelf, which makes the RSSB2UBK practical for retrofitting live installations.
Construction is 16-gauge mild steel with a black powder coat finish that is GREENGUARD, TSCA and RoHS compliant, providing a durable stop. Each pair ships with two stick-on rubber bumper feet. Overall dimensions are 3.00 in (76 mm) high by 0.75 in (19 mm) deep, with a 2U front profile of 3.47 in (88 mm) and a usable mounting height of 3.50 in (89 mm). The product list gives a nominal size of 3 in x 0.5 in x 0.75 in (76 mm x 13 mm x 19 mm).
The brackets are compatible with most standard 19-inch EIA-compliant racks and cabinets using sliding shelves. Rail mounting hardware is not included. The RSSB2UBK is manufactured in North America (Canada) in an ISO 9001 certified facility, is TAA and USMCA compliant, and is RoHS and REACH compliant.
Ideal For
- Data centers and server rooms
- Network and telecommunications installations
- AV and broadcast equipment racks
- Mobile and transportation equipment racks
- Industrial control systems and shelf retention during relocation
Overview
| Series | RSSB Series Rack Shelf Slide Block / Sliding Shelf Retention Bracket |
| Sold As | Sold in pairs (one left-hand and one right-hand bracket) |
| Function | Prevents sliding rack shelves from extending unintentionally while allowing full operation when release tabs are raised |
| Description | 2U RACK SHELF SLIDE BRKT |
| Part Number | RSSB2UBK |
Dimensions
| Overall Depth | 0.75 in (19 mm) |
| Overall Height | 3.00 in (76 mm) |
| Mounting Hole Diameter | 0.25 in (6 mm) |
| Nominal Size (H X W X D) | 3 in x 0.5 in x 0.75 in (76 mm x 13 mm x 19 mm) |
| Front Profile Height (2U) | 3.47 in (88 mm) |
Identifiers
| UPC | 623980003108 |
| UNSPSC | 43223305 |
| GTIN-14 | 00623980003108 |
| UPC W/o Check Digit | 62398000310 |
Rack Mounting
| Hardware | Rail mounting hardware not included |
| Rack Units | 2U |
| Mounting Design | Open mounting slot; installs over existing rack-mounted equipment without shelf removal |
| Rack Compatibility | Most standard 19-inch EIA-compliant racks and cabinets using sliding shelves |
| Usable Mounting Height | 3.50 in (89 mm) |
Packaging & Shipping
| ECCN | EAR99 |
| Tariff Code | 9403.10.0040 |
| Country Of Origin | CA |
Construction & Finish
| Gauge | 16-gauge steel |
| Finish | Black powder coat (painted black) |
| Material | Mild Steel |
| Included Items | 2U Shelf Stop Bracket LH (1), 2U Shelf Stop Bracket RH (1), Stick-on Rubber Bumper Feet (2) |
Environmental & Protection
| Finish Compliance | GREENGUARD, TSCA and RoHS compliant black powder coat |
Compliance & Certifications
| Standards | TAA-compliant |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
| Manufacturing Quality | Manufactured in North America in an ISO 9001 certified facility |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How many brackets come with RSSB2UBK?▾
RSSB2UBK is sold in pairs and includes one 2U left-hand shelf stop bracket, one 2U right-hand shelf stop bracket, and two stick-on rubber bumper feet.
Does the slide block permanently lock the shelf in place?▾
No. Unlike a permanent locking device, the RSSB retains the shelf when engaged but allows full shelf travel when the release tabs are raised.
Do I have to remove the shelf or equipment to install it?▾
No. The open mounting slot design is intended to install over existing rack-mounted equipment without requiring shelf removal, which makes it suitable for retrofits.
Is mounting hardware included?▾
Rail mounting hardware is not included, per the part drawing notes.
What racks does RSSB2UBK fit?▾
It is compatible with most standard 19-inch EIA-compliant racks and cabinets that use sliding shelves, and provides 2U (3.50 in / 89 mm) of usable mounting height.
Is RSSB2UBK TAA compliant?▾
Yes. It is TAA-compliant and manufactured in North America (country of origin CA) within an ISO 9001 certified facility, and is also USMCA, RoHS and REACH compliant.
What is the difference between RSSB2UBK and the 1U version?▾
RSSB2UBK is the 2U version with 3.00 in (76 mm) overall height and 3.50 in (89 mm) usable mounting height; the RSSB1UBK is the 1U version with 1.72 in overall height and 1.75 in usable mounting height.
