Hammond RSSB1UBK 1U Steel Sliding Rack Shelf Stop Bracket Pair
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features

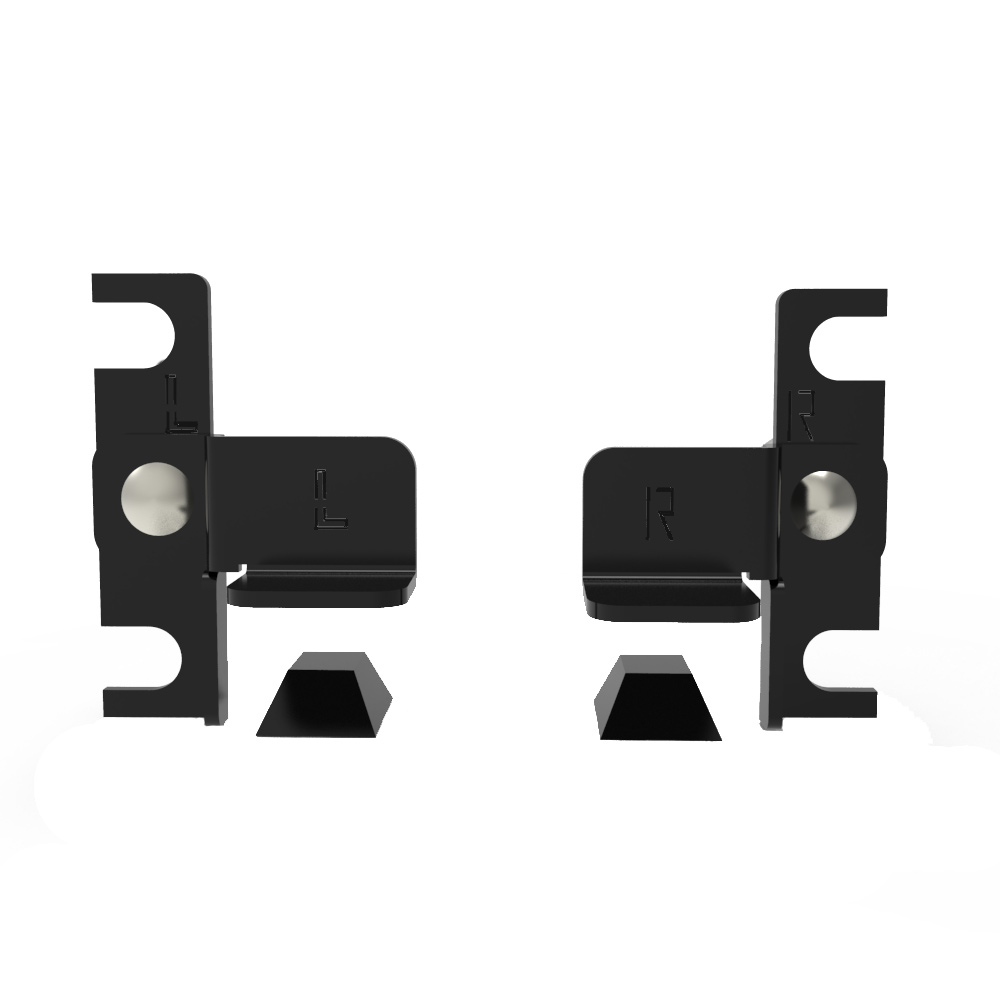

- Sold as one pair: 1U rack shelf stop bracket left-hand and right-hand, for complete shelf retention
- 16-gauge mild steel stop resists shelf impact during transport, servicing and daily operation
- Release tabs raise to allow full shelf travel, then re-engage to hold the shelf in place
- Open mounting slot design installs over existing rack-mounted equipment without removing the shelf
- 1U size: 1.72 in (44 mm) overall height, 0.75 in (19 mm) depth, 1.75 in (44 mm) usable mounting height
- Fits most standard 19-inch EIA-compliant racks and cabinets using sliding shelves
- Black powder coat finish, GREENGUARD, TSCA and RoHS compliant
- TAA compliant, made in North America in an ISO 9001 certified facility
The RSSB1UBK is a 1U rack shelf stop bracket, supplied as a matched left-hand and right-hand pair, that keeps a sliding rack shelf from extending unintentionally. It is aimed at IT and data center teams, AV and broadcast integrators, telecom installers and OEM engineers who need a simple safety stop on shelves that would otherwise roll out during servicing, transport or in busy walkways.
Unlike a permanent locking device, the RSSB acts as a retention stop: the shelf is held securely when the brackets are engaged, yet full shelf travel is restored when the release tabs are raised. Construction is 16-gauge mild steel with a black powder coat finish that is GREENGUARD, TSCA and RoHS compliant, so the brackets stand up to repeated contact with a loaded shelf.
This 1U version measures 1.72 in (44 mm) overall height and 0.75 in (19 mm) overall depth, with a usable mounting height of 1.75 in (44 mm) across one rack unit. The product list gives a nominal size of 1.75 in x 0.5 in x 0.75 in (44 mm x 13 mm x 19 mm). Drawing details include a 1.25 in (32 mm) flange dimension and 0.25 in (6 mm) diameter mounting holes.

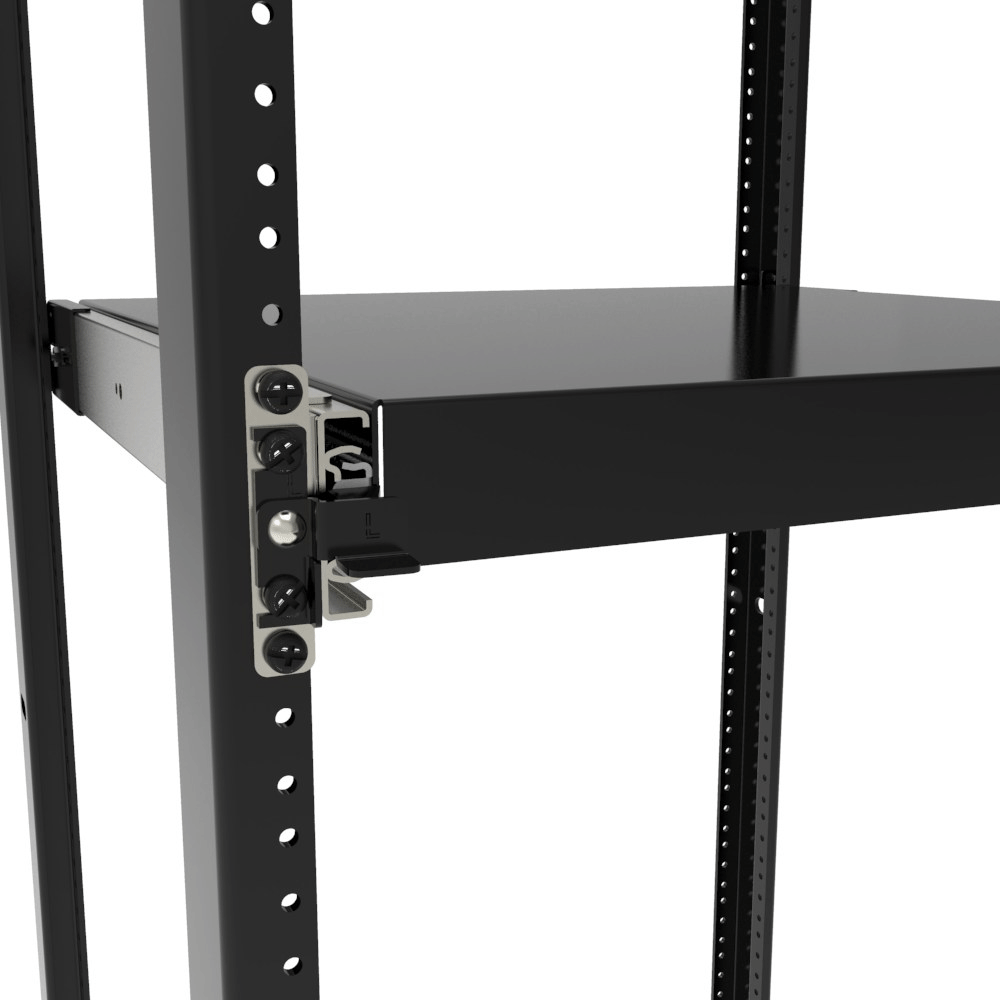

The open mounting slot design lets the RSSB1UBK be installed over existing rack-mounted equipment, so retrofits do not require the shelf to be pulled out of service. It suits most standard 19-inch EIA-compliant racks and cabinets that use sliding shelves. Each pair ships with two stick-on rubber bumper feet; rail mounting hardware is not included.
RSSB1UBK is manufactured in North America in an ISO 9001 certified facility, is TAA compliant and USMCA compliant, and is RoHS and REACH compliant.
Ideal For
- Data centers and server rooms
- Network and telecommunications installations
- AV and broadcast equipment racks
- Industrial control systems
- Mobile and transportation equipment racks where shelves must be secured
Overview
| Series | RSSB Series Rack Shelf Slide Block / Sliding Shelf Retention Bracket |
| Sold As | Sold in pairs (left-hand and right-hand bracket) |
| Description | 1U RACK SHELF STOP BRKT |
| Part Number | RSSB1UBK |
| Finish Designation | Painted Black |
Dimensions
| Overall Depth | 0.75 in (19 mm) |
| Overall Height | 1.72 in (44 mm) |
| Mounting Hole Diameter | 0.25 in (6 mm) |
| Nominal Size (H X W X D) | 1.75 in x 0.5 in x 0.75 in (44 mm x 13 mm x 19 mm) |
| Flange Dimension (Drawing) | 1.25 in (32 mm) |
Identifiers
| UPC | 623980003092 |
| UNSPSC | 43223305 |
| GTIN-14 | 00623980003092 |
| Category | Rack Accessories - Rack Shelf |
| UPC W/o Check Digit | 62398000309 |
Rack Mounting
| Hardware | Rail mounting hardware not included |
| Rack Units | 1U |
| Mounting Design | Open mounting slot; installs over existing rack-mounted equipment |
| Rack Compatibility | Most standard 19-inch EIA-compliant racks and cabinets using sliding shelves |
| Usable Mounting Height | 1.75 in (44 mm) |
Packaging & Shipping
| ECCN | EAR99 |
| Tariff Code | 9403.10.0040 |
| Country Of Origin | CA |
Construction & Finish
| Gauge | 16 gauge |
| Finish | Black powder coat |
| Material | Mild Steel |
| Included Items | 1x 1U rack shelf stop bracket LH, 1x 1U rack shelf stop bracket RH, 2x stick-on rubber bumper feet |
Environmental & Protection
| Finish Environmental Compliance | GREENGUARD, TSCA and RoHS compliant powder coat |
Compliance & Certifications
| Standards | TAA compliant |
| Manufacturing | Manufactured in North America in an ISO 9001 certified facility |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Does RSSB1UBK come as a single bracket or a pair?▾
It is sold in pairs. Each RSSB1UBK order includes one left-hand and one right-hand 1U rack shelf stop bracket, plus two stick-on rubber bumper feet.
Can the shelf still be extended after the brackets are installed?▾
Yes. The RSSB is not a permanent lock; the shelf operates normally and travels fully when the release tabs are raised, and is securely retained when the brackets are engaged.
Do I have to remove my equipment or shelf to install it?▾
No. The open mounting slot design is intended to install over existing rack-mounted equipment, so existing sliding shelf installations can be retrofitted without removing the equipment.
Is mounting hardware included?▾
Rail mounting hardware is not included with RSSB1UBK.
What are the dimensions of the 1U version?▾
Overall height is 1.72 in (44 mm) and overall depth is 0.75 in (19 mm), with a usable mounting height of 1.75 in (44 mm) over 1 rack unit. The listed nominal size is 1.75 in x 0.5 in x 0.75 in (44 mm x 13 mm x 19 mm).
Is RSSB1UBK TAA compliant?▾
Yes. It is TAA compliant and manufactured in North America in an ISO 9001 certified facility, with a country of origin of CA, and it is RoHS, REACH and USMCA compliant.
