Hammond RSKS19005BK1 3U Rotating Slide-Out Base, 129 lb Rated
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 3U rotating slide-out base for standard 19" rack mounting; 5.25 in (133 mm) height, 15.00 in (381 mm) depth
- Top tray swivels clockwise 90 degrees once the drawer is pulled outside the front of the rack
- Load rated to 129 lbs (59 kg); slides tested to BIFMA Standards at 12 cycles/minute for 55,000 cycles minimum
- Supplied complete with two 18" full-travel slides, four slide mounting brackets, eight plug/guides and mounting hardware
- Mounts to front and rear rails, accommodating rail spacing from 19.8" to a maximum of 34.8" deep
- Textured RAL9005 black powder coat over mild steel; complies with Greenguard indoor air quality guidelines
- Holds a full-size keyboard or other equipment (not included) inside the rack shelf
- TAA-compliant, USMCA compliant, RoHS and REACH compliant; manufactured in North America
The RSKS19005BK1 is a 3U rotating slide-out base for standard 19" rack mounting, designed for IT, AV and control-room installations where an operator needs a full-size keyboard or other equipment (not included) housed inside the rack. Once the drawer is pulled out beyond the front of the rack, the top tray swivels clockwise 90 degrees, giving comfortable access from the side of the cabinet or rack.
Construction is mild steel finished in textured RAL9005 black powder coat, a finish that complies with the Greenguard guidelines for indoor air quality. The unit occupies 3U with a mounting height of 5.25 in (133 mm) and a mounting depth of 15.00 in (381 mm). Per the drawing, the rotating shelf measures 18.12 in (460 mm) and the shelf base 17.00 in (432 mm), with an overall front-view width of 18.90 in (480 mm) and a mounting width of 18.37 in (467 mm).
RSKS19005BK1 is supplied as shown, complete with two 18" full-travel slides, four slide mounting brackets, eight plug/guides and mounting hardware; some assembly is required. It mounts to the front and rear panel rails of a rack and accommodates front-rail to rear-rail spacing from 19.8" up to a maximum of 34.8" deep. It will not work in 17" deep racks, as the slides are too deep.
The assembly is load rated to 129 lbs (59 kg), and the slides are tested to BIFMA Standards with load capacity at 12 times per minute for a minimum of 55,000 cycles. An optional front locking door (RSKS19DOORBK1) adds security where required.
Manufactured in North America, this part is RoHS and REACH compliant, USMCA compliant and TAA-compliant for federal GSA schedule purchases within the USA. Note that the product line will be discontinued on January 15, 2027, after which it is available only while supplies last, with no returns possible after that date; the suggested replacement is the RAKS Series.
Ideal For
- Full-size keyboard storage inside 19" racks and cabinets
- Rack-mounted operator workstations needing side access via 90-degree rotation
- Control rooms and AV racks housing equipment on a slide-out shelf
- Federal GSA schedule projects requiring TAA-compliant rack accessories
Overview
| Series | RSKS Series - Rotating Equipment Slide-out Base |
| Rotation | Top tray of the drawer swivels clockwise 90 degrees once pulled outside the front of the rack |
| Description | 3U Rotating Sliding Base |
| Load Rating | 129 lbs (59 kg) |
| Part Number | RSKS19005BK1 |
| Product Status Note | Product line will be discontinued on January 15, 2027, available while supplies last; no returns after the discontinuation date. Suggested replacement: RAKS Series |
Dimensions
| Mounting Depth | 15.00 in (381 mm) |
| Mounting Width | 18.37 in (467 mm) |
| Mounting Height | 5.25 in (133 mm) |
| Shelf Base Width | 17.00 in (432 mm) |
| Front View Heights | 2.71 in (69 mm) and 2.69 in (68 mm) |
| Rotating Shelf Width | 18.12 in (460 mm) |
| Shelf Width (Front View) | 16.65 in (423 mm) |
| Overall Width (Front View) | 18.90 in (480 mm) |
Identifiers
| UPC | 623980456027 |
| UNSPSC | 43201618 |
| GTIN-14 | 00623980456027 |
| Drawing Reference | RSKS19005 |
| UPC W/o Check Digit | 62398045602 |
Rack Mounting
| Rack Units | 3U |
| Rack Width | Standard 19" rack mount |
| Mounting Method | Mounts to front and rear panel rails of racks |
| Compatibility Note | Will NOT work in 17" deep racks (slides are too deep) |
| Slide Test Standard | Slides tested to BIFMA Standards with load capacity at 12 times/minute for 55,000 cycles minimum |
| Rail Spacing Accommodated | 19.8" minimum to 34.8" maximum deep |
| Rail Mounting Distance (Drawing) | Min 6 in - Max 20 in |
Included Components
| Hardware | Supplied complete with two slides and mounting hardware |
| Plug/Guide | 8 |
| 18" Full Travel Slide | 2 |
| Slide Mounting Bracket | 4 |
| RSKS Shelf Base Assembly | 1 |
| RSKS Rotating Shelf Assembly | 1 |
Packaging & Shipping
| Tariff Code | 7326.90.8688 |
| Shipping Weight | 20 lbs (9.07 kg) |
| Country Of Origin | CA (Manufactured in North America) |
Construction & Finish
| Finish | Textured RAL9005 black powder coat (painted black textured) |
| Assembly | Some assembly required |
| Material | Mild Steel |
Environmental & Protection
| Indoor Air Quality | Complies with the Greenguard guidelines for indoor air quality |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA-compliant for federal GSA schedule purchases within the USA |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How much weight can the RSKS19005BK1 hold?▾
It is load rated to 129 lbs (59 kg). The slides are tested to BIFMA Standards with load capacity at 12 times per minute for a minimum of 55,000 cycles.
What rack depth does it need?▾
It mounts to the front and rear panel rails and accommodates front-rail to rear-rail spacing from 19.8" up to a maximum of 34.8" deep. It will not work in 17" deep racks because the slides are too deep.
Does the shelf really rotate?▾
Yes. Once the drawer is pulled outside the front of the rack, the top tray swivels clockwise 90 degrees, so a full-size keyboard or other equipment housed in the shelf can be used from the side.
What is included with RSKS19005BK1?▾
It is supplied as shown with the RSKS shelf base assembly, the rotating shelf assembly, two 18" full-travel slides, four slide mounting brackets, eight plug/guides and mounting hardware. Some assembly is required, and equipment such as a keyboard is not included.
Is a locking front door available?▾

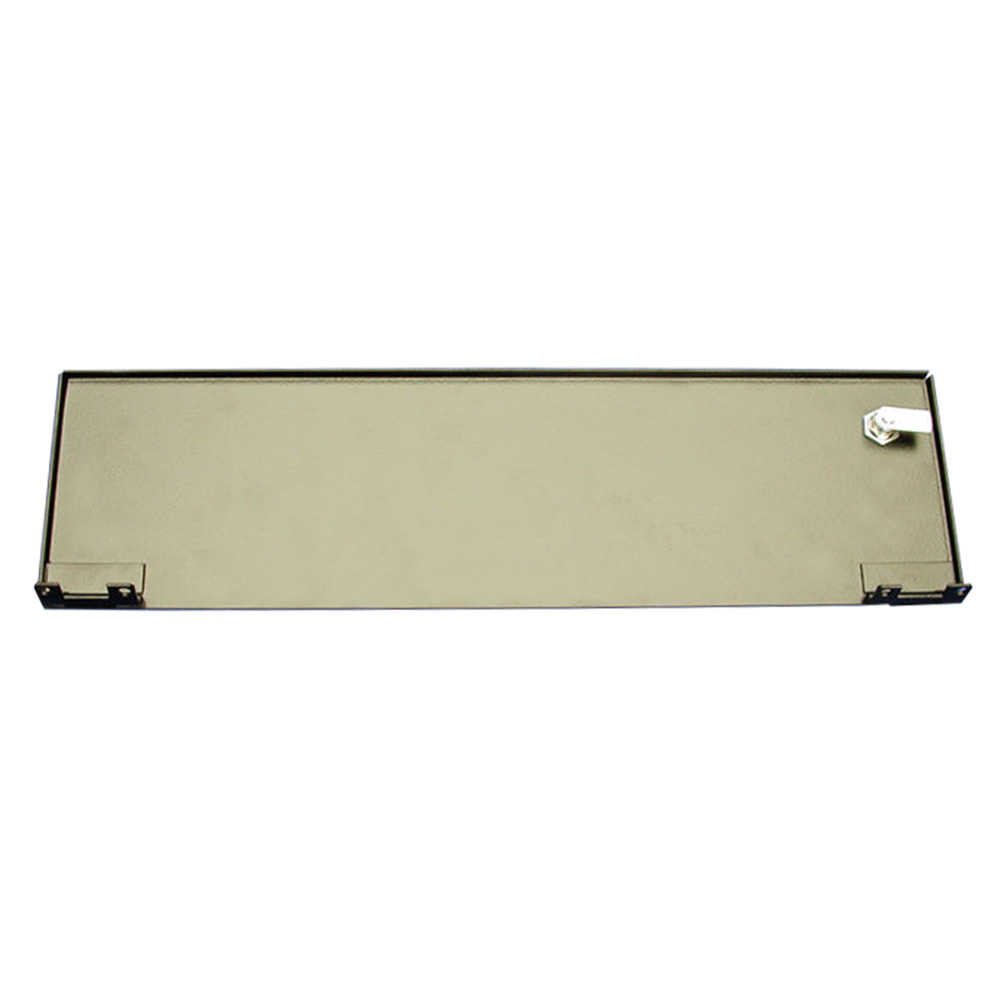

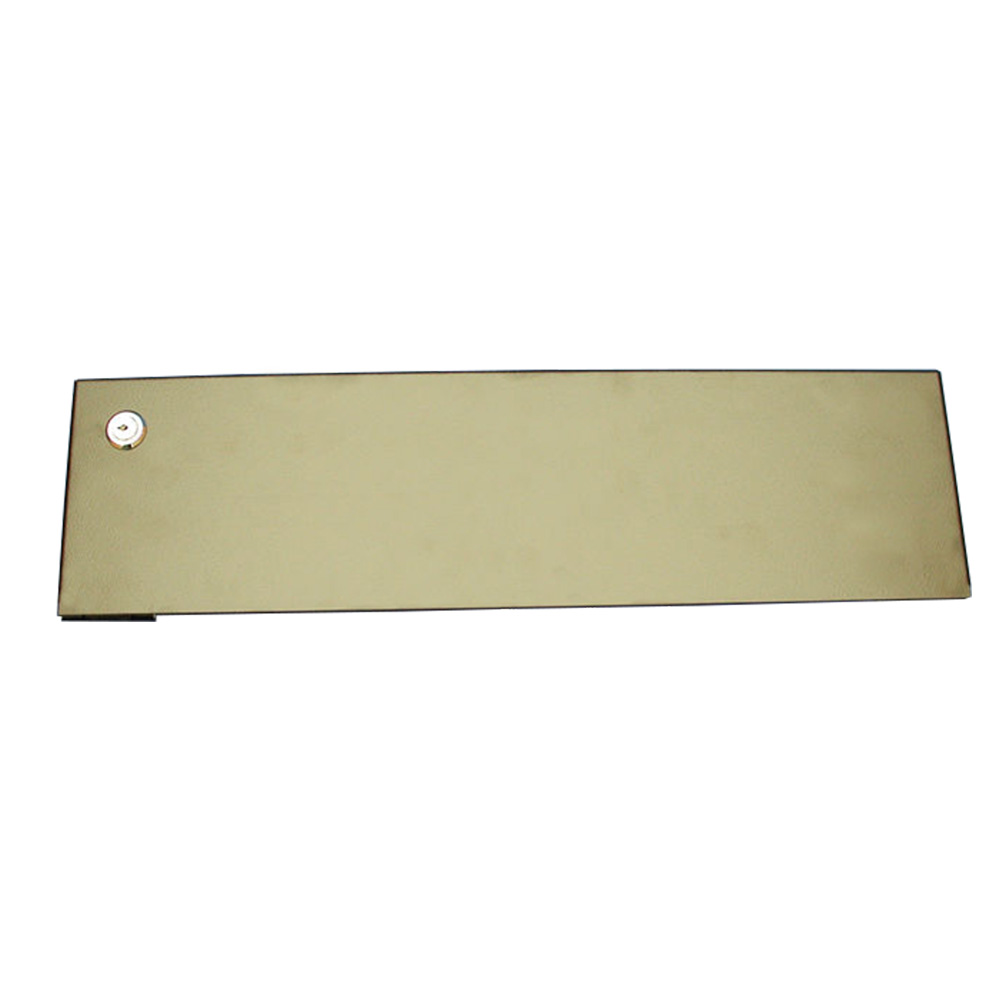

Yes, an optional front locking door adds security where required; the 3U hinged locking door for the RSKS keyboard drawer is part number RSKS19DOORBK1.
How many rack units does it occupy and what is the finish?▾
It occupies 3U with a mounting height of 5.25 in (133 mm) and 15.00 in (381 mm) depth, and it is mild steel finished in textured RAL9005 black powder coat.
