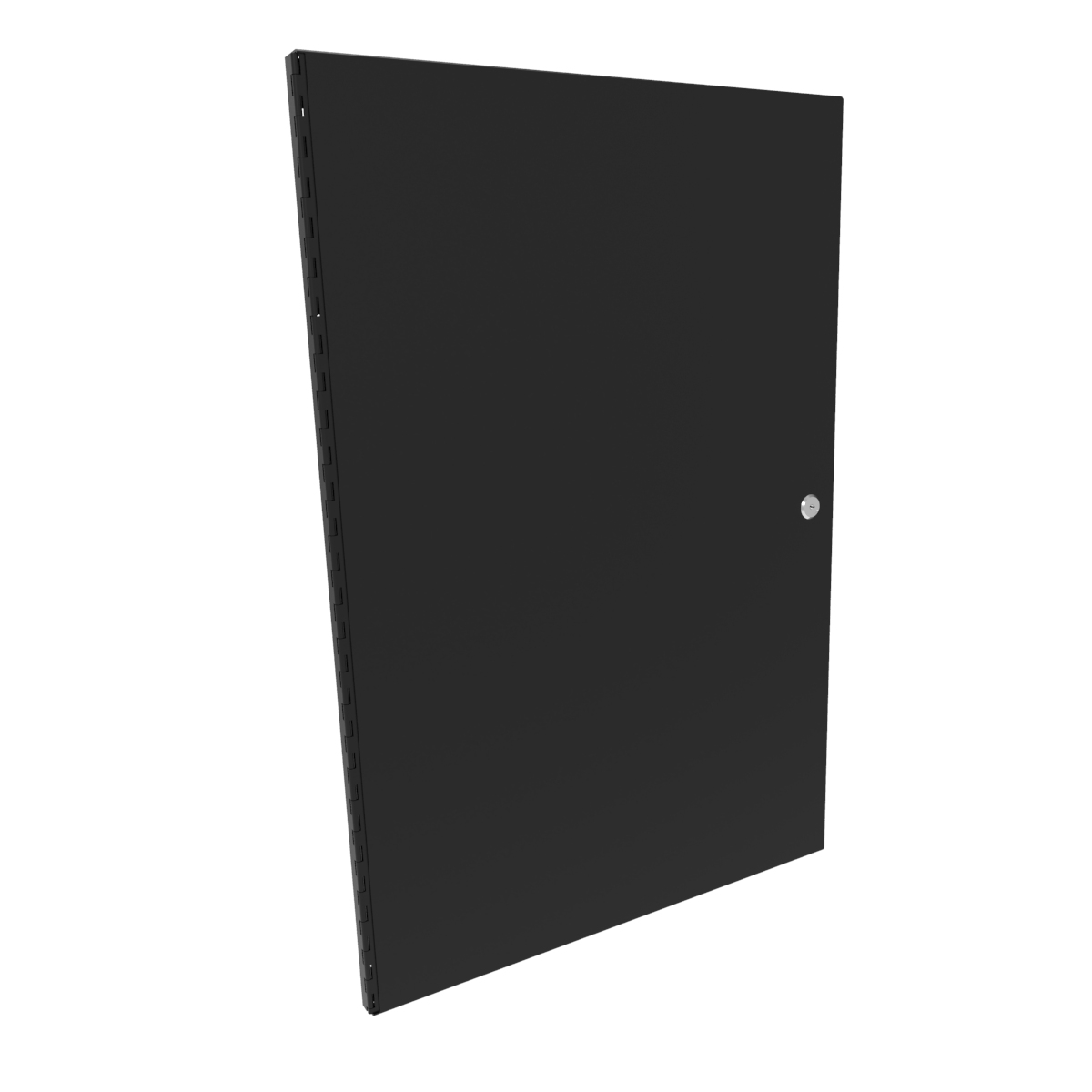

Hammond RSDP19028BK2 16U Hinged Solid Rack Security Door, Black

The RSDP19028BK2 is a 16U hinged solid rack security door finished in black (RAL9005) powder coat. It mounts directly to standard 19-inch EIA rack rails to create a lockable barrier in front of rack-mounted equipment, making it a practical choice for IT, telecom and AV installers who need to protect a whole section of a rack without building a full enclosure.

Construction is 16-gauge mild steel with folded edges for rigidity and durability. The powder coat finish is GREENGUARD, TSCA and RoHS compliant, and the door is TAA-compliant and manufactured in North America in an ISO 9001 certified facility. An integrated lock with two keys deters unauthorized access and tampering, while the hinged design swings open for full access to equipment during service and maintenance.

This 16U size covers 28.00 in (711 mm) of rack height and measures 19.00 in (483 mm) wide with a shallow 0.63 in (16 mm) depth; the drawing shows an overall panel height of 27.88 in (708 mm). Mounting dimensions match the panel at 28.00 in (711 mm) high by 19.00 in (483 mm) wide, with six 0.25 in (6 mm) diameter mounting holes on the rack flange spaced at 5.25 in (133 mm) typical. Shipping weight is 13 lbs (5.90 kg).

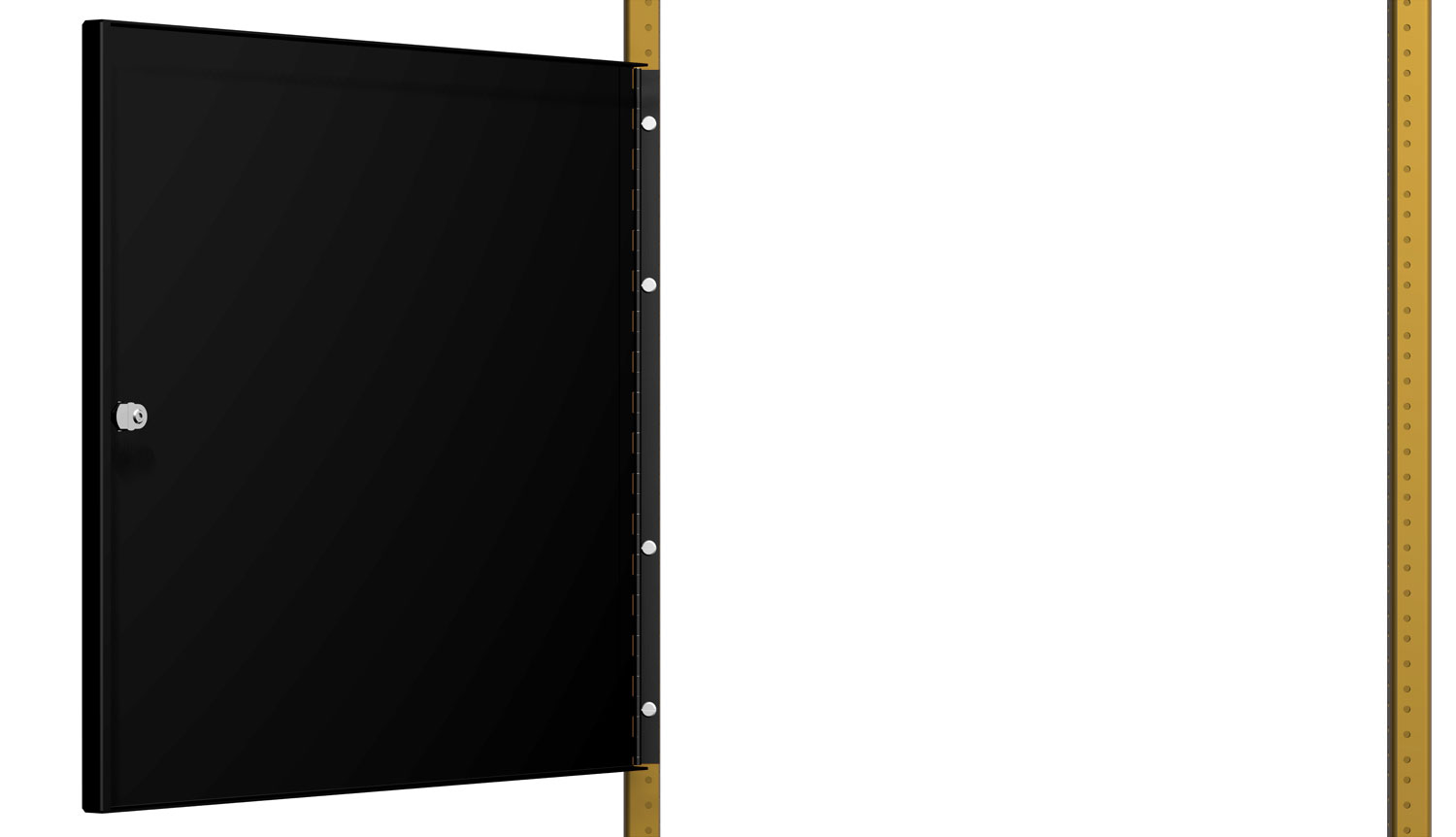

Because RSDP19028BK2 attaches to the rack rails rather than to a cabinet frame, it suits open frame racks and relay racks as well as shared, multi-user rack deployments where equipment sits on shelves. If you only need smaller, localized protection over a few rack units, a compact security cover from the RMSC Series may be a better fit.
