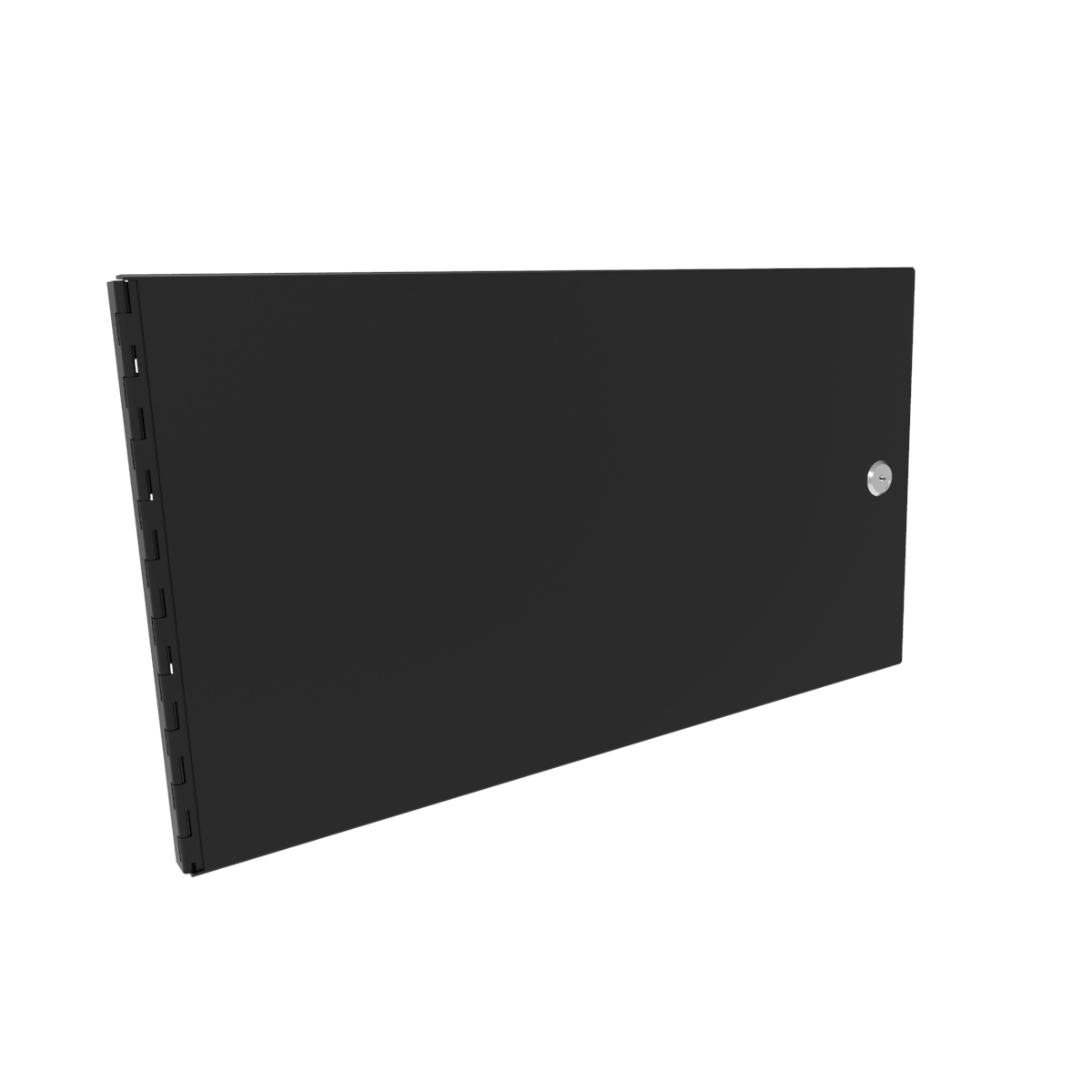

Hammond RSDP19010BK2 6U Hinged Solid Rack Security Door, Black

The RSDP19010BK2 is a 6U hinged solid rack security door finished in black (RAL9005) powder coat, part of the RSDP Series of rack mounting hinged security doors. It mounts directly to standard 19-inch EIA rack rails to create a lockable barrier over six rack units of equipment, making it a practical choice for IT and telecom teams, AV integrators and facilities staff who need section-level security without installing a full enclosure.

Construction is 16-gauge mild steel, with folded steel detailing that improves rigidity and durability. The hinged design swings open for full access to the equipment behind it, so routine service and maintenance are not obstructed. An integrated lock is supplied with two keys to help prevent unauthorized access and tampering in shared or multi-user rack deployments.

Overall dimensions of RSDP19010BK2 are 10.38 in (264 mm) high by 19.00 in (483 mm) wide by 0.63 in (16 mm) deep, with mounting dimensions of 10.50 in (267 mm) high by 19.00 in (483 mm) wide covering 6U. The drawing shows four Ø.25 in (6 mm) mounting holes. Shipping weight is 5 lbs (2.27 kg).

• 16-gauge steel door covering 6U of rack-mounted equipment
• Integrated lock with two keys
• Black RAL9005 powder coat finish

The door is TAA-compliant and manufactured in North America within an ISO 9001 certified facility, with a country of origin of CA and USMCA compliance. It is RoHS and REACH compliant, and the powder coat finish is GREENGUARD, TSCA and RoHS compliant. Typical deployments include data centers and server rooms, telecom and network installations, and open frame rack environments where equipment on shelves or open racks needs to be protected.
