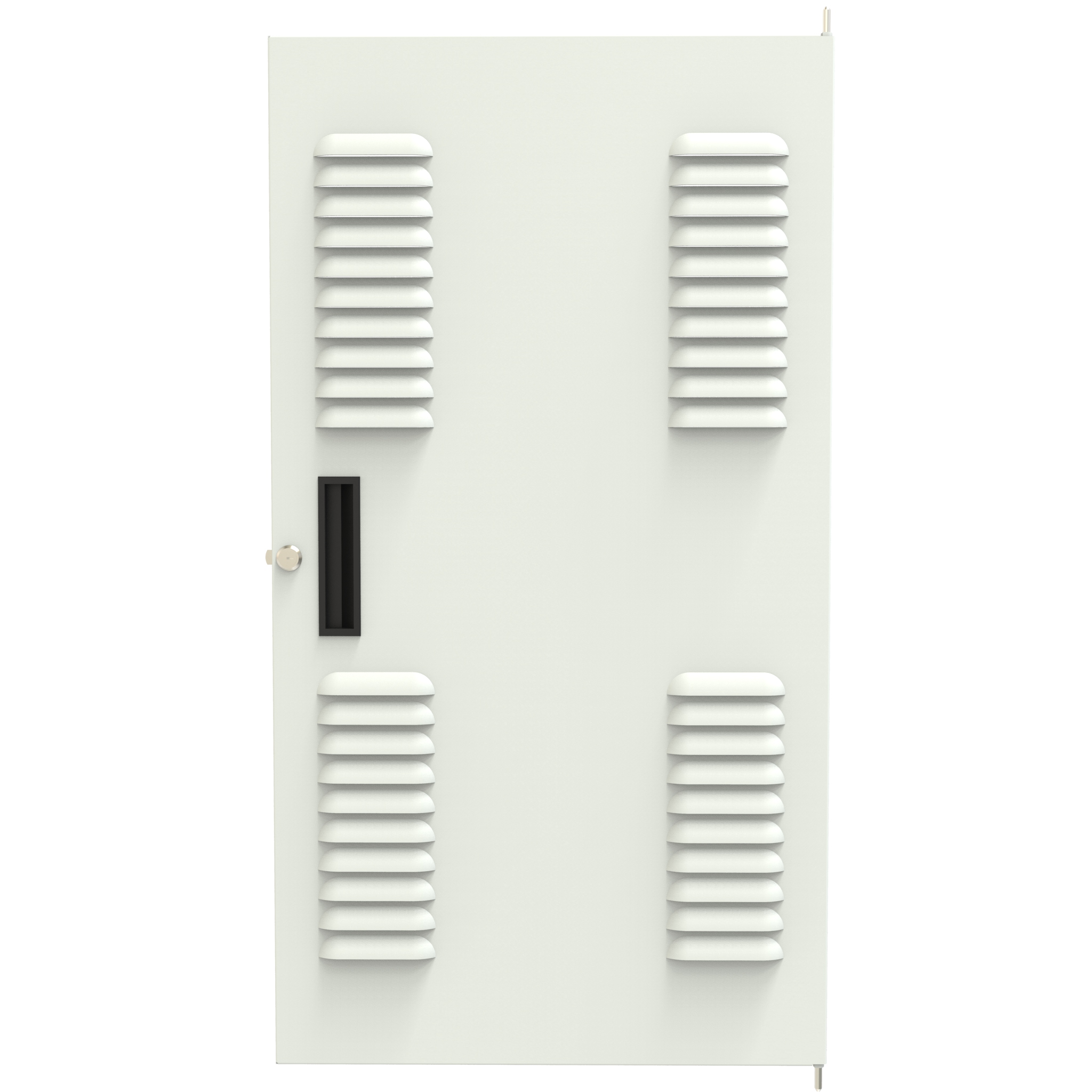

Hammond RSDL19035LG1 20U Louvered Locking Rack Door, Light Gray

RSDL19035LG1 is a 20U louvered locking flush door finished in textured RAL 7035 light gray, part of the RSD Series of locking doors. It is intended for IT, AV and facilities teams who need to secure the front or rear of an open rack frame or cabinet while keeping passive airflow through the door face. The louvered panel suits equipment that relies on ambient convection or front-to-rear fan cooling.

Construction is 16-gauge mild steel with a textured powder paint coat that complies with the Greenguard guidelines for indoor air quality. The door and cabinet are symmetrical, so RSDL19035LG1 can be mounted with either a right-hand or left-hand hinge to suit the room layout and door swing you need. An installed lock with two keys and the required mounting hardware are supplied.

This size covers 20U of rack-mount space and has a door height of 35.00 in (889 mm); it is listed for use with the REFK1903524 frame and is compatible with the REFK, 1564 and RS Cabinet Series. The drawing shows overall door dimensions of 34.75 in (883 mm) by 18.84 in (478 mm) with a .53 in (13 mm) depth detail, and the nominal packaged size is 42 in x 21 in x 2 in (1,067 mm x 533 mm x 51 mm) at a shipping weight of 13 lbs (5.90 kg).

Compliance is documented for procurement: the door is RoHS and REACH compliant, TAA-compliant for GSA Schedule purchases, USMCA compliant, classified EAR99, and manufactured in North America (country of origin CA). A cabinet door replacement lock is listed as an accessory for the series.
