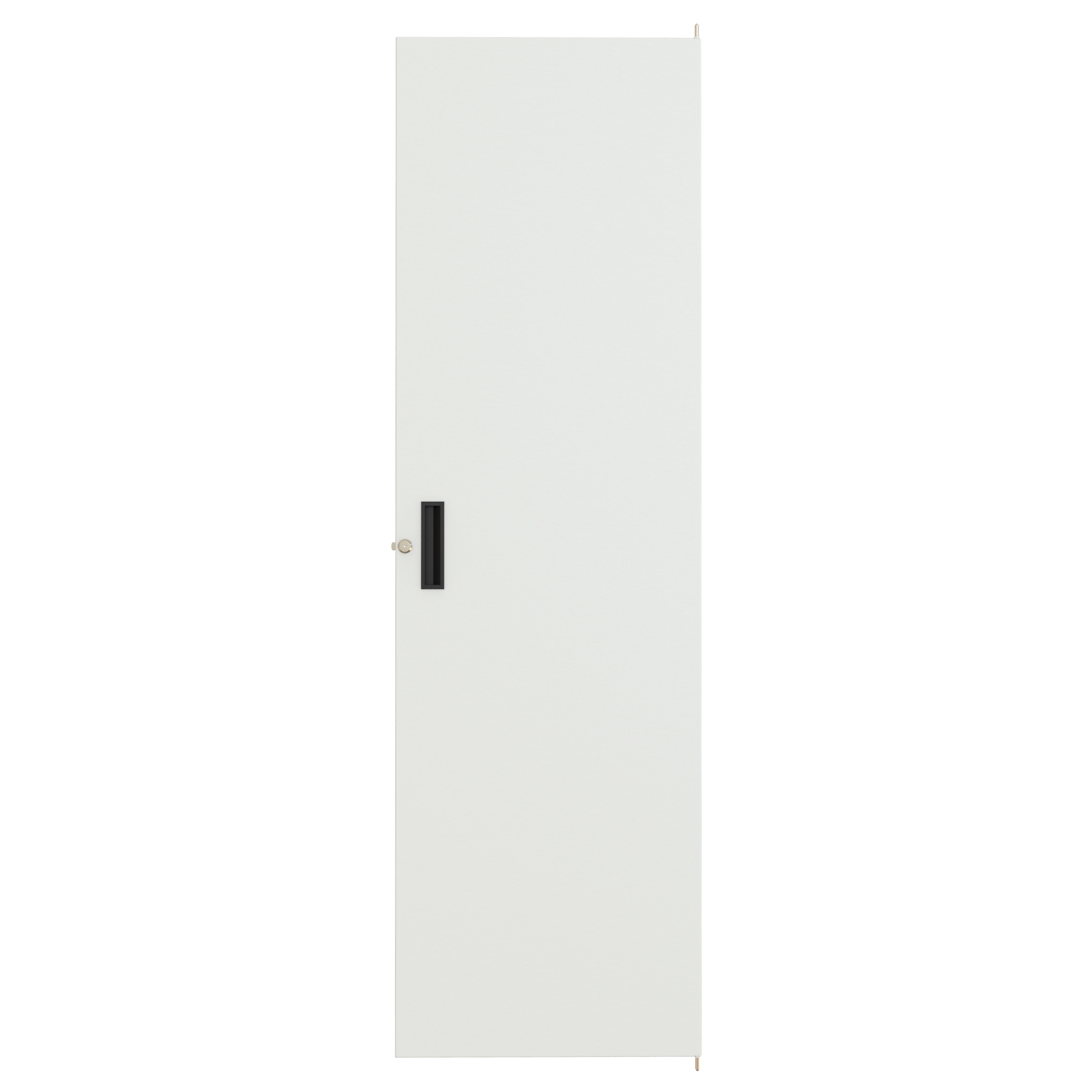

Hammond RSDF19063LG1 36U Solid Flush Mounting Locking Door, Gray

The RSDF19063LG1 is a solid locking door for open rack frames and cabinets, sized for 36U of mounting space at an overall height of 63.00 in (1600 mm). It is part of Hammond Manufacturing's RSD Series of locking doors and is intended for IT and AV integrators, facilities teams and OEM engineers who need to secure equipment mounted in a REFK, 1564 or RS Series frame or cabinet.

Construction is 16-gauge mild steel, finished in a textured RAL 7035 light gray powder paint coat that complies with the Greenguard guidelines for indoor air quality. The door drawing lists overall panel dimensions of 62.75 in (1594 mm) by 18.84 in (478 mm) with a 0.53 in (13 mm) depth profile, and the part ships at 33 lbs (14.97 kg).

The door and cabinet are symmetrical, so RSDF19063LG1 can be mounted with either a right-hand or left-hand hinge to suit aisle layout and room access. An installed lock with two keys is included for basic physical security, and mounting hardware is supplied so the door can be fitted in the field without sourcing additional fasteners. A cabinet door replacement lock is offered as an accessory within the series.

For frame pairing, this 63.00 in / 36U door is listed for use with the REFK1906324 frame. The solid panel version provides a closed front where a fully enclosed look is preferred over louvered or acrylic window doors offered elsewhere in the series.

• RoHS and REACH compliant, and TAA-compliant for GSA Schedule purchases.
• USMCA compliant, manufactured in North America (country of origin: Canada).
