Hammond RSDF19056BK1 32U Solid Flush Locking Door, Textured Black
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Solid flush locking door for 32U frames, 56.00 in (1422 mm) height; use with REFK1905624
- 16-gauge mild steel construction finished in textured RAL9005 black powder paint
- Mounts with either right- or left-hand hinge — door and cabinet are symmetrical
- Includes installed lock with two keys plus mounting hardware
- Compatible with the REFK, 1564 and RS Cabinet Series
- Powder paint finish complies with Greenguard guidelines for indoor air quality
- TAA-compliant for GSA Schedule purchases; RoHS, REACH and USMCA compliant
- Manufactured in North America; 30 lbs (13.61 kg) shipping weight
The RSDF19056BK1 is a solid flush locking door sized for 32U (56.00 in / 1422 mm) rack frames, intended for IT, AV and facilities teams who need to close in an open frame or cabinet and control physical access to mounted equipment. It belongs to Hammond Manufacturing's RSD Series of locking doors for the REFK, 1564 and RS Cabinet Series, and pairs with the REFK1905624 frame.
Construction is 16-gauge mild steel, finished in textured RAL9005 black powder paint. The door is symmetrical with the cabinet, so it can be mounted with either a right-hand or left-hand hinge to suit the room layout and door swing you need. An installed lock and two keys are supplied, along with the mounting hardware required to fit the door.
The drawing for RSDF19056BK1 shows overall panel dimensions of 55.75 in (1416 mm) high by 18.84 in (478 mm) wide, with a 0.53 in (13 mm) profile depth, and the ordering table lists the nominal 56.00 in (1422 mm) / 32U frame height it is built for. Shipping weight is 30 lbs (13.61 kg).
- Solid flush panel style, with louvered and acrylic window versions offered elsewhere in the RSD Series.

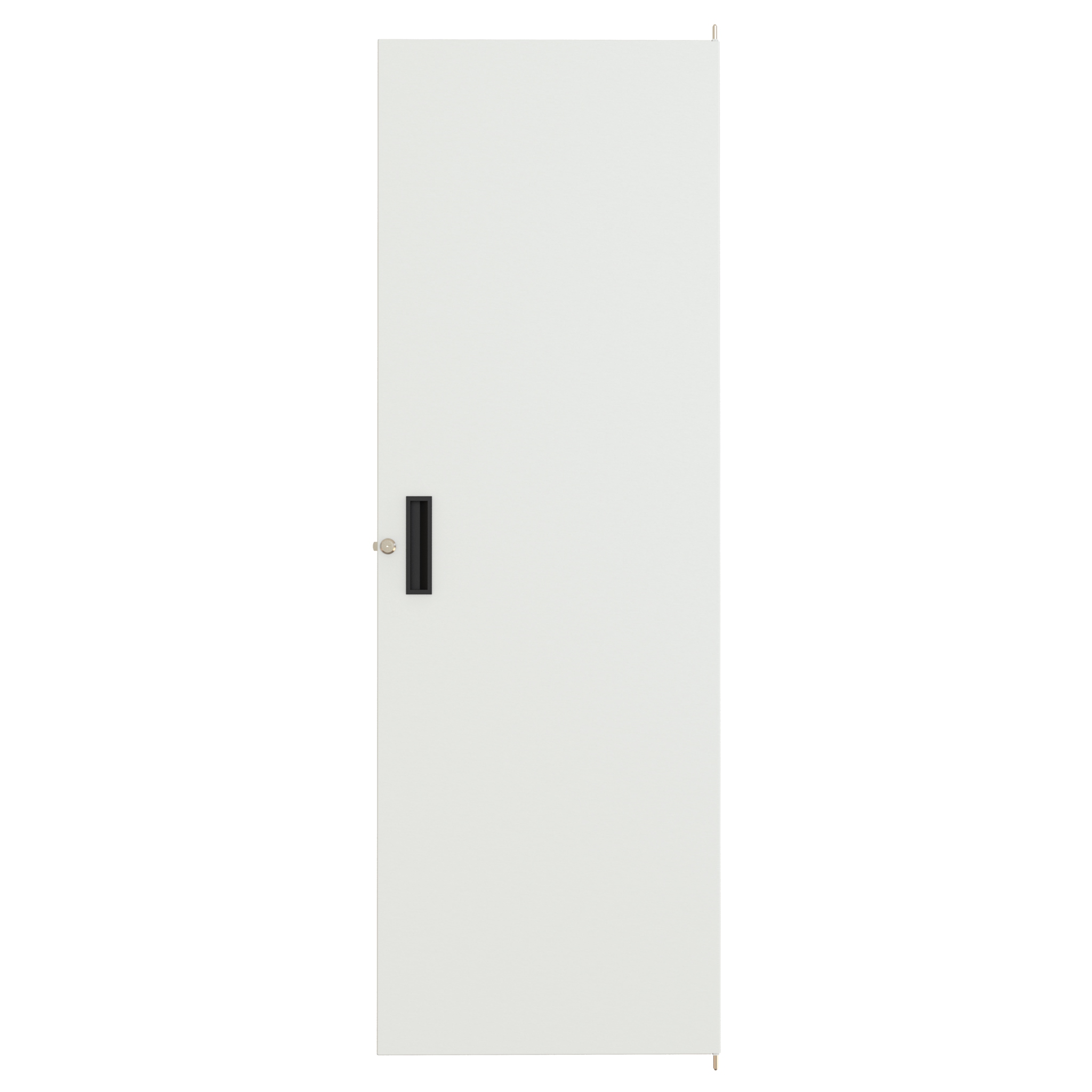

- Also available in RAL 7035 light gray as RSDF19056LG1.
The powder paint finish complies with the Greenguard guidelines for indoor air quality, and the part is RoHS and REACH compliant, USMCA compliant and TAA-compliant for GSA Schedule purchases. It is manufactured in North America, with country of origin listed as CA.
Ideal For
- Enclosing REFK open frame racks for physical security
- Front door for RS Series and 1564 Series cabinets
- IT and network equipment rooms requiring keyed access control
- AV equipment racks in shared or public spaces
- GSA Schedule and government projects requiring TAA-compliant parts
Overview
| Colour | Black (painted black textured) |
| Series | RSD Series Locking Doors |
| Door Style | Solid (flush) |
| Part Number | RSDF19056BK1 |
| Short Description | SOLID FLUSH DOOR |
| Alternate Colour Part Number | RSDF19056LG1 (RAL 7035 light gray, painted light gray textured) |
Dimensions
| Nominal Size | 56.00 in (1422 mm) height |
| Overall Width (Drawing) | 18.84 in (478 mm) |
| Profile Depth (Drawing) | 0.53 in (13 mm) |
| Overall Height (Drawing) | 55.75 in (1416 mm) |
Identifiers
| UPC | 623980501734 |
| UNSPSC | 43201618 |
| GTIN-14 | 00623980501734 |
| Drawing Reference | RSDF19056 |
| UPC W/o Check Digit | 62398050173 |
Rack Mounting
| Hinge | Mounts either right or left-hand hinge (door and cabinet are symmetrical) |
| Rack Units | 32U |
| Compatibility | REFK, 1564 and RS Cabinet Series |
| Included Hardware | Mounting hardware included |
| Use With REFK Frame | REFK1905624 |
Packaging & Shipping
| Tariff Code | 9403.10.0040 |
| Shipping Weight | 30 lbs (13.61 kg) |
| Country Of Origin | CA (manufactured in North America) |
Construction & Finish
| Gauge | 16-gauge steel |
| Finish | Textured RAL9005 black powder paint coat |
| Material | Mild Steel |
| Security | Includes installed lock and two keys |
| Accessories | Cabinet Door Replacement Lock |
Environmental & Protection
| Indoor Air Quality | Finish complies with the Greenguard guidelines for indoor air quality |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA-compliant (for GSA Schedule purchases) |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which rack frame does RSDF19056BK1 fit?▾
It is listed for use with the REFK1905624 frame at 56.00 in (1422 mm) / 32U, and the RSD Series is compatible with the REFK, 1564 and RS Cabinet Series.
Does the door come with a lock and keys?▾
Yes. An installed lock and two keys are included, and a Cabinet Door Replacement Lock is offered as an accessory.
Can the door be hinged on the left or the right?▾
Yes. It mounts with either a right or left-hand hinge because the door and cabinet are symmetrical.
Is mounting hardware supplied?▾
Yes, mounting hardware is included with the door.
Is this part TAA-compliant for government purchasing?▾
Yes. The RSD Series is TAA-compliant for GSA Schedule purchases, and RSDF19056BK1 is also RoHS, REACH and USMCA compliant with country of origin CA.
Is a light gray version of this door available?▾
Yes. RSDF19056LG1 is the same 32U solid door finished in textured RAL 7035 light gray.
What are the actual panel dimensions?▾
The drawing shows 55.75 in (1416 mm) high by 18.84 in (478 mm) wide with a 0.53 in (13 mm) profile depth, for a nominal 56.00 in (1422 mm) frame height.
