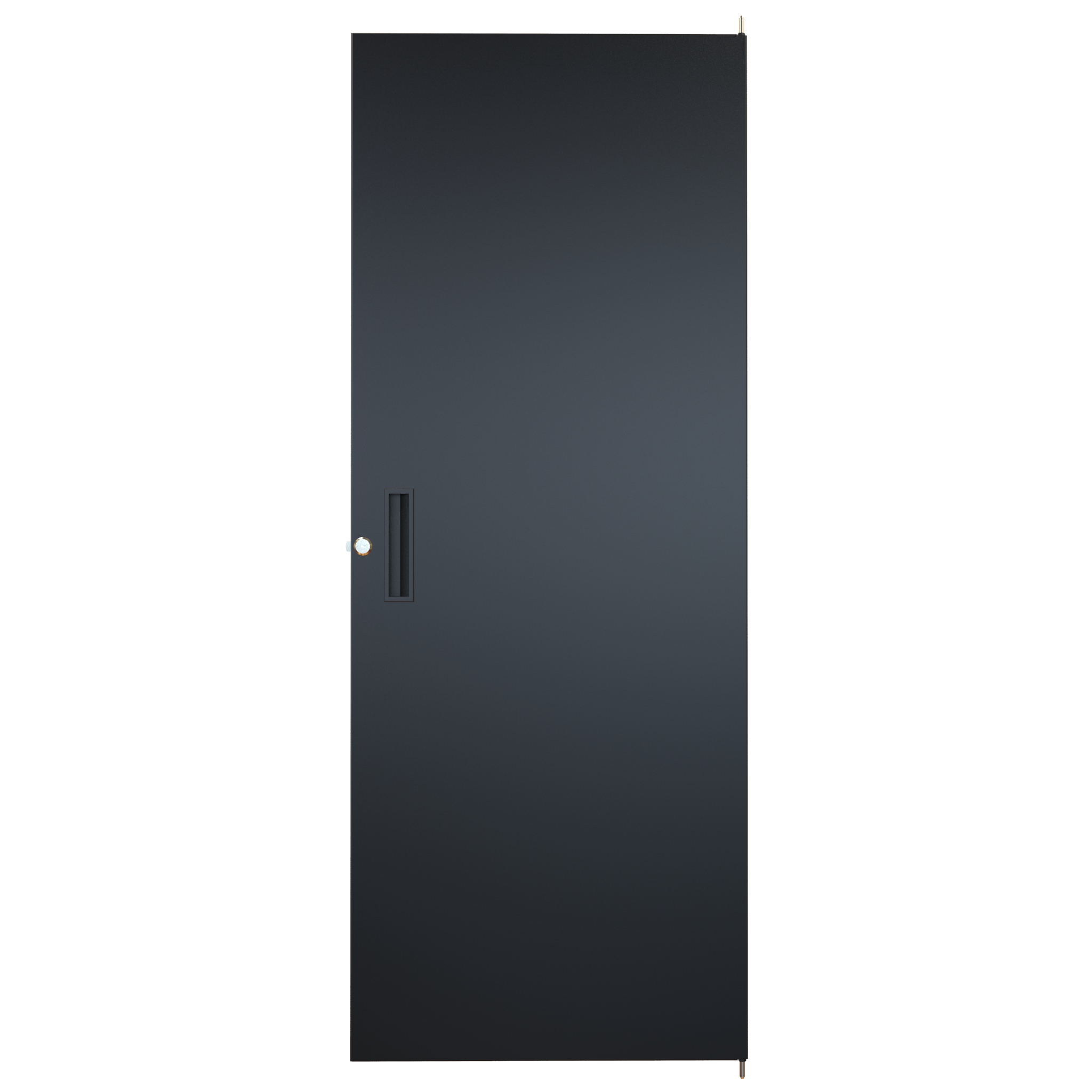

Hammond RSDF19049BK1 28U Solid Flush Locking Cabinet Door, Black
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Solid flush door for 28U / 49.00 in (1245 mm) cabinet openings; use with REFK1904924 frame
- 16-gauge mild steel construction
- Reversible mounting: right- or left-hand hinge, as door and cabinet are symmetrical
- Textured RAL9005 black powder paint coat meeting Greenguard indoor air quality guidelines
- Installed lock and two keys included, plus mounting hardware
- Compatible with REFK, 1564 and RS Cabinet Series
- TAA-compliant for GSA Schedule purchases; RoHS, REACH and USMCA compliant
- Manufactured in North America; 26 lbs (11.79 kg) shipping weight
The RSDF19049BK1 is a solid flush locking door sized for 28U, 49.00 in (1245 mm) high cabinet frames. It is intended for IT and AV integrators, facilities teams and OEM engineers who need to close in an open frame or cabinet to restrict access to installed equipment, cabling and patching hardware. This door is part of the RSD Series of locking doors for use with the REFK, 1564 and RS Cabinet Series, and pairs with the REFK1904924 frame.
Construction is 16-gauge mild steel with a solid, flush panel face and a textured RAL9005 black powder paint coat that complies with the Greenguard guidelines for indoor air quality. The door and cabinet are symmetrical, so the RSDF19049BK1 can be mounted with either a right-hand or left-hand hinge to suit the room layout, aisle clearance and adjacent racks.
Overall drawing dimensions are 18.84 in (478 mm) wide by 48.75 in (1238 mm) high with a 0.53 in (13 mm) profile depth, against the nominal 49.00 in (1245 mm) / 28U frame height. Shipping weight is 26 lbs (11.79 kg).
Everything needed to hang and secure the door is supplied: an installed lock with two keys plus mounting hardware. A cabinet door replacement lock is offered as an accessory for the series.
- RoHS and REACH compliant; ECCN EAR99.
- TAA-compliant for GSA Schedule purchases and USMCA compliant.
- Manufactured in North America, country of origin CA.
For the same 28U opening in a lighter finish, the matching light gray version is RSDF19049LG1.
Ideal For
- Securing 28U REFK open frame racks against unauthorized access
- Closing in RS Series and 1564 Series cabinets in IT and network rooms
- AV equipment racks needing a lockable solid front or rear door
- Retrofitting locking doors onto existing 49 in cabinet frames
- GSA Schedule and TAA-compliant government rack projects
Overview
| Series | RSD Series Locking Doors |
| Category | Rack Accessories - Doors |
| Door Style | Solid |
| Part Number | RSDF19049BK1 |
| Product Type | Solid flush locking cabinet door |
| Short Description | SOLID FLUSH DOOR |
| Light Gray Equivalent | RSDF19049LG1 |
Security
| Lock | Installed lock with two keys included |
| Accessory | Cabinet Door Replacement Lock |
Dimensions
| Overall Width | 18.84 in (478 mm) |
| Profile Depth | 0.53 in (13 mm) |
| Overall Height (Drawing) | 48.75 in (1238 mm) |
| Nominal Size (Frame Height) | 49.00 in (1245 mm) |
Identifiers
| UPC | 623980501727 |
| UNSPSC | 43201618 |
| GTIN-14 | 00623980501727 |
| UPC W/o Check Digit | 62398050172 |
Rack Mounting
| Rack Units | 28U |
| Hinge Orientation | Mounts either right or left-hand hinge (door and cabinet are symmetrical) |
| Use With REFK Frame | REFK1904924 |
| Compatible Cabinet Series | REFK, 1564 and RS Cabinet Series |
Packaging & Shipping
| Tariff Code | 9403.10.0040 |
| Shipping Weight | 26 lbs (11.79 kg) |
| Country Of Origin | CA (Manufactured in North America) |
Construction & Finish
| Gauge | 16-gauge steel |
| Finish | Textured RAL9005 black powder paint coat |
| Material | Mild Steel |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA-compliant (for GSA Schedule purchases) |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
| Indoor Air Quality | Finish complies with Greenguard guidelines for indoor air quality |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which frame does RSDF19049BK1 fit?▾
It is listed for the REFK1904924 frame, a 28U / 49.00 in (1245 mm) height, and the RSD Series is compatible with the REFK, 1564 and RS Cabinet Series.
Can the door be hinged on the left or the right?▾
Yes. The door and cabinet are symmetrical, so RSDF19049BK1 mounts with either a right-hand or left-hand hinge.
Does it come with a lock and keys?▾
Yes. An installed lock and two keys are included, along with mounting hardware. A cabinet door replacement lock is available as a series accessory.
Is a light gray version available in this size?▾
Yes. RSDF19049LG1 is the RAL 7035 light gray version of the same 28U solid door; RSDF19049BK1 is the textured black version.
Is this door TAA compliant for government purchases?▾
Yes. The RSD Series is TAA-compliant for GSA Schedule purchases, and this part is also listed as USMCA, RoHS and REACH compliant with country of origin CA.
What are the actual door dimensions?▾
The drawing shows 18.84 in (478 mm) wide by 48.75 in (1238 mm) high with a 0.53 in (13 mm) profile depth; the nominal frame height it serves is 49.00 in (1245 mm).
