Hammond RP1240 166×126×75mm Polycarbonate Watertight Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 166 x 126 x 75 mm (6.54 in x 4.96 in x 2.95 in) polycarbonate enclosure with opaque lid
- Gasketed tongue-and-groove lid, designed to meet IP65 against oil, dust and water
- UL94 V-2 flame rating
- Accepts PC boards up to 151 x 114 mm on internal posts for M3 self-tapping screws
- Self-captivating M3.5 stainless steel lid screws in corrosion resistant bushings for repeat access
- Recessed lid area for a membrane, label or silkscreen
- Supplied with box, lid, string gasket, 4 PCB screws and 4 lid screws
- Optional inner panels STC124 (ABS 3 mm) or STA124 (metal 1 mm); replacement gasket RP124GASKET
The RP1240 is a polycarbonate watertight enclosure with an opaque lid from the RP Series of water-tight ABS and polycarbonate enclosures, sized 6.54 in (166 mm) long, 4.96 in (126 mm) wide and 2.95 in (75 mm) deep in the series ordering table. It is intended for panel builders and OEM engineers who want polycarbonate's UL94 V-2 flame rating in a sealed, opaque box for circuit boards and components.
RP1240 is made from polycarbonate with a flame rating of UL94 V-2. The drawing and series ordering table list it as Polycarbonate Off-White with an opaque lid; the part page records the colour attribute as Light Gray. A gasketed lid with two piece tongue and groove construction protects against access of oil, dust and water, and the enclosure is designed to meet IP65. The rubber string gasket is included and must be field installed.
Per drawing RP124, the enclosure measures 165.50 mm [6.52 in] x 125.50 mm [4.94 in] x 75.00 mm [2.95 in] overall, with an inside length of 158.01 mm [6.22 in], inside width of 117.86 mm [4.64 in] and inside height of 68.30 mm [2.69 in]. It accepts a printed circuit board up to 151 x 114 mm, fastened to internal posts that accept M3 self-tapping screws. It is the deeper of the two depths (55 mm and 75 mm) offered on the 166 x 126 mm footprint, leaving more headroom above a board for taller components.
The lid is secured with self-captivating M3.5 stainless steel machine screws threaded into corrosion resistant bushings, so it can be removed and refitted repeatedly; the recommended torque is (43-50) Ozf.in / (30-35) cN.m. A smooth recessed area in the lid (0.40 mm [.02 in] inlay depth) takes a membrane, label or silkscreen. Optional inner panels are STC124 (ABS, 3 mm thick) and STA124 (metal, 1 mm thick), and the replacement gasket two-pack is RP124GASKET.
Ideal For
- Housing printed circuit boards and electronic components
- Wet, dusty or oily locations needing IP65-designed protection
- Enclosing PCB assemblies up to 151 x 114 mm
- Front-panel membranes, labels or silkscreen in the recessed lid
- Designs requiring a UL94 V-2 rated polycarbonate enclosure
Overview
| Type | General purpose, water-tight |
| Series | RP Series Water-Tight ABS & Polycarbonate Enclosures |
| Description | enclosure - plastic |
| Part Number | RP1240 |
| Drawing Number | RP124 |
| Short Description | POLYCARB WATERTIGHT |
| Drawing Description | Polycarbonate Off-White (UL94-V2) |
| Series Ordering Table Column | Off-White Polycarbonate (Opaque Lid) |
Dimensions
| Inside Width | 117.86 mm [4.64 in] |
| Inside Height | 68.30 mm [2.69 in] |
| Inside Length | 158.01 mm [6.22 in] |
| Lid Inlay Depth | 0.40 mm [.02 in] |
| Max. P.C. Board Width | 114 mm |
| Depth (Ordering Table) | 2.95 in (75 mm) |
| Max. P.C. Board Length | 151 mm |
| Width (Ordering Table) | 4.96 in (126 mm) |
| Length (Ordering Table) | 6.54 in (166 mm) |
| Overall Width (Drawing) | 125.50 mm [4.94 in] |
| Overall Height (Drawing) | 75.00 mm [2.95 in] |
| Overall Length (Drawing) | 165.50 mm [6.52 in] |
| Size L X W X H (Part Page) | 6.5 in x 4.92 in x 2.95 in (165 mm x 125 mm x 75 mm) |
Accessories
| Related Series | RPBF Series (version with bottom flange) |
| Extra Lid Screws (50 Pk) | SC619-50 (M3.5-0.6 x 10mm self-tapping) |
| Extra PCB Screws (50 Pk) | SC622-50 (M3 x 6mm self-tapping) |
| Replacement Gasket (2-pk) | RP124GASKET (String Gasket EPDM Grey) |
| Optional Plastic Inner Panel | STC124 (General Purpose ABS Black, 3 mm thick) |
| Optional Aluminum Inner Panel | STA124 (Metal inner panel, 1 mm thick) |
| Compatible Mounting Feet Kits (Sets Of 4) | MF0040 (polycarbonate, cross shape), MF0045 (ABS, cross shape), MF0060 (polycarbonate, closed slot), MF0061 (ABS, closed slot), MF0300 (stainless steel) |
Identifiers
| UPC | 623980178066 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Included | Box, lid, string gasket, 4 PCB screws, 4 lid screws |
| Packaging Type | bag |
| Shipping Weight | 0.79 lbs (0.36 kg) |
Construction & Finish
| Lid | Opaque lid |
| Gasket | String gasket, EPDM grey; included, must be field installed |
| Material | Polycarbonate |
| CAD Models | Solid models available in .stp or .x_t |
| PCB Mounting | Internal posts accept M3 self-tapping screws |
| Lid Fasteners | Self captivating M3.5 stainless steel machine screws into corrosion resistant bushings |
| Lid Construction | Gasketed lid, two piece tongue & groove |
| Lid Marking Area | Smooth recessed area for membrane, label or silkscreen |
| Color (Part Page) | Light Gray |
| Factory Modification | Milling, drilling, printing etc. available from factory on quote |
| Lid Screw Recommended Torque | (43-50) Ozf.in / (30-35) cN.m |
Environmental & Protection
| IP Rating | IP65 |
| Flame Rating | UL94 V-2 |
| Chemical Resistance Note | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, water detection and anti-seize paste, strong solvents, and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the RP1240?▾
The series ordering table lists 6.54 in (166 mm) x 4.96 in (126 mm) x 2.95 in (75 mm); the part page gives 6.5 in x 4.92 in x 2.95 in (165 mm x 125 mm x 75 mm). Drawing RP124 shows 165.50 mm [6.52 in] x 125.50 mm [4.94 in] x 75.00 mm [2.95 in] overall and an inside height of 68.30 mm [2.69 in].
What is the largest circuit board that fits the RP1240?▾
The maximum P.C. board size is 151 x 114 mm. Boards mount on internal posts that accept M3 self-tapping screws; four PCB screws are included.
Is the RP1240 waterproof?▾
It is designed to meet IP65 and has an IP65 rating on the part page. The gasketed tongue and groove lid protects against access of oil, dust and water; the included gasket must be field installed.
What material and flame rating does it have?▾
It is Polycarbonate with a UL94 V-2 flame rating. The clear-lid counterpart is RP1240C.
What comes in the box?▾
The purchased assembly includes the box, lid, string gasket, 4 PCB screws and 4 lid screws.
Which inner panels and spare gaskets fit the RP1240?▾
Optional inner panels are STC124 (ABS, 3 mm thick) and STA124 (metal, 1 mm thick). The replacement gasket is RP124GASKET, a two-pack of EPDM grey string gasket.
Related Products
Save 52%RP1235C — enclosure - plastic
Hammond Manufacturing · RP1235C
Save 52%RP1240C — Polycarb Watertight Cl Lid
Hammond Manufacturing · RP1240C
Save 52%RP1235 — enclosure - plastic
Hammond Manufacturing · RP1235
Save 52%RP1245 — enclosure - plastic
Hammond Manufacturing · RP1245

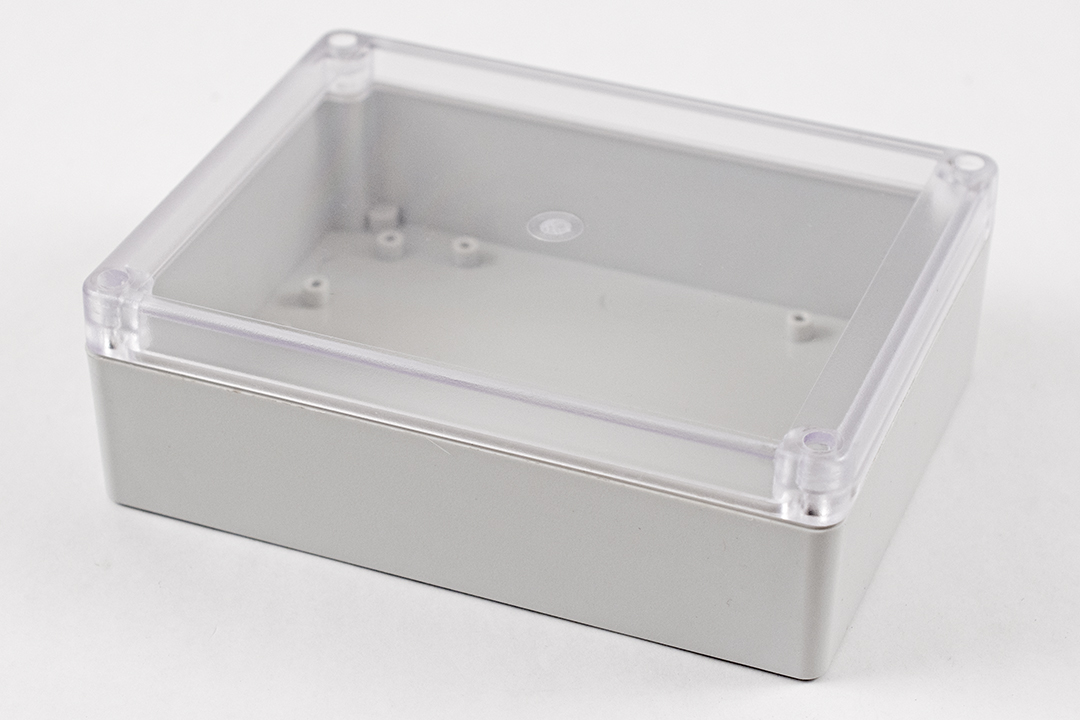

Save 52%RP1230C — enclosure - plastic
