Hammond RP1230 166x126x55mm IP65 Polycarbonate Watertight Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Designed to meet IP65 with a gasketed two-piece tongue & groove lid against oil, dust and water
- Polycarbonate body with UL94 V-2 flame rating
- Outside 166 x 126 x 55 mm; inside 157.53 mm x 117.53 mm x 47.70 mm
- Accepts PC boards up to 151 x 114 mm on M3 self-tapping screw posts in box and lid
- Self-captivating M3.5 stainless steel lid screws in corrosion-resistant bushings for repeated access
- Lid has a smooth recessed area for a membrane, label or silkscreen
- Includes box, lid, string gasket, 4 PCB screws and 4 lid screws; optional inner panels STC124 / STA124
- RoHS and REACH compliant

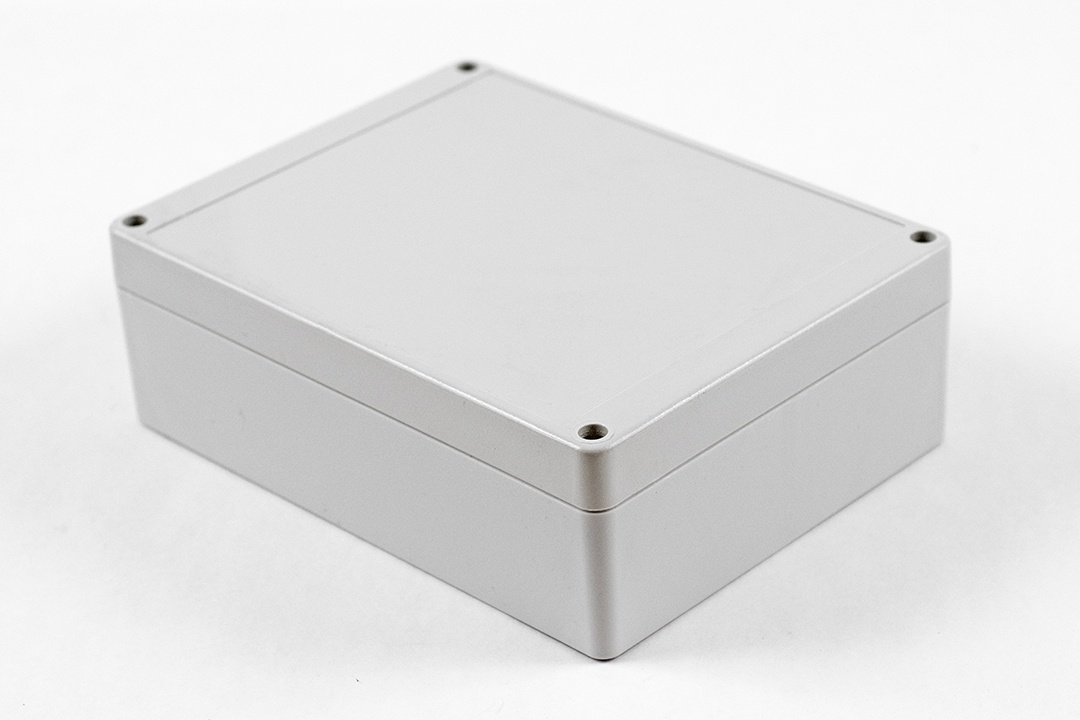

The RP1230 is a water-tight polycarbonate enclosure from the RP Series, sized at 6.54 in (166 mm) long, 4.96 in (126 mm) wide and 2.17 in (55 mm) deep, with a opaque lid. It is the 55 mm-deep size on the wider 166 x 126 mm footprint, and is ideally suited for mounting printed circuit boards or components in equipment that has to keep out oil, dust and water.
The body is polycarbonate with a UL94 V-2 flame rating. Hammond's ordering table and drawing list this part as off-white polycarbonate, while the part listing records the color as light gray, so confirm the shade if appearance matters for your build. Its opaque lid includes a smooth recessed area for a membrane, label or silkscreen, giving a clean surface for front-panel graphics. The two-piece "tongue & groove" lid is gasketed and the enclosure is designed to meet IP 65. The rubber string gasket is included and must be field installed.
Inside, the drawing gives 157.53 mm [6.20 in] of length, 117.53 mm [4.63 in] of width and 47.70 mm [1.88 in] of height. Posts in both the box and the lid accept M3 self-tapping screws, and the maximum PC board size is 151 x 114 mm. Optional inner panels are available in 3 mm black ABS (STC124) or 1 mm metal (STA124) for mounting components on a plate.
The lid fastens with self-captivating M3.5 stainless steel machine screws threaded into corrosion-resistant bushings, which suits repeated assembly and disassembly; recommended torque is 43-50 ozf.in (30-35 cN.m). Each RP1230 ships as an assembly of box, lid, string gasket, 4 PCB screws and 4 lid screws, packed in a bag at a shipping weight of 0.75 lbs (0.34 kg). It is RoHS and REACH compliant.
Ideal For
- Housing printed circuit boards and electronic assemblies
- Enclosing components that need protection from oil, dust and water
- Panel-mounted components on an optional inner panel
- Custom-labelled control or instrument housings using the recessed lid area
Overview
| Type | General purpose, water-tight |
| Series | RP Series - Water-Tight ABS & Polycarbonate Enclosures |
| Description | enclosure - plastic |
| Part Number | RP1230 |
| Drawing Number | RP123 |
| Drawing Revision | REV14.02.2020 |
| Short Description | POLYCARB WATERTIGHT |
| Drawing Description | Polycarbonate Off-White (UL94-V2) |
| Material / Lid Variants In This Size | RP1235: Light Gray ABS Plastic · (Opaque Lid); RP1235C: Light Gray ABS Plastic · (Clear Lid); RP1230: Off-White Polycarbonate · (Opaque Lid); RP1230C: Off-White Polycarbonate · (Clear Lid) |
Dimensions
| Inside Width | 117.53 mm [4.63 in] |
| Inside Height | 47.70 mm [1.88 in] |
| Inside Length | 157.53 mm [6.20 in] |
| Lid Inlay Depth | 0.40 mm [0.02 in] |
| Max. P.C. Board Width | 114 mm |
| Depth (Ordering Table) | 2.17 in (55 mm) |
| Max. P.C. Board Length | 151 mm |
| Width (Ordering Table) | 4.96 in (126 mm) |
| Length (Ordering Table) | 6.54 in (166 mm) |
| Overall Width (Drawing) | 125.50 mm [4.94 in] |
| Nominal Size (L X W X H) | 6.5 in x 4.92 in x 2.17 in (165 mm x 125 mm x 55 mm) |
| Overall Height (Drawing) | 55.00 mm [2.17 in] |
| Overall Length (Drawing) | 165.50 mm [6.52 in] |
Accessories
| PC Board Screws | SC622-50 (M3 x 6mm self-tapping, 50 pkg) |
| Replacement Gasket | RP124GASKET (string gasket, EPDM grey, 2-pk) |
| Replacement Lid Screws | SC619-50 (M3.5-0.6 x 10mm self-tapping, 50 pkg) |
| Optional Inner Panel - Plastic | STC124 (general purpose ABS, black, 3mm thick) |
| Optional Inner Panel - Aluminum | STA124 (metal inner panel, 1mm thick) |
| Compatible Mounting Feet Kits (Sets Of 4) | MF0040 (polycarbonate, cross shape); MF0045 (ABS plastic, cross shape); MF0060 (polycarbonate, closed slot); MF0061 (ABS plastic, closed slot); MF0300 (stainless steel) |
Identifiers
| UPC | 623980317816 |
| UNSPSC | 39121301 |
Customization
| Solid Models | Available in .stp or .x_t |
| Factory Modification | Milling, drilling, printing etc. available from the factory (modshop@hammfg.com) |
Included Items
| Purchased Assembly | Box, lid, string gasket, 4 PCB screws, and 4 lid screws |
Packaging & Shipping
| Packaging Type | bag |
| Shipping Weight | 0.75 lbs (0.34 kg) |
Construction & Finish
| Lid | Opaque |
| Gasket | String gasket, EPDM grey; included, must be field installed |
| Material | Polycarbonate |
| Lid Surface | Smooth recessed area for membrane, label or silkscreen |
| PCB Mounting | Posts in box and lid accept M3 self-tapping screws |
| Lid Fasteners | Self-captivating M3.5 stainless steel machine screws (included) threaded into corrosion-resistant bushings; lid holes are threaded with the first installation of the lid screws |
| Lid Construction | Gasketed two-piece "tongue & groove" |
| Recommended Torque | (43-50) Ozf.in / (30-35) cN.m |
| Color (Part Listing) | Light Gray |
| Color (Ordering Table / Drawing) | Off-White |
Environmental & Protection
| IP Rating | IP65 (designed to meet IP 65) |
| Flame Rating | UL94 V-2 |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting or tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners, and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Is the RP1230 water-tight?▾
Yes. The RP1230 has a gasketed two-piece tongue & groove lid that protects against oil, dust and water, and it is designed to meet IP 65 (IP rating IP65). The rubber string gasket is included but must be field installed.
What size circuit board fits in the RP1230?▾
The maximum P.C. board size is 151 mm long by 114 mm wide. Posts in the box and lid accept M3 self-tapping screws, and 4 PCB screws are included. Inside dimensions are 157.53 mm [6.20 in] x 117.53 mm [4.63 in] x 47.70 mm [1.88 in].
What material and flame rating is the RP1230?▾
It is polycarbonate with a UL94 V-2 flame rating. The ordering table and drawing describe it as off-white polycarbonate; the part listing records the color as light gray.
What comes in the box?▾
The purchased assembly includes the box, lid, string gasket, 4 PCB screws and 4 lid screws. It ships in a bag with a shipping weight of 0.75 lbs (0.34 kg).
Which accessories fit the RP1230?▾
Optional inner panels STC124 (3 mm black ABS) and STA124 (1 mm metal), replacement gasket RP124GASKET (2-pk), extra lid screws SC619-50, extra PCB screws SC622-50, and mounting feet kits MF0040, MF0045, MF0060, MF0061 and MF0300.
Are there other versions of this enclosure size?▾
Yes. The same size is offered as RP1235 (Light Gray ABS Plastic (Opaque Lid)); RP1235C (Light Gray ABS Plastic (Clear Lid)); RP1230C (Off-White Polycarbonate (Clear Lid)).
