Hammond RMD1923LG 1U Fixed Rack Mount Desk, Light Gray Writing Shelf
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Occupies only 1U of rack space while providing a full fixed writing and work surface
- 16-gauge steel construction supports up to 100 lb (45 kg) of laptops, test gear, keyboards, or paperwork
- Overall 1.75 in (44 mm) H x 23.00 in (584 mm) W x 17.50 in (445 mm) D, with 33.50 in (851 mm) overall depth
- Mounts to standard 19-inch EIA-310-E rack rails; 19.00 in (483 mm) cabinet mounting width
- RAL 7035 light gray powder coat finish: GREENGUARD Gold Certified, TSCA and RoHS compliant
- Desktop seats flush to the cabinet frame and rests against it for added stability in daily use
- Fixed design with no moving parts for low maintenance and long service life
- TAA compliant, USMCA compliant, REACH and RoHS compliant; made in Canada in an ISO 9001 certified facility
The RMD1923LG is a fixed rack mount desk that turns a single rack unit of space into a usable work surface for writing, configuring equipment, or resting a laptop or portable test set. It is aimed at IT and network technicians, AV integrators, controls and automation engineers, and service teams who need a stable platform inside the rack during installation, commissioning, and maintenance.
The shelf is built from 16-gauge mild steel and finished in RAL 7035 light gray powder coat, a finish that is GREENGUARD Gold Certified, TSCA compliant, and RoHS compliant. The simple fixed design has no moving parts, which keeps maintenance low while the steel construction supports up to 100 lb (45 kg) of writing, keyboard, laptop, or instrument load.
Overall dimensions are 1.75 in (44 mm) high, 23.00 in (584 mm) wide, and 17.50 in (445 mm) deep, with an overall depth of 33.50 in (851 mm) and a 19.00 in (483 mm) cabinet mounting width. The part is listed with a nominal size of 7.25 in x 22.75 in x 17.5 in (184 mm x 578 mm x 445 mm) and a shipping weight of 22 lbs (9.98 kg). The drawing shows 0.250 x 0.375 in mounting slots and a maximum rail depth of 2.63 in from the front of the frame.
- Assembly includes a top panel assembly plus left- and right-hand mounting brackets, with 1/4-20 KEP nuts and 0.434 in ID x 0.875 in OD washers.
- Mounting hardware for attaching to the rack rails is not included.

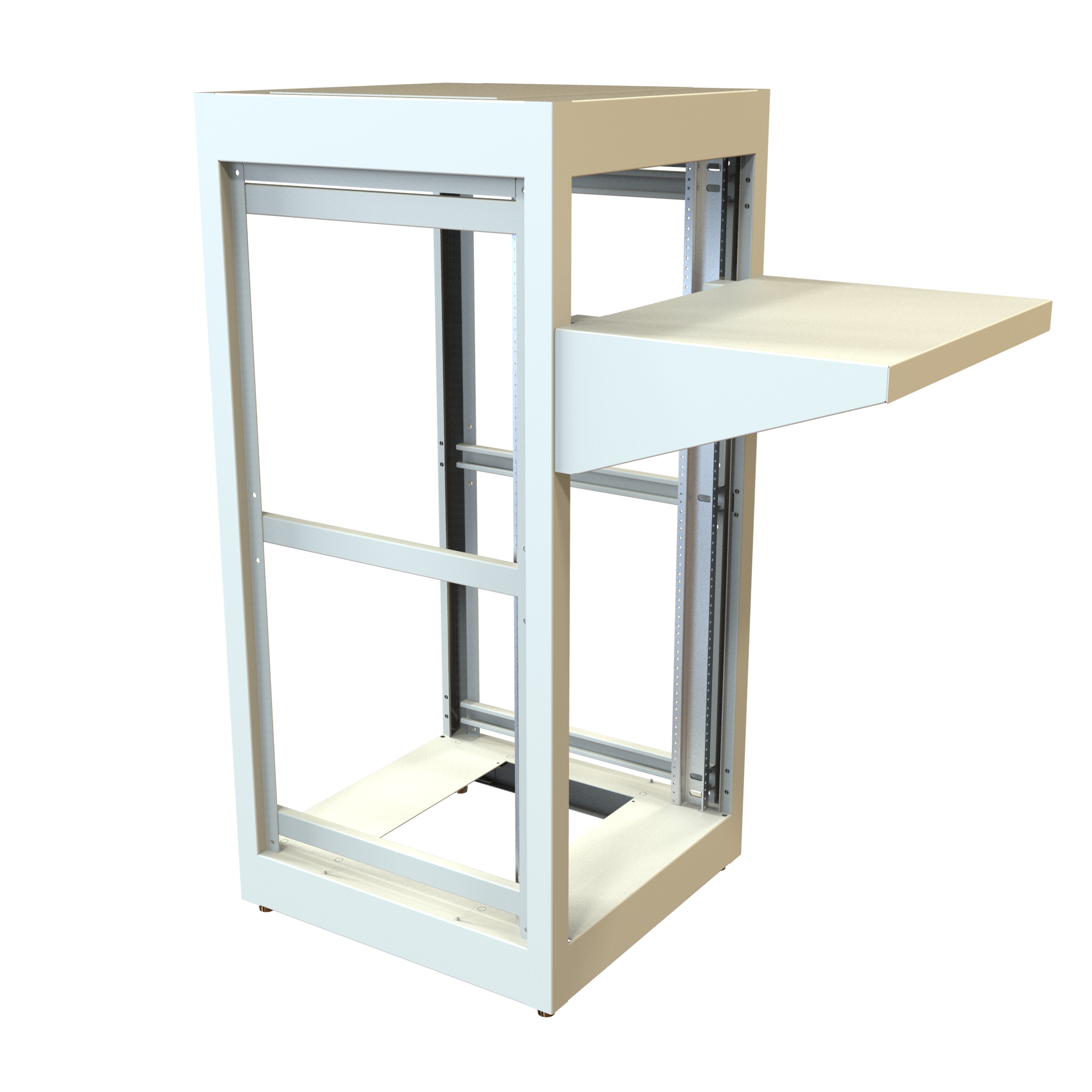

RMD1923LG mounts directly to the front rails of standard 19-inch EIA-310-E racks and cabinets, with the desktop seated flush to the cabinet frame for added stability. It is TAA compliant, USMCA compliant, and manufactured in Canada in an ISO 9001 certified facility.
Ideal For
- Writing surface inside data center and server room racks
- Laptop platform during network and telecom equipment configuration
- Holding portable test and diagnostic equipment in test and measurement environments
- Keyboard or accessory shelf in broadcast and AV installations
- Compact commissioning and maintenance workstation for industrial automation systems
Overview
| Tags | Writing and Computer Keyboard Shelf, Fixed Writing Shelf |
| Series | RMD Series |
| Part Number | RMD1923LG |
| Product Type | Rack Mount Desk / Fixed Writing Shelf |
| Load Capacity | 100 lb (45 kg) |
| Short Description | 23W 19IN RACK MOUNT DESK |
Dimensions
| Overall Depth | 33.50 in (851 mm) |
| Overall Width | 23.00 in (584 mm) |
| Overall Height | 1.75 in (44 mm) |
| Top Panel Depth | 17.44 in (443 mm) / 17.50 in (444 mm) |
| Front Panel Width | 22.75 in (578 mm) |
| Overall Depth (Shelf) | 17.50 in (445 mm) |
| Nominal Size (H X W X D) | 7.25 in x 22.75 in x 17.5 in (184 mm x 578 mm x 445 mm) |
Identifiers
| UPC | 623980002095 |
| UNSPSC | 43201618 |
| GTIN-14 | 00623980002095 |
| UPC W/o Check Digit | 62398000209 |
Rack Mounting
| Rack Units | 1U |
| Mounting Slots | 0.250 x 0.375 in slot |
| Mounting Method | Mounts directly to front rack rails; desktop seated flush to cabinet frame |
| Mounting Hardware | Mounting hardware for attaching to rails not included |
| Rack Compatibility | Standard 19-inch EIA-310-E racks and cabinets |
| Cabinet Mounting Width | 19.00 in (483 mm) |
| 19" Mounting Hole Centers | 18.35 in (466 mm) |
| Maximum Rail Depth From Front Of Frame | 2.63 in |
Packaging & Shipping
| Tariff Code | 9403.10.0040 |
| Shipping Weight | 22 lbs (9.98 kg) |
| Country Of Origin | CA |
Construction & Finish
| Color | RAL 7035 Light Gray |
| Design | Fixed, no moving parts |
| Finish | Powder coat (GREENGUARD Gold Certified, TSCA and RoHS compliant) |
| Material | Mild Steel, 16-gauge |
| Components | 1x Rack Desk Top Panel Assembly, 1x Mounting Bracket (LH), 1x Mounting Bracket (RH), 4x 1/4-20 KEP Nut, 4x Washer 0.434 in ID x 0.875 in OD |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA-compliant |
| Manufacturing | Manufactured in North America in an ISO 9001 certified facility |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How much rack space does the RMD1923LG take up?▾
It occupies 1U of rack space, with an overall height of 1.75 in (44 mm). It mounts to the front rails of standard 19-inch EIA-310-E racks and cabinets.
How much weight can the shelf hold?▾
The 16-gauge steel construction supports up to 100 lb (45 kg), suitable for writing, laptops, test equipment, keyboards, and other portable devices.
Is mounting hardware included?▾
No. The drawing notes that mounting hardware for attaching to the rails is not included. The assembly itself ships with left- and right-hand mounting brackets, four 1/4-20 KEP nuts, and four 0.434 in ID x 0.875 in OD washers.
What color is RMD1923LG and is there another option?▾
RMD1923LG is finished in RAL 7035 light gray powder coat. The same desk is available in RAL 9005 black as RMD1923BK.
What are the desk's dimensions?▾
Overall dimensions are 1.75 in (44 mm) high, 23.00 in (584 mm) wide, and 17.50 in (445 mm) deep, with an overall depth of 33.50 in (851 mm) and a 19.00 in (483 mm) cabinet mounting width. The listed nominal size is 7.25 in x 22.75 in x 17.5 in (184 mm x 578 mm x 445 mm).
Is this part TAA compliant?▾
Yes. RMD1923LG is TAA compliant and USMCA compliant, with a country of origin of CA, and is manufactured in North America in an ISO 9001 certified facility.
