Hammond RMCHDWKIT RMC Series Hardware Kit, Screws and Rubber Feet

The RMCHDWKIT is the RMC series hardware kit, a replacement assembly-screw set for anyone rebuilding, reconfiguring or repairing an RMC series case. It is aimed at integrators, OEM engineers and service technicians who have lost or damaged the original hardware and need the matching fasteners rather than hunting for loose screws of the right thread and length.

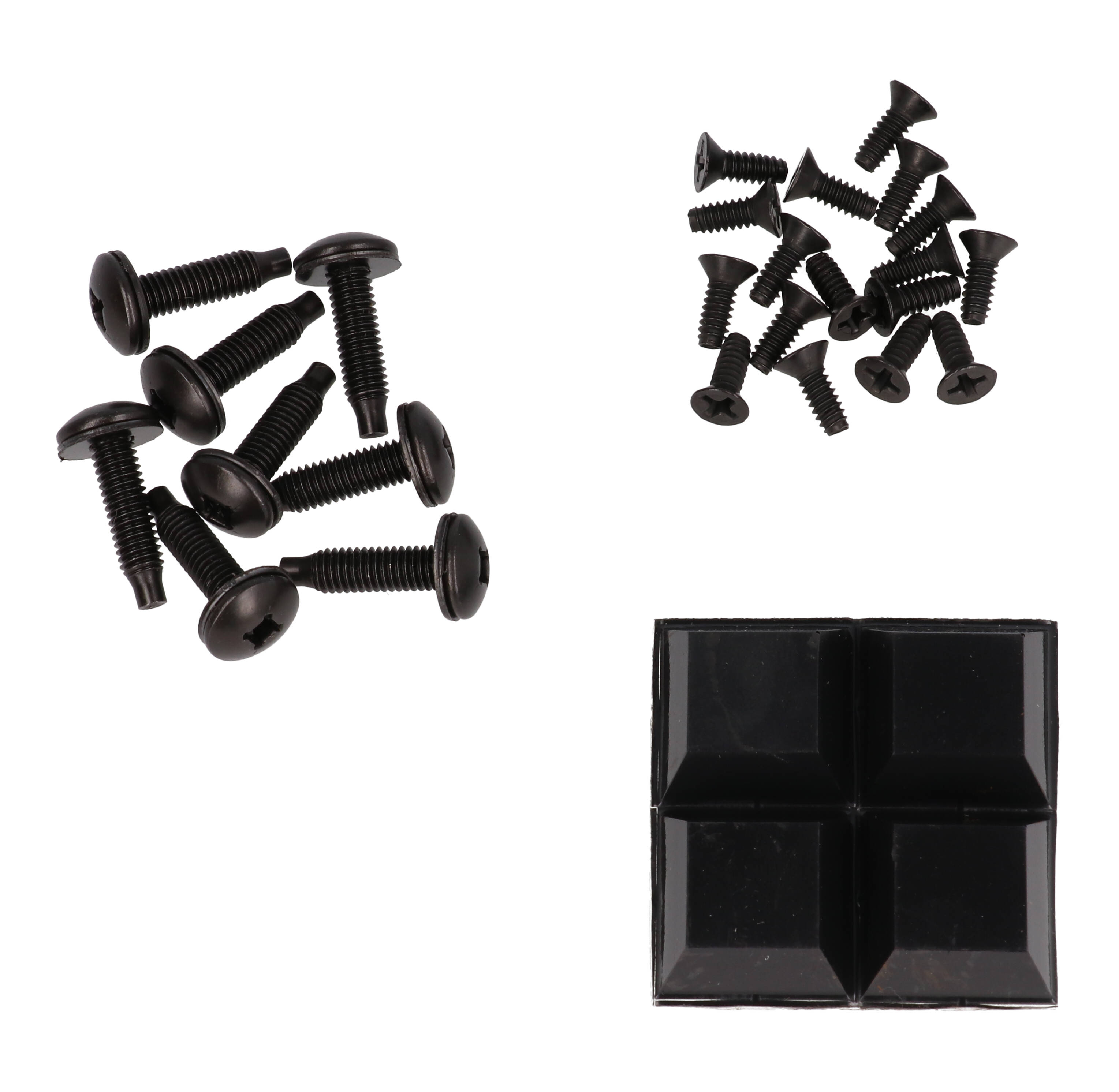

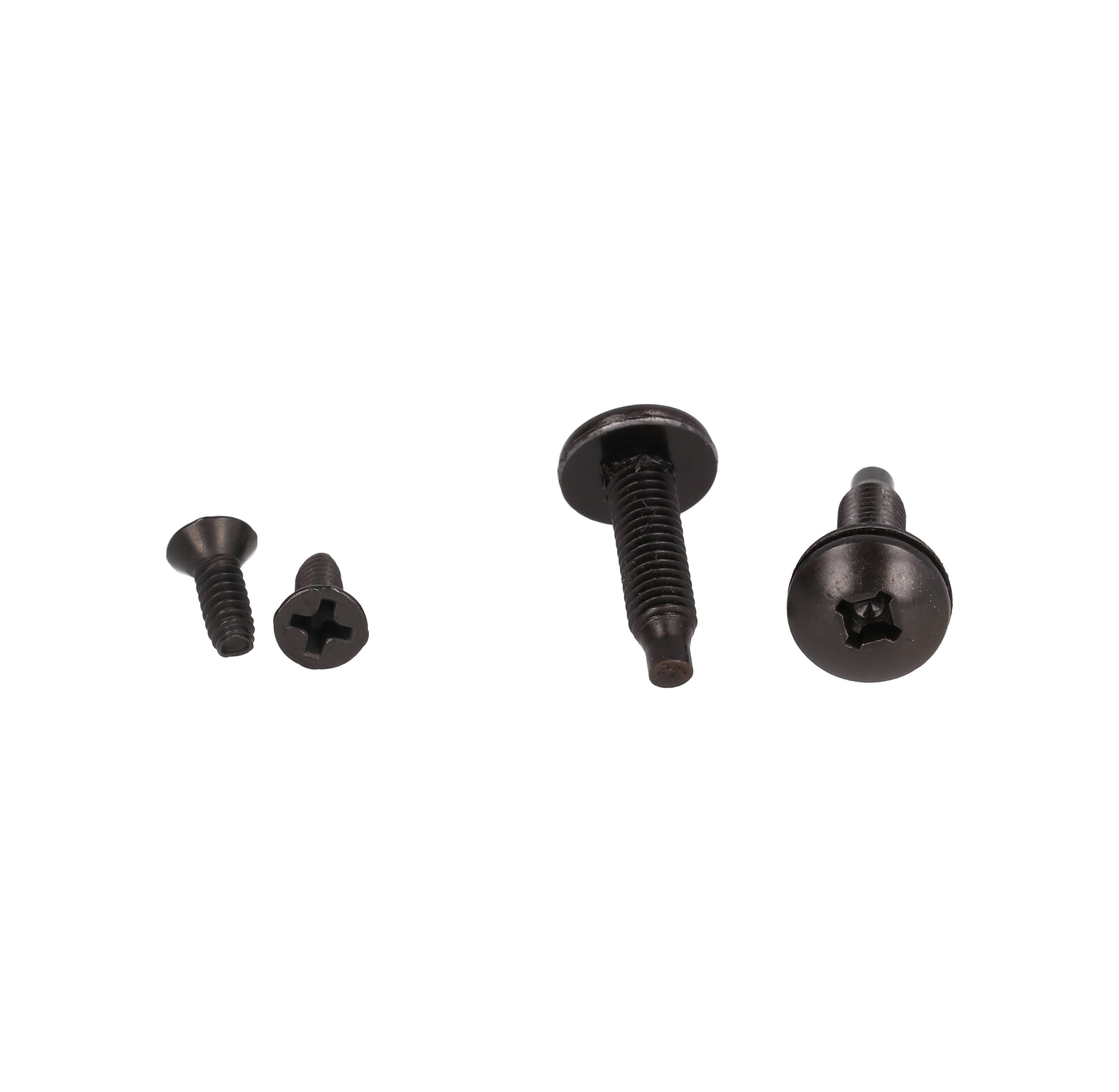

Unlike the single-screw packs in the Small Case Hardware range, this kit mixes three items in one bag: eight #10-32 x 5/8" black screws, sixteen #6-32 x 3/8" black screws and four rubber feet. The manufacturer lists the kit material as steel and classifies it as a hardware kit within the accessories category.

• 8x #10-32 x 5/8" black screws
• 16x #6-32 x 3/8" black screws
• 4x rubber feet

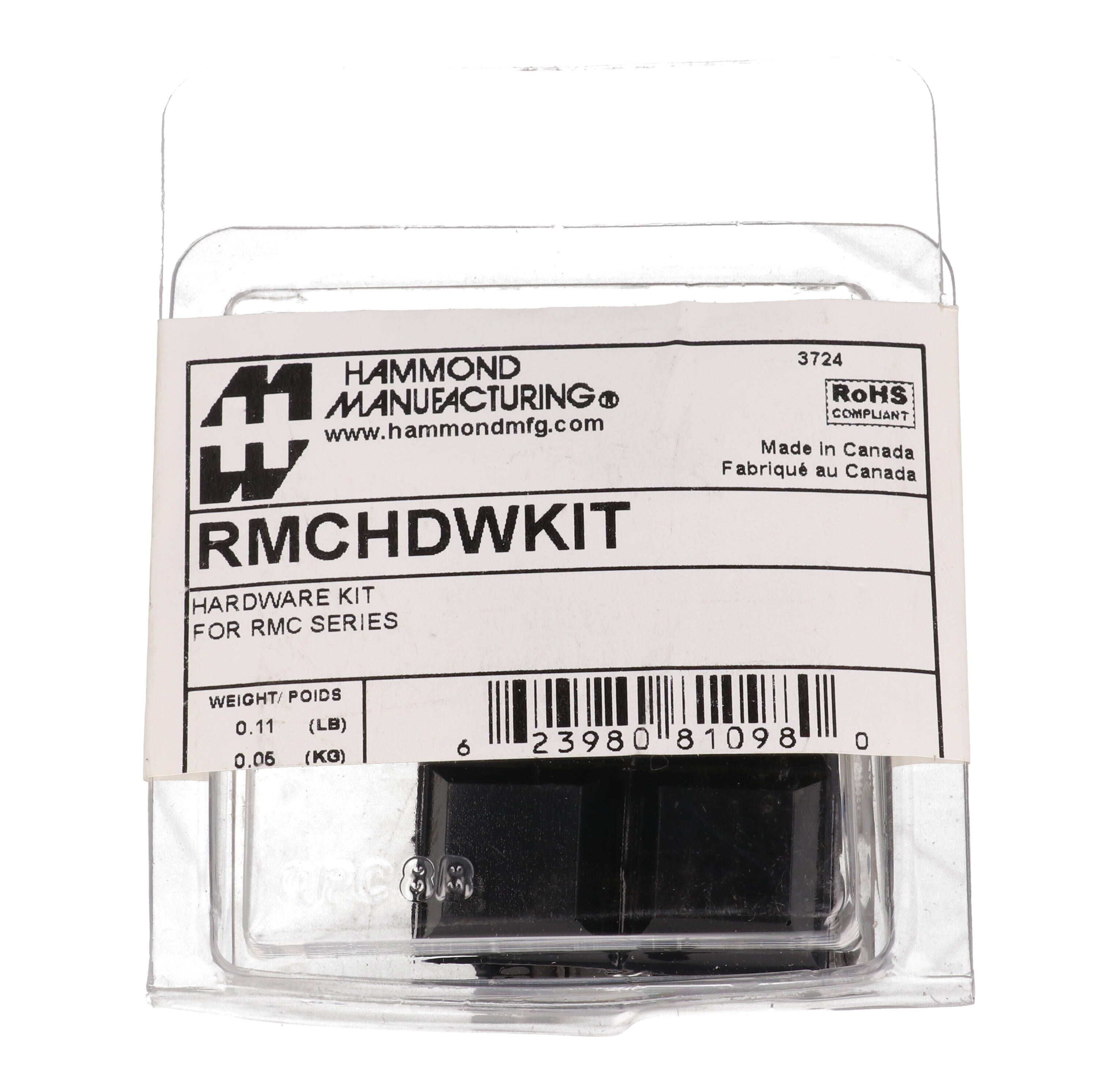

The kit ships in a bag measuring 3.83 in x 3.17 in x 0.8 in (97 mm x 81 mm x 20 mm) with a shipping weight of 0.11 lbs (0.05 kg). It is RoHS compliant and REACH compliant.

Keep in mind that enclosures normally include all the hardware needed for assembly, so this kit is intended as a replacement. The manufacturer notes that hardware packs may not suit every part in a listed series, and recommends checking the series landing page or the "Replacement Parts and Accessories" list on the enclosure's own part page before ordering the RMCHDWKIT.
