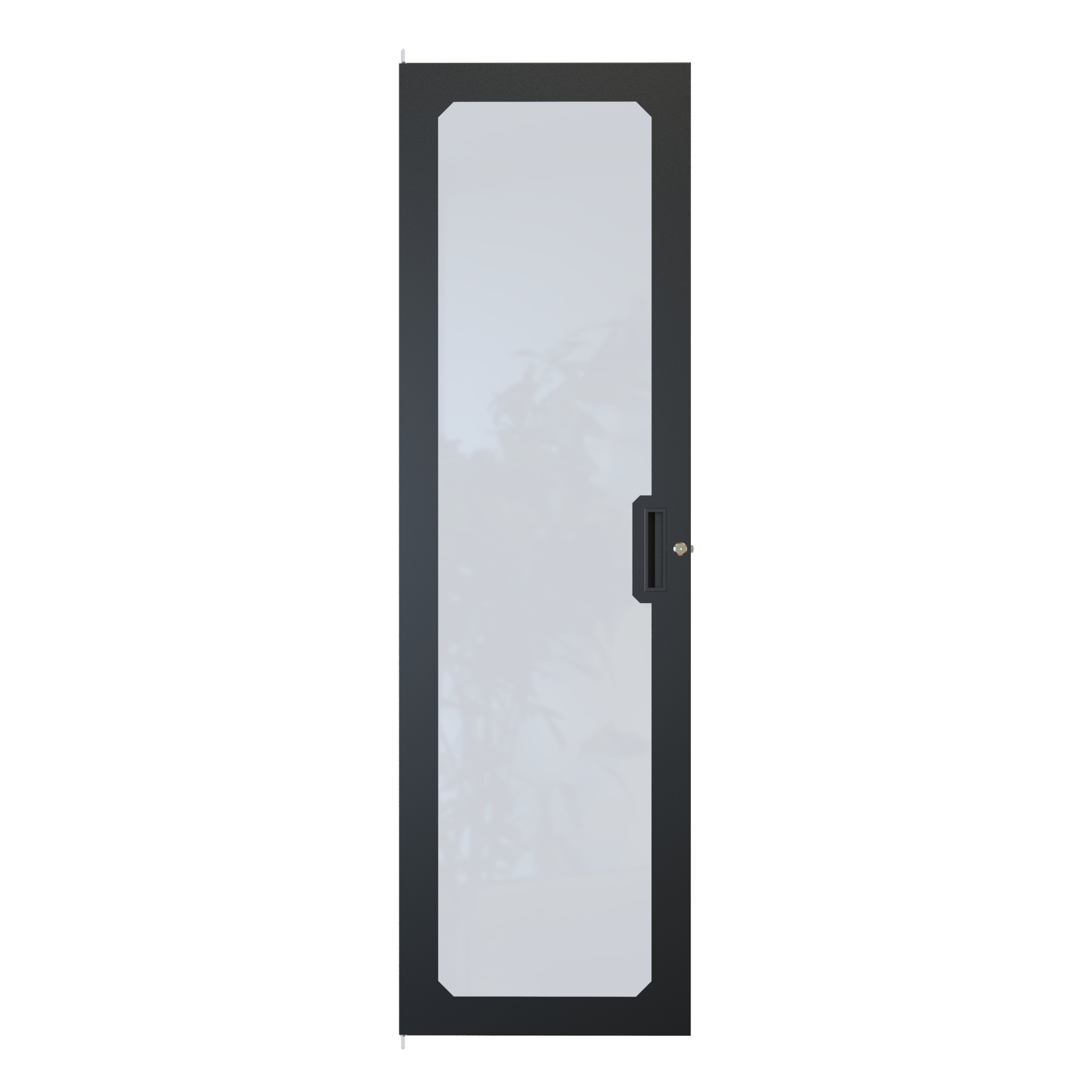

Hammond REDFP19063BK1 36U Acrylic Window Locking Rack Door, Black
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Fits 36U / 63.00 in (1600 mm) REFK1906324 frames; also compatible with REFK, 1564 and RS Cabinet Series
- Clear acrylic (plexiglass) window, 13.75 x 57.69 in (349 x 1465 mm), for equipment visibility without opening the door
- 16-gauge mild steel construction, textured RAL9005 black powder paint coat
- Reversible hanging: mounts with right- or left-hand hinge (door and cabinet are symmetrical)
- Includes installed lock with two keys plus mounting hardware
- Finish complies with Greenguard guidelines for indoor air quality
- TAA-compliant for GSA Schedule purchases; RoHS, REACH and USMCA compliant
- Manufactured in North America; 27 lbs (12.25 kg) shipping weight
The REDFP19063BK1 is a 36U acrylic window locking door from the Hammond RSD Series of cabinet doors, sized for a 63.00 in (1600 mm) opening and intended for use with the REFK1906324 frame. It suits IT and AV integrators, facilities teams and OEM builders who need to secure rack-mounted equipment while keeping status LEDs, displays and cabling visible without opening the enclosure.
Construction is 16-gauge mild steel with a clear acrylic (plexiglass) viewing panel, finished in textured RAL9005 black powder paint coat that complies with Greenguard guidelines for indoor air quality. The door measures 62.75 in (1594 mm) high by 18.84 in (478 mm) wide overall, with a .53 in (13 mm) profile depth, and the acrylic window spans 13.75 in (349 mm) wide by 57.69 in (1465 mm) high. Shipping weight is 27 lbs (12.25 kg).
The door and cabinet are symmetrical, so REDFP19063BK1 can be hung with either a right-hand or left-hand hinge to suit aisle layout and door swing. An installed lock with two keys is supplied for basic physical security, and mounting hardware is included. Series doors are compatible with the REFK, 1564 and RS Cabinet Series.
For procurement, the part is TAA-compliant for GSA Schedule purchases, USMCA compliant, RoHS and REACH compliant, classified ECCN EAR99 under tariff code 9403.10.0040, and manufactured in North America (country of origin CA).
Ideal For
- Securing 36U REFK open-frame racks in IT and network rooms
- AV equipment racks where front-panel visibility is required
- Server and data cabinets needing keyed physical access control
- GSA Schedule and TAA-compliant government rack build-outs
Overview
| Color | Black (RAL9005), painted black textured |
| Series | RSD Series Locking Doors |
| Door Type | Acrylic window door |
| Description | Window door for 36U REFK |
| Part Number | REDFP19063BK1 |
Security
| Lock | Installed lock with two keys included |
| Accessory | Cabinet door replacement lock available |
Dimensions
| Nominal Size | 63.00 in (1600 mm) height |
| Overall Width | 18.84 in (478 mm) |
| Overall Height | 62.75 in (1594 mm) |
| Door Profile Depth | .53 in (13 mm) |
| Acrylic Window Width | 13.75 in (349 mm) |
| Acrylic Window Height | 57.69 in (1465 mm) |
Identifiers
| UPC | 623980363448 |
| UNSPSC | 43201618 |
| GTIN-14 | 00623980363448 |
| UPC W/o Check Digit | 62398036344 |
| Base Drawing Part No. | REDFP19063 |
Rack Mounting
| Hinge | Mounts either right- or left-hand hinge (door and cabinet are symmetrical) |
| Rack Units | 36U |
| Use With REFK Frame | REFK1906324 |
| Compatible Cabinet Series | REFK, 1564 and RS Cabinet Series |
Packaging & Shipping
| ECCN | EAR99 |
| Tariff Code | 9403.10.0040 |
| Shipping Weight | 27 lbs (12.25 kg) |
| Country Of Origin | CA (manufactured in North America) |
Construction & Finish
| Gauge | 16-gauge steel |
| Finish | Textured RAL9005 black powder paint coat |
| Material | Mild steel |
Environmental & Protection
| Indoor Air Quality | Finish complies with Greenguard guidelines |
Compliance & Certifications
| TAA | TAA-compliant for GSA Schedule purchases |
| Standards | taa-compliant |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which frame does REDFP19063BK1 fit?▾
It is listed for use with the REFK1906324 frame, a 36U / 63.00 in (1600 mm) height. RSD Series doors are compatible with the REFK, 1564 and RS Cabinet Series.
Can the door be hinged on either side?▾
Yes. The door and cabinet are symmetrical, so it can be mounted with either a right-hand or left-hand hinge.
Does it come with a lock and keys?▾
Yes, an installed lock and two keys are included, along with mounting hardware. A cabinet door replacement lock is offered as an accessory.
Is this door available in light gray?▾
The acrylic window doors in this series are listed in black only; the solid (RSDF) and louvered (RSDL) doors are offered in both RAL9005 black and RAL7035 light gray.
Is REDFP19063BK1 suitable for government purchases?▾
It is TAA-compliant for GSA Schedule purchases, USMCA compliant, and manufactured in North America with country of origin CA.
What are the door's overall dimensions and weight?▾
Overall dimensions are 62.75 in (1594 mm) high by 18.84 in (478 mm) wide with a .53 in (13 mm) profile depth, and the shipping weight is 27 lbs (12.25 kg).
Related Products

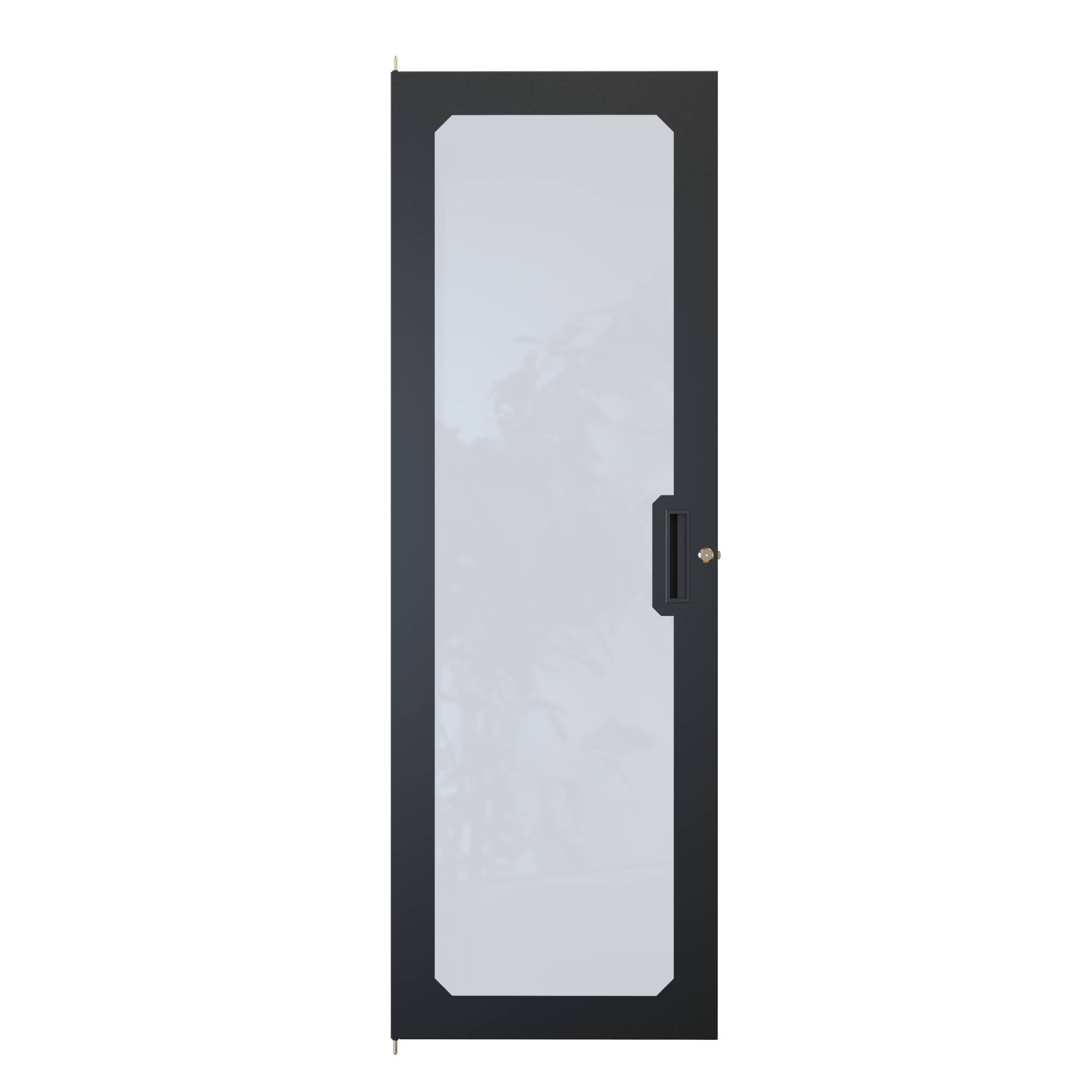

Save 35%REDFP19056BK1 — Window Door For 32U Refk
Hammond Manufacturing · REDFP19056BK1

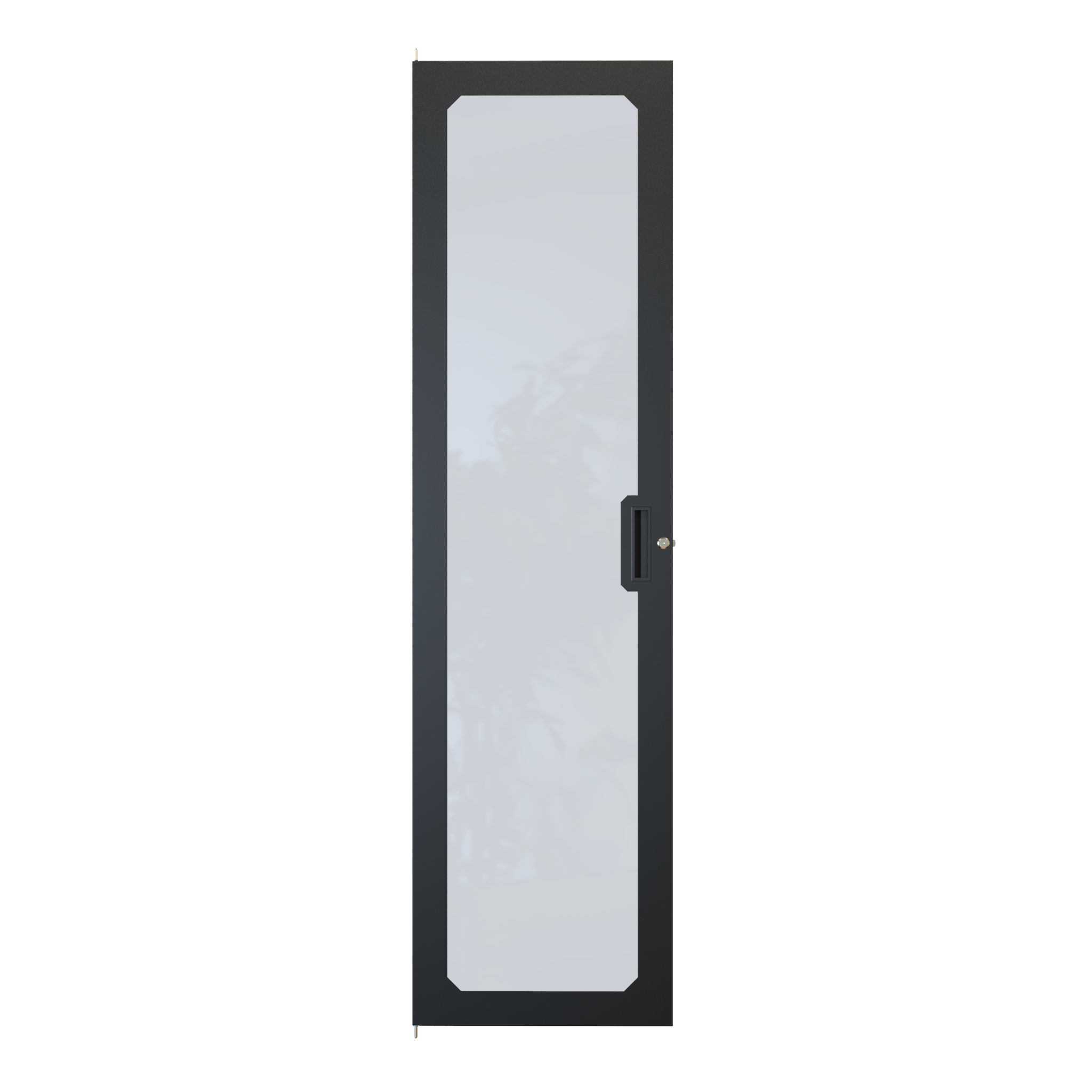

Save 35%REDFP19070BK1 — Window Door For 40U Refk
Hammond Manufacturing · REDFP19070BK1

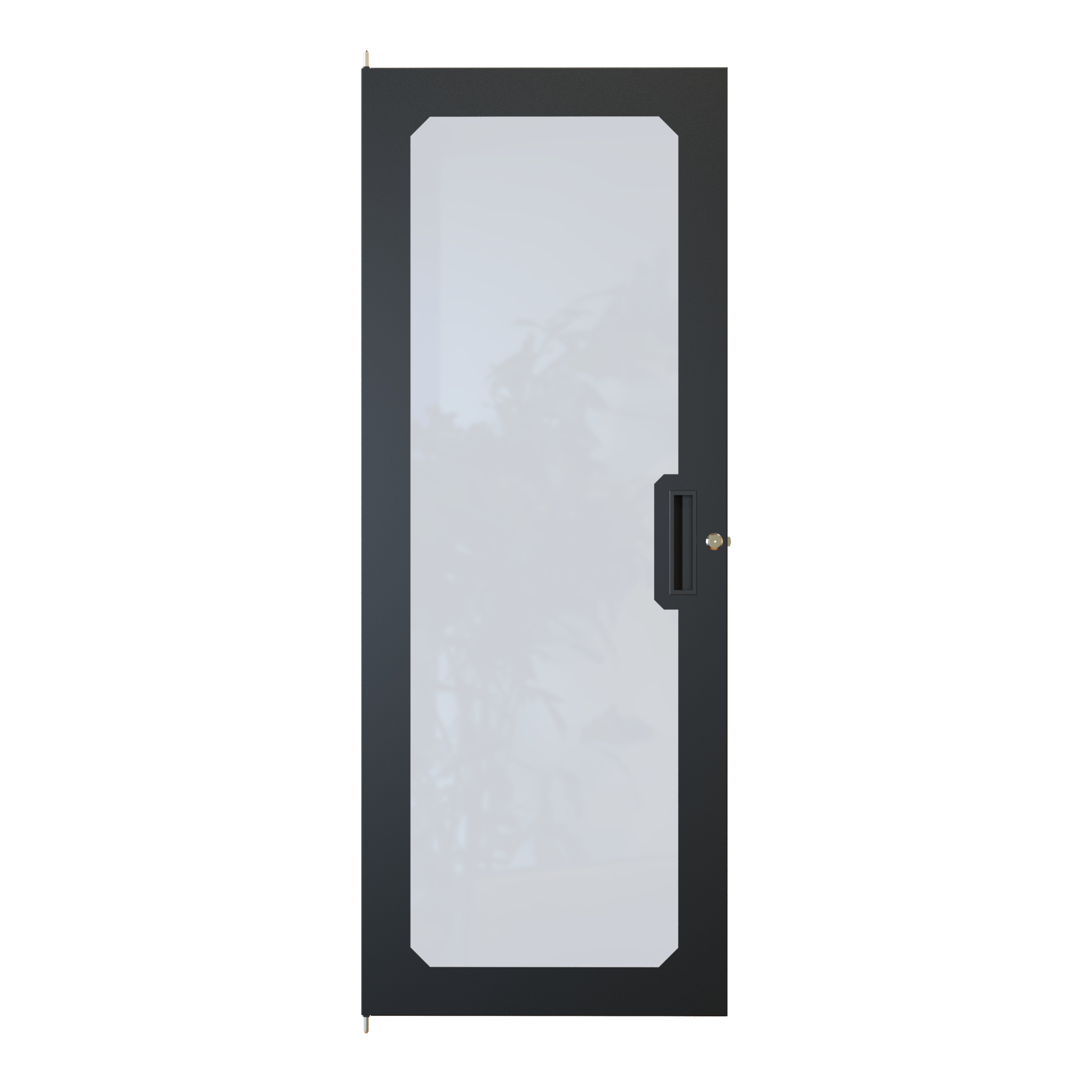

Save 35%REDFP19049BK1 — Window Door For 28U Refk
Hammond Manufacturing · REDFP19049BK1
Save 35%REFK1903517BK1 — 20U 21.34W 17.5D Cabinet Black
Hammond Manufacturing · REFK1903517BK1

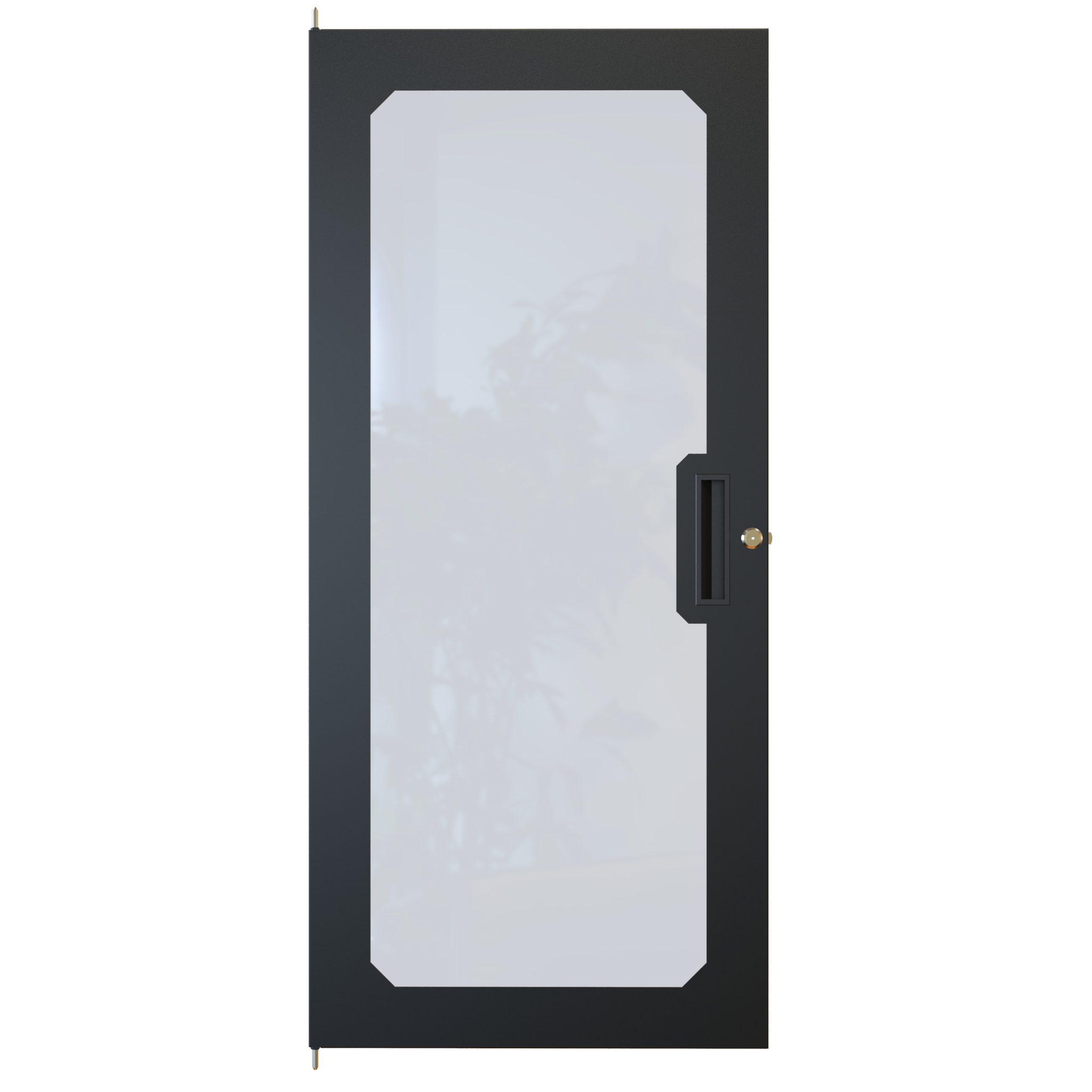

Save 35%REDFP19042BK1 — Window Door For 24U Refk
